Ti5 ROBOT

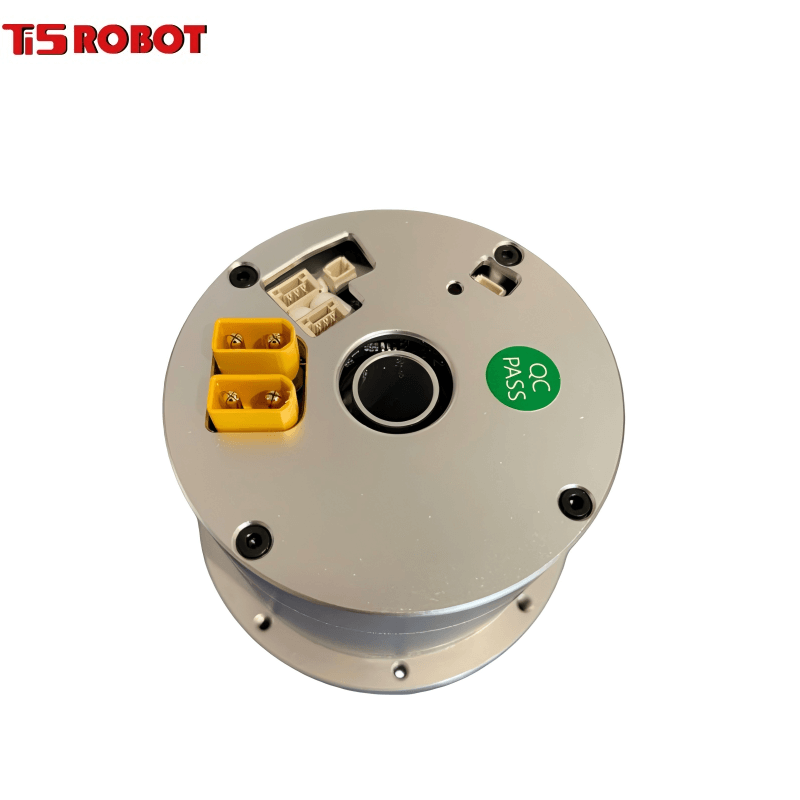

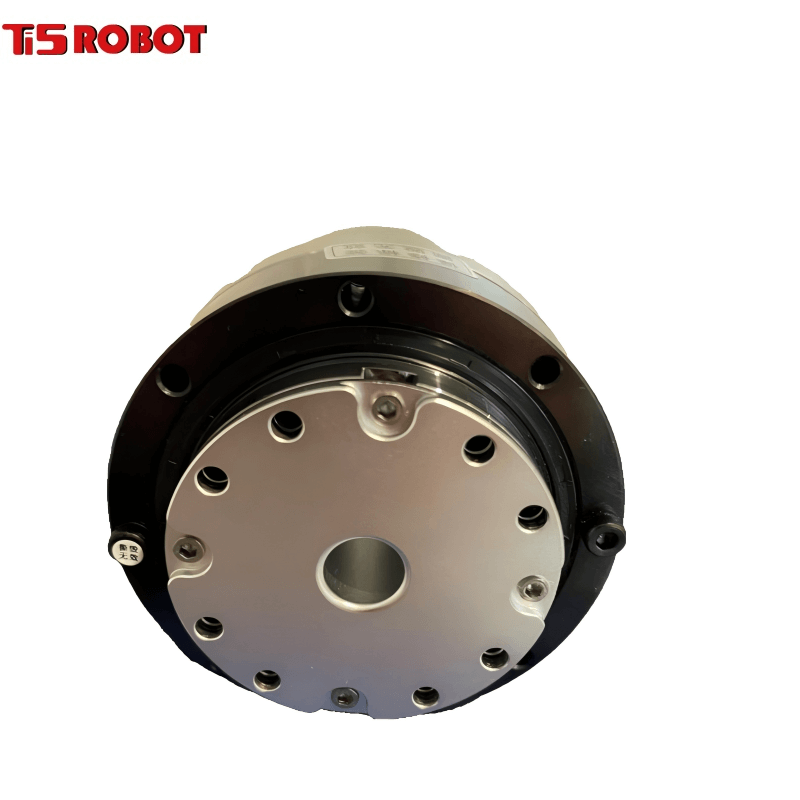

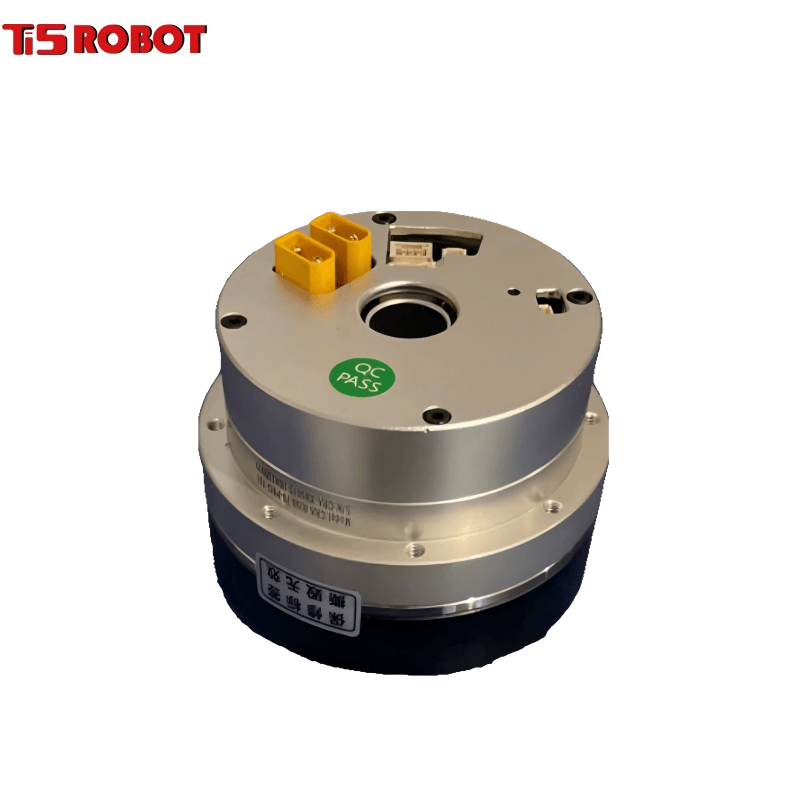

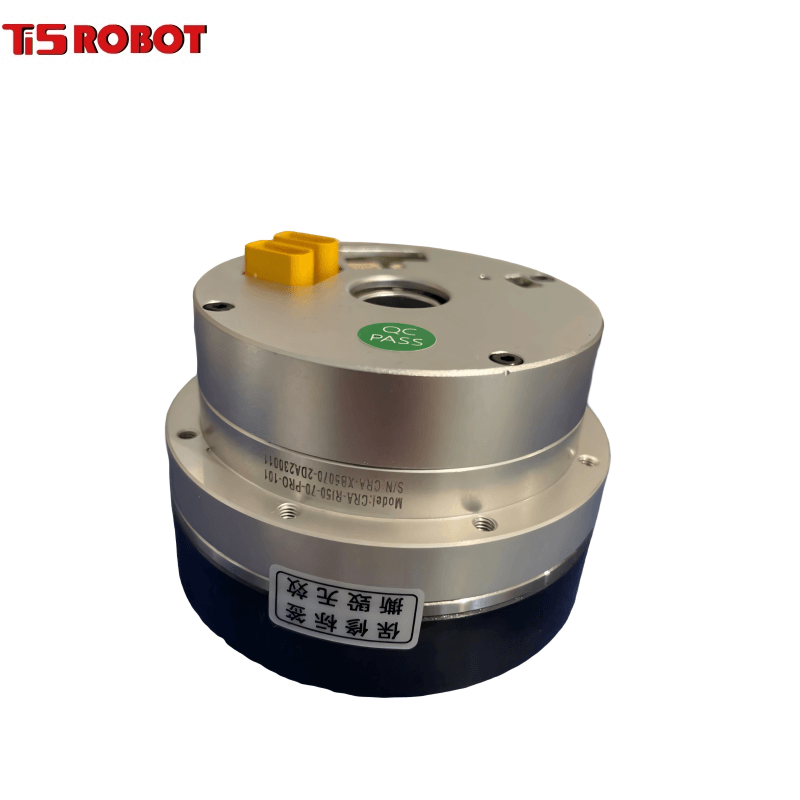

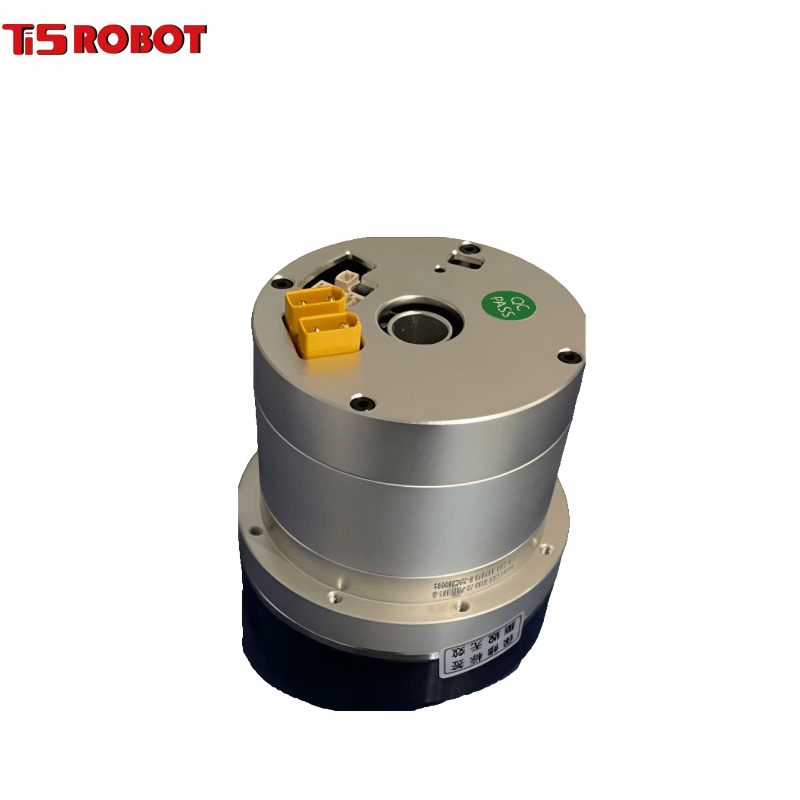

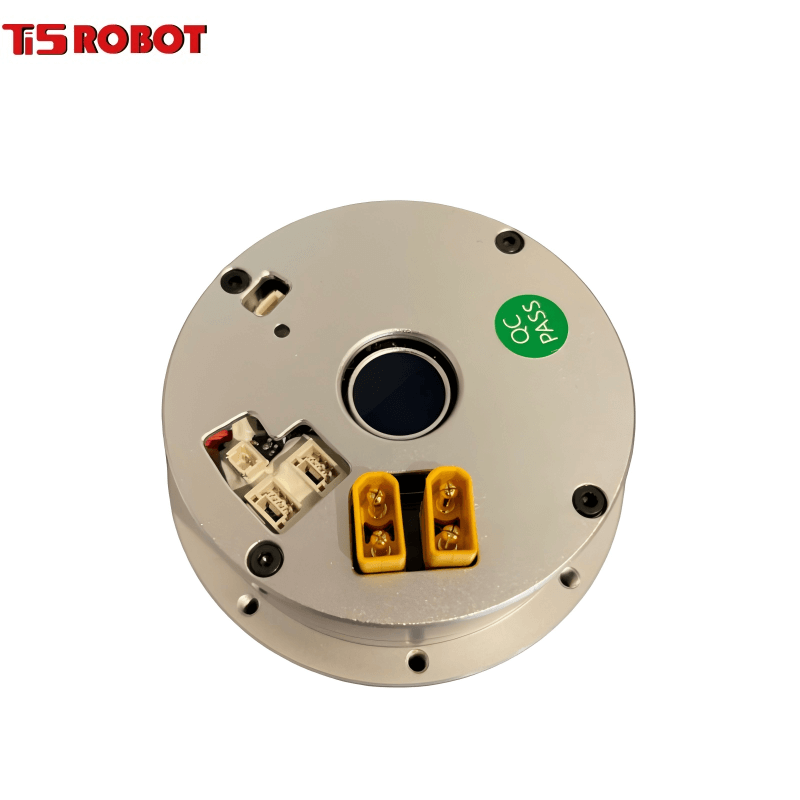

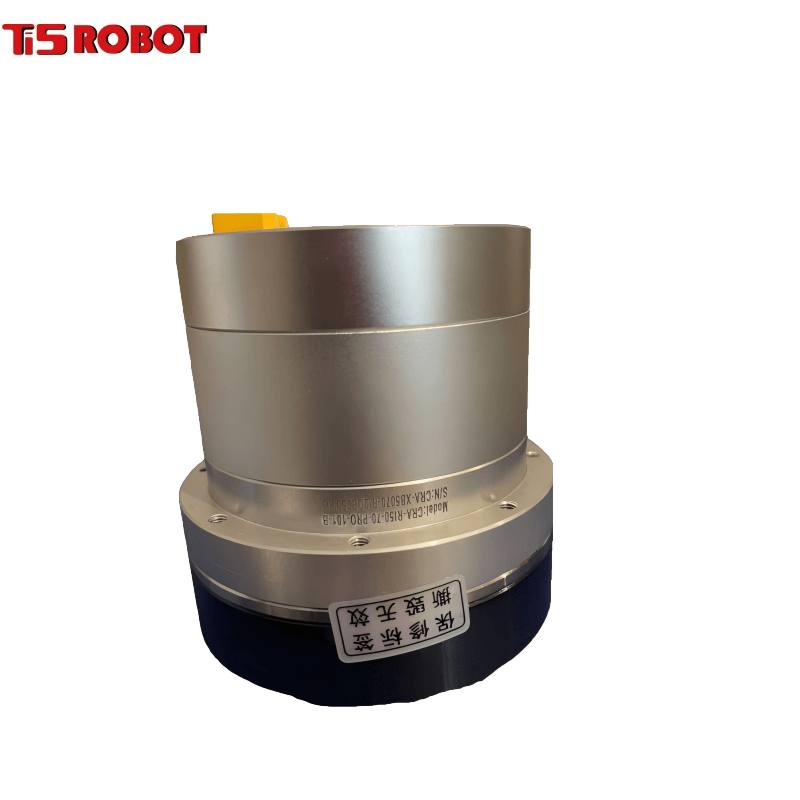

Ti5 ROBOT CRA-RI50-70-PRO Motor

$900.00
Version
Encoder
Brake

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Motor Model CRA-RI50-70-PRO-XX/CRA-RI50-70-PRO-XX-B
Reduction Ratio 51/81/101
Start-stop Peak Torque 23/29/34N.m
Maximum Allowable Average Load Torque 8.6/13.5/13.5N.m
2000 Rpm/(Reduction Ratio) Rated Torque at this speed 6.6/9.6/9.6N·m
Output End Peak Rotational Speed 97/61/49RPM
Rated Speed 75/46/37RPM
Motor Power 150W
Supply Voltage 24-48V
Maximum Continuous Current 5A
Rated Current 3.6A
Encoder Resolution 16Bit
Back Clearance 20/20/10arcsec
Torque Constant 0.089N·m/A
Hole 12mm
Length: Without brake / With brake 63±0.5mm / 81.5±0.5mm
Weight: Without brake / With brake 0.66kg / 0.78kg
Inertia: Without brake / With brake 158.8g·cm² / 228.8g·cm²


CRA-RI50-70-PRO-Motor Installation Dimension Drawing.pdf
