Ti5 ROBOT

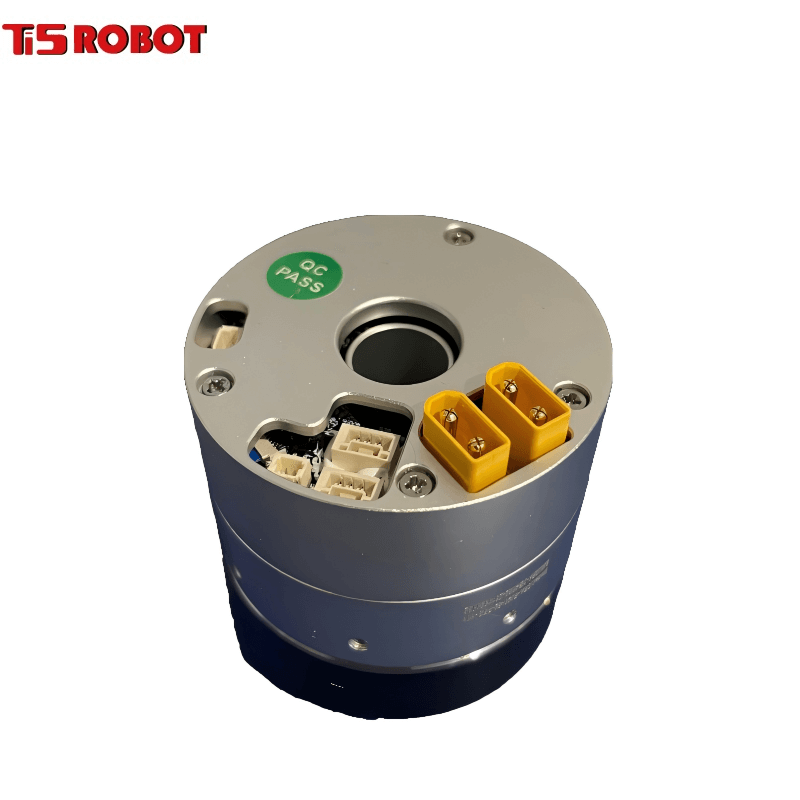

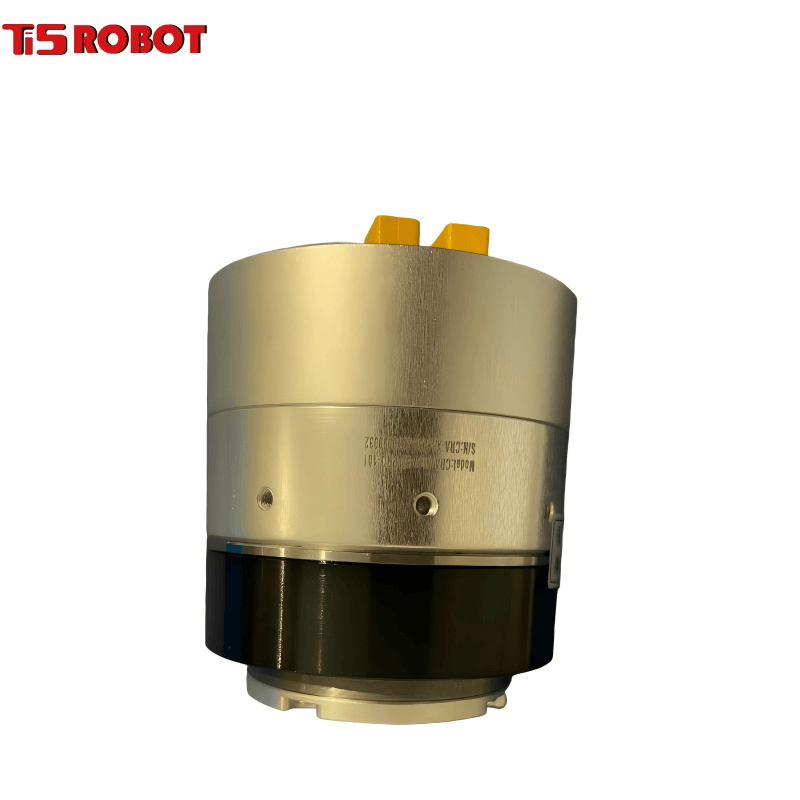

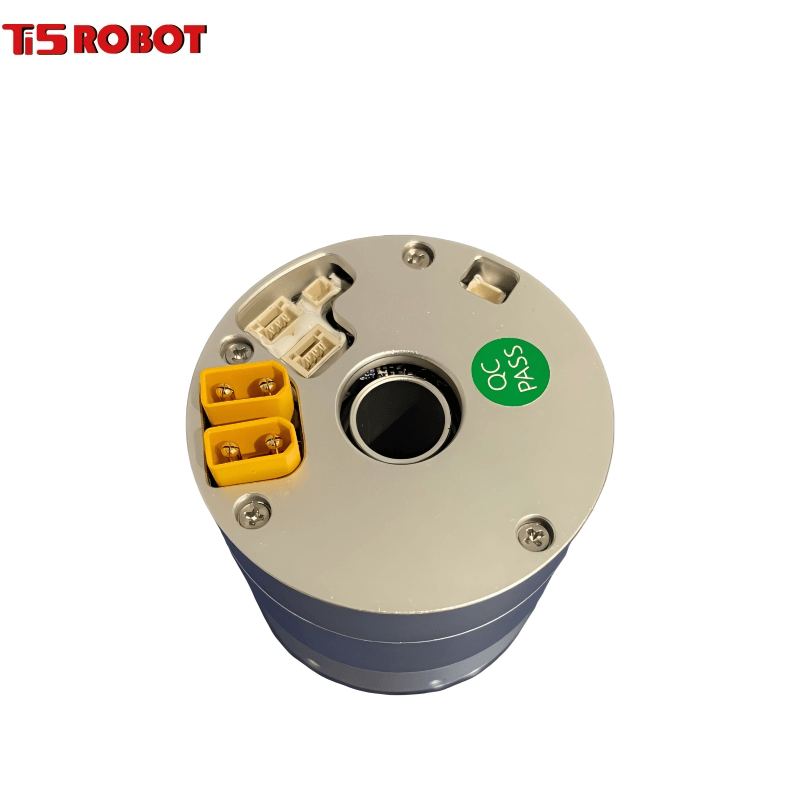

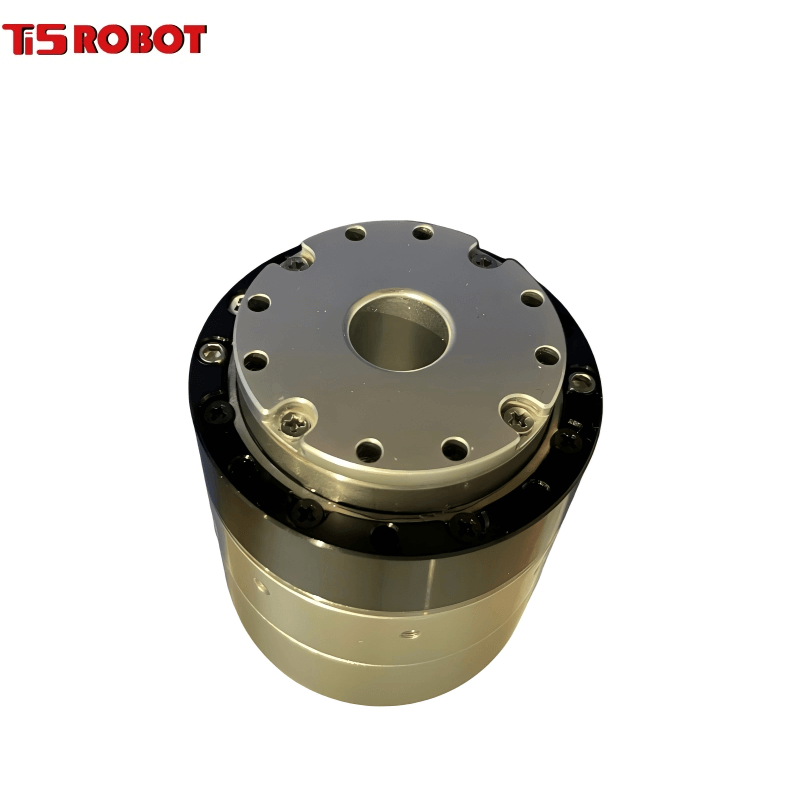

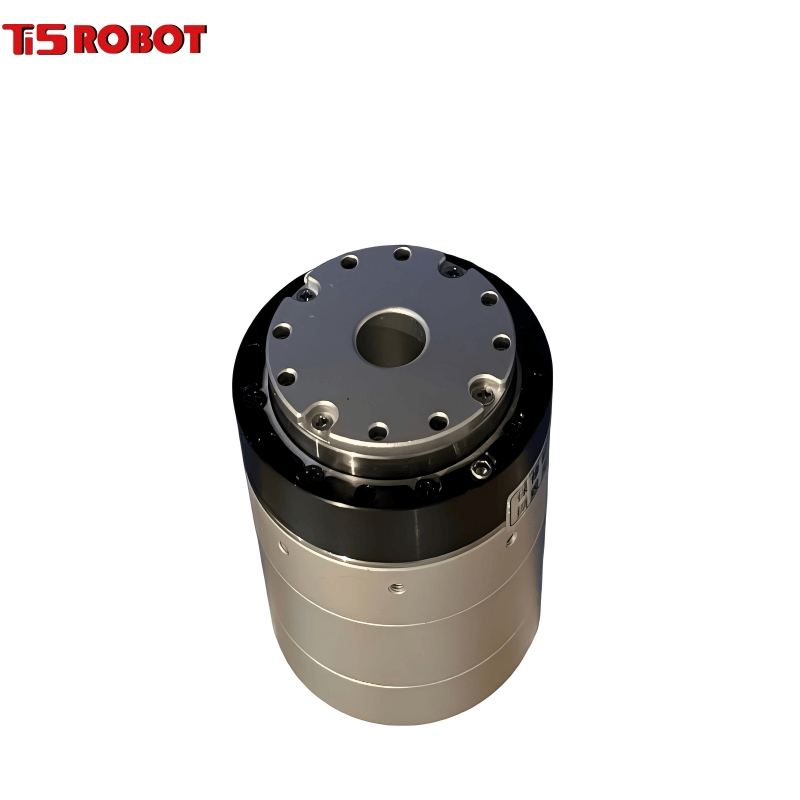

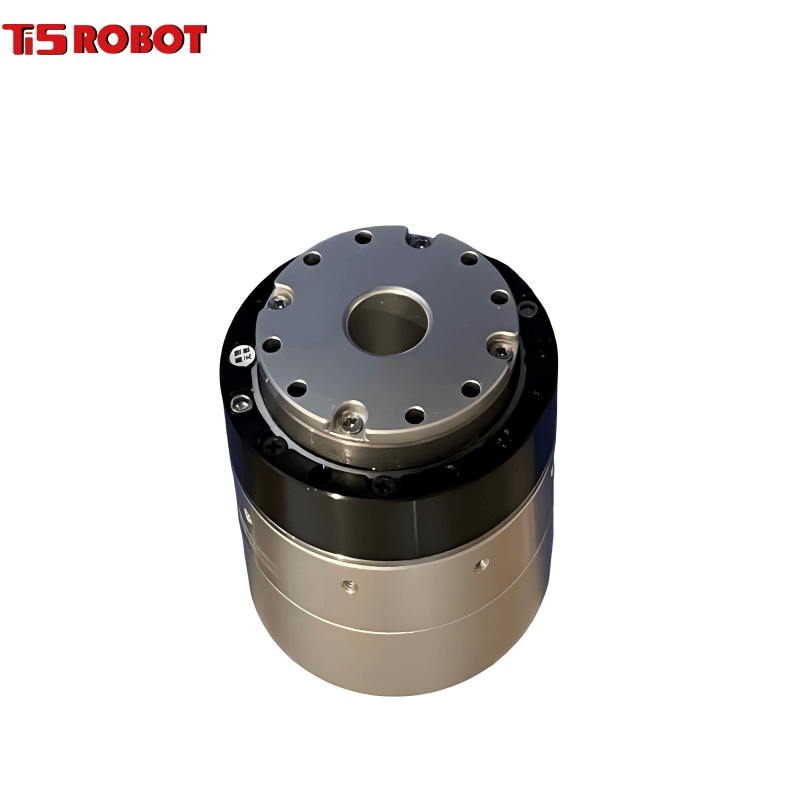

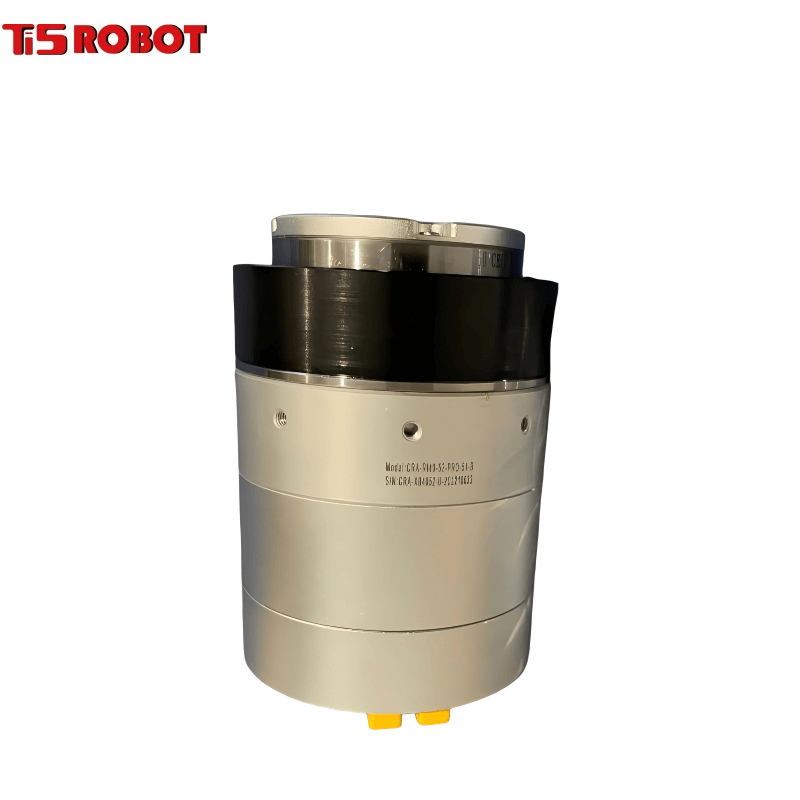

Ti5 ROBOT CRA-RI40-52-PRO Motor

$865.00
Version
Encoder
Brake

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Motor Model CRA-RI40-52-PRO-XX/CRA-RI40-52-PRO-XX-B
Reduction Ratio 51/101
Start-stop Peak Torque 8.3/11N.m
Maximum Allowable Average Load Torque 5.5/8.9N.m
2000 Rpm/(Reduction Ratio) Rated Torque at this speed 3.5/5N·m
Output End Peak Rotational Speed 118/59RPM
Rated Speed 80/40RPM
Motor Power 90W
Supply Voltage 24-48V
Maximum Continuous Current 3A
Rated Current 2A
Encoder Resolution 16Bit
Back Clearance 40/30arcsec
Torque Constant 0.05N·m/A
Hole 12mm
Length: Without brake / With brake 62±0.5mm / 82±0.5mm
Weight: Without brake / With brake 0.32kg / 0.42kg
Inertia: Without brake / With brake 73g·cm² / 116.2g·cm²


CRA-RI40-52-PRO-Motor Installation Dimension Drawing.pdf
