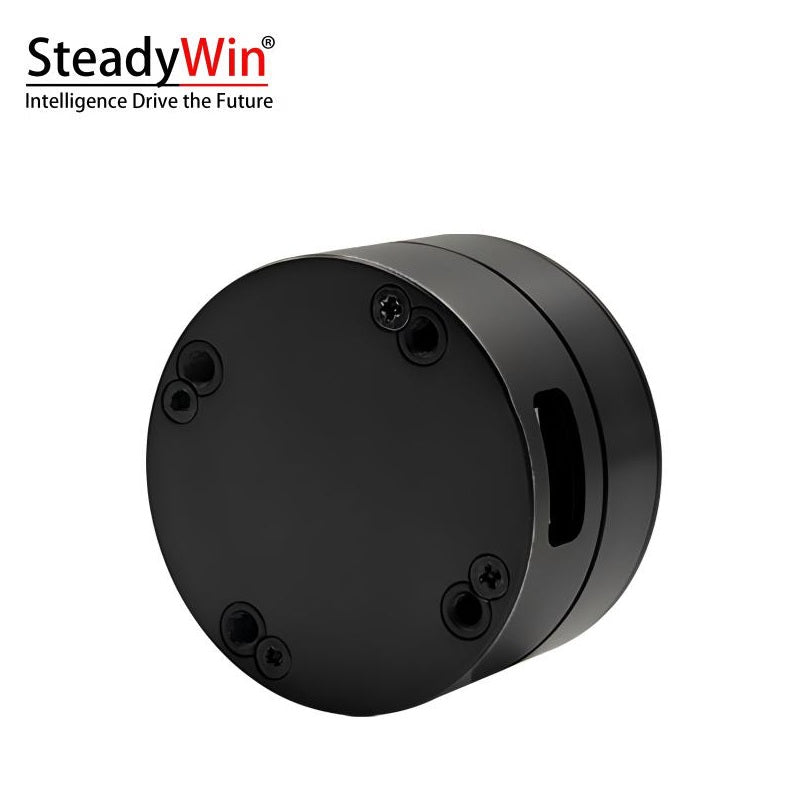

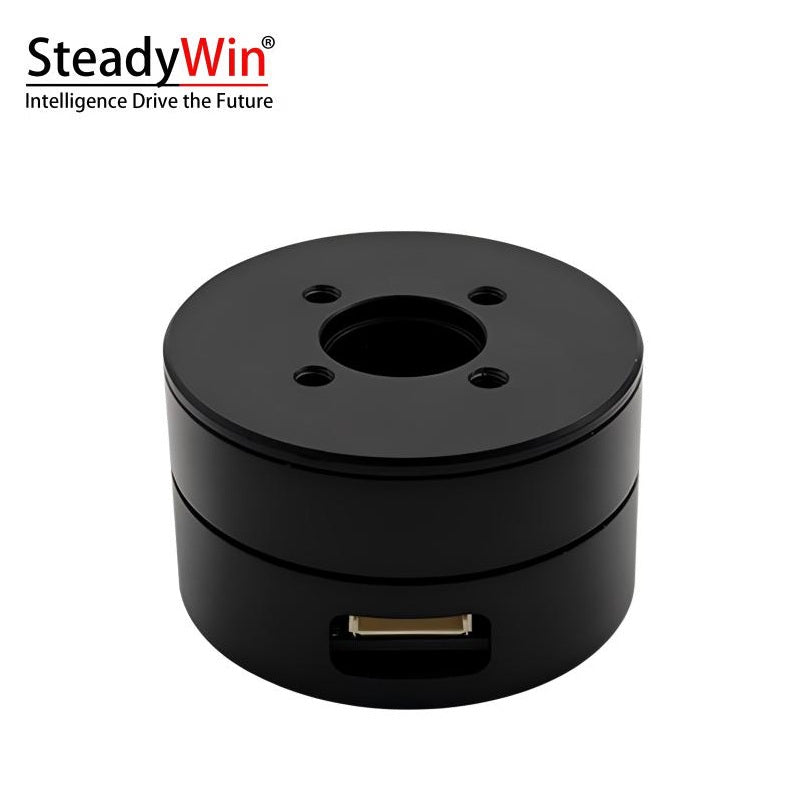

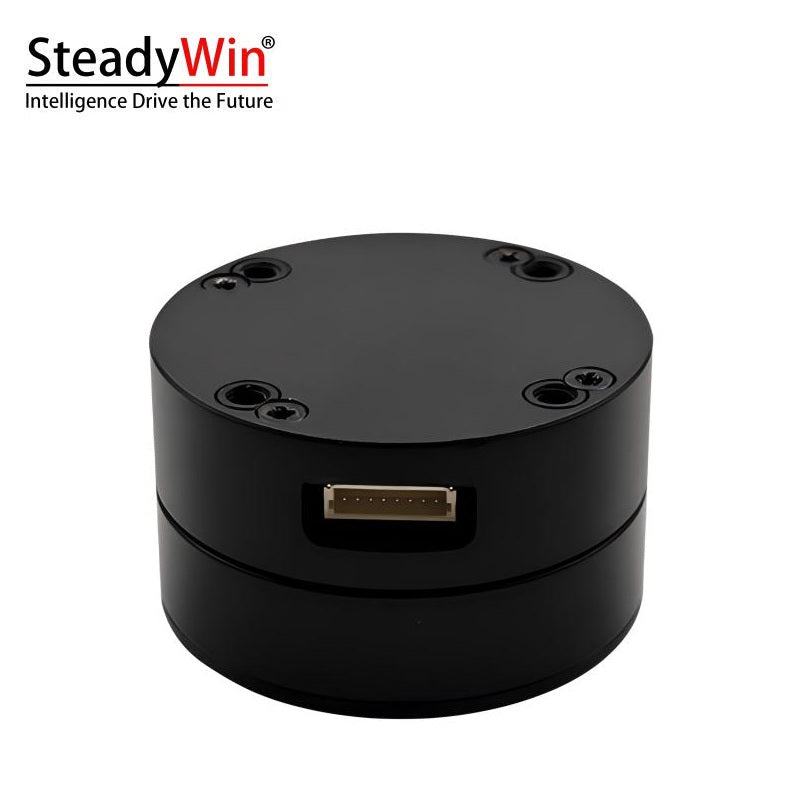

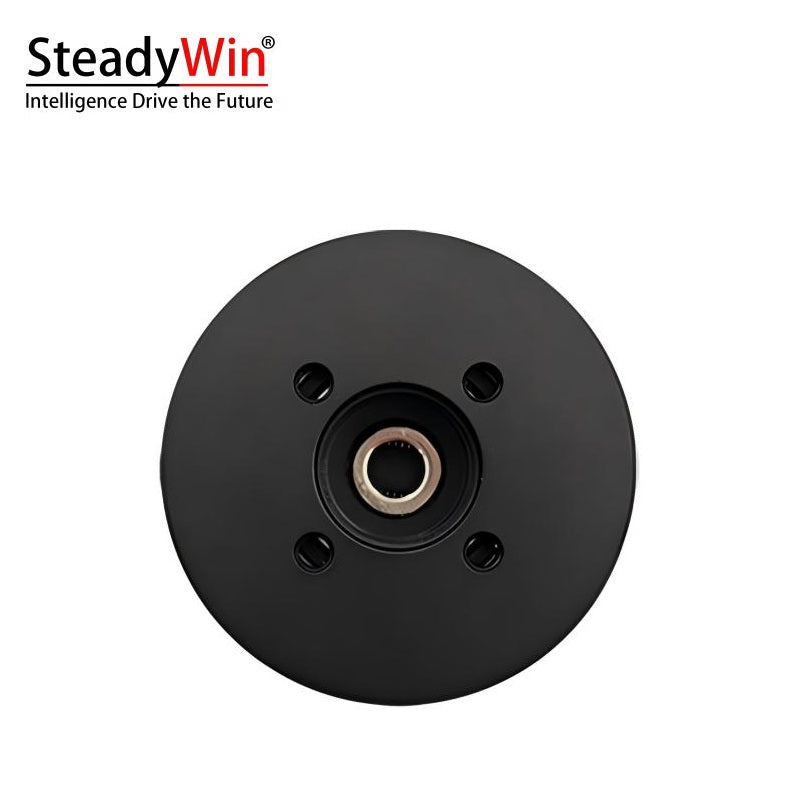

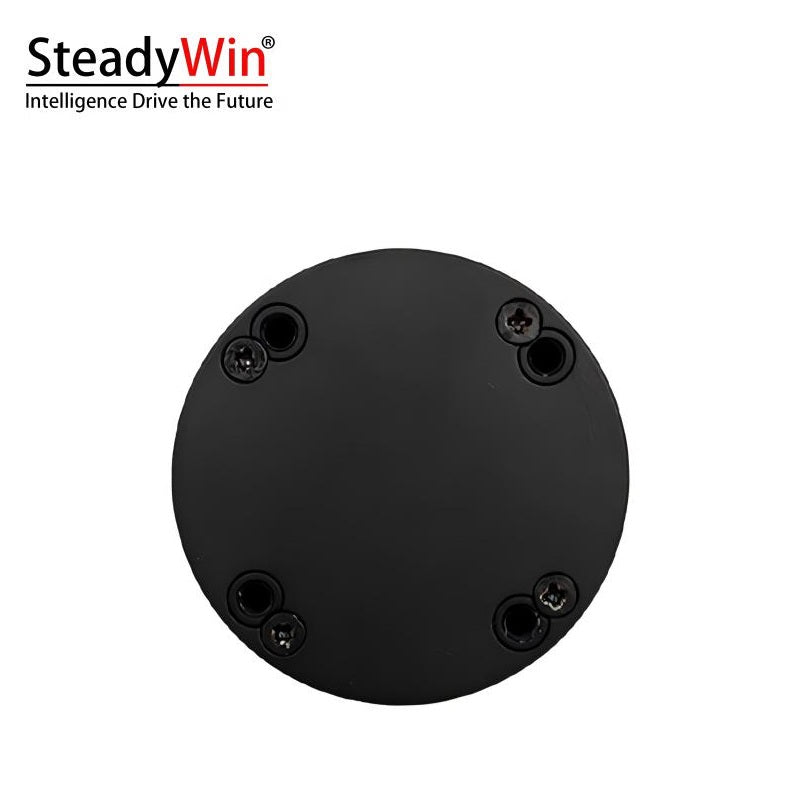

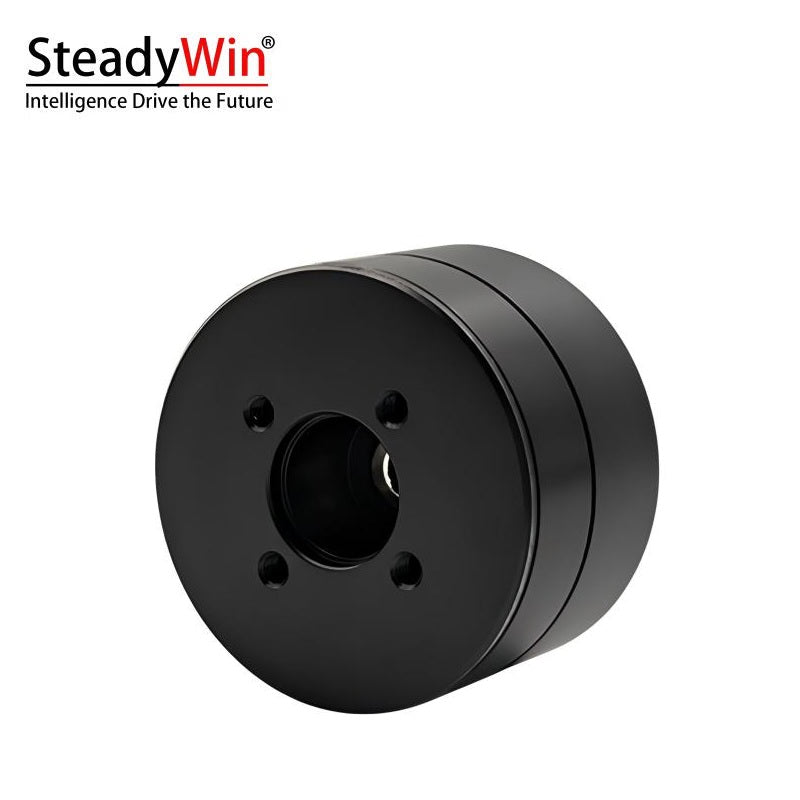

SteadyWin DD4006 Motor
Regular price
$80.00
Unit price
SteadyWin DD4006 Motor - DD4006-7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin DD4006 Motor
Regular price
$80.00
Unit price
SteadyWin DD4006 Motor - DD4006-7 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal voltage | 12V |
| Voltage range | 12~28V |
| Nominal current | 1.1A |
| Nominal power | 13.2W |
| Nominal torque | 0.09N.M |
| Nominal speed | 467rpm |
| No-load max speed |
1412rpm |
| Peak torque | 0.15N.m |
| Peak current | 1.9A |
| Speed constant |
117rpm/v |
| Torque constant | 0.08N.M/A |
| Number of pole pairs | 11Pairs |
| Phase resistance | 3.17Ω |
| Phase inductance | 0.54Mh |
| Rotor inertial | 65gcm^2 |
| Communication | RS485 & CAN |
| Encoder type |
Single-turn absolute |
| Resolution | 14bit |
| Motor weight | 70g |
| Working temperature | -20~80℃ |
DD4006_installation_drawing.pdf

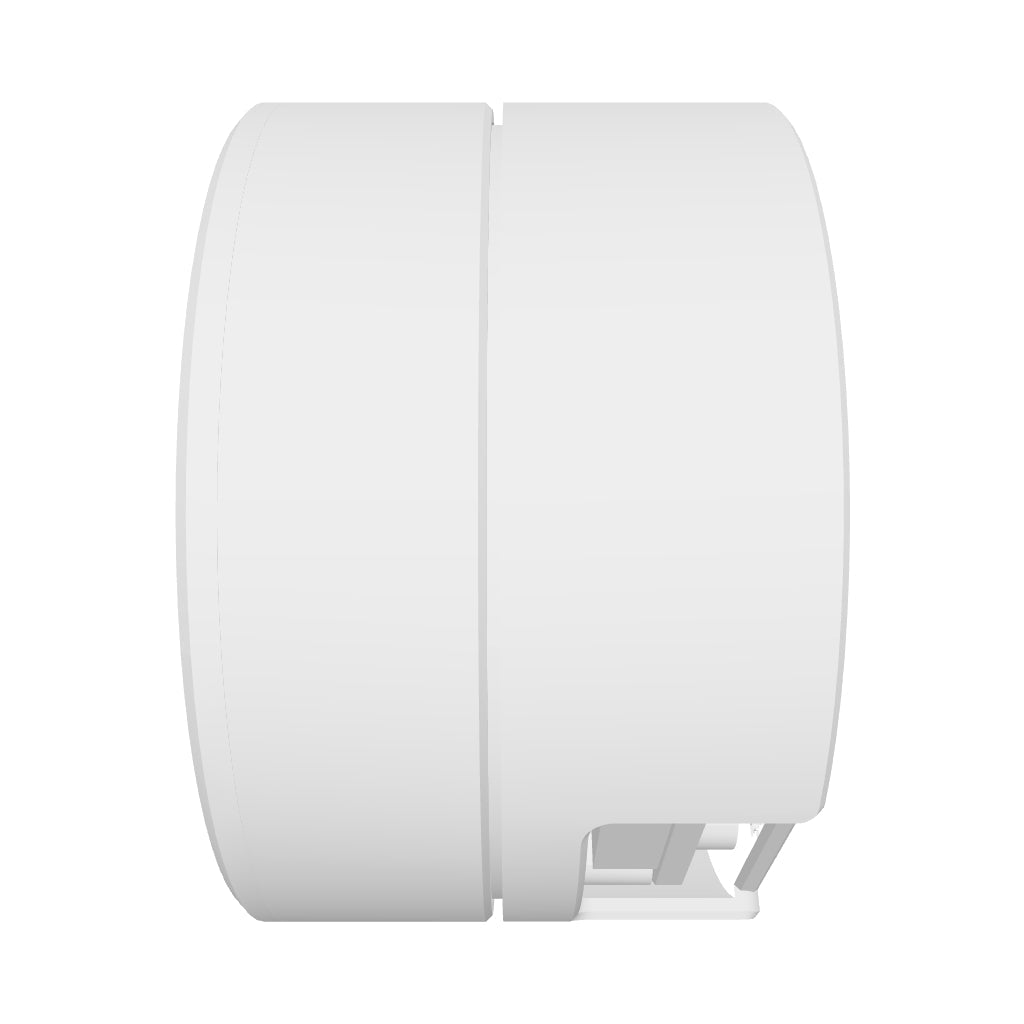

SteadyWin_DD4006_motor.stp
