SITO DRIVE

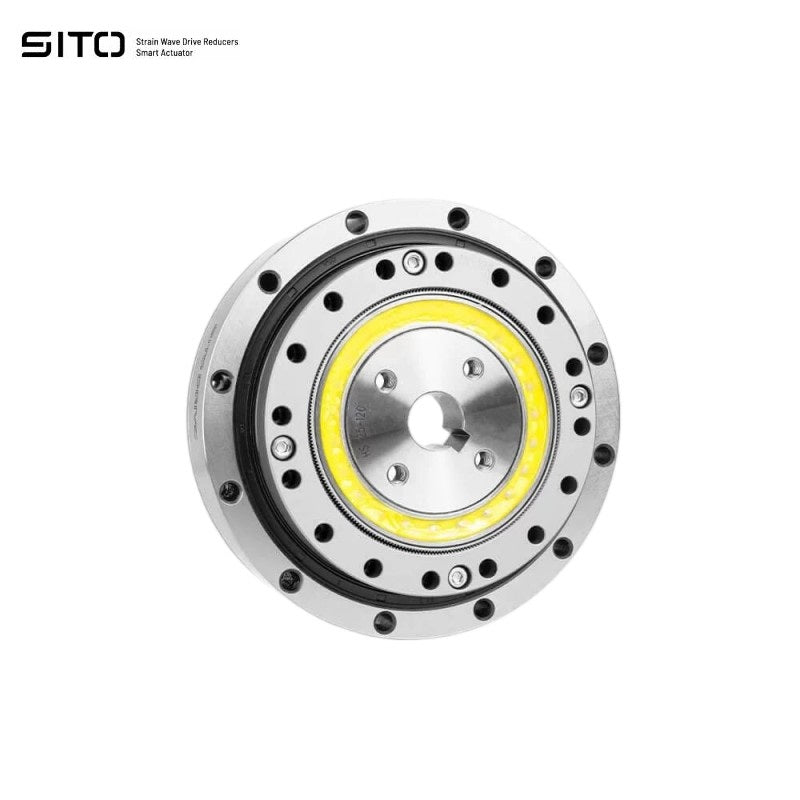

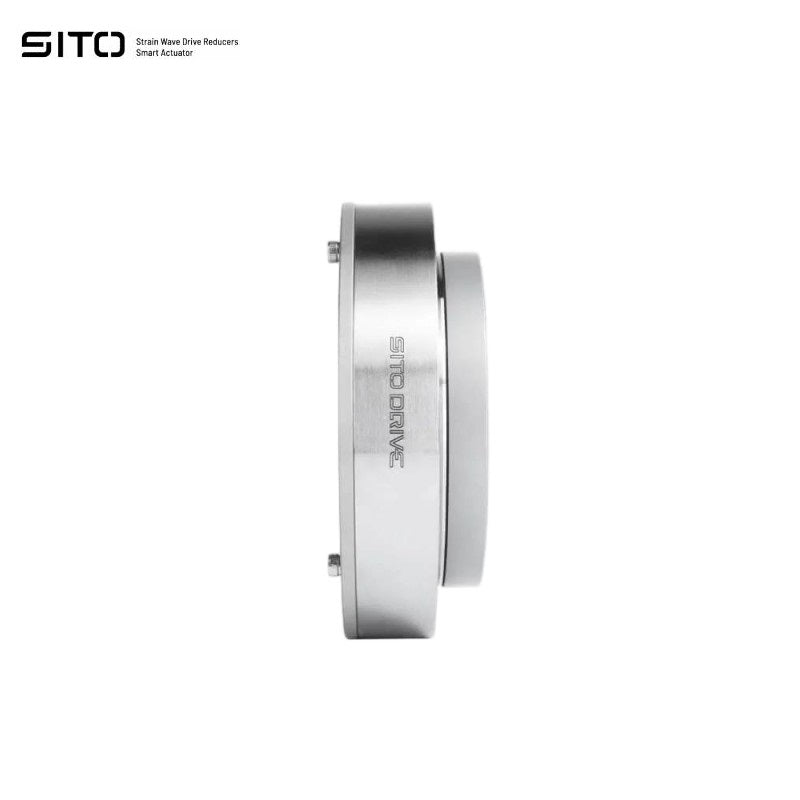

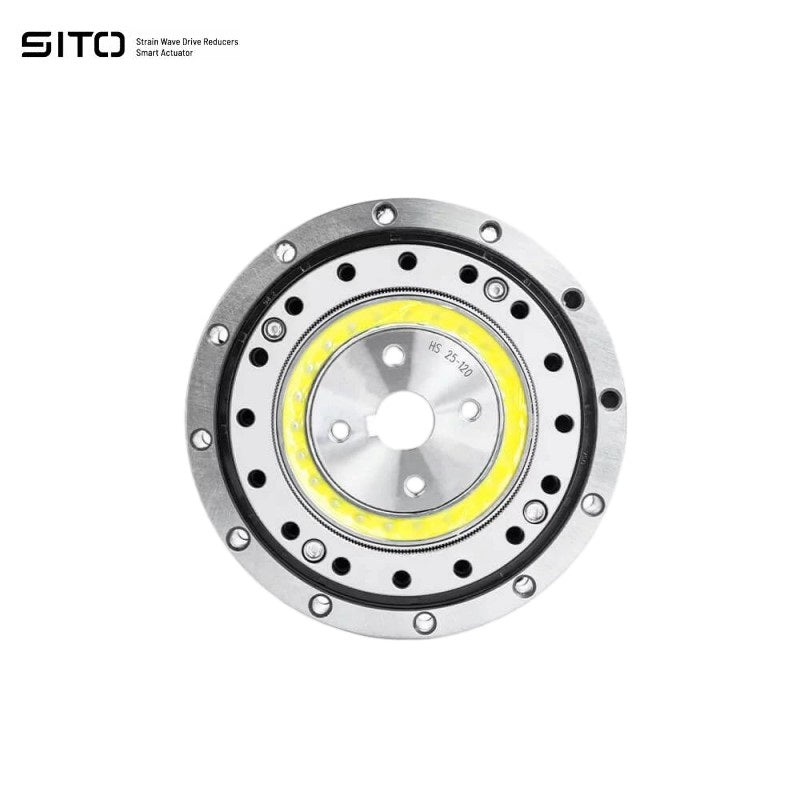

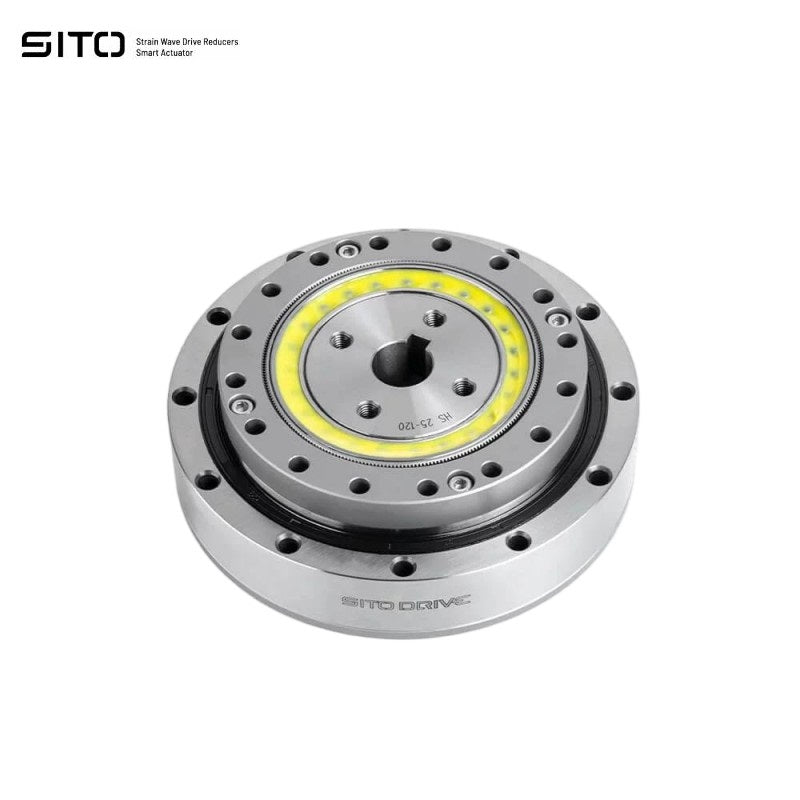

SITO DRIVE HS-25-III Reducer

$256.00

Speed Ratio

30 50 80 100 120

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Application Scenarios

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Technical Specifications

Parameter	Value	Value	Value	Value	Value
Model	HS-25-III	HS-25-III	HS-25-III	HS-25-III	HS-25-III
Transmission Ratio	30	50	80	100	120
Rated Torque at 2000r/min input	27 Nm	39 Nm	63 Nm	67 Nm	67 Nm
Peak Torque allowed during start/stop	50 Nm	98 Nm	137 Nm	157 Nm	167 Nm
Maximum allowable average load torque	38 Nm	55 Nm	87 Nm	108 Nm	108 Nm
Instantaneous Maximum Torque	95 Nm	186 Nm	255 Nm	284 Nm	304 Nm
Maximum allowable input speed	5600 rpm	5600 rpm	5600 rpm	5600 rpm	5600 rpm
Allowable average speed	3500 rpm	3500 rpm	3500 rpm	3500 rpm	3500 rpm
Moment of inertia	0.413 (×10⁻⁴kg·m²)	0.413 (×10⁻⁴kg·m²)	0.413 (×10⁻⁴kg·m²)	0.413 (×10⁻⁴kg·m²)	0.413 (×10⁻⁴kg·m²)
Backlash	≤20 arcsec	≤20 arcsec	≤10 arcsec	≤10 arcsec	≤10 arcsec

SITO_HS_25_III_Reducer.stp

SITO_HS_25_III_Product_instalation_drawing.pdf
