SITO DRIVE

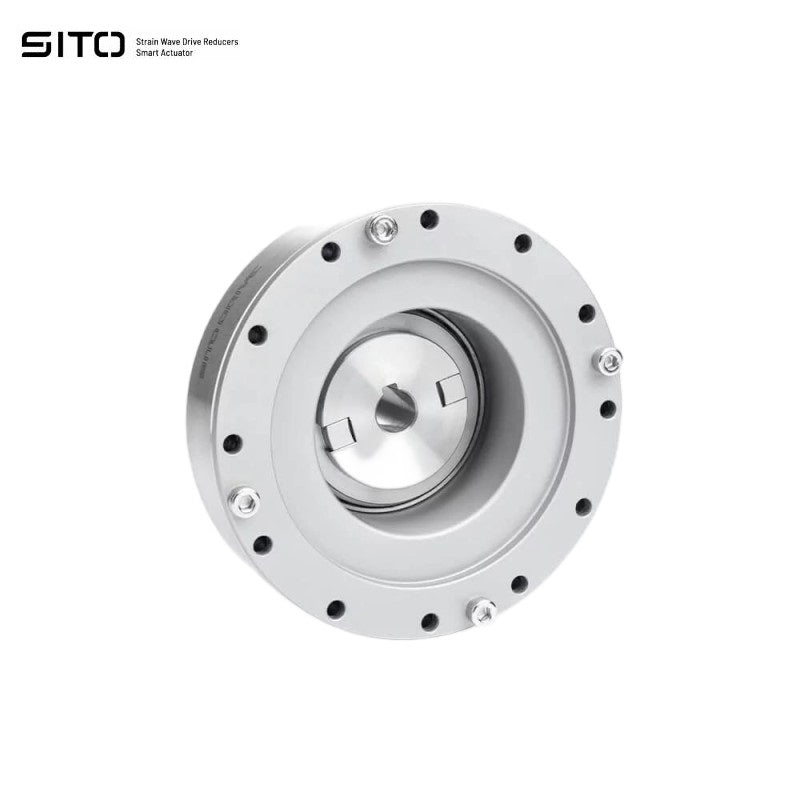

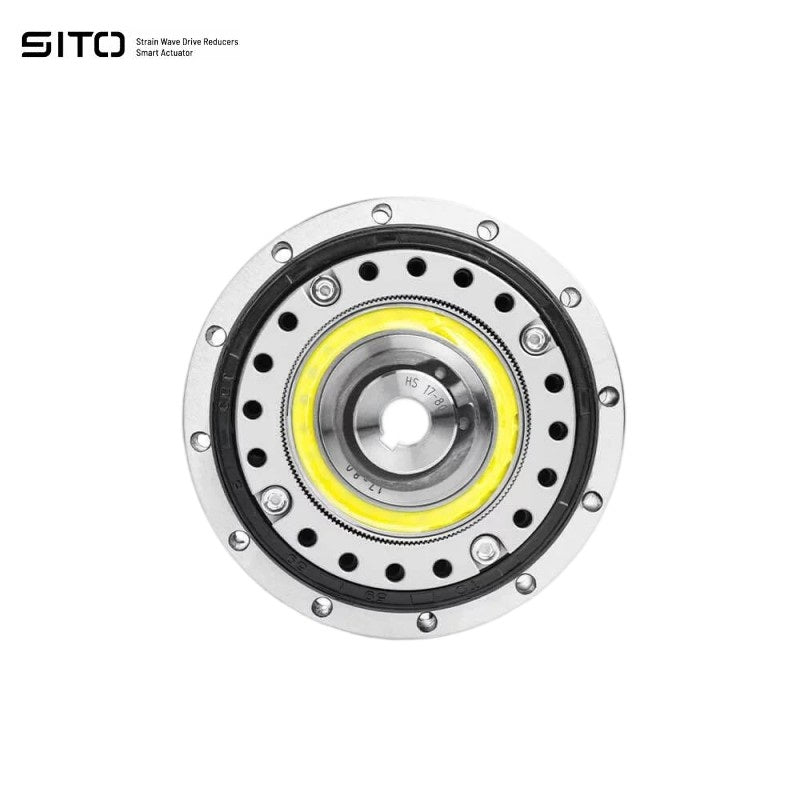

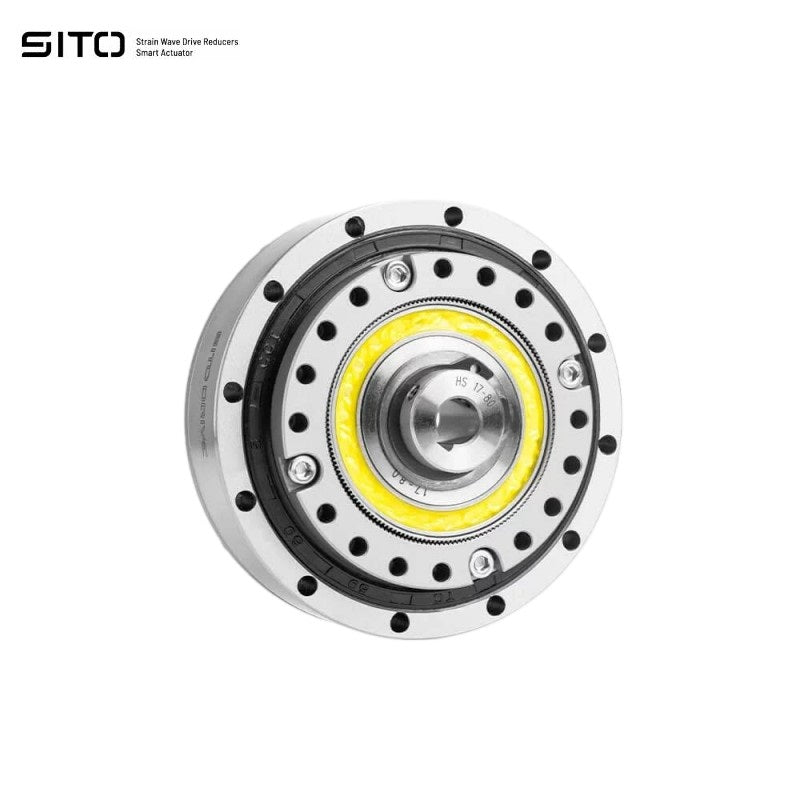

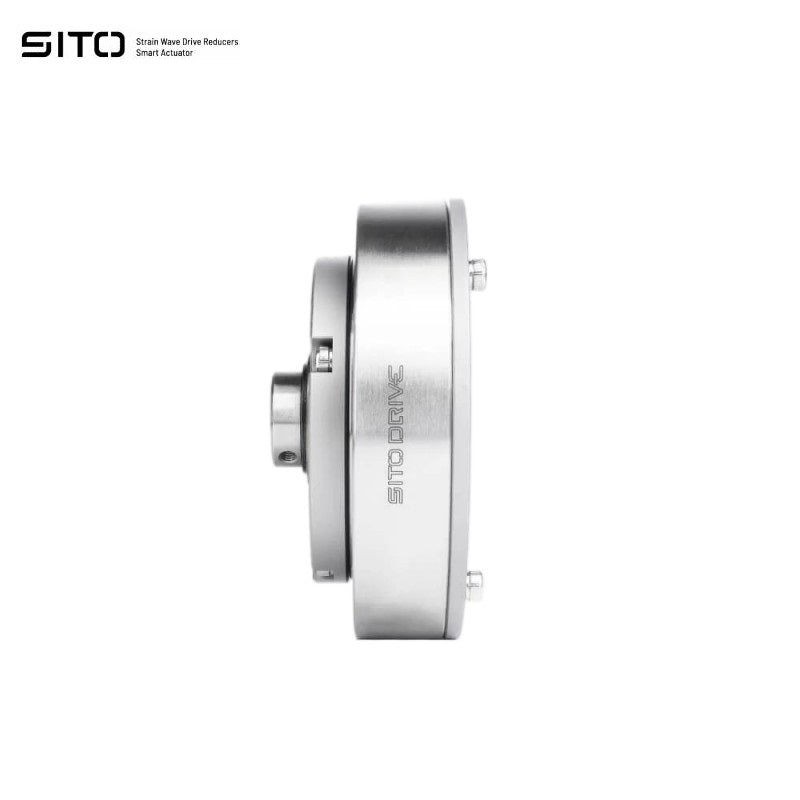

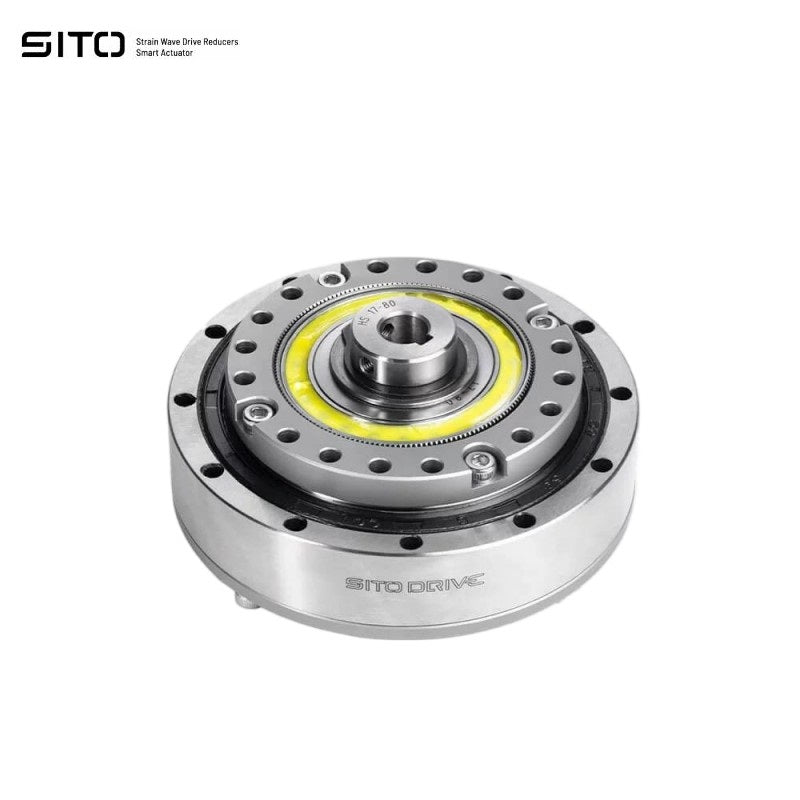

SITO DRIVE HS-17-I Reducer

$240.00

Speed Ratio

30 50 80 100

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Application Scenarios

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Technical Specifications

Parameter	Value	Value	Value	Value
Model	HS-17-I	HS-17-I	HS-17-I	HS-17-I
Transmission Ratio	30	50	80	100
Rated Torque at 2000r/min input	8.8 Nm	16 Nm	22 Nm	24 Nm
Peak Torque allowed during start/stop	16 Nm	34 Nm	43 Nm	54 Nm
Maximum allowable average load torque	12 Nm	26 Nm	27 Nm	39 Nm
Instantaneous Maximum Torque	30 Nm	70 Nm	87 Nm	110 Nm
Maximum allowable input speed	7300 rpm	7300 rpm	7300 rpm	7300 rpm
Allowable average speed	3500 rpm	3500 rpm	3500 rpm	3500 rpm
Moment of inertia	0.079 (×10⁻⁴kg·m²)	0.079 (×10⁻⁴kg·m²)	0.079 (×10⁻⁴kg·m²)	0.079 (×10⁻⁴kg·m²)
Backlash	≤20 arcsec	≤20 arcsec	≤10 arcsec	≤10 arcsec

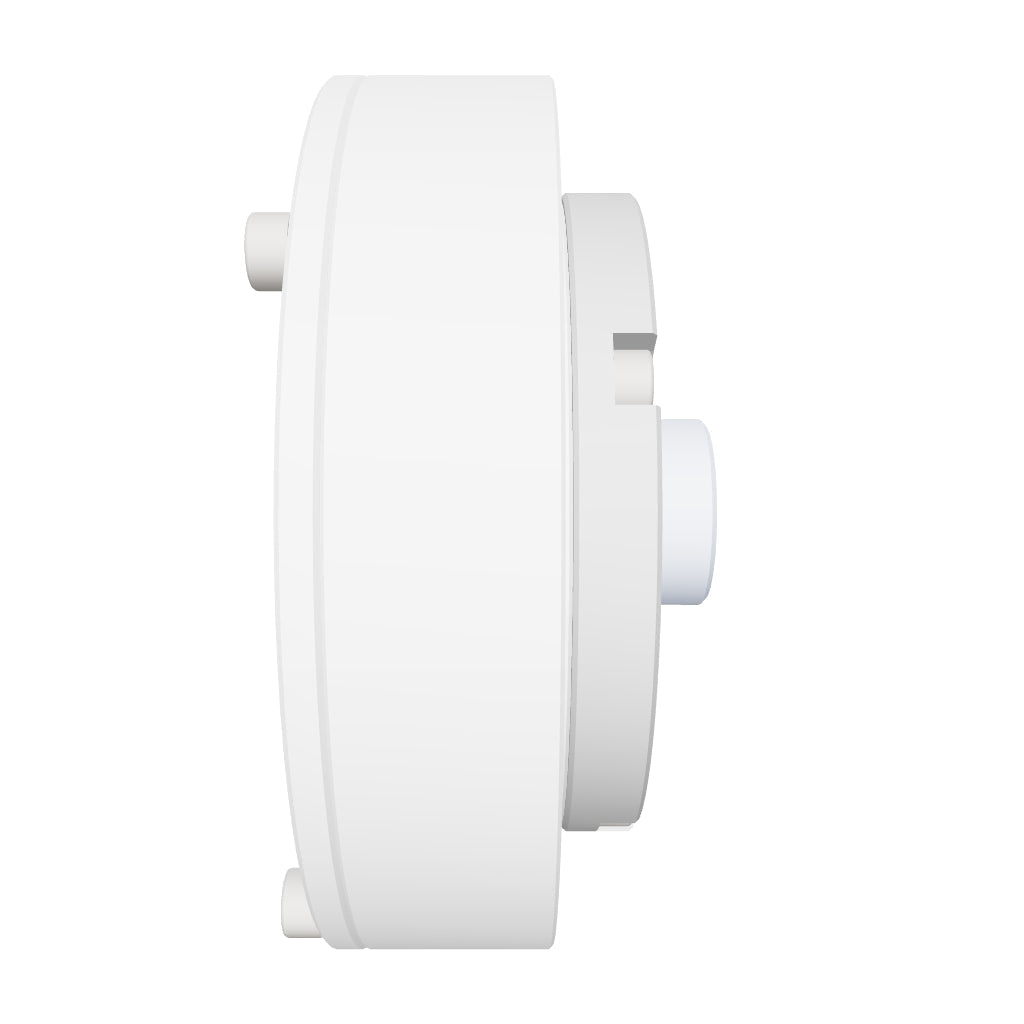

SITO_HS_17_I_Reducer.stp

SITO_HS_17_I_Product_instalation_drawing.pdf
