SITO DRIVE | SKU:

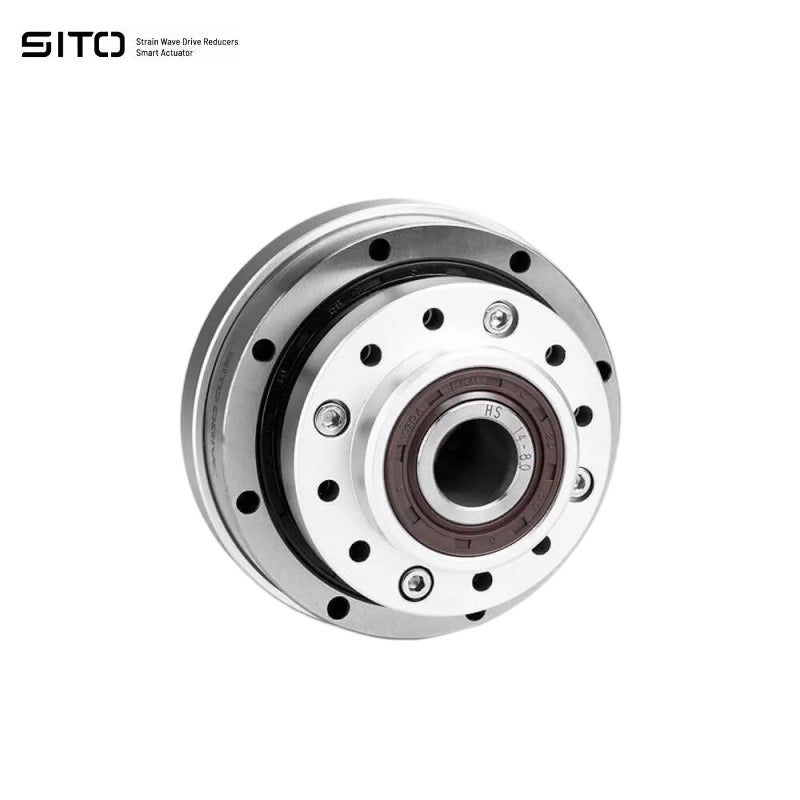

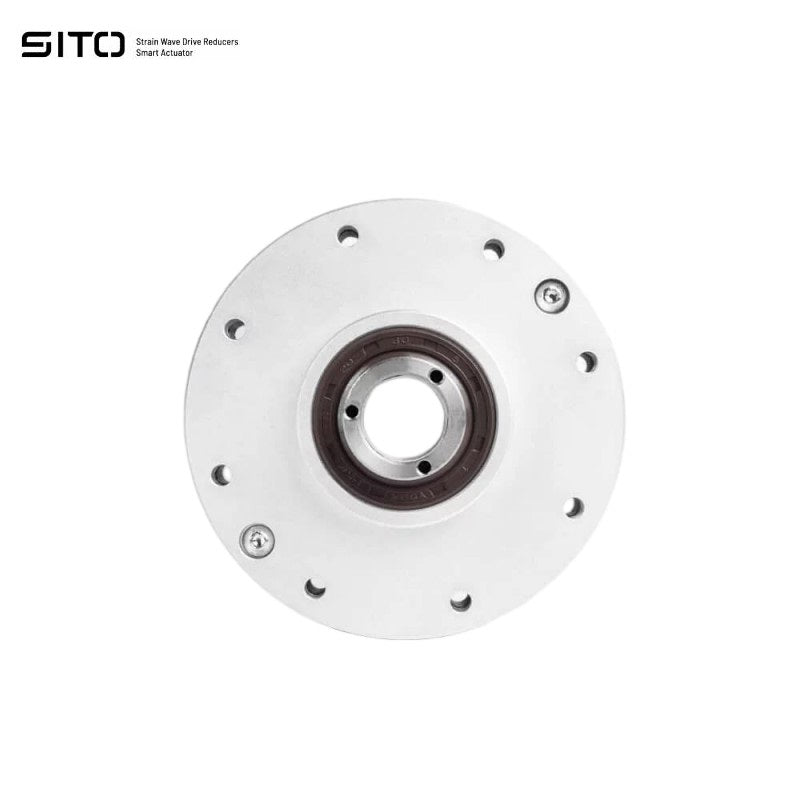

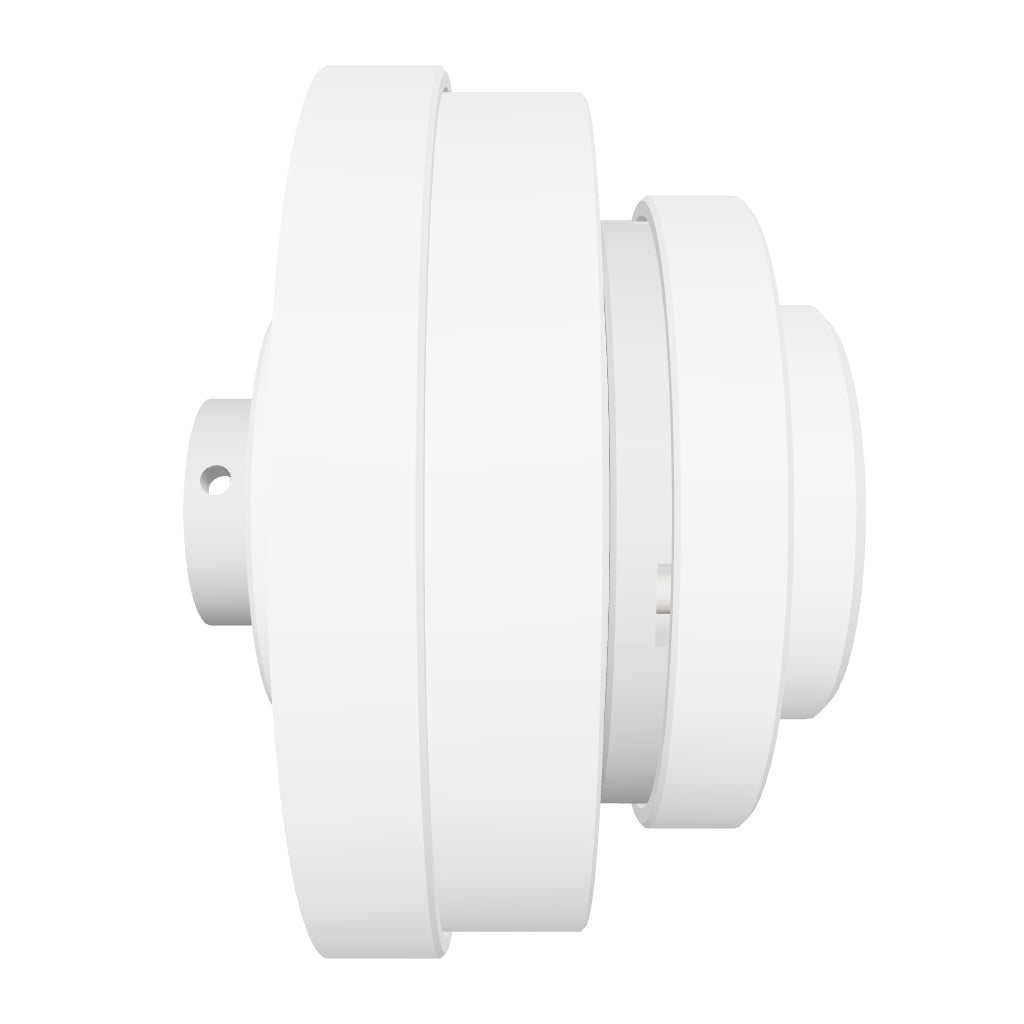

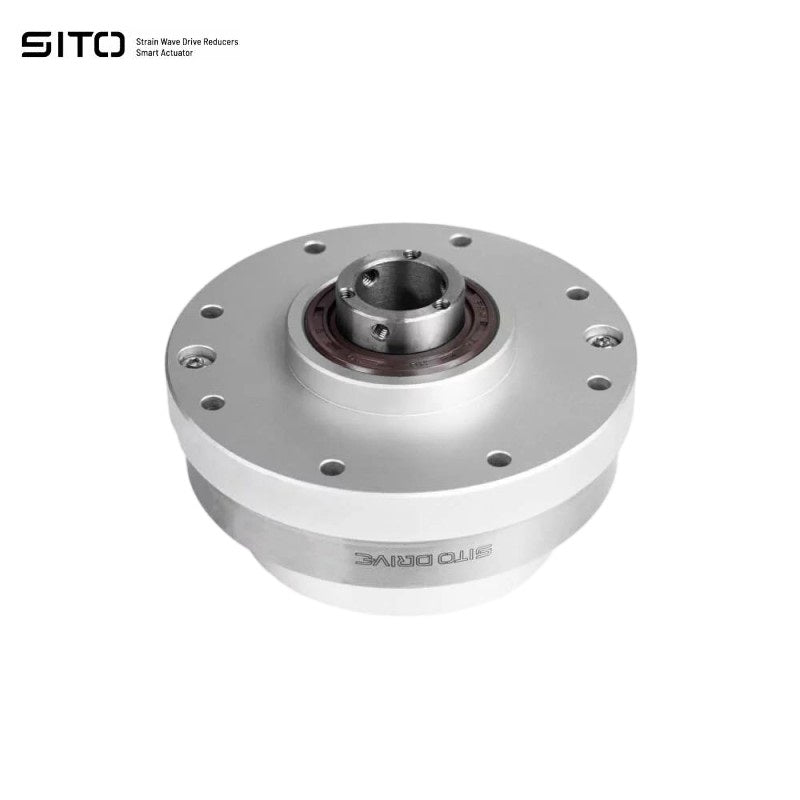

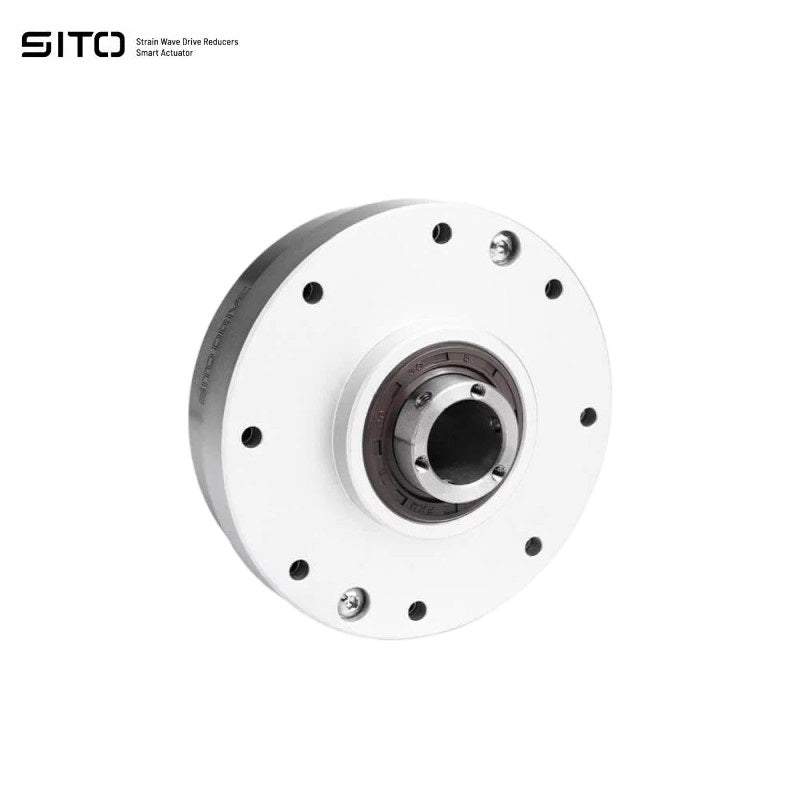

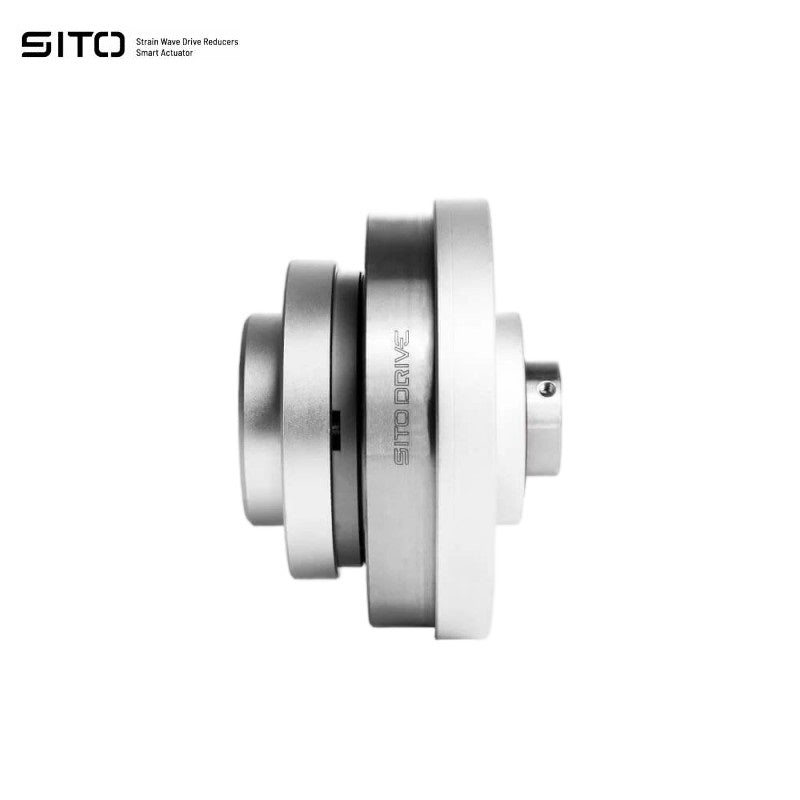

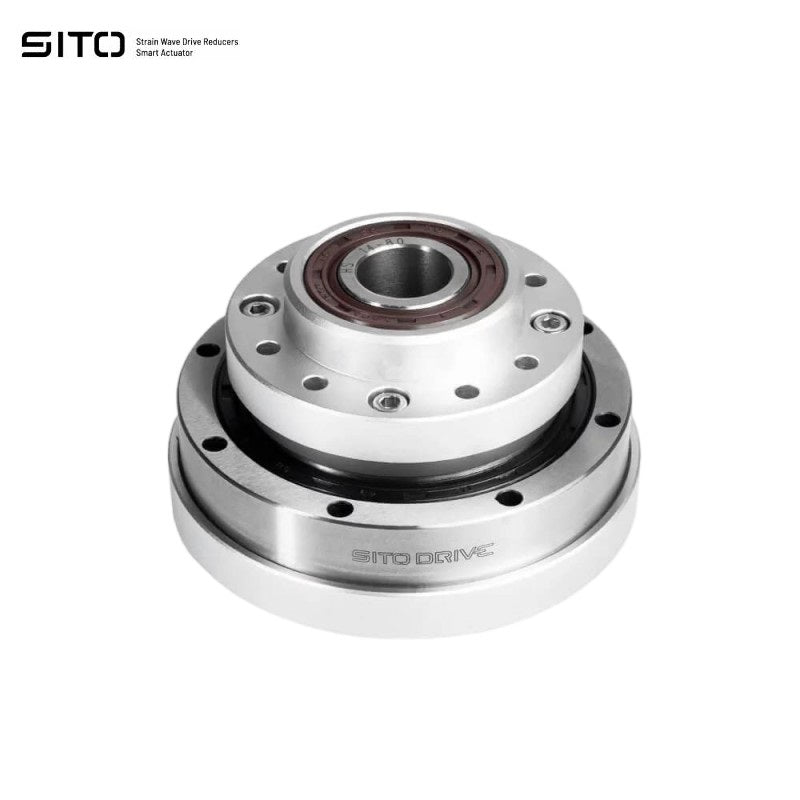

SITO DRIVE HS-14-II Reducer
Regular price
$235.00
Unit price
Unavailable
SITO DRIVE HS-14-II Reducer - 30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SITO DRIVE HS-14-II Reducer
Regular priceFrom
$235.00
Unit price
Unavailable
SITO DRIVE HS-14-II Reducer - 30 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
| Model | HS-14-II | HS-14-II | HS-14-II | HS-14-II |
| Transmission Ratio | 30 | 50 | 80 | 100 |
| Rated Torque at 2000r/min input | 4 Nm | 5.4 Nm | 7.8 Nm | 7.8 Nm |
| Peak Torque allowed during start/stop | 9 Nm | 18 Nm | 23 Nm | 28 Nm |
| Maximum allowable average load torque | 6.8 Nm | 6.9 Nm | 11 Nm | 11 Nm |
| Instantaneous Maximum Torque | 17 Nm | 35 Nm | 47 Nm | 54 Nm |
| Maximum allowable input speed | 8500 rpm | 8500 rpm | 8500 rpm | 8500 rpm |
| Allowable average speed | 3500 rpm | 3500 rpm | 3500 rpm | 3500 rpm |
| Moment of inertia | 0.033 (×10⁻⁴kg·m²) | 0.033 (×10⁻⁴kg·m²) | 0.033 (×10⁻⁴kg·m²) | 0.033 (×10⁻⁴kg·m²) |
| Backlash | ≤20 arcsec | ≤20 arcsec | ≤10 arcsec | ≤10 arcsec |
