SITO DRIVE | SKU:

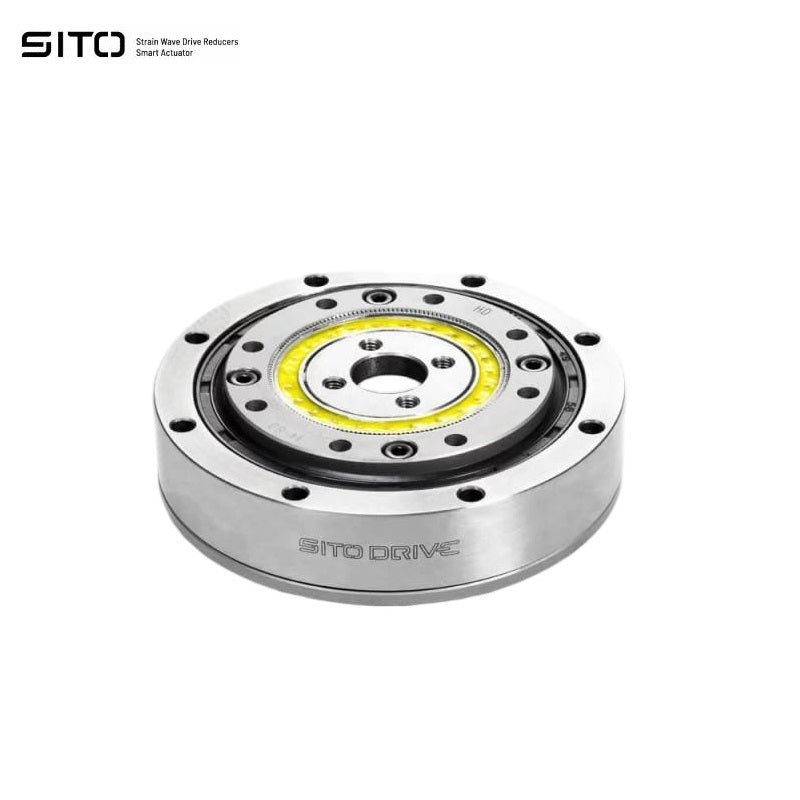

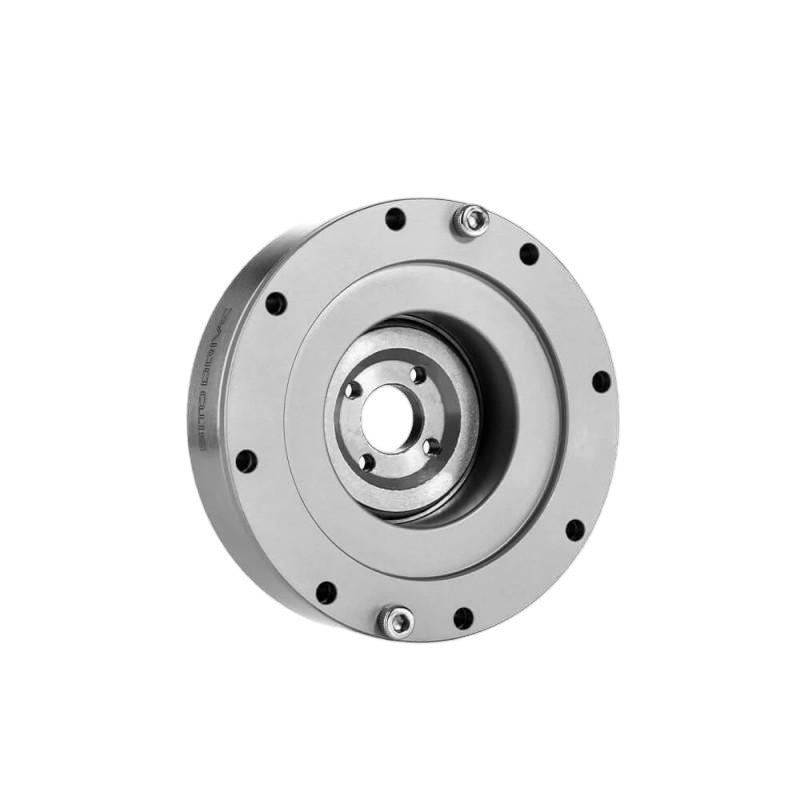

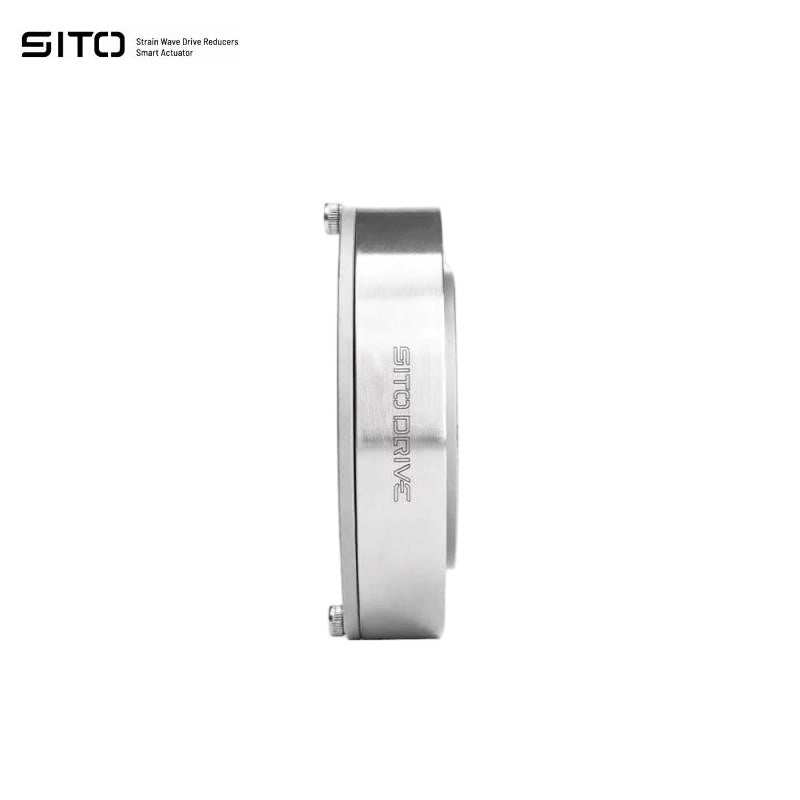

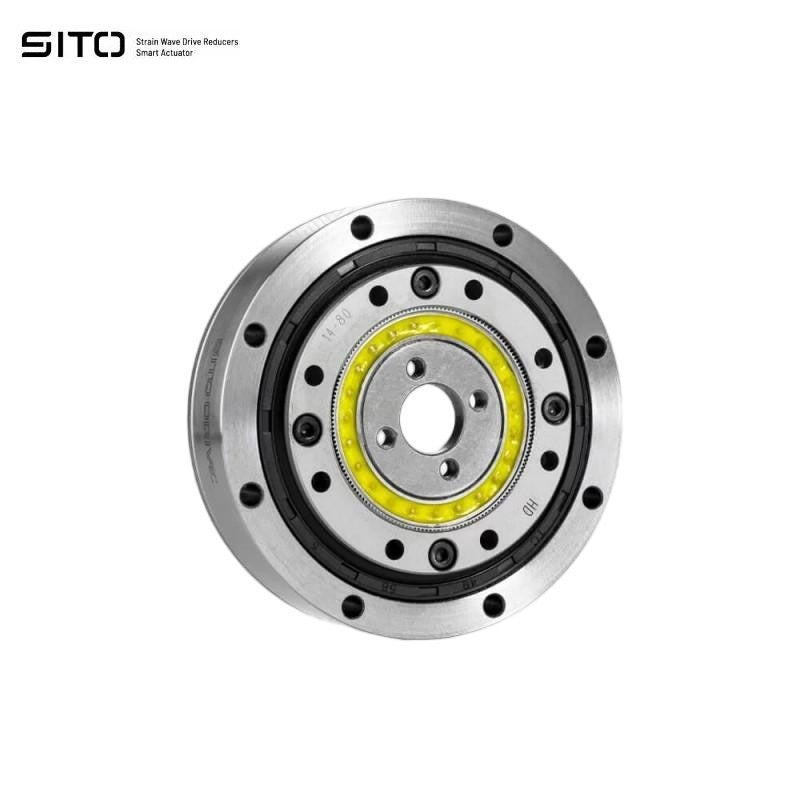

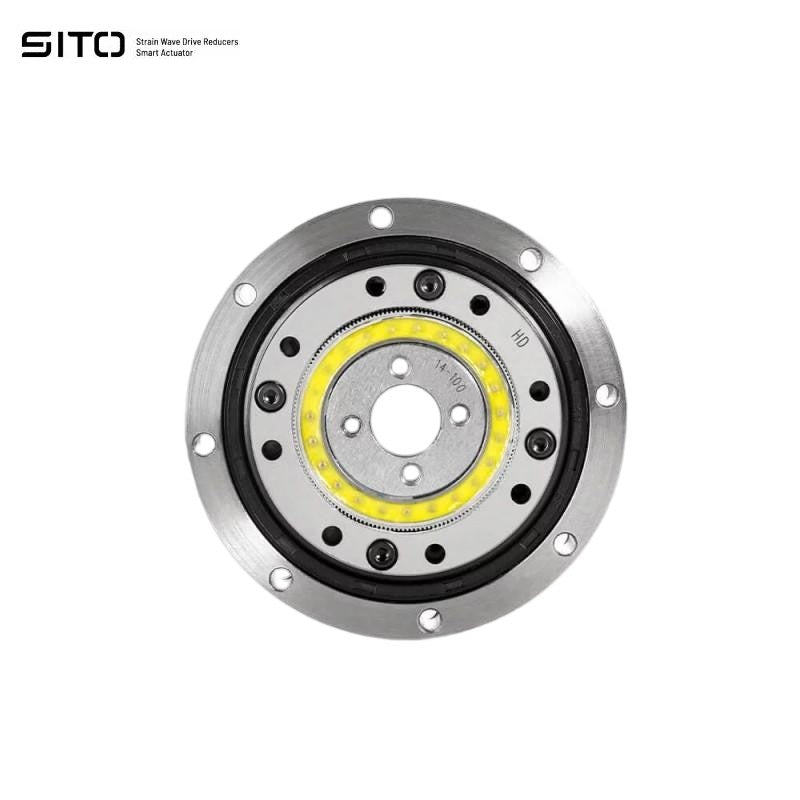

SITO DRIVE HD-14 Reducer
Regular price
$160.00
Unit price
Unavailable
SITO DRIVE HD-14 Reducer - 30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SITO DRIVE HD-14 Reducer
Regular priceFrom
$160.00
Unit price
Unavailable
SITO DRIVE HD-14 Reducer - 30 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
| Model | HD-14 | HD-14 | HD-14 | HD-14 |
| Transmission Ratio | 30 | 50 | 80 | 100 |
| Rated Torque at 2000r/min input | 3 Nm | 4.5 Nm | 6 Nm | 7.4 Nm |
| Peak Torque allowed during start/stop | 8.7 Nm | 13 Nm | 15 Nm | 19 Nm |
| Maximum allowable average load torque | 6.2 Nm | 6.8 Nm | 9.5 Nm | 10.8 Nm |
| Instantaneous Maximum Torque | 15 Nm | 25 Nm | 38 Nm | 40 Nm |
| Maximum allowable input speed | 8500 rpm | 8500 rpm | 8500 rpm | 8500 rpm |
| Allowable average speed | 3500 rpm | 3500 rpm | 3500 rpm | 3500 rpm |
| Moment of inertia | 0.021(×10-4kg·m²) | 0.021 (×10-4kg·m²) | 0.021 (×10-4kg·m²) | 0.021 (×10-4kg·m²) |
| Backlash | ≤20 arcsec | ≤20 arcsec | ≤10 arcsec | ≤10 arcsec |
