SITO DRIVE | SKU:

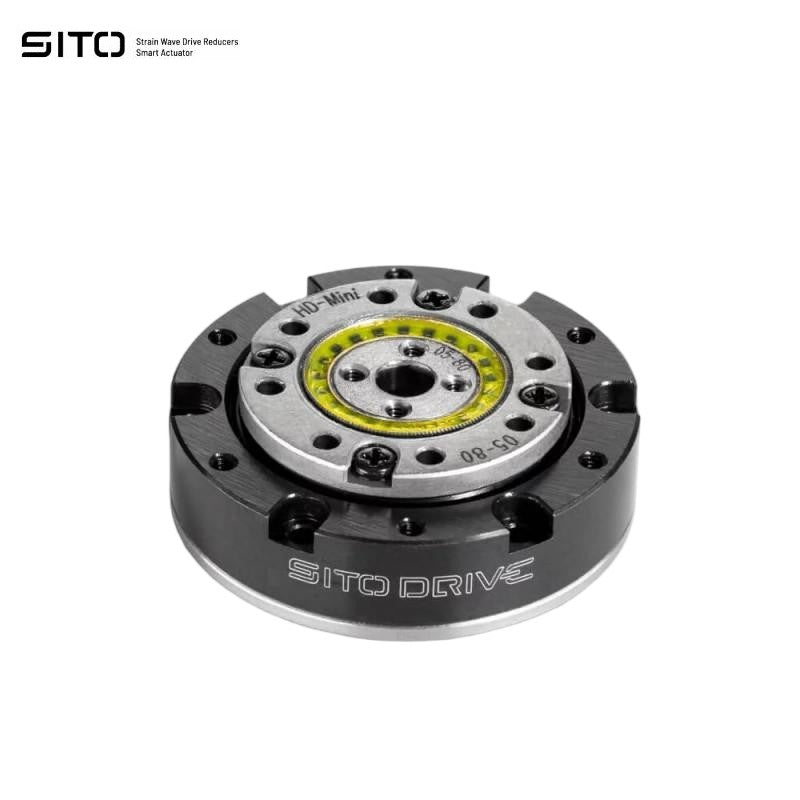

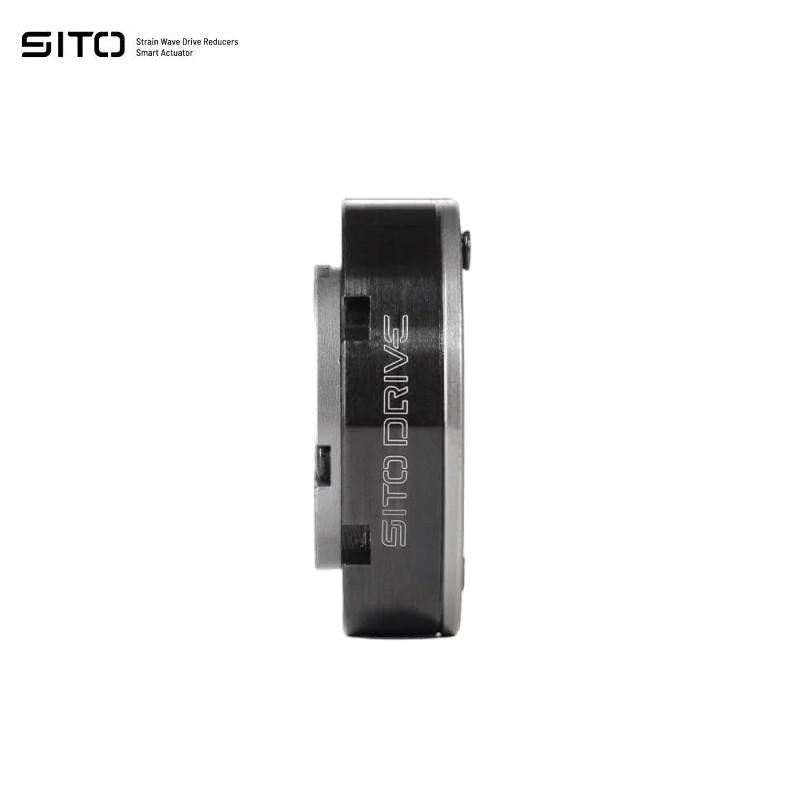

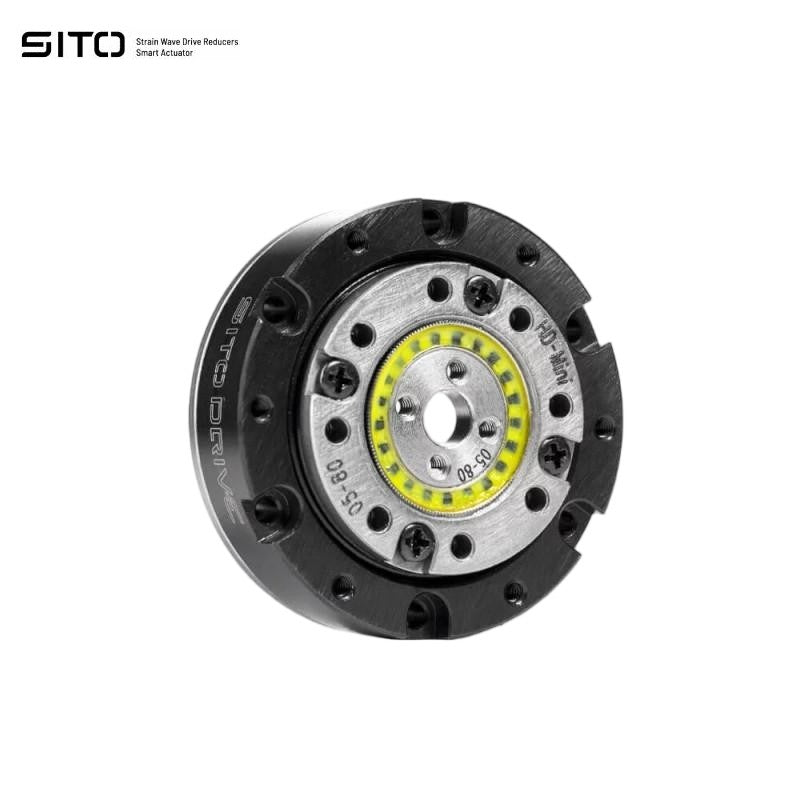

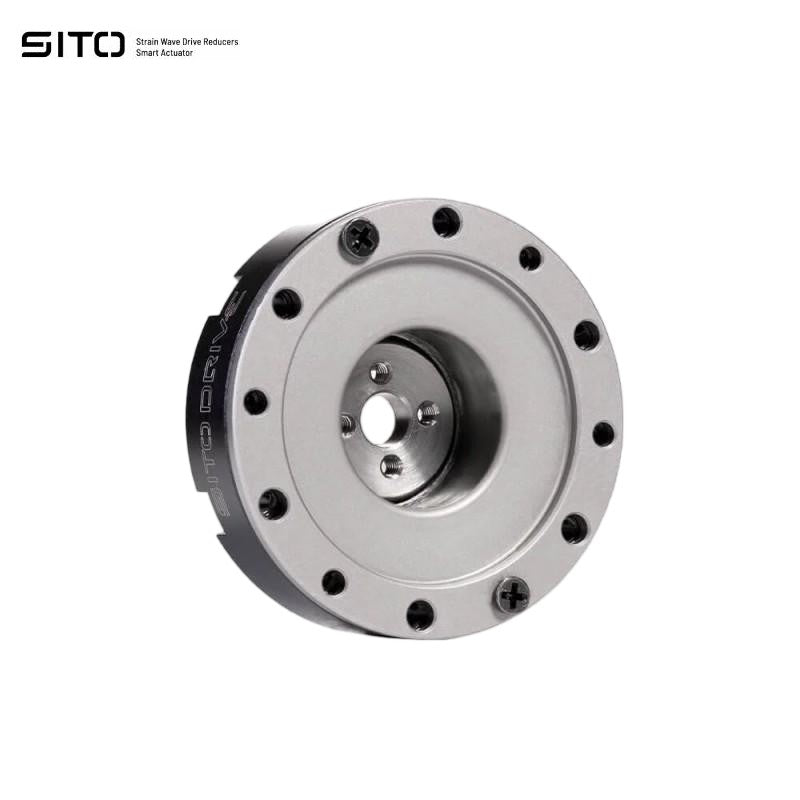

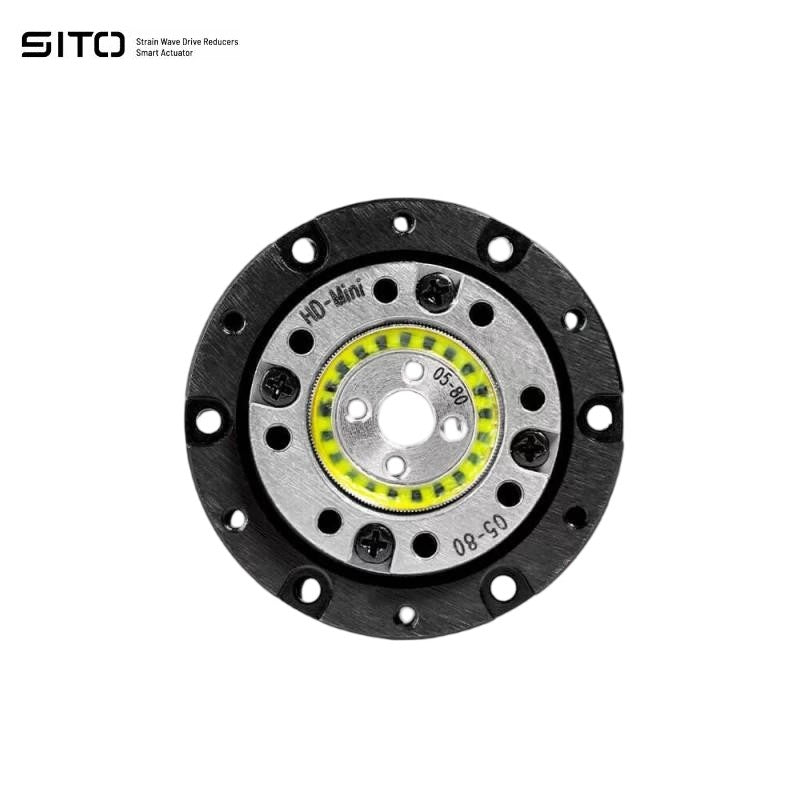

SITO DRIVE HD-05 Reducer
Regular price
$118.00
Unit price
Unavailable
SITO DRIVE HD-05 Reducer - 30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SITO DRIVE HD-05 Reducer
Regular price
$118.00
Unit price
Unavailable
SITO DRIVE HD-05 Reducer - 30 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | HD mini-05 | HD mini-05 | HD mini-05 |
| Transmission Ratio | 30 | 50 | 80 |
| Rated Torque at 2000r/min input | 0.23 Nm | 0.38 Nm | 0.5 Nm |
| Peak Torque allowed during start/stop | 0.47 Nm | 0.87 Nm | 1.2 Nm |
| Maximum allowable average load torque | 0.35 Nm | 0.5 Nm | 0.82 Nm |
| Instantaneous Maximum Torque | 0.85 Nm | 1.7 Nm | 2.2 Nm |
| Maximum allowable input speed | 10000 rpm | 10000 rpm | 10000 rpm |
| Allowable average speed | 6500 rpm | 6500 rpm | 6500 rpm |
| Moment of inertia | - | - | - |
| Backlash | ≤20 arcsec | ≤20 arcsec | ≤20 arcsec |
