SITO DRIVE | SKU:

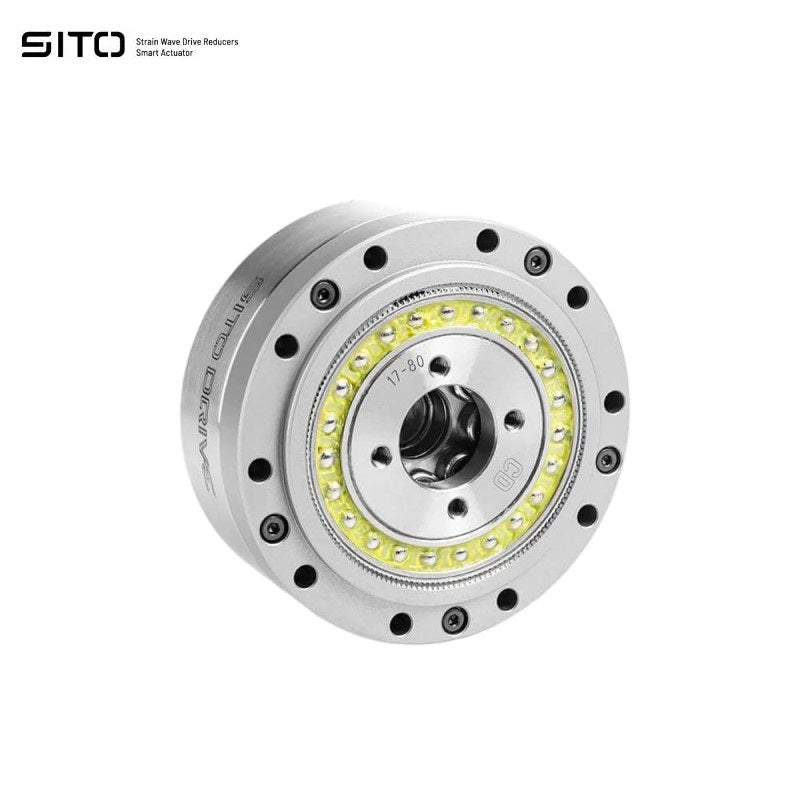

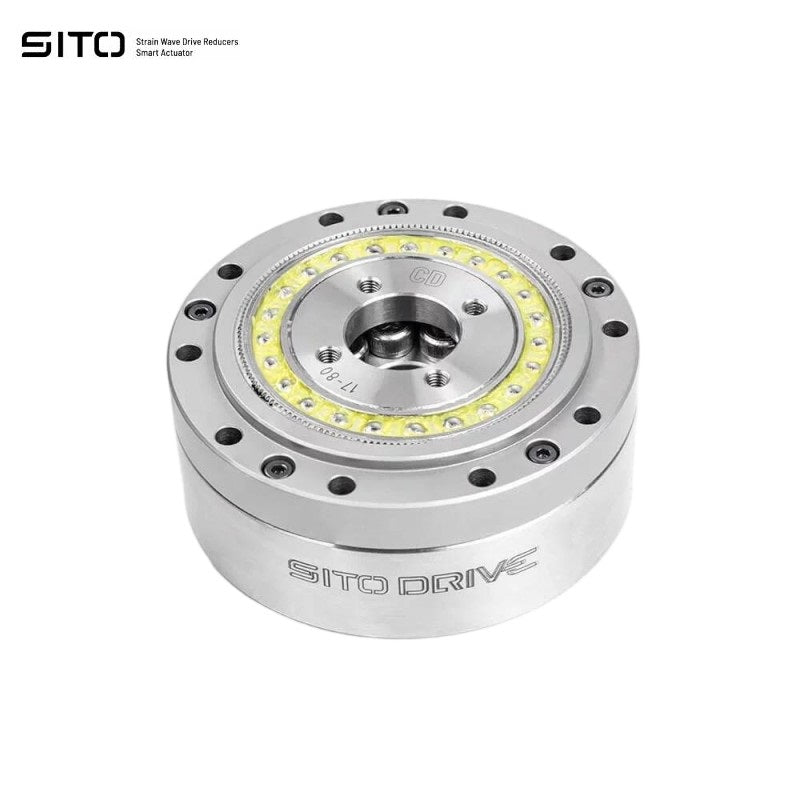

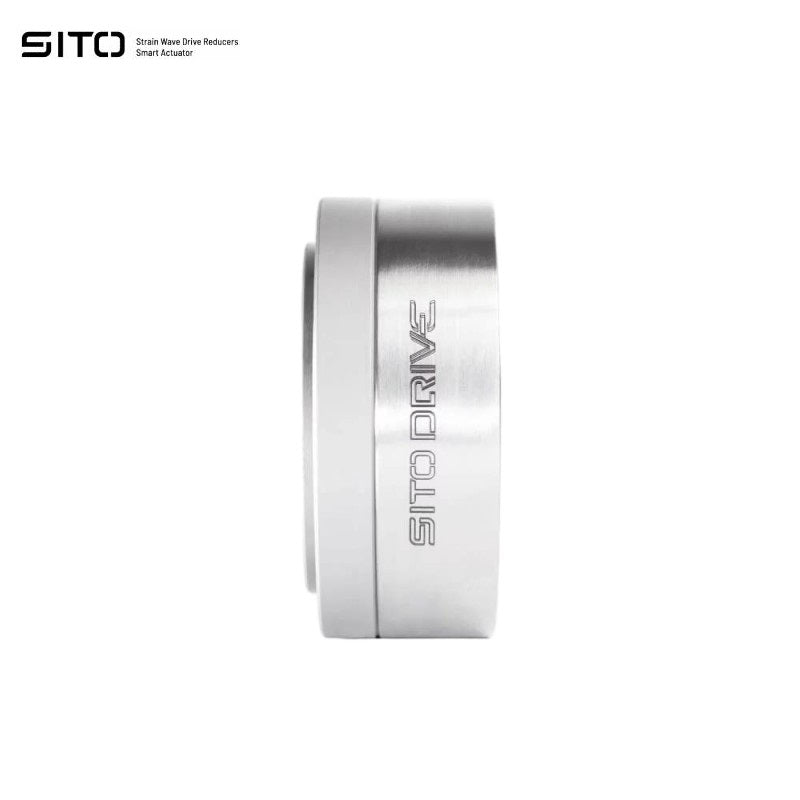

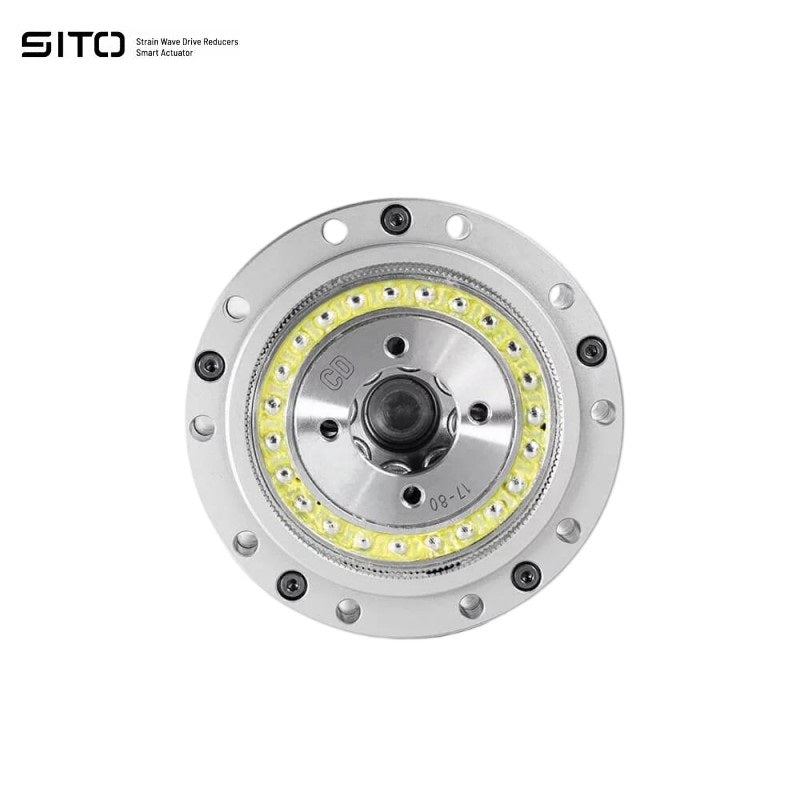

SITO DRIVE CD-17 Reducer
Regular price
$198.00
Unit price
Unavailable
SITO DRIVE CD-17 Reducer - 50 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SITO DRIVE CD-17 Reducer
Regular priceFrom
$198.00
Unit price
Unavailable
SITO DRIVE CD-17 Reducer - 50 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | CD-17 | CD-17 | CD-17 |
| Transmission Ratio | 50 | 80 | 100 |
| Rated Torque at 2000r/min input | 11 Nm | 15 Nm | 16 Nm |
| Peak Torque allowed during start/stop | 23 Nm | 29 Nm | 37 Nm |
| Maximum allowable average load torque | 18 Nm | 19 Nm | 27 Nm |
| Instantaneous Maximum Torque | 48 Nm | 55 Nm | 55 Nm |
| Maximum allowable input speed | 7300 rpm | 7300 rpm | 7300 rpm |
| Allowable average speed | 3500 rpm | 3500 rpm | 3500 rpm |
| Moment of inertia | 0.054 (×10⁻⁴kg·m²) | 0.054 (×10⁻⁴kg·m²) | 0.054 (×10⁻⁴kg·m²) |
| Backlash | ≤20 arcsec | ≤10 arcsec | ≤10 arcsec |
