Seyond | SKU:

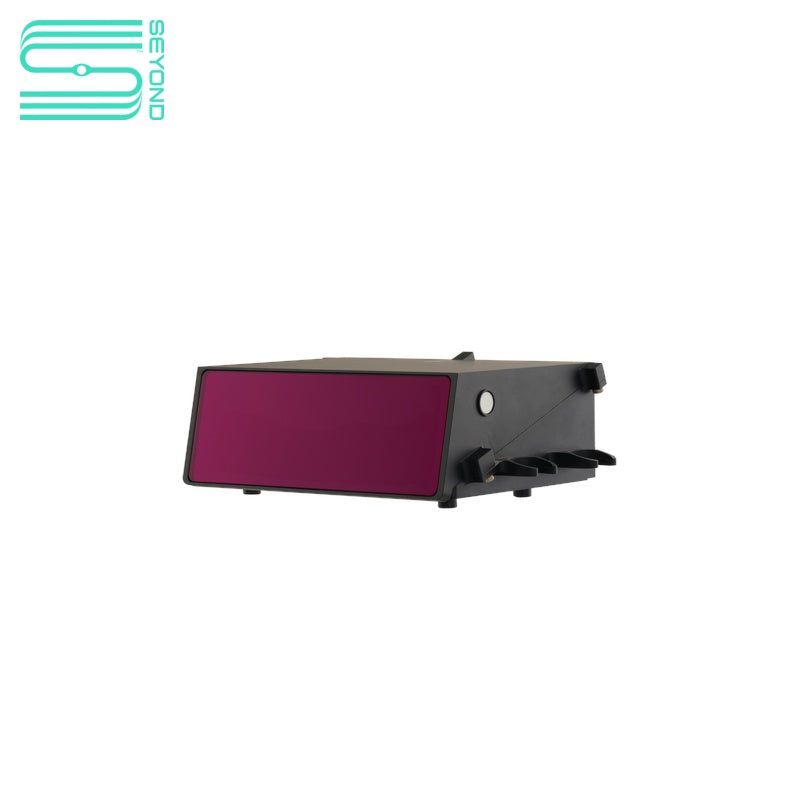

Seyond Falcon K3 LiDAR
Regular price
$18,500.00
Unit price
Seyond Falcon K3 LiDAR - Falcon K3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Seyond Falcon K3 LiDAR
Regular price
$18,500.00
Unit price
Seyond Falcon K3 LiDAR - Falcon K3 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Detection Range | Up to 900m (450m @10%) |

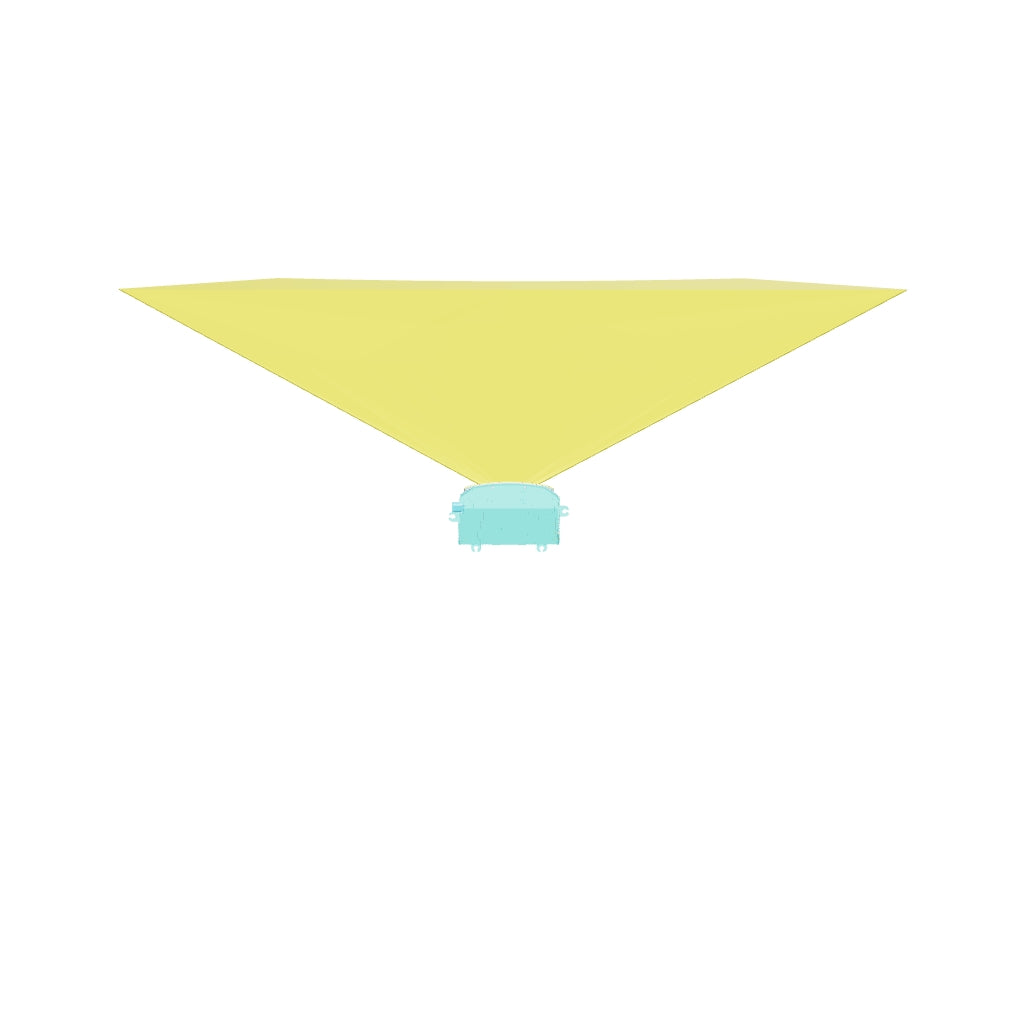

| Field of View (H×V) | 120° × 20° |
| Angular Resolution (H×V) | 0.05° × 0.04° (ROI) |
| Frame Rate | 10 / 20 FPS |
| Laser Lines | 500 lines |
| Operating Temperature | -40°C ~ 85°C |
| Ingress Protection | IP6K7 (body), IP6K9K (window) |
| Laser Wavelength & Safety | 1550nm, Class 1 (IEC-60825) |
| Dimensions (H×W×D) | 40mm × 140mm × 120mm |
| Weight | 1.0kg |
| Power Consumption | 20W |
