Seyond

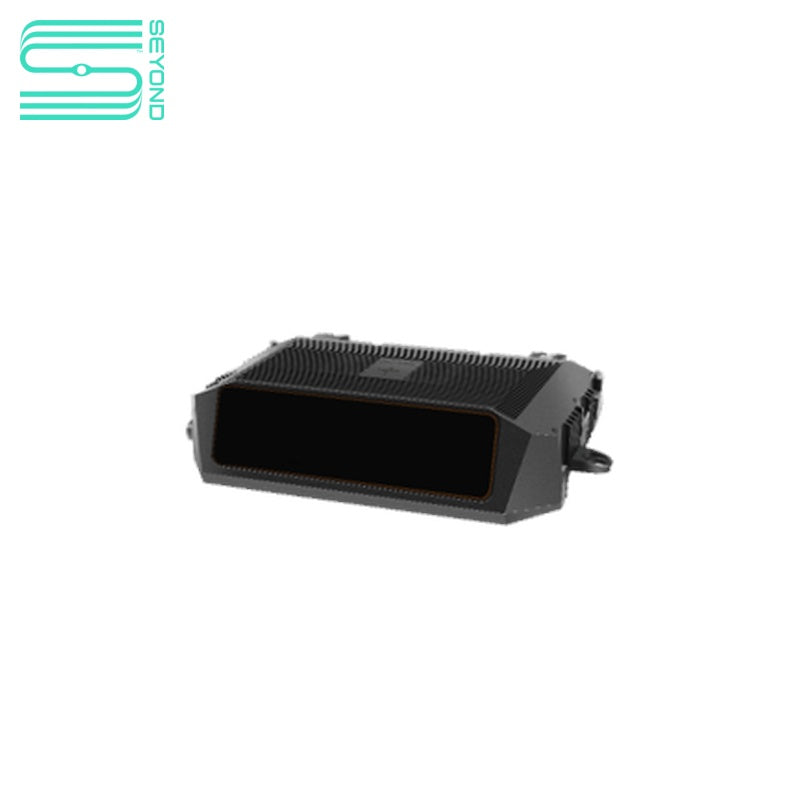

Seyond Falcon K24 LiDAR

$11,900.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Detection Range 1.5m ~ 500m (250m @10%)

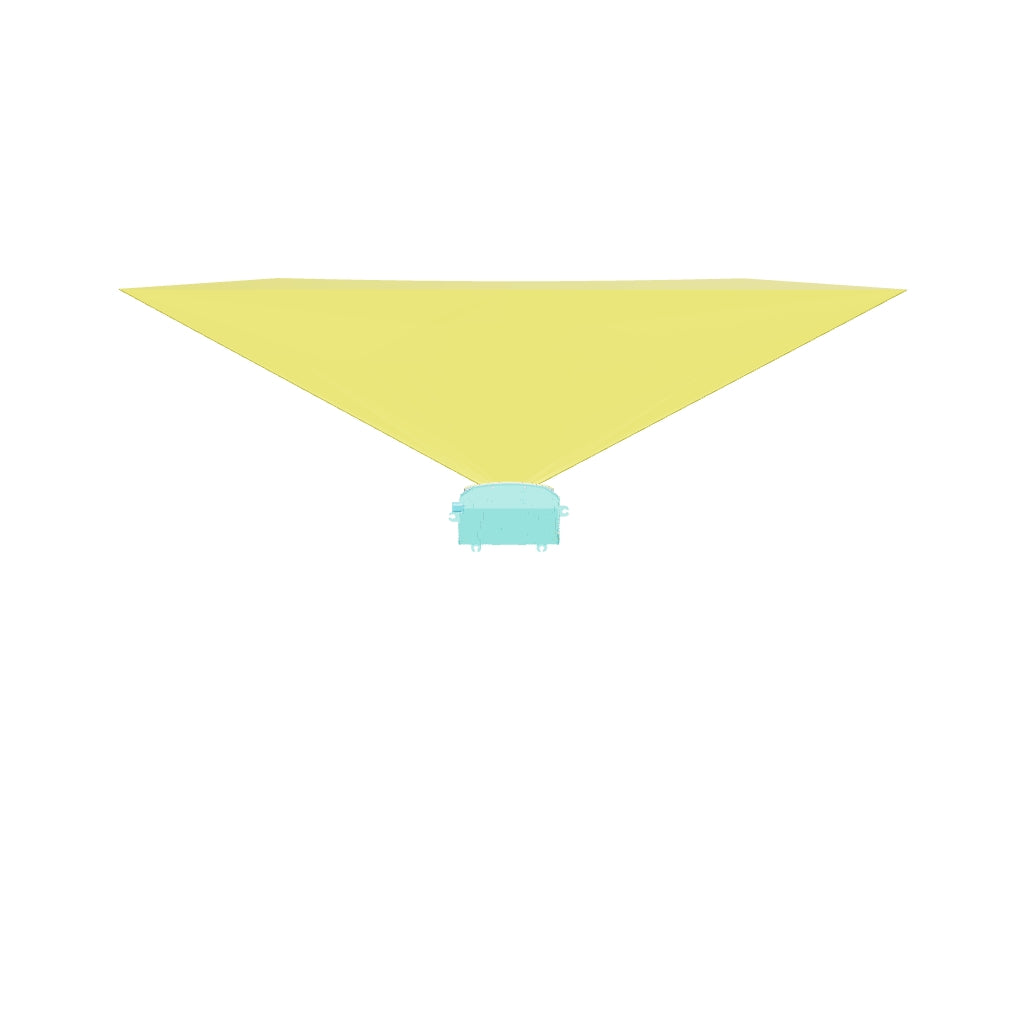

Field of View (H×V) 120° × 25°
ROI Angular Resolution (H×V) 0.06° × 0.06° (ROI)
Frame Rate 10 FPS
Laser Lines 300 lines
Operating Temperature -40°C ~ 85°C
Ingress Protection IP67 (body), IP69K (window)
Laser Wavelength & Safety 1550nm, Class 1 (IEC-60825)
Dimensions (H×W×D) 60mm × 228mm × 150mm
Weight 1.7kg
Power Consumption 20W
