Seyond | SKU:

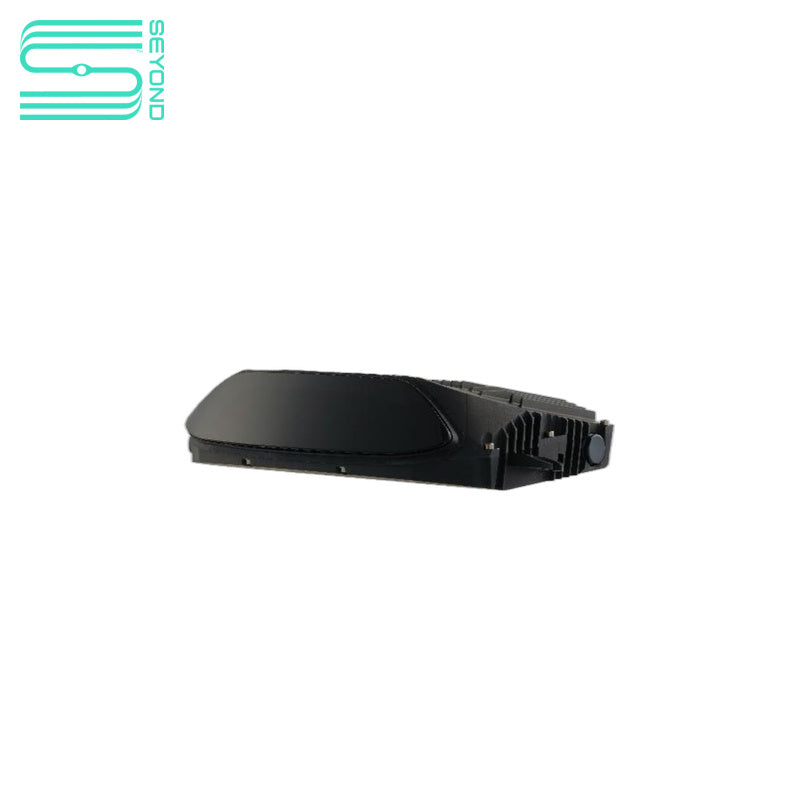

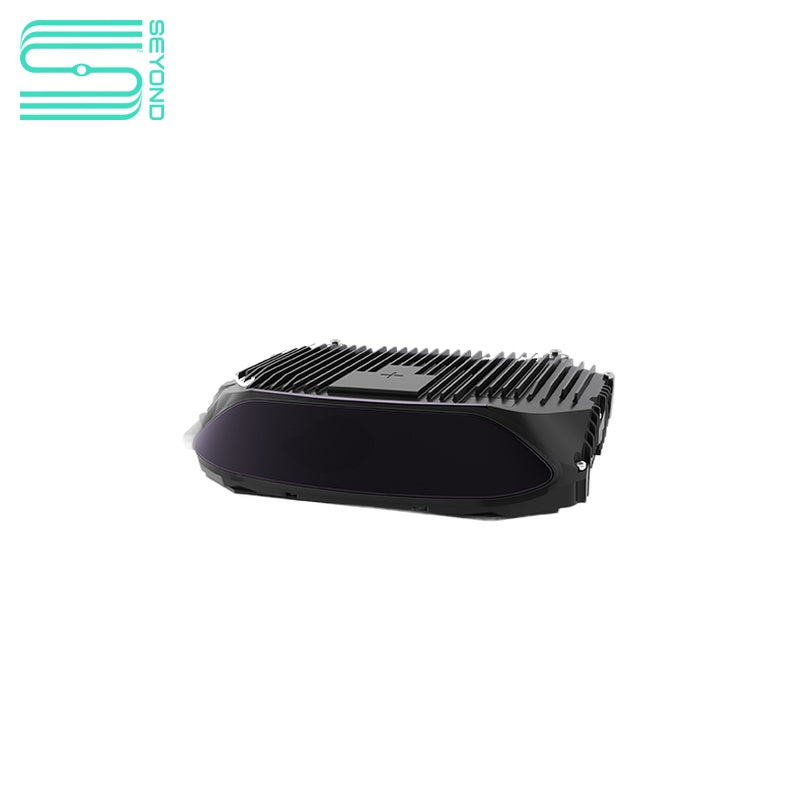

Seyond Falcon K2 LiDAR
Regular price
$9,700.00
Unit price
Seyond Falcon K2 LiDAR - Falcon K2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Seyond Falcon K2 LiDAR
Regular price
$9,700.00
Unit price
Seyond Falcon K2 LiDAR - Falcon K2 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Optical Performance | |
| Range (Maximum) | 500 m |
| Range (Minimum) | 1.5 m |
| Detection Range (10% Lambertian @10Hz) | 250m @100klx sunlight, POD>90% |
| Detection Range Accuracy | Based on average of 50 measurements on static target |
| Detection Range Precision | ≤2cm (1 standard deviation) |
| Detection Range Resolution | 0.5 cm |
| Vertical Scanning Lines | 1500 lines/sec |

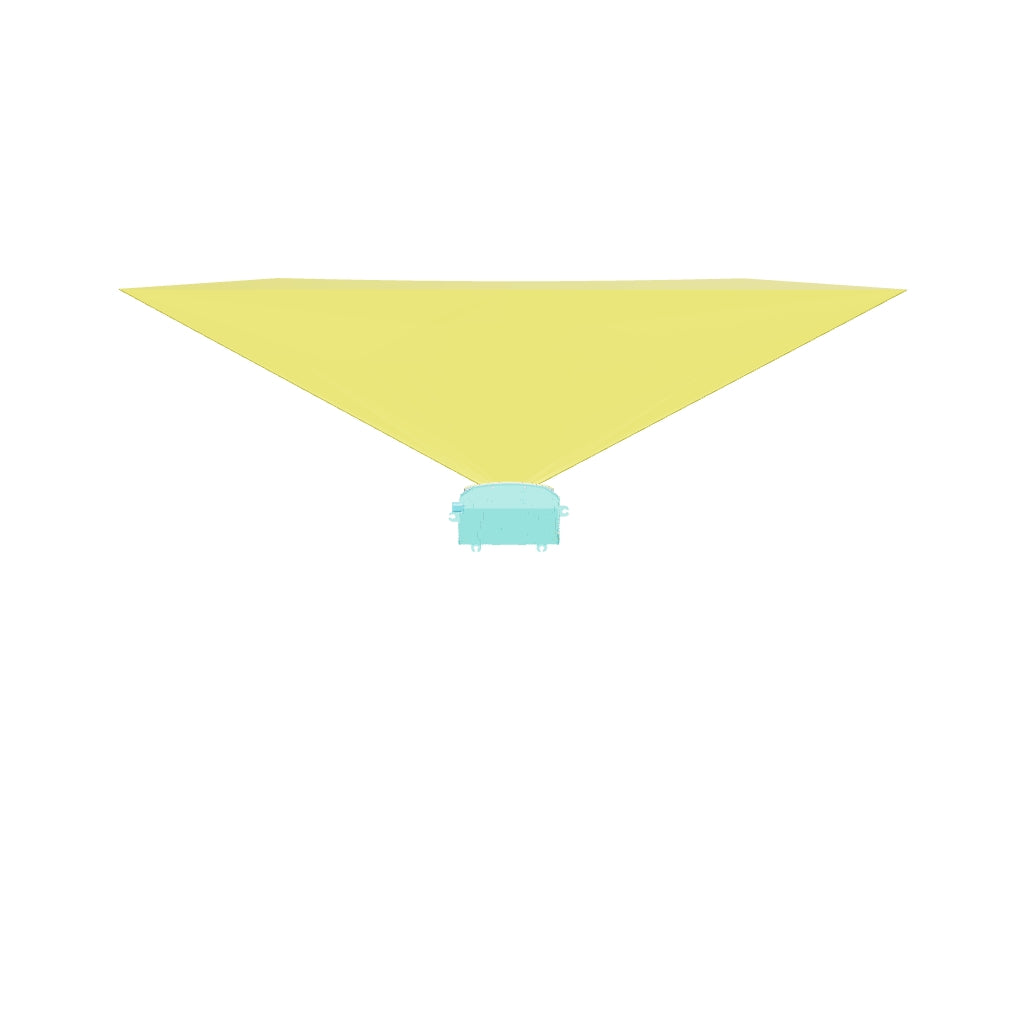

| FOV in non-ROI (H×V) | 120° × 25° |
| FOV in ROI (H×V) | 120° × 9.6° |
| Angular Resolution in non-ROI (H×V) | 0.2° × 0.24° |
| Angular Resolution in ROI (H×V) | 0.1°×0.15° (1°×4.8°), 0.1°×0.1° (2°×4.8°) |
| Angular Accuracy | ±0.1° |
| Frame Rate | 10 FPS |
| Returns | Up to 2 returns |
| Laser | |
| Laser Safety Class | Class 1 (IEC 60825-1:2014) |
| Laser Wavelength | 1550 nm |
| Beam Divergence (Full Angle) | 0.1° |
| LiDAR Output | |
| Data Transmission | 1000Base-T1 Ethernet (UDP, TCP/IP) |
| Points Per Second | 1,370,000 pts/sec @1 return |
| Data Rate | 2,740,000 pts/sec @2 returns |
| Data Output | 11.69MB/s @1 return |
| Data Output | 17.45MB/s @2 returns |
| Data Content | Radius, azimuth, reflectivity, timestamp, frame ID, return mode, working mode, fault state, CRC verification, etc. |
| Control Interface | |
| Interface | TCP and HTTP APIs |
| Time Synchronization | IEEE1588 (PTP), IEEE 802.1as(gPTP), NTP |
| Mechanical/Electrical | |
| Power Consumption | 20 W |
| Operating Voltage | 9 to 32V DC |
| Standard Voltage | 12V DC |
| Connector | Proprietary pluggable connector (Power + Automotive Ethernet + CAN) |
| Dimensions (H×W×D) | 58.9 mm × 228 mm × 149.6 mm |
| Weight | 1.7 kg |
| Mounting | 4×M4×18 screws, located in bushings |
| Operational | |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +105°C |
| Ingress Protection | IP67 (body), IP69K (window) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| Accessories | |
| Optional Wire Harness | 5m cable (power & Ethernet) |
| Optional Converter | MetAdaptor |
| Optional Mount | Metal bracket |
| Software | |
| Available Drivers | ROS / ROS2 |
