HITBOT | SKU:

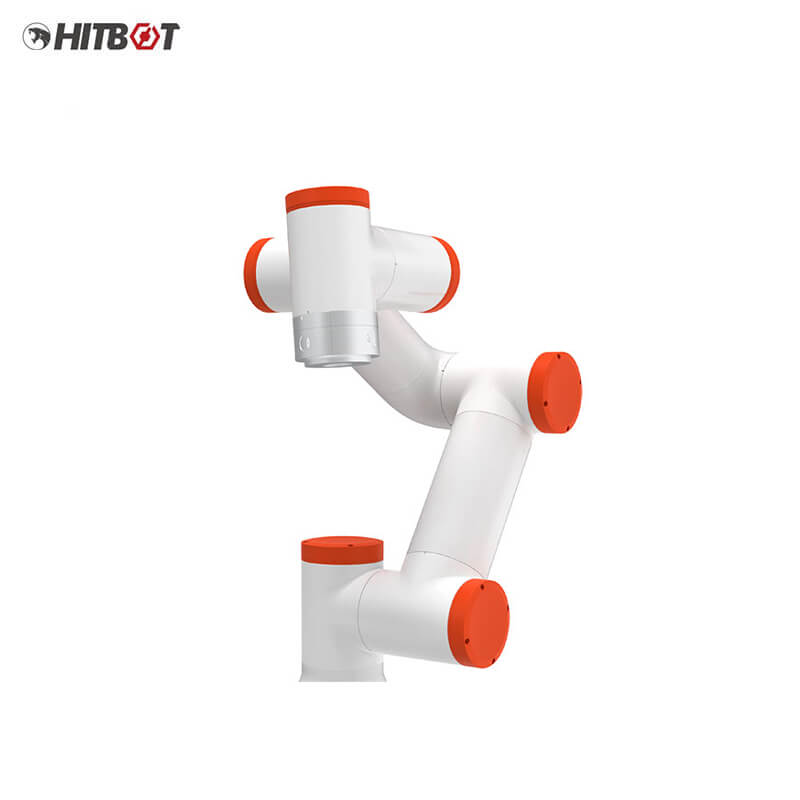

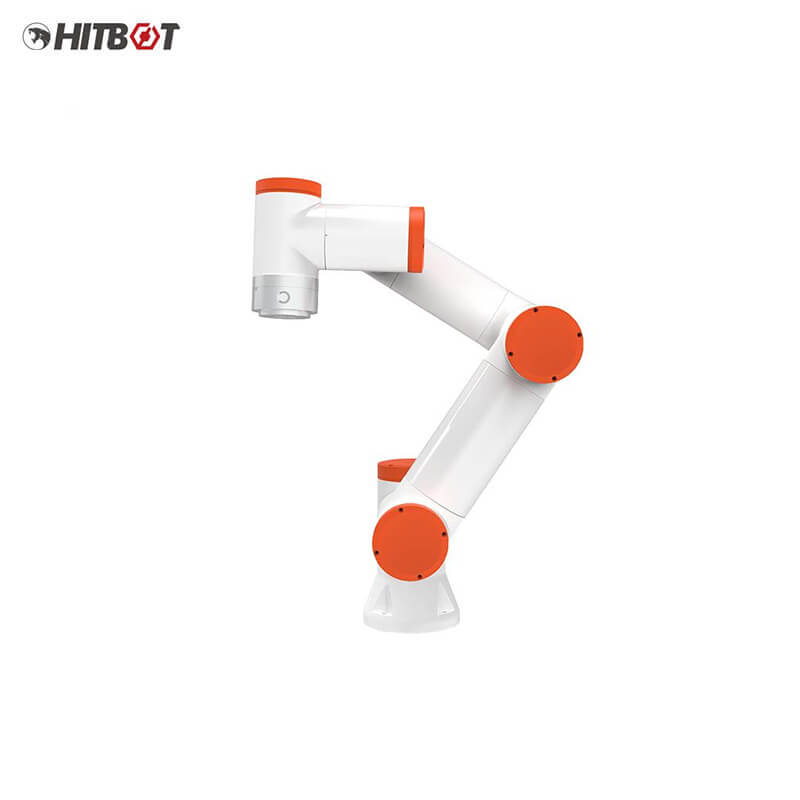

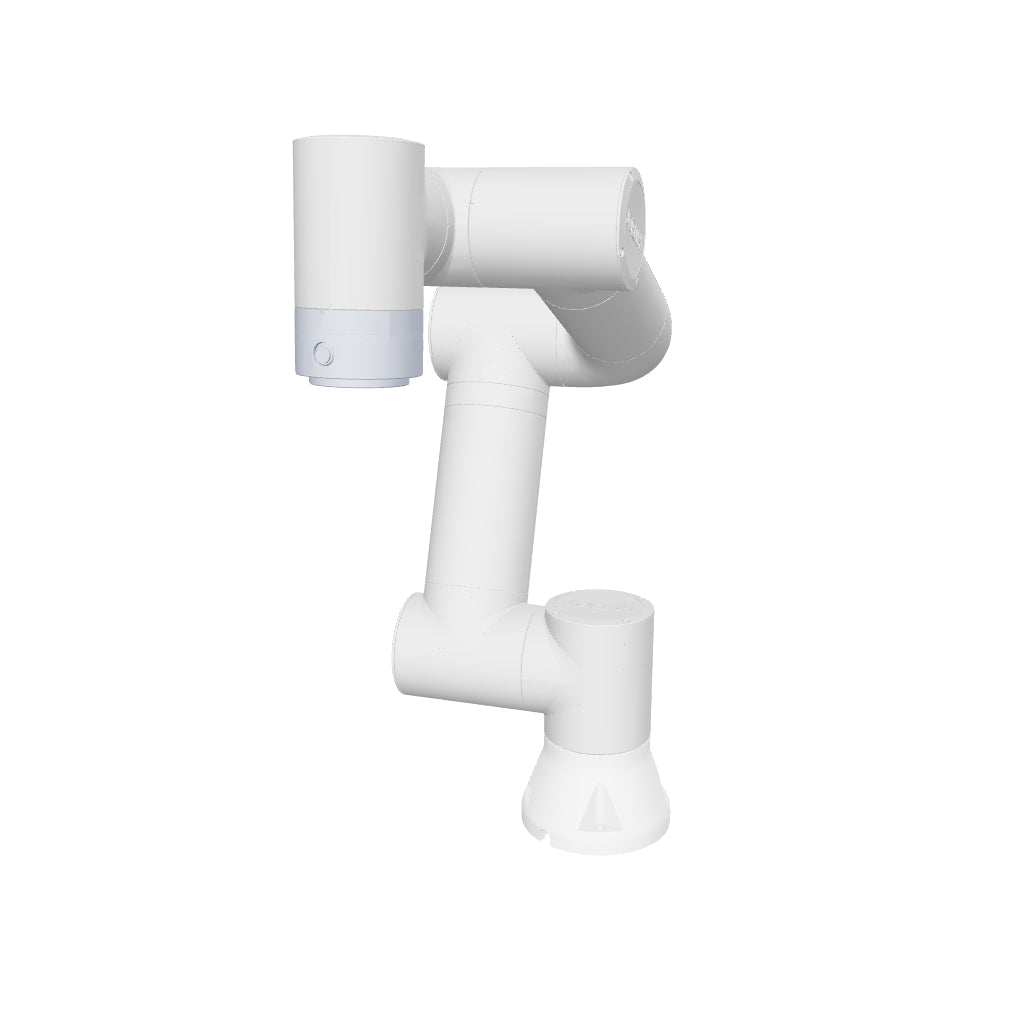

HITBOT Z-Arm S622 Robotic Arm
Regular price
$6,800.00
Unit price
HITBOT Z-Arm S622 Robotic Arm - Z-Arm S622 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HITBOT Z-Arm S622 Robotic Arm
Regular price
$6,800.00
Unit price
HITBOT Z-Arm S622 Robotic Arm - Z-Arm S622 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 15KG |
| Load | 3Kg |
| Working Range | 622mm |
| Range of Motion | 1 axis: ±175°; 2 axis: +85°, -265°; 3 axis: ±150°; 4 axis: +85°, -265°; 5 axis: ±175°; 6 axis: ±175° |
| The Max Speed of Joint | 180°/s |
| Repeatability | ±0.06mm |
| Installation Area | φ130mm |
| Size of Control Box | 342*260*90mm (not including protuberance) |
| Dof | 6 |
| I/O Point of Terminal | Digital Input: 2; Digital Output: 2; Simulate Input: 1; Simulate Output: 1 |
| I/O point of Control Box | Digital Input: 16; Digital Output: 16; Simulate Input: 2; Simulate Output: 2 |
| I/O Power Supply | 24V/1.5A |
| Communication | Ethernet, TCP/IP, 485 communication |
| Noise | <65DB |
| Protection Grade | IP54 |
| Coordinate Operation | Support collision detection, allow to customize collision level |
| Power Input | 220V/50Hz |
| Working Environment | 1). Away from vibration, and the vibration should be below 0.5G; 2). Away from corrosive gas, liquid and explosive gas; 3). Avoid dust, fog and water; 4). Avoid the device working under unstable electric current. |
| Humidity | 20-80RH (No Condensation) |
| Temperature | 0-45℃ |
