HITBOT

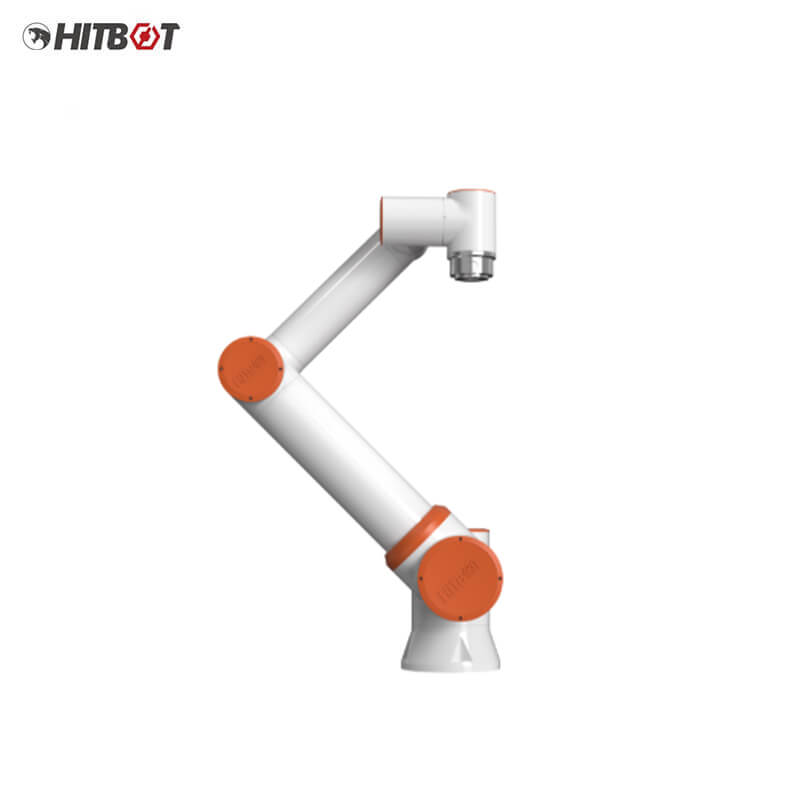

HITBOT Z-Arm S1034 Robotic Arm

$18,000.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Weight ≈40kg
Payload 16kg
Working Radius 1034mm
Joint Range of Motion / Software Limit Axis 1: ±175°; Axis 2: +85°, -265°; Axis 3: ±160°; Axis 4: +85°, -265°; Axis 5: ±175°; Axis 6: ±175°
Typical Speed 1m/s
Repeatability ±0.03mm
Installation Area φ190mm
Installation Orientation Upright, vertical side mount, inverted mount
Control Box Size 245*180*44.5mm
Degree of Freedom 6
End I/O Ports Digital input: 2; Digital output: 2; Analog input: 1; Analog output: 1
Control Box I/O Ports Digital input: 16; Digital output: 16; Analog input: 2; Analog output: 2
I/O Power Supply 24V/1.5A
Communication I/O, TCP/IP, Modbus_TCP/RTU, Profinet
Development Environment C#/C++/Python/Java/ROS
Noise <65dB
Protection Grade IP54
Coordinated Operation With collision detection function, allowing customized collision levels
Power Supply 220V/50HZ
Working Environment · Away from vibration, and vibration intensity should be no greater than 0.5G · Away from corrosive gases, liquids and explosive gases · Avoid dust, smoke and water · Avoid equipment working under unstable current conditions
Operating Temperature Range 0~45℃
Operating Humidity Range 20~80%RH (No condensation)
Cable Specification Cable length 3.7m (not suitable for cable drag chain)
HITBOT Z-Arm S1034 Robotic Arm.stp
