HITBOT

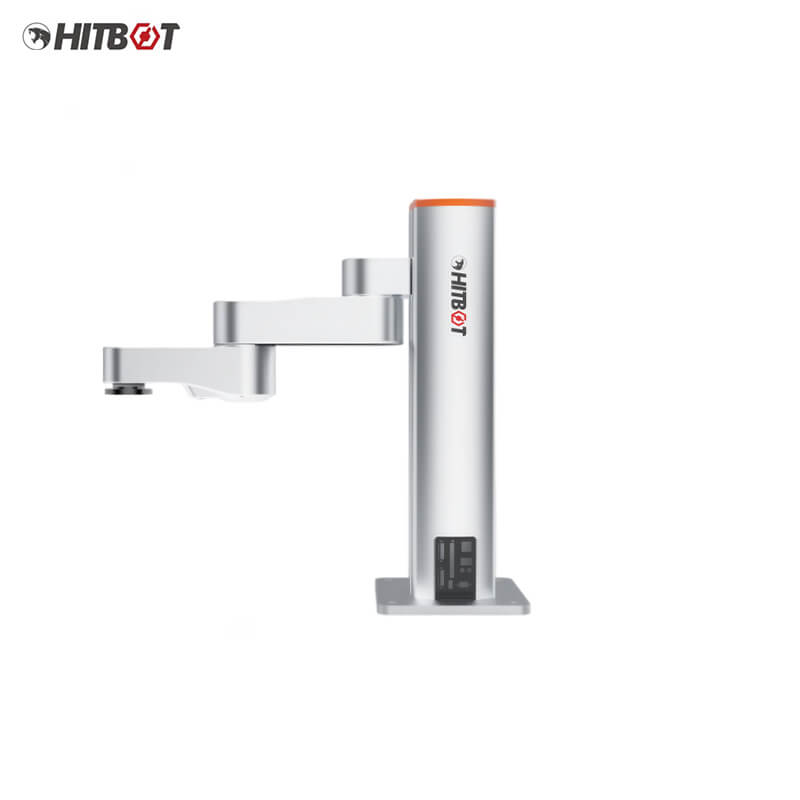

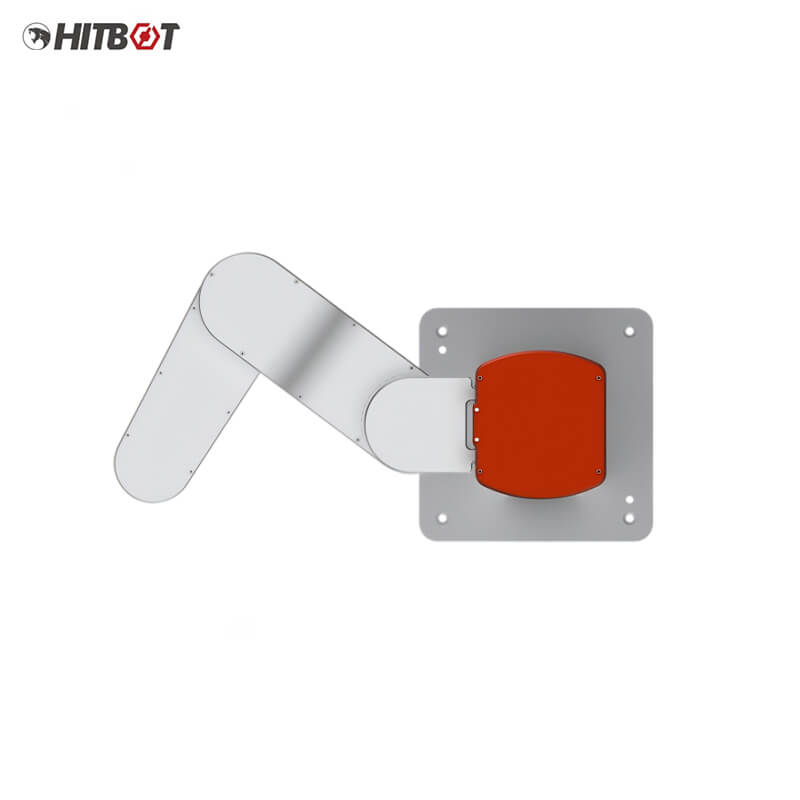

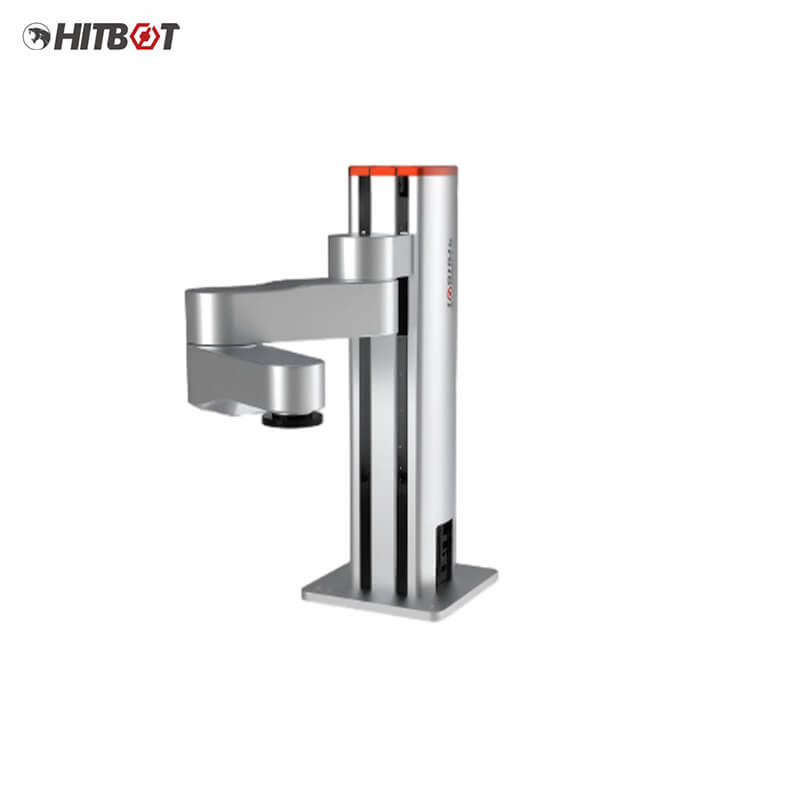

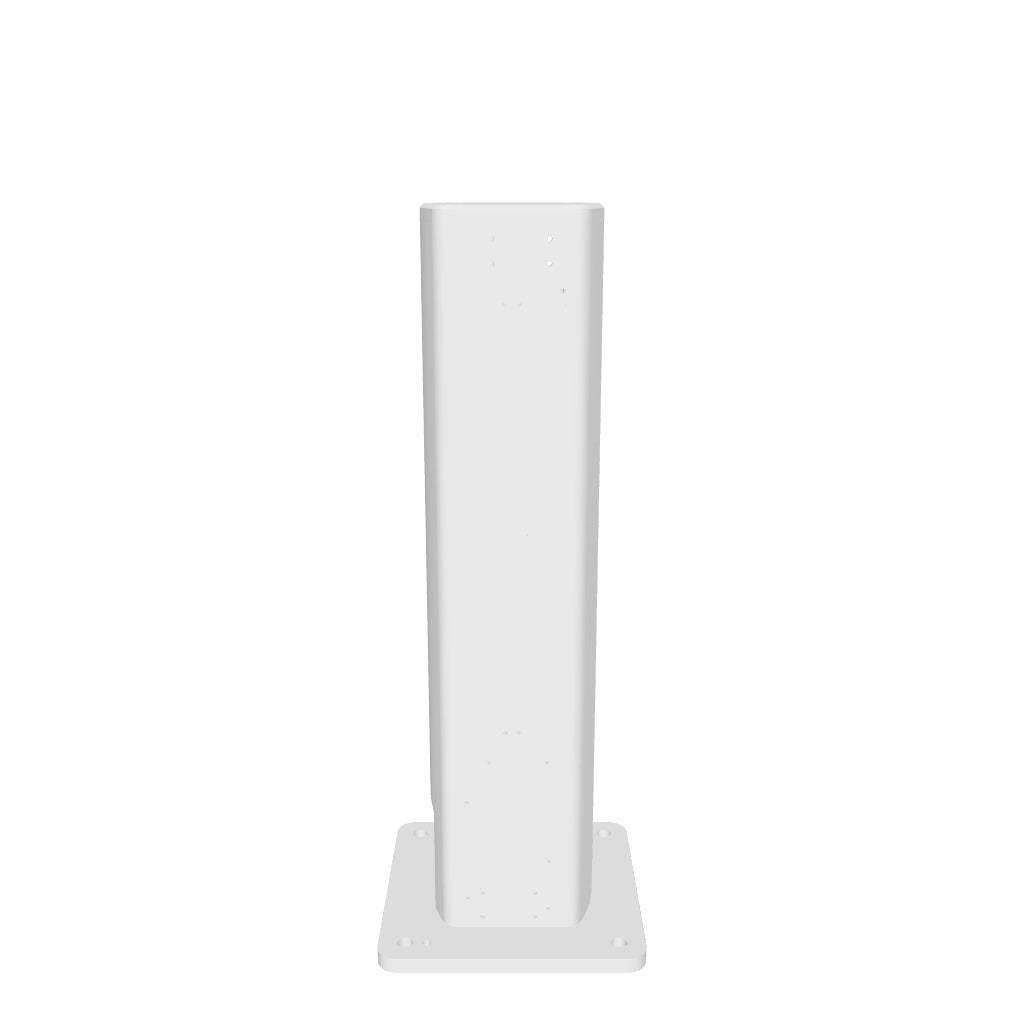

HITBOT Z-Arm 2442B Robotic Arm

$6,800.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
1-axis arm length 220mm
1-axis rotation angle ±90°
2-axis arm length 200mm
2-axis rotation angle ±164° (optional: 15°~345°)
Z-axis stroke 240mm (height customizable)
R-axis rotation range ±1080° without mechanical limit / ±170° with mechanical limit
Linear speed 1600mm/s (4kg load)
Repeatability ±0.02mm
Standard payload 4kg
Max payload 5kg
Degrees of freedom (DOF) 4
Power supply Rated power: 2000W; Input: 110-220V (50-60Hz); Output: DC48V
Communication Ethernet
Customizable Z-axis height 0.1~0.5m
Electrical reserved interface Standard: socket panel straight-through small tube lower cover plate, 2 x 23awg (unshielded) wire; Optional: socket panel straight-through flange, 2 x Φ4 air tubes
Operating environment Humidity: 0~45°C; Temperature: 20~80% RH (non-condensing)
I/O, digital input (isolated) 9+3 + forearm expansion (8 in / 8 out, gripper dedicated port: pulse or 485)
I/O, digital output (isolated) 9+3 + forearm expansion (8 in / 8 out, gripper dedicated port: pulse or 485)
I/O, analog input (4-20mA) /
I/O, analog output (4-20mA) /
Overall height 683mm
Host weight 240mm stroke module weight approx. 27kg
Base dimensions 250 × 250 × 15mm
Base mounting hole spacing 200 × 200mm with four M8×20 screws
Collision detection /
Lead-through teaching /
Hard emergency stop √
Debugging / online upgrade (USB port) √
Cable specification AC cable & DC cable: 2m, not suitable for drag chain
Cycle time 1.895s
