Unitree | SKU:

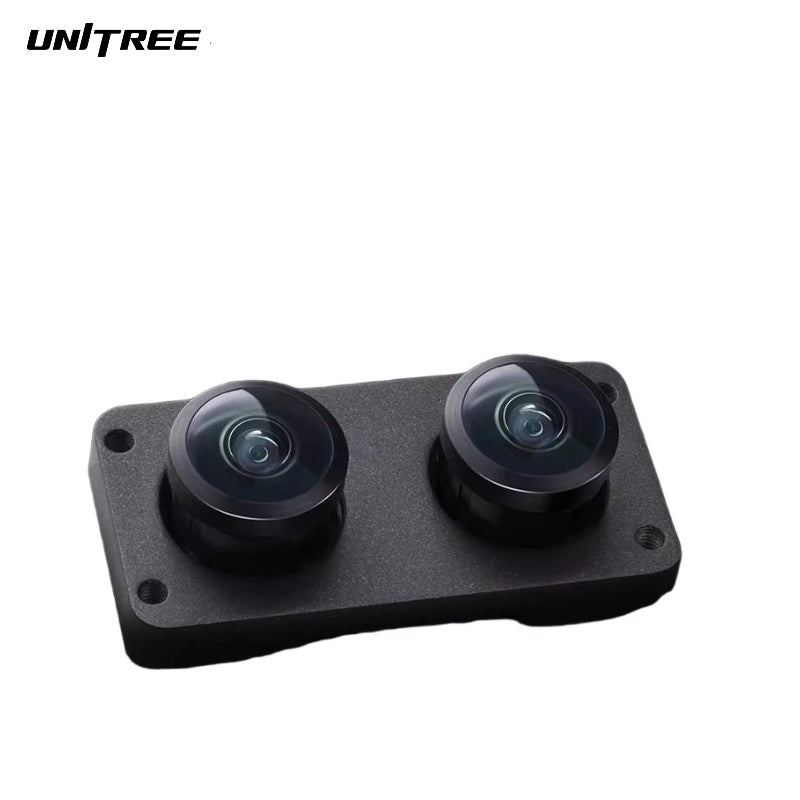

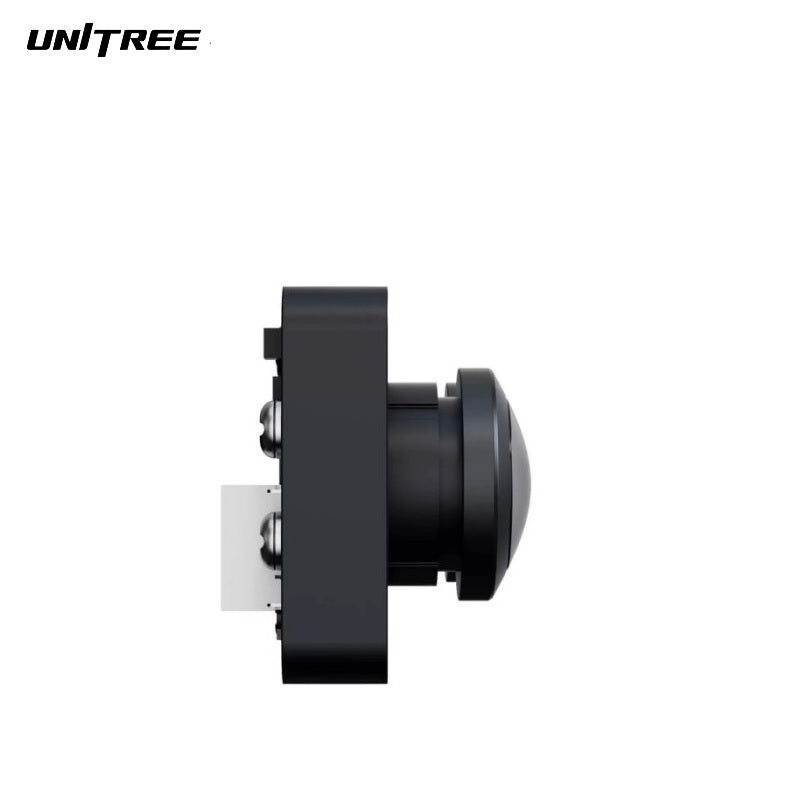

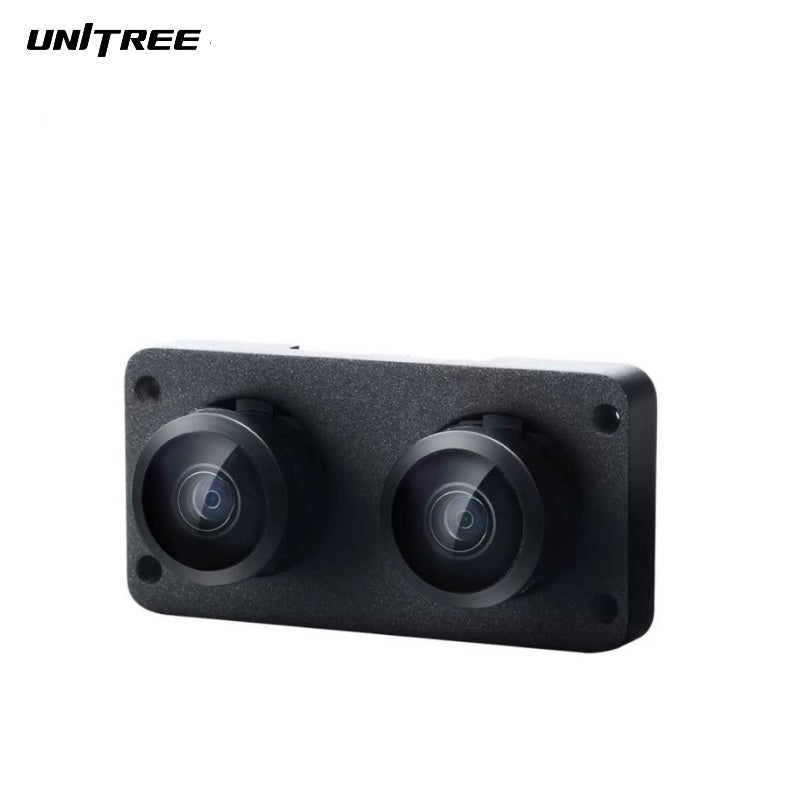

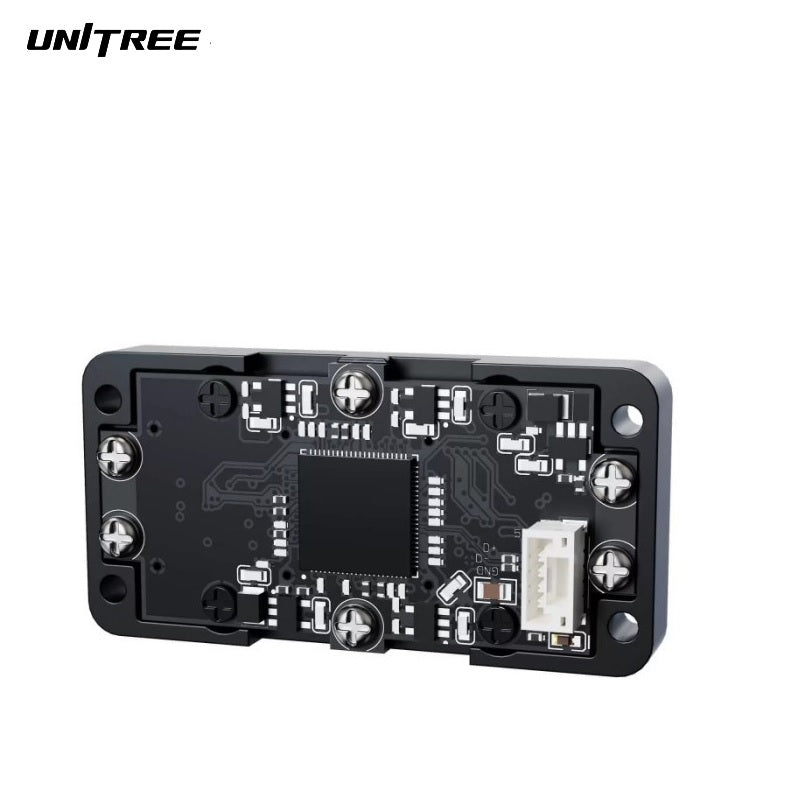

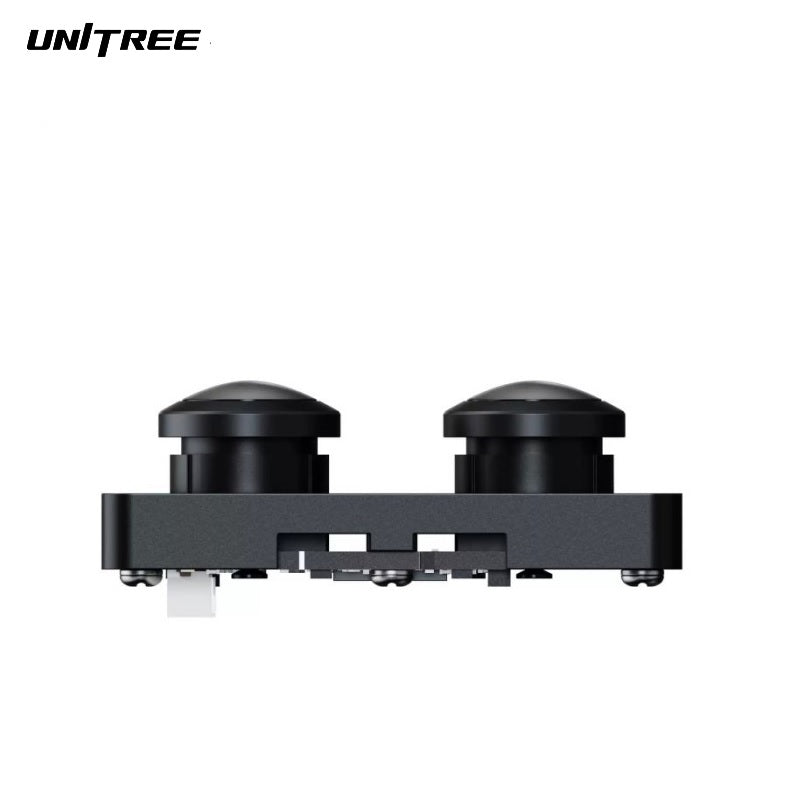

Unitree SV1-25 Camera
Regular price
$317.00
Unit price
/
Unavailable
Unitree SV1-25 Camera - Unitree SV1-25 Camera is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Unitree SV1-25 Camera
Regular price
$317.00
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
Unitree SV1-2 |
| Chip parameters | 1280(H) x 800(V) = 1.0 Mp |
| Optical parameters | 1/4-inch(4.5 mm) |
| Shutter type | Color Global Shutter |
| View angle |
V = 220° (Y = 1.35mm) H = 220° (Y = 1.80mm) D = 220° (Y = 2.29mm) |
| Lens type | Fixed focus |
| Base line | 25mm (distance from middle line of left lens to middle line of right lens) |
| Interface type | USB2.0 |
| Output image format | MJPEG/YUV2 |
| Supported resolution and frame rate | 1856x800@30FPS, 928x400@30FPS /60FPS |
| Power Supply Requirements |
5V /200mA |
| Filter up to the frequency |
T = 50% at 650±10nm |
| Working temperature |
-10℃ ~ 60℃ |
| Human eye safety level |
Class 1(IEC60825-1:2014) Human eye safety |
| 4D data |
3D position +1D grayscale(supports 2D mode) |
| Anti-glare capability |
>100KIux |
| Distance resolution |
4.5mm |
