SENSING | SKU:

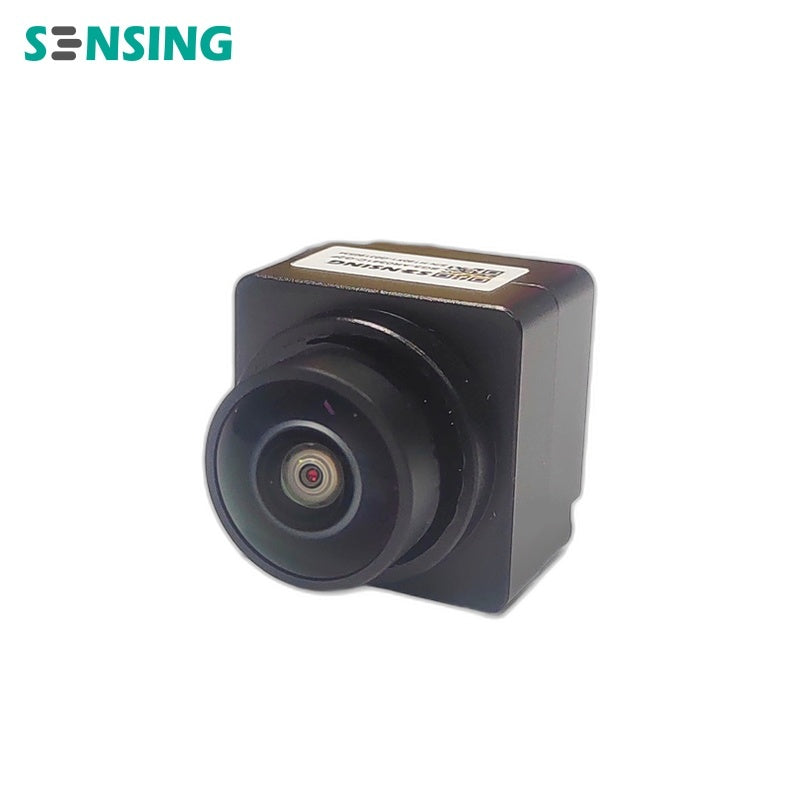

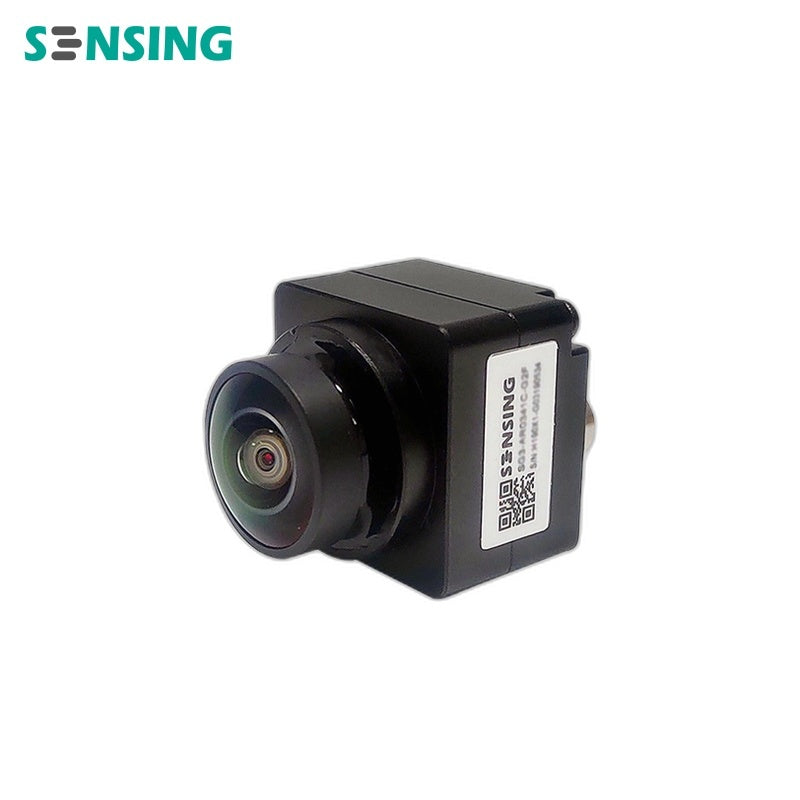

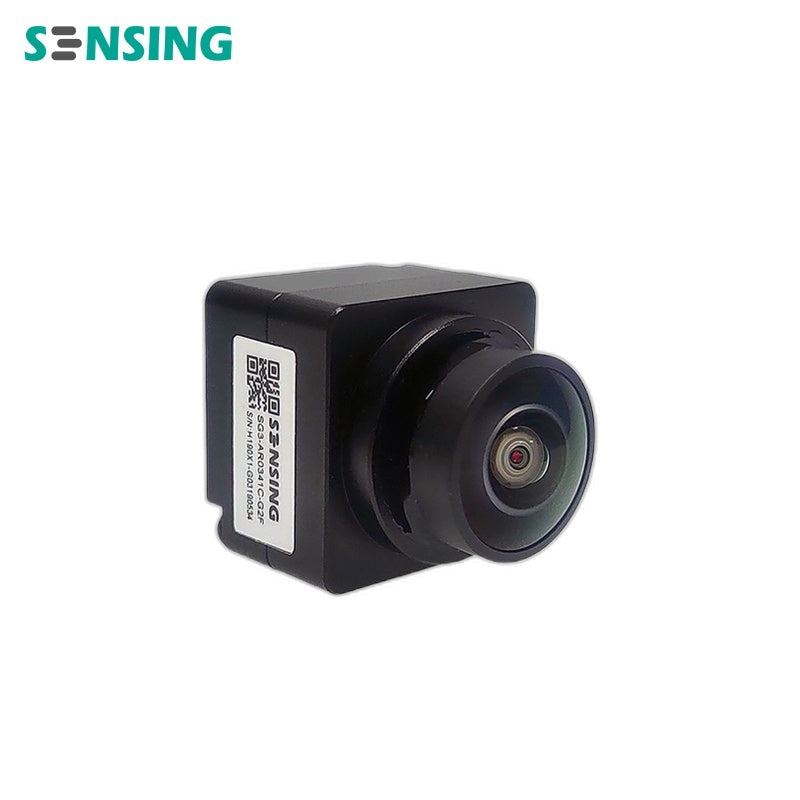

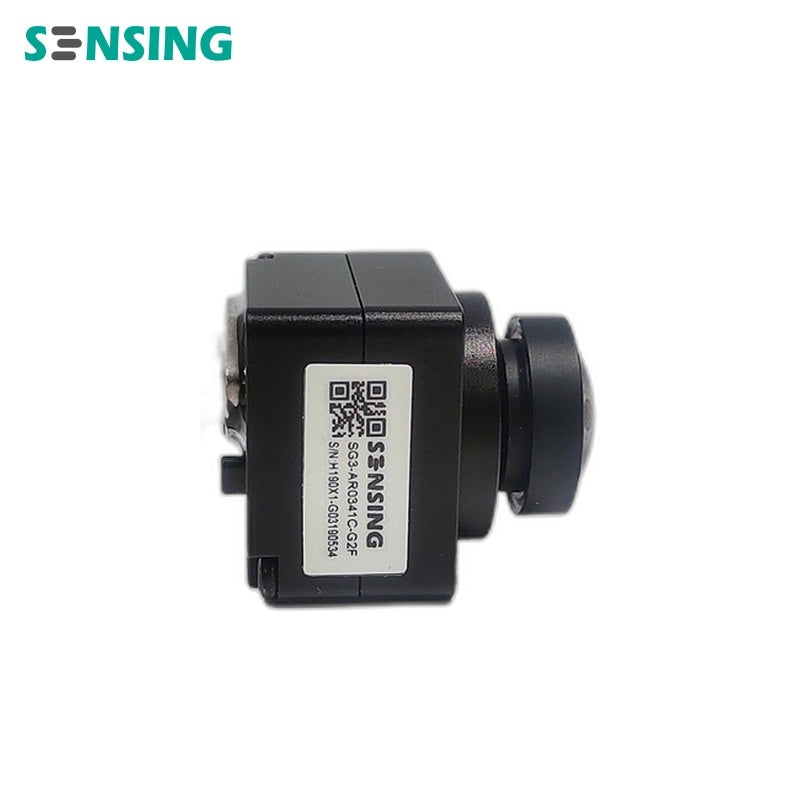

SENSING SG3-AR0341C-G2F Camera
Regular price
$650.00
Unit price
SENSING SG3-AR0341C-G2F Camera - SG3-AR0341C-G2F is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING SG3-AR0341C-G2F Camera
Regular price
$650.00
Unit price
SENSING SG3-AR0341C-G2F Camera - SG3-AR0341C-G2F is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | ONSEMI 2.95MP AR0341 RGGB |
| ISP | / |
| Startup mode | From I2C |
| Image Size | 1/3.6 inch CMOS |
| Output Pixels | 1920H*1536V |
| Pixel Size | 2.1um*2.1um |
| Frame Rate | Max 60fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | RAW 12 |
| Serializer | MAXIM MAX96717F |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <200mA@12VDC |
| Connector | Amphenol Fakra (Z Code) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 24mm, L: 24mm, H: 16.5mm |
| Weight | <50g |
SENSING-SG3-AR0341C-G2F-Hxxx-Drawing.pdf
SENSING-SG3-AR0341C-G2F-Hxxx_Camera-Datasheet.pdf
