SENSING | SKU:

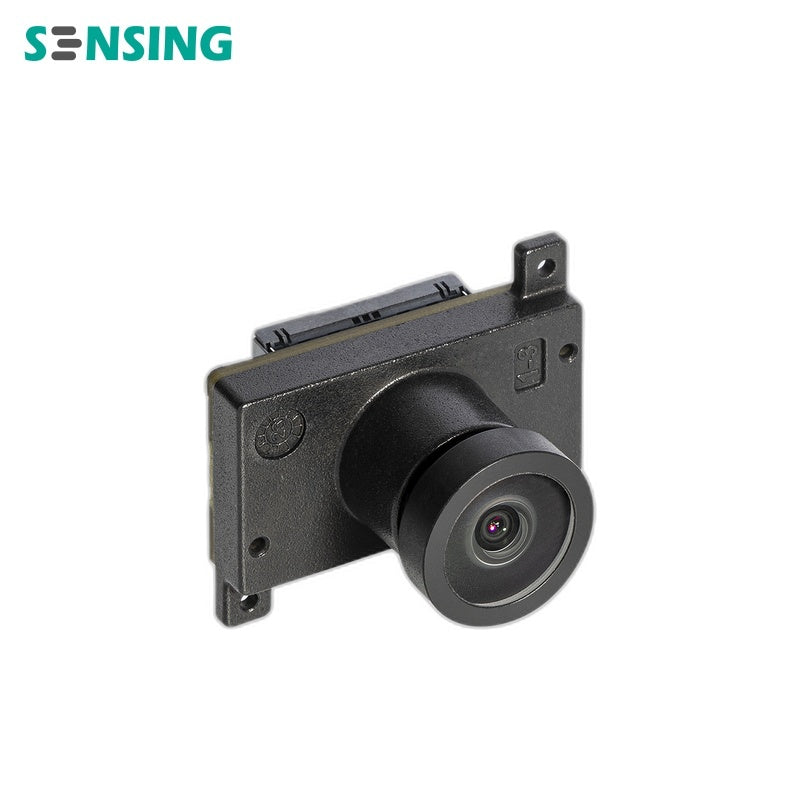

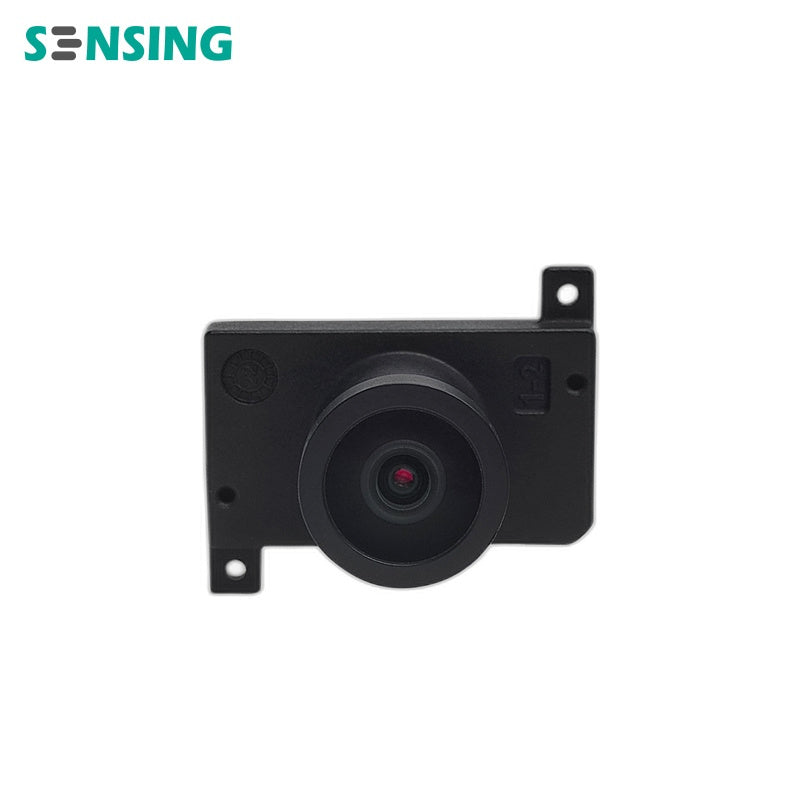

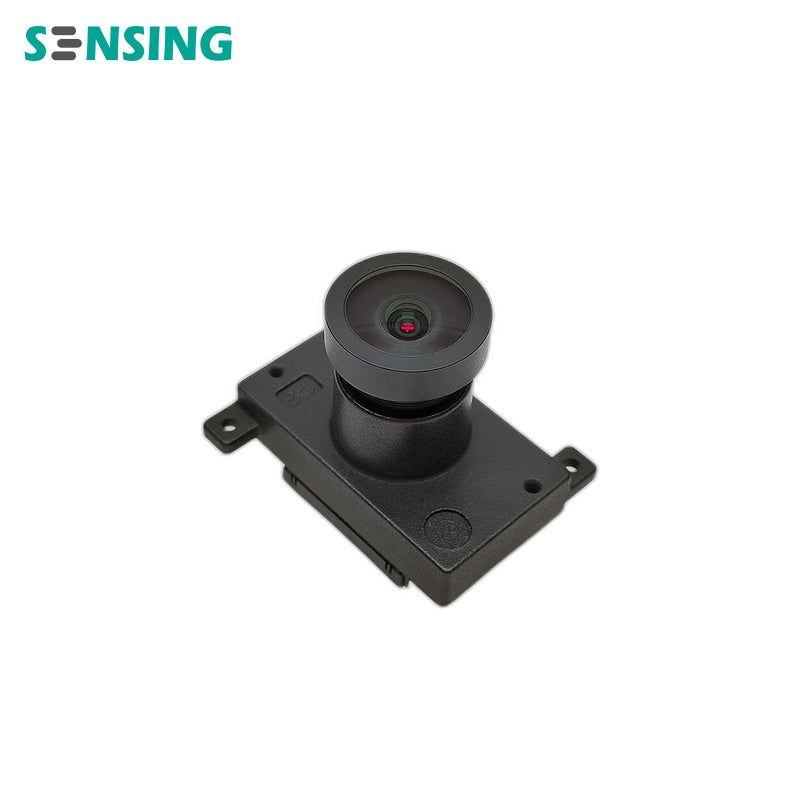

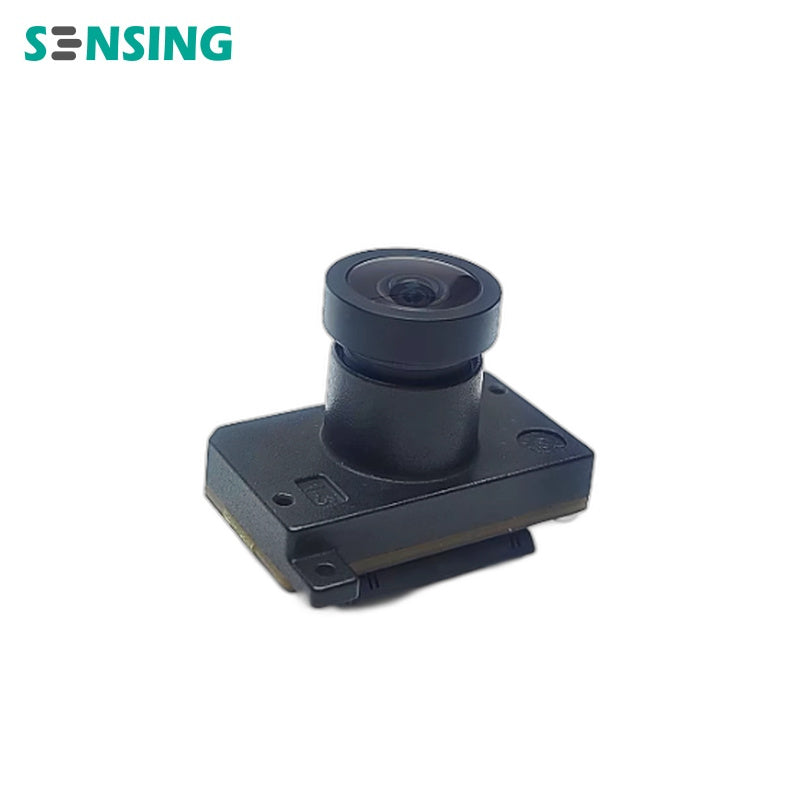

SENSING SG2-IMX390C-MIPI Camera
Regular price
$400.00
Unit price
SENSING SG2-IMX390C-MIPI Camera - SG2-IMX390C-MIPI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING SG2-IMX390C-MIPI Camera
Regular price
$400.00
Unit price
SENSING SG2-IMX390C-MIPI Camera - SG2-IMX390C-MIPI is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | SONY 2.12MP IMX390 RGGB |
| ISP | / |
| Image Size | 1/2.7 inch CMOS |
| Output Pixels | 1920H*1080V |
| Frame Rate | Up to 60 fps |
| Pixel Size | 3um |
| HDR Support | Yes |
| Output data | MIPI/RAW@10bit/12bit |
| Power Supply | 3.3V |
| Current | <300mA@3.3VDC |
| Camera interface | FPC |
| Connector | FH67-30S-0.5SV |
| Operating temp. | -40~+85℃ |
| Dimensions | W: 20mm, L:35mm, H:25mm |
| Weight | <50g |
SENSING-SG2-IMX390C-MIPI-Drawing.pdf
