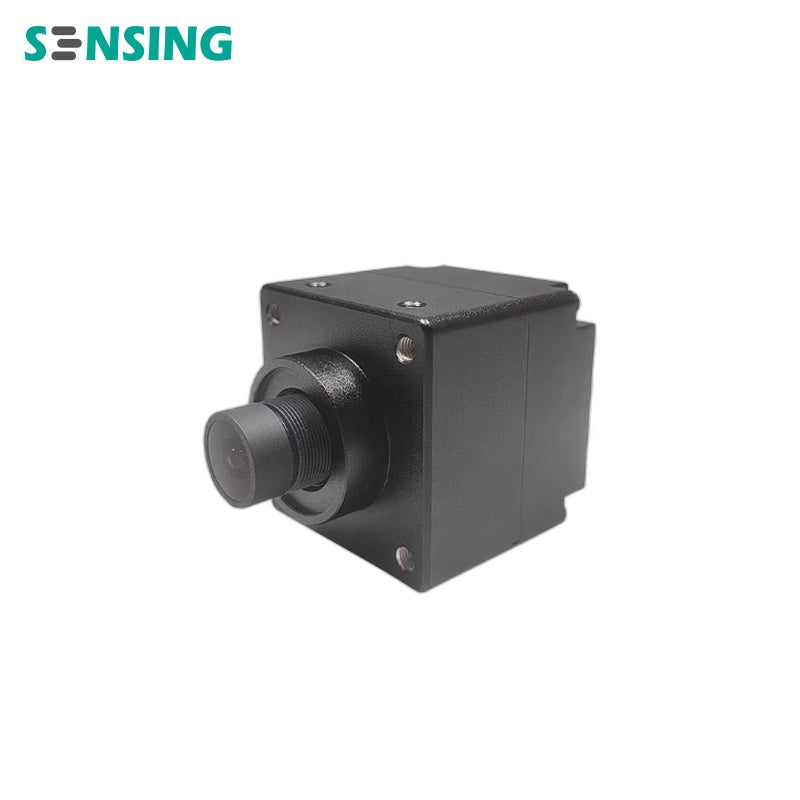

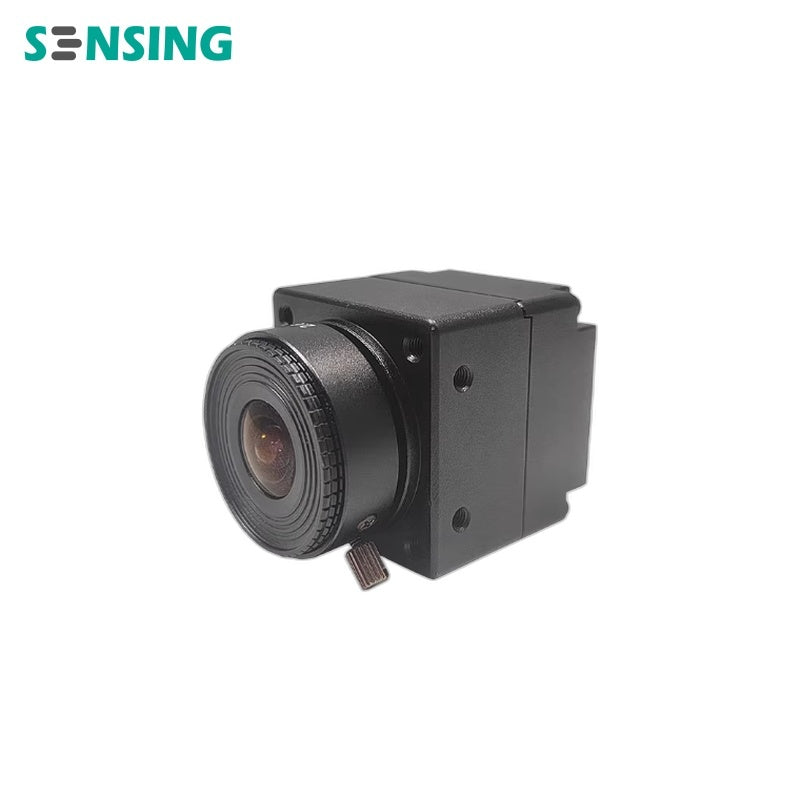

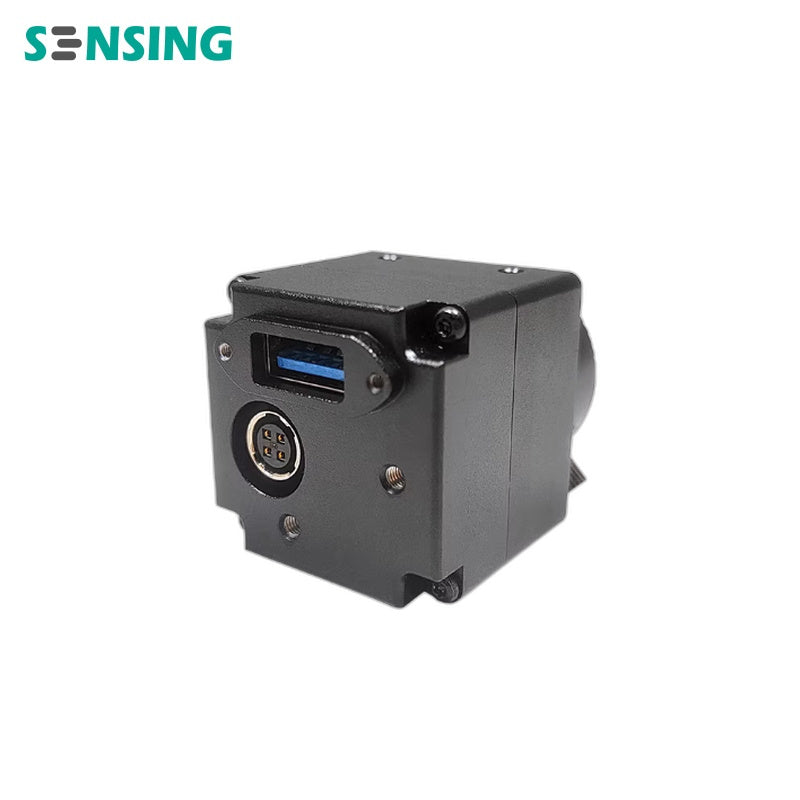

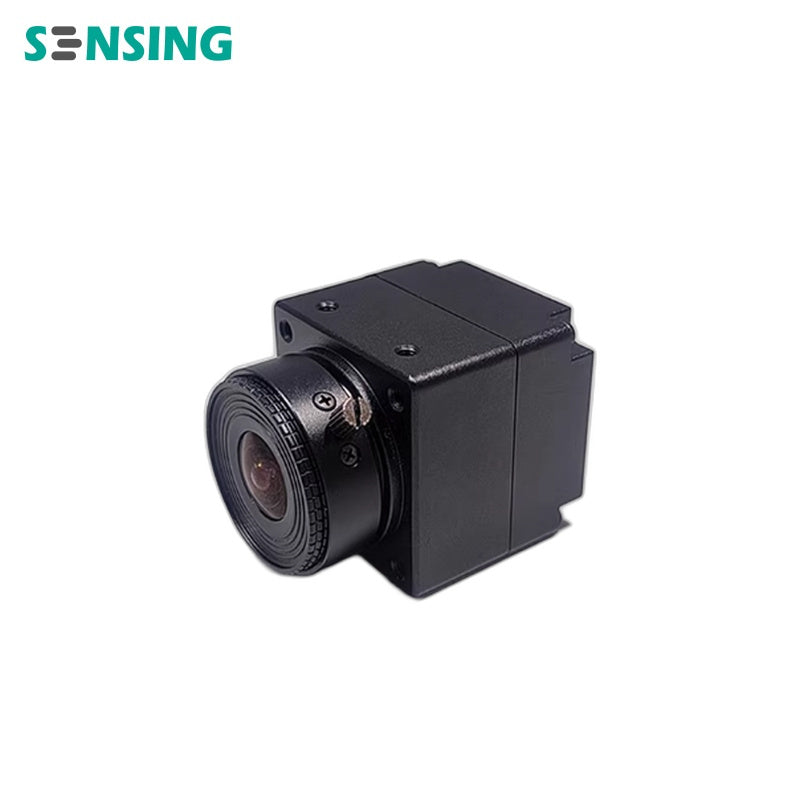

SENSING SE1-S4-USB Event Based Camera
Regular price
$650.00
Unit price
SENSING SE1-S4-USB Event Based Camera - SE1-S4-USB-H70FM is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING SE1-S4-USB Event Based Camera - SE1-S4-USB-H70FM is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | SE1-S4-USB-Hxxx |
| Resolution (Pixels) | 1280 x 720 |
| Latency Output | 800 us @ 1000lux |
| Dynamic Range (dB) | >110* |
| Contrast Threshold (%) | 25 |
| Pixel Size (μm) | 4.86 x 4.86 |
| Maximum Camera Bandwidth (Gbps) | 1.6 |
| Output Data Volume | 20Mevents/s |
| Interface (Data Output) | USB 3.0 |
| Trigger Input | 4Pin Connector |
| Sync Input/Output | 4Pin Connector |
| Dimensions / Weight | 35mmx35mmx35mm/80g |
SENSING-SE1-S4-USB-Event-Based-Camera-Drawing.pdf
SENSING-SE1-S4-USB-Event-Based-Camera-Datasheet.pdf
