SENSING | SKU:

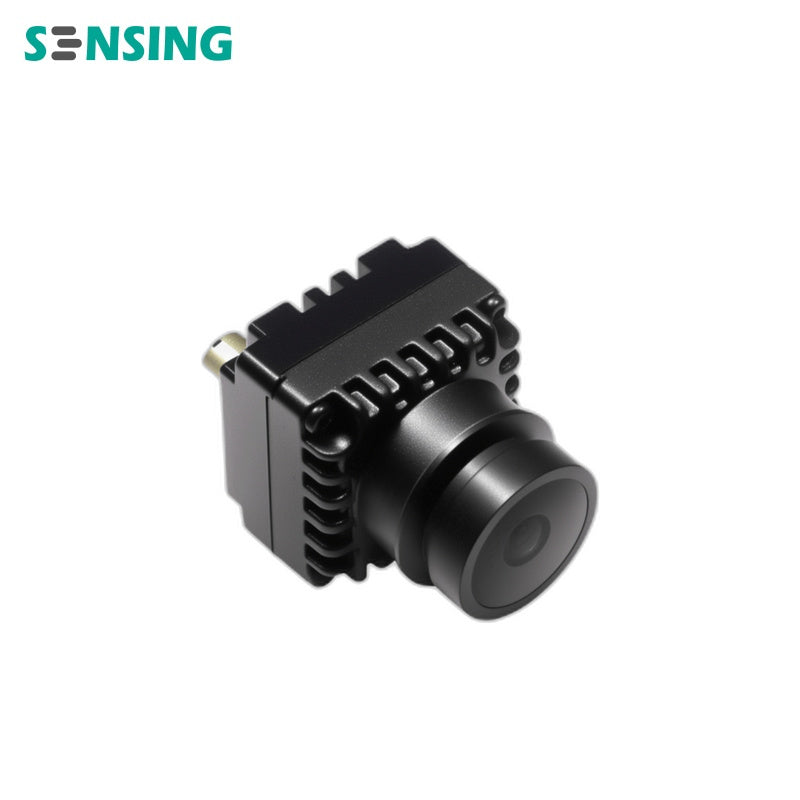

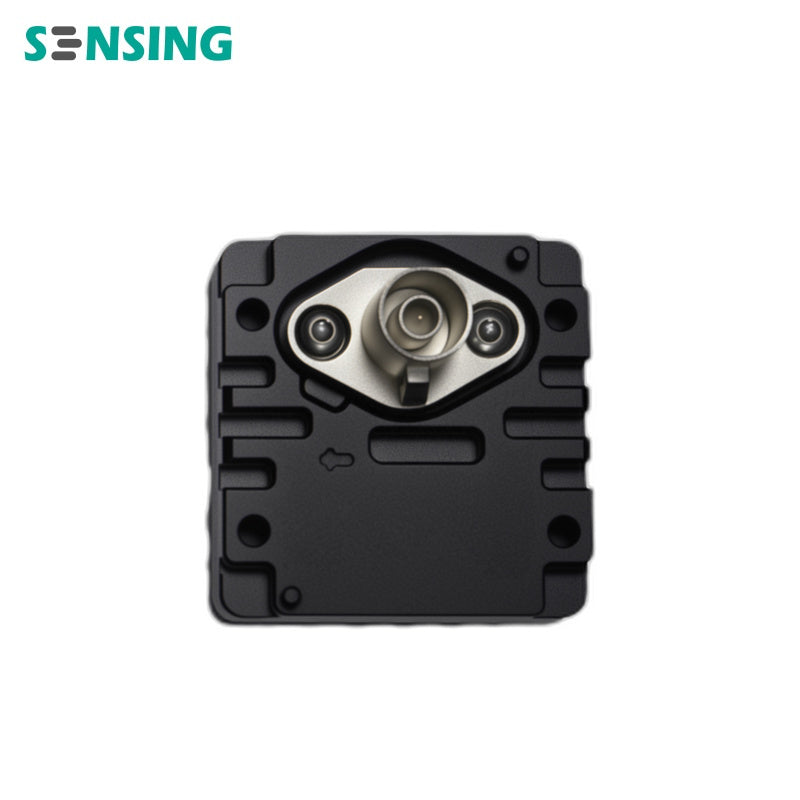

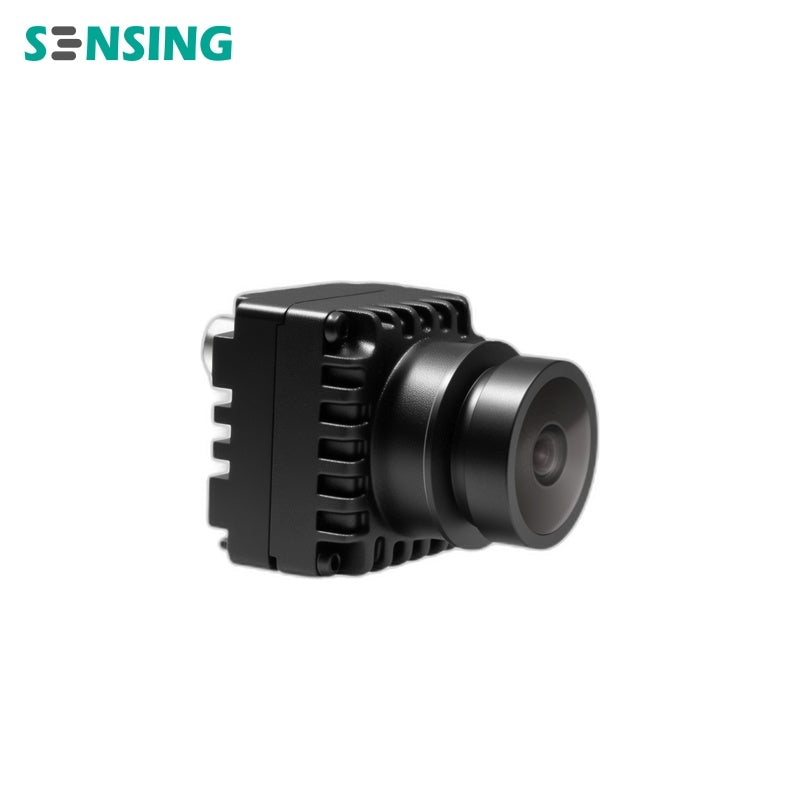

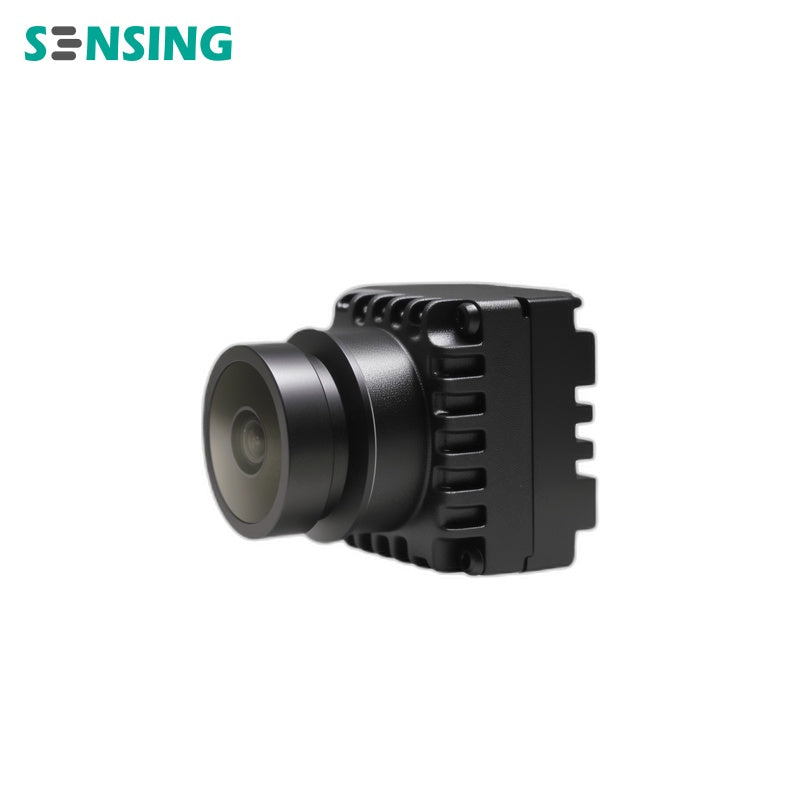

SENSING RedFox-D3Gx Automatic Defogging Camera
Regular price
$459.00
Unit price
SENSING RedFox-D3Gx Automatic Defogging Camera - RedFox-D3GN (HFOV 53.2) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING RedFox-D3Gx Automatic Defogging Camera
Regular price
$459.00
Unit price
SENSING RedFox-D3Gx Automatic Defogging Camera - RedFox-D3GN (HFOV 53.2) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | SONY 2.95MP RGGB |
| ISP | Built-in |
| Image Size | 1/2.42 inch CMOS |
| Output Pixels | 1920H*1536V @30fps (default) 1920H*1536V @60fps |
| Resolution | center ≥800LW/PH, around ≥600LW/PH (RedFox-D3GF only meet the center standard) |
| Pixel Size | 3.0um*3.0um |
| Frame Rate | MAX 60fps |
| HDR Support | Yes |
| LEM | Yes |
| HDR Range | Up to 120 dB |
| Output data | YUV422 |
| Serializer | MAXIM MAX96717G |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V Camera |
| Current | 400mA@12V(with Heating) |
| Connector | Amphenol Fakra Z Code (Camera) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 30mm, L:30mm |
| Weight | <100g |
SENSING-RedFox-D3Gx-Automatic-Defogging-Camera-Drawing.pdf
SENSING-RedFox-D3Gx-Automatic-Defogging-Camera-Datasheet.pdf
