Direct Drive Tech | SKU:

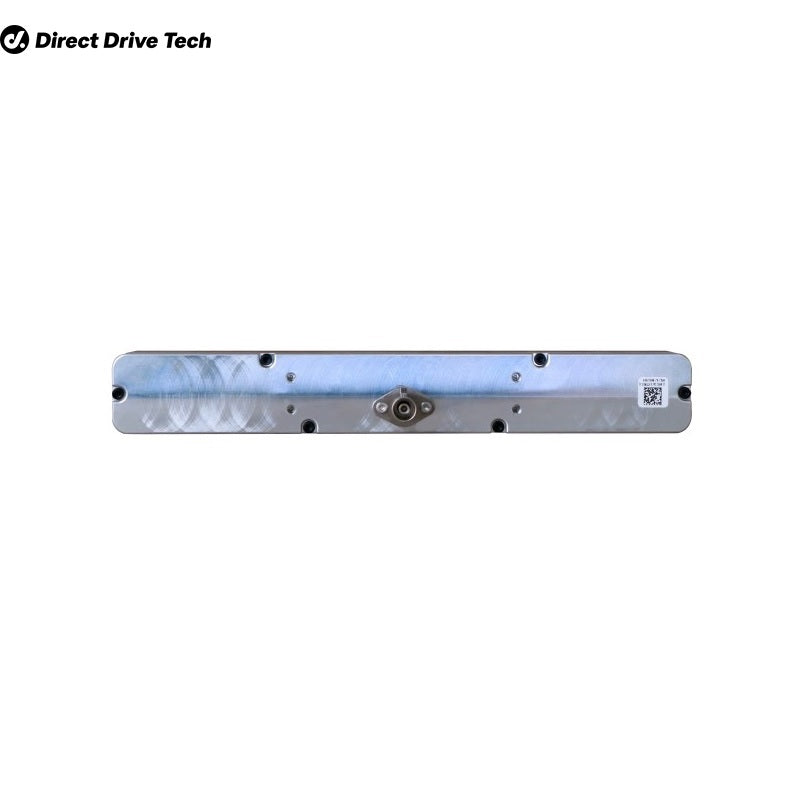

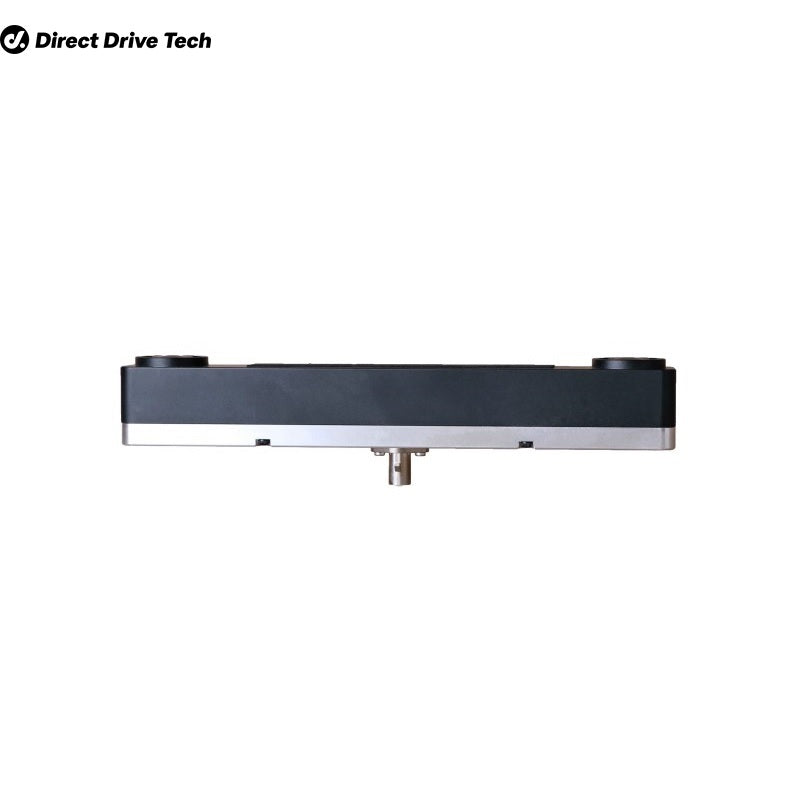

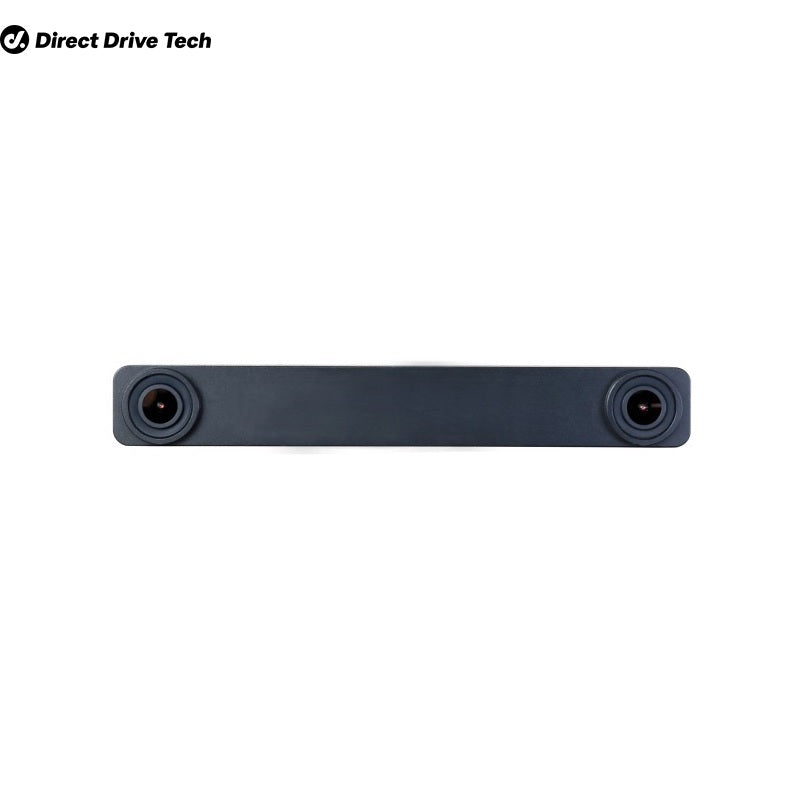

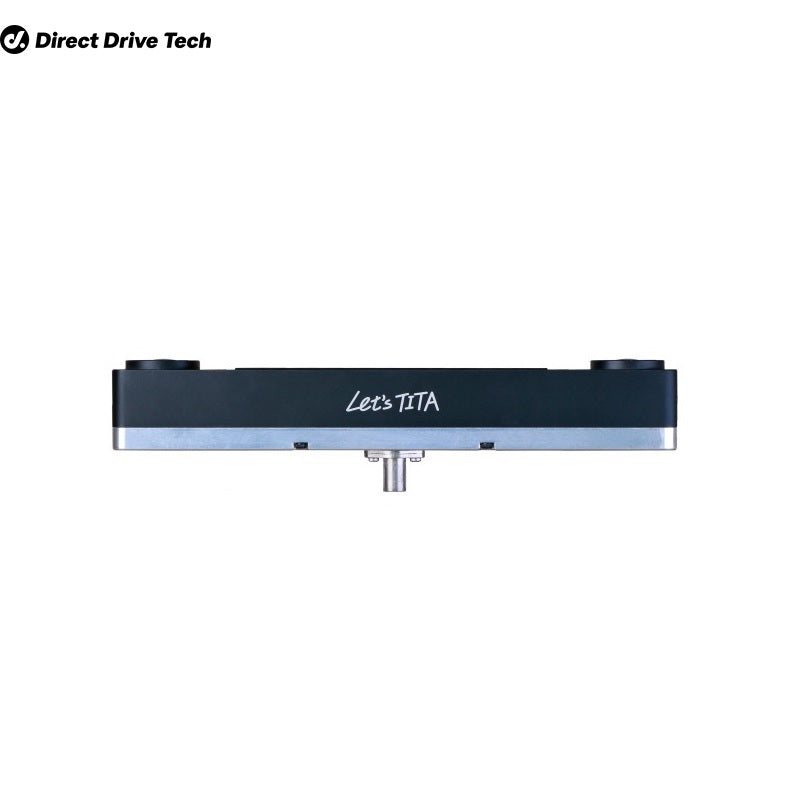

Direct Drive Tech TITA STEREO-GMSL2 CAMERA
Regular price
$465.00
Unit price
Unavailable
Direct Drive Tech TITA STEREO-GMSL2 CAMERA - TITA-GMSL2-CAMERA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Direct Drive Tech TITA STEREO-GMSL2 CAMERA
Regular price
$465.00
Unit price
Unavailable
Direct Drive Tech TITA STEREO-GMSL2 CAMERA - TITA-GMSL2-CAMERA is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor |
ON Semiconductor 2.3MP CMOS
Image Sensor AR0234CS
|
|
QTY of Sensor
|
2 |
|
Optical Format
|
1/2.6"
|
|
Resolution
|
1920 (H) × 1200 (V) (active pixels)
|
|
Pixel Size
|
3.0 × 3.0 μm
|
|
Recommended Working Distance
|
1.0 ~ 8.0 m
|
|
Output Format
|
0-bit RAW
|
|
Baseline
|
150.00 ± 0.5 mm
|
|
Color / Mono
|
Color sensor
|
|
Frame Rate
|
60 fps @ 1920 × 1200
|
|
Shutter
|
Global shutter
|
|
Serializer
|
Maxim MAX9295D
|
|
Power Supply Range
|
9 ~ 19 VDC
|
|
IMU
|
Included
|
|
FAKRA Connector
|
FAKRA Z TYPE
|
|
IP Rating
|
IP65
|
|
Power Consumption
|
118 mA @ 12 VDC (2 * 1920 × 1200 @ 60 fps)
|
|
Operating Temp
|
-20℃ ~ +50℃
|
|
Storage Temp
|
-40℃ ~ +70℃
|
|
Weight
|
~ 204 g
|
|
Size
|
180.0(L)×25.0(W)×44.33 (D) mm
|
