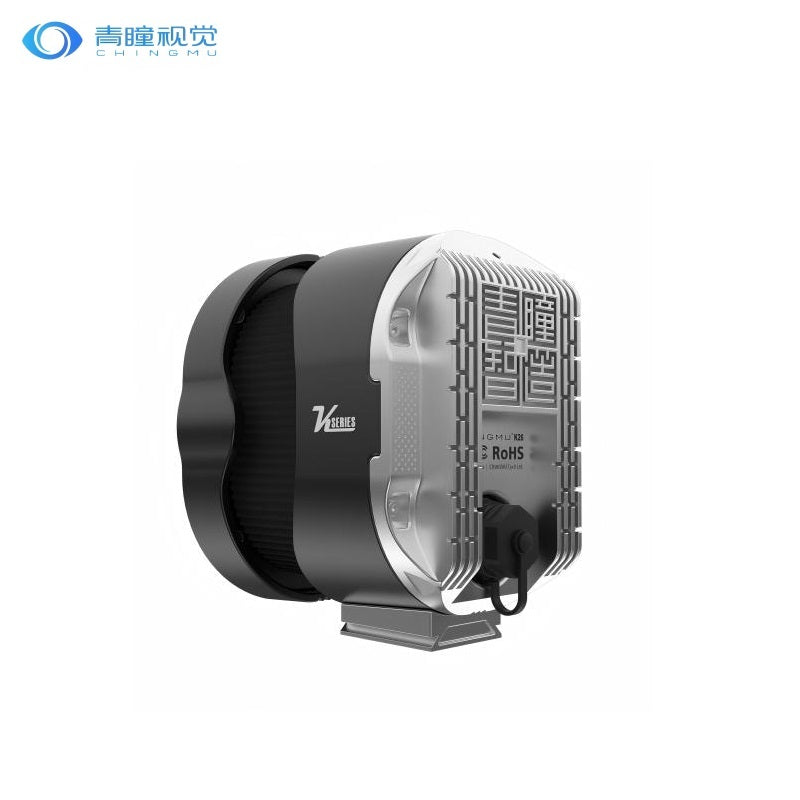

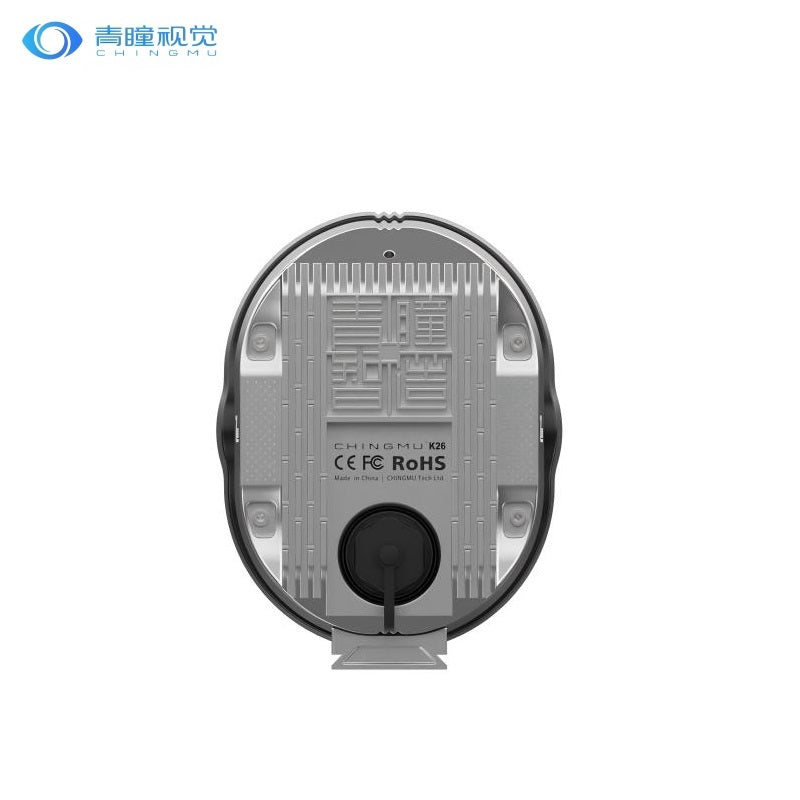

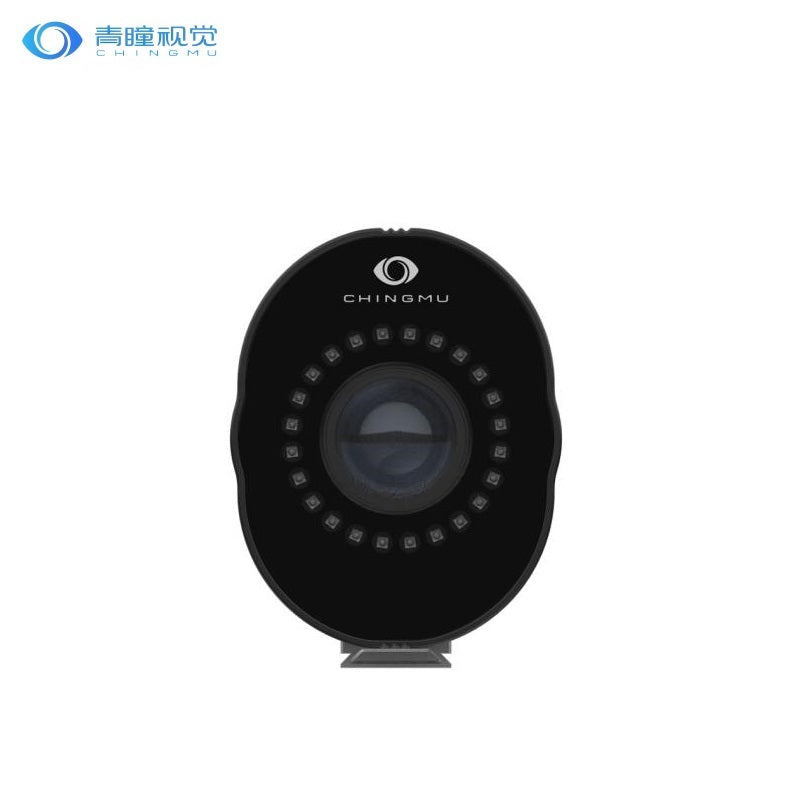

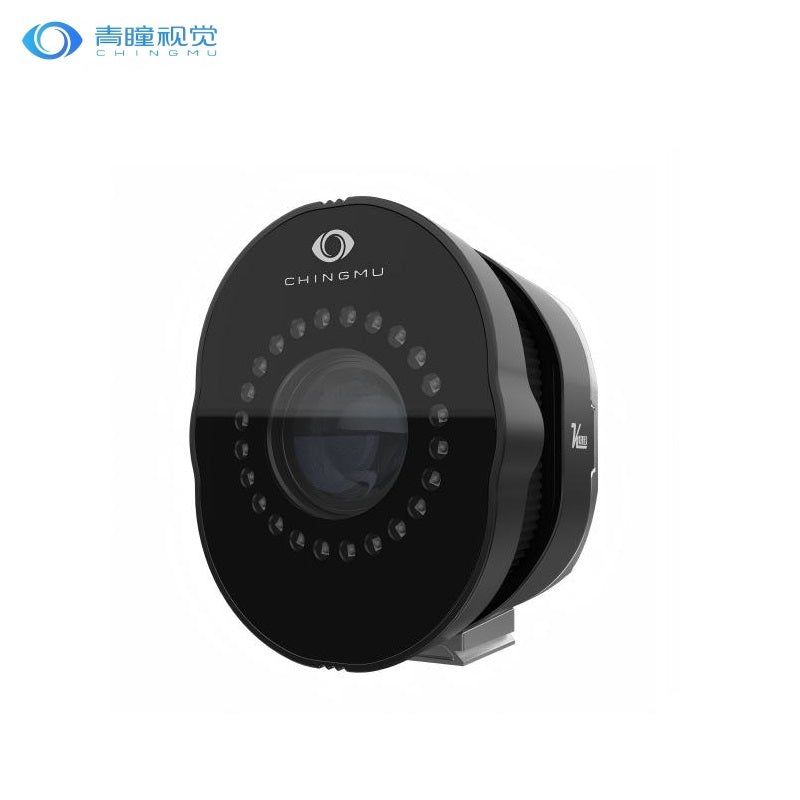

CHINGMU K-Series Camera
CHINGMU K-Series Camera - CHINGMU K5 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Technical Specifications
| Model ※1 | K5 | K9 | K18 | K26 | Tailored Edition |
|---|---|---|---|---|---|
| Resolution | 2640*1160 | 4256*2160 | 4512*4096 | 5120*1210 | Customizable |
| Frame Rate ※2 | 360fps | 360fps | 172fps | 180fps | Customizable |
| Standard Lens (Lens Aperture/Focal Length) (H*V FOV) |
F1.2/6mm 63°×51° |
F1.4/8mm 73°×40° |
F1.4/8mm 76°×70° |
F1.4/8mm 84°×84° |
Customizable |
| Narrow-angle Lens (N) (Lens Aperture/Focal Length) (H*V FOV) |
None None |
F1.4/12mm 47°×24° |
F1.4/12mm 49°×45° |
F1.9/12mm 58°×58° |
Customizable |
| Wide-angle Lens (W) Optional Equipment ※3 (Lens Aperture/Focal Length) (H*V FOV) |
None None |
F2.4/5mm 96°×59° |
F2.4/5mm 100°×94° |
F2.4/5mm 106°×106° |
Customizable |
|
Status Light (Standard Equipment) |
RGB Ring Light | RGB Ring Light | RGB Ring Light | RGB Ring Light | Customizable |
| Ingress Protection Standard Equipment Optional Equipment ※4 |
None IP66 |
None IP66 |
None IP66 |
None IP66 |
Customizable |
| 3D Precision (2) |
±0.06mm | ±0.04mm | ±0.03mm | ±0.02mm | Customizable |
| Passive Tracking Distance* |
28m |
Standard Version:30m N:45m W:23m |
Standard Version:30m N:47m W:22m |
Standard Version:32m N:45m W:25m |
Customizable |
| Active Tracking Distance* |
56m |
Standard Version:60m N:90m W:46m |
Standard Version:48m N:94m W:44m |
Standard Version:62m N:90m W:50m |
Customizable |
| Infrared Fill Light | yes | yes | yes | yes | Customizable |
| Optical Finger | yes | yes | yes | yes | Customizable |
| Full Body Tracking | yes | yes | yes | yes | Customizable |
| Synchronization Method | Wired and Wireless | Wired and Wireless | Wired and Wireless | Wired and Wireless | Customizable |
| Interface Type | RJ45 | RJ45 | RJ45 | RJ45 | Customizable |
| LED Quantity | 60 | 60 | 60 | 60 | Customizable |
| Whole Machine Power | 12-55w | 12-55w | 12-55w | 12-55w | Customizable |
| Cascade Quantity | 100+ | 100+ | 100+ | 100+ | Customizable |
※1: The standard models are K5, K9, K18, and K26, which are equipped with standard lens and no protection level. If a narrow-angle lens or wide-angle lens is optional, add the letter "N" or "W" after the standard model. If the optional protection level is IP66, add "IP66" after the standard model.
For example:
K9N indicates a model with an optional narrow-angle lens and no protection level.
K18WIP66 indicates a model with an optional wide-angle lens and a protection level of IP66.
K26IP66 is equipped with a standard lens as standard equipment and has a protection level of IP66.
※2: The frame rate can be increased through windowing technology, and customization is available.
※3: An additional fee is required when selecting the wide-angle lens as an optional accessory.
※4: An additional fee is required when opting for the IP66 protection level as an optional feature.
(2)3D Accuracy Measured with Standard Lenses.*Measurements were taken using a 16mm diameter marker. The observation range can also be increased by supplementing ight sources or using markers of larger diameter.
