Abham | SKU:

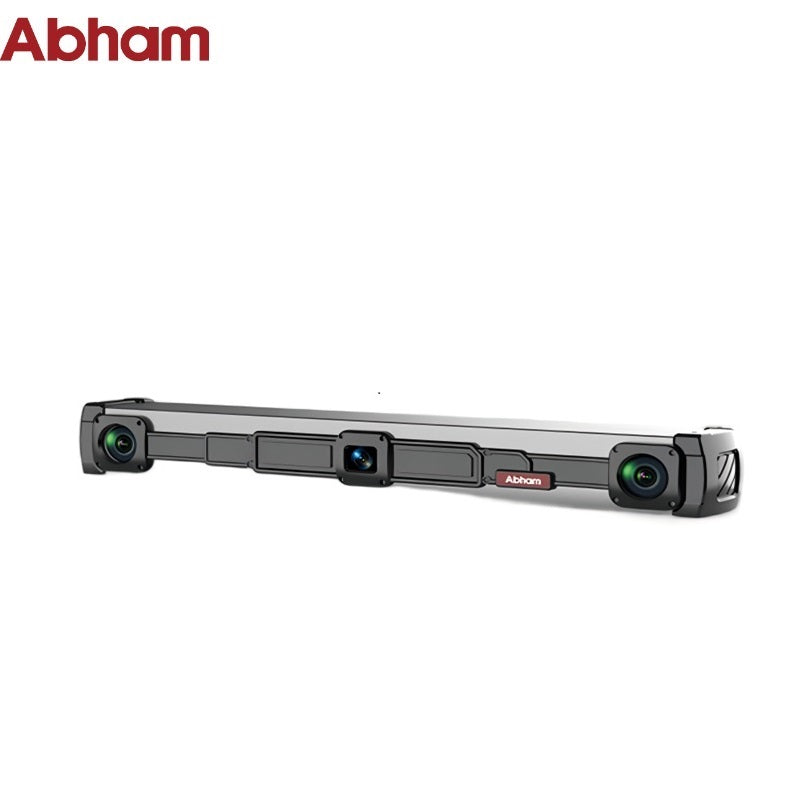

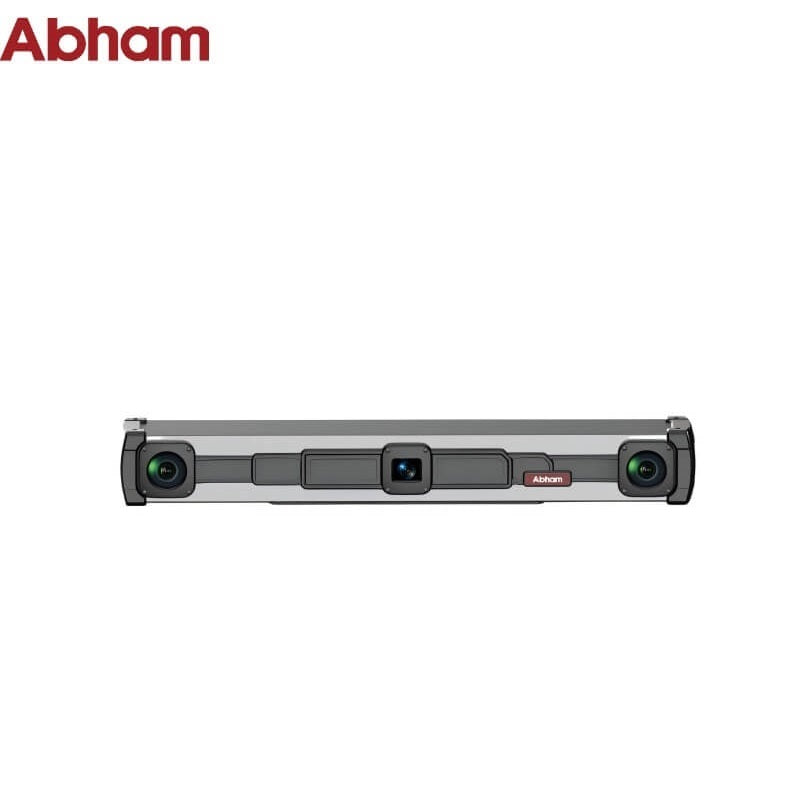

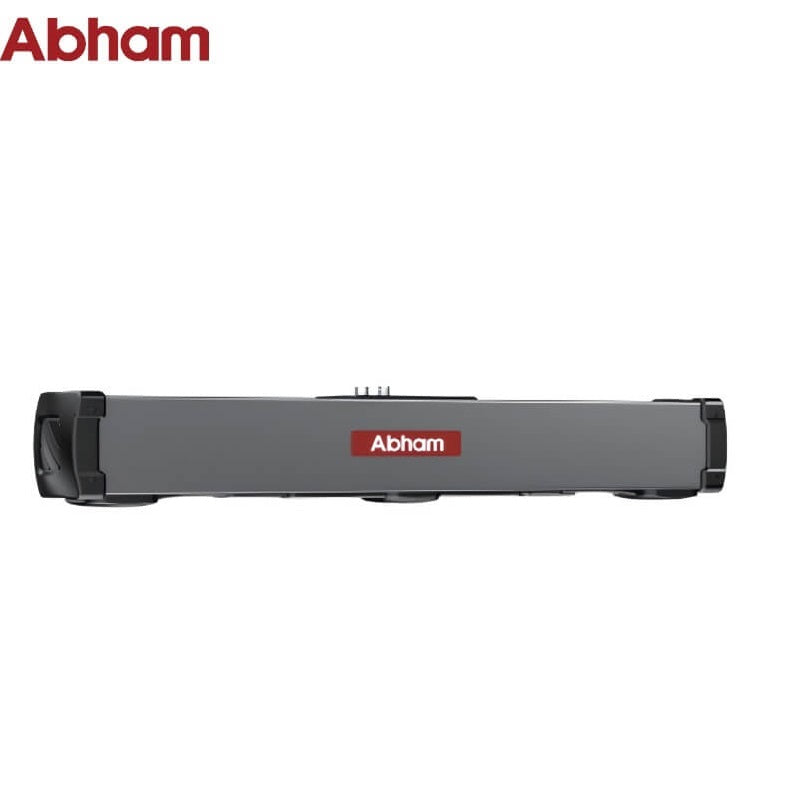

Abham Super Series Camera
Regular price
$5,955.00
Unit price
/
Unavailable
Abham Super Series Camera - Super730 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Abham Super Series Camera
Regular price
From
$5,955.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Super730 | Super750 |
|---|---|---|
| Near Field | 800×900mm@1500mm | 633×623mm@700mm |
| Far Field | 1600×1900mm@3000mm | 1299×1217mm@1400mm |
| Working Range | 1500mm~3000mm | 700mm~1400mm |
| Point Cloud Resolution | 1752 × 1752 | 2448 × 2048 |
| Accuracy | 0.5@2500mm | ±0.15@1140mm |
| Point Cloud Frame Rate | ≤2fps | |
| Power Supply Mode | External power supply: 12V—24V POE power supply |
|
| Working Current | 2A | |
| Data Interface | Gigabit Ethernet | |
| Trigger Mode | Soft trigger/Hardware trigger | |
| Data Type | Raw image (black & white), Depth, Point cloud | |
| Supported OS | Windows / Ubuntu | |
| Operating Temperature | Operating: -10℃~70℃, Recommended: 0℃~50℃ | |
| Safety | Laser Class3R | |
| Product Dimensions (L×W×H) | 703.5 × 100 × 95mm | 582 × 93 × 93mm |
