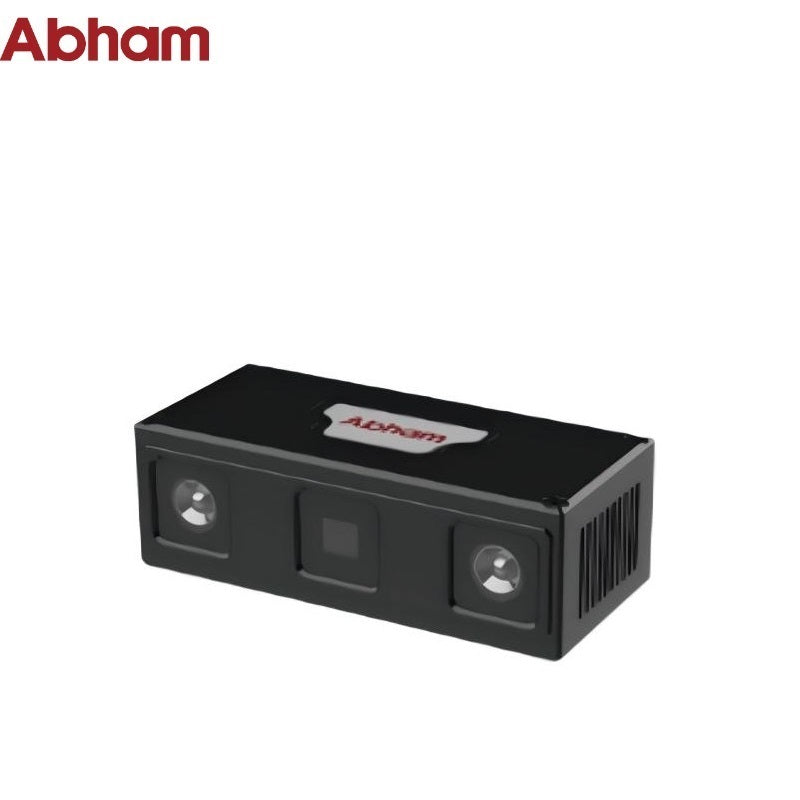

Abham Nano130 Camera
Regular price
$2,125.00
Unit price
/
Unavailable
Abham Nano130 Camera - Nano130 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Abham Nano130 Camera
Regular price
$2,125.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Near Field | 329mm×287mm@350mm |
| Far Field | 1021mm×881mm@1100mm |
| Working Range | 350mm~1100mm |
| Point Cloud Resolution | 1280 x 1024 |
| Accuracy | <0.05%@1100mm |
| Point Cloud Frequency | <3 Hz |
| Power Supply Mode | External power supply: 12V~24V POG power supply |
| Working Current | 1A |
| Data Interface | Gig E |
| Trigger Mode | Soft trigger/Hardware trigger |
| Data Type | Raw image (white), Depth, Point cloud |
| Supported OS | Windows / Ubuntu |
| Operating Temperature | Operating: -10℃~70℃, Recommended: 0℃~50℃ |
| Weight | 482g |
| Safety | Laser Class3R |
| Product Dimensions | 139 x 61.5 x 45mm |
