PACECAT

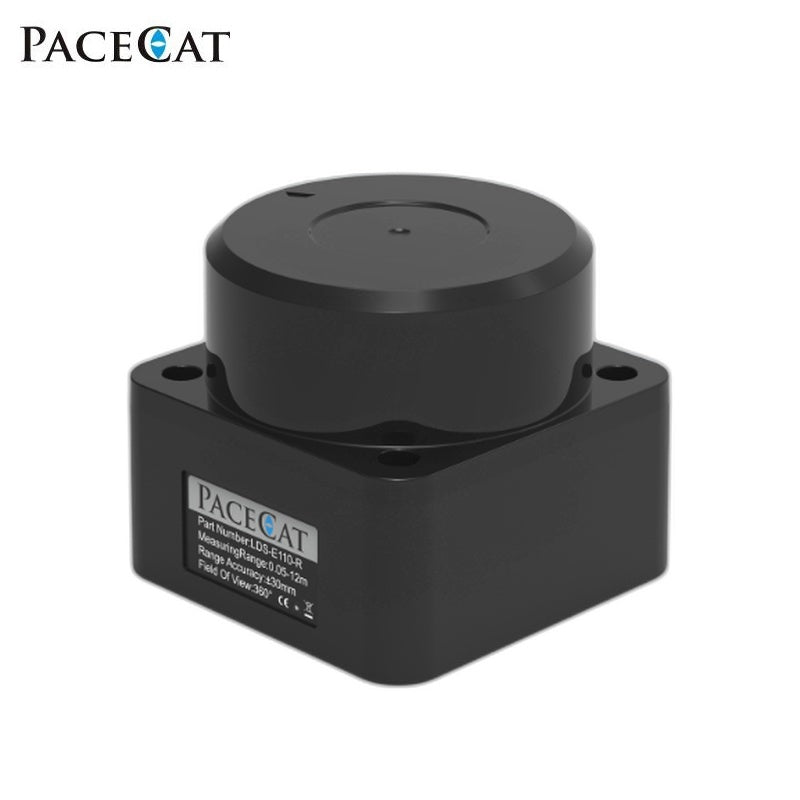

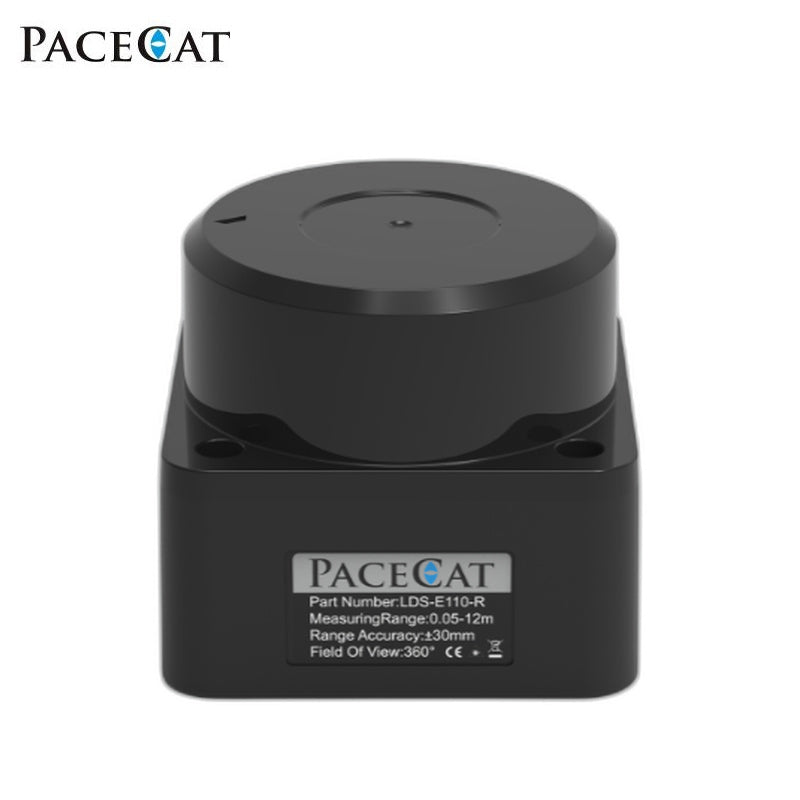

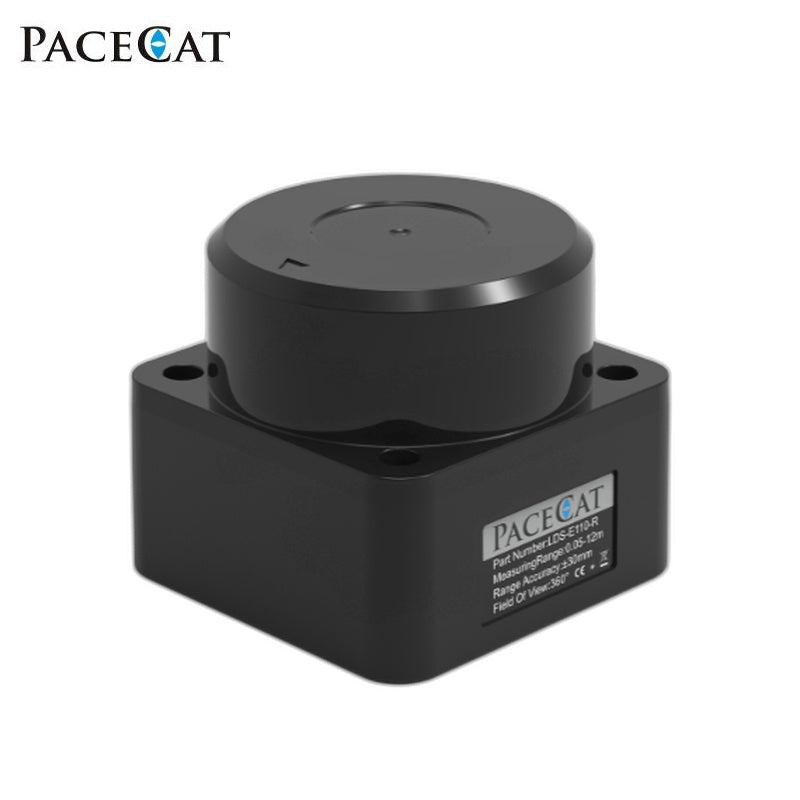

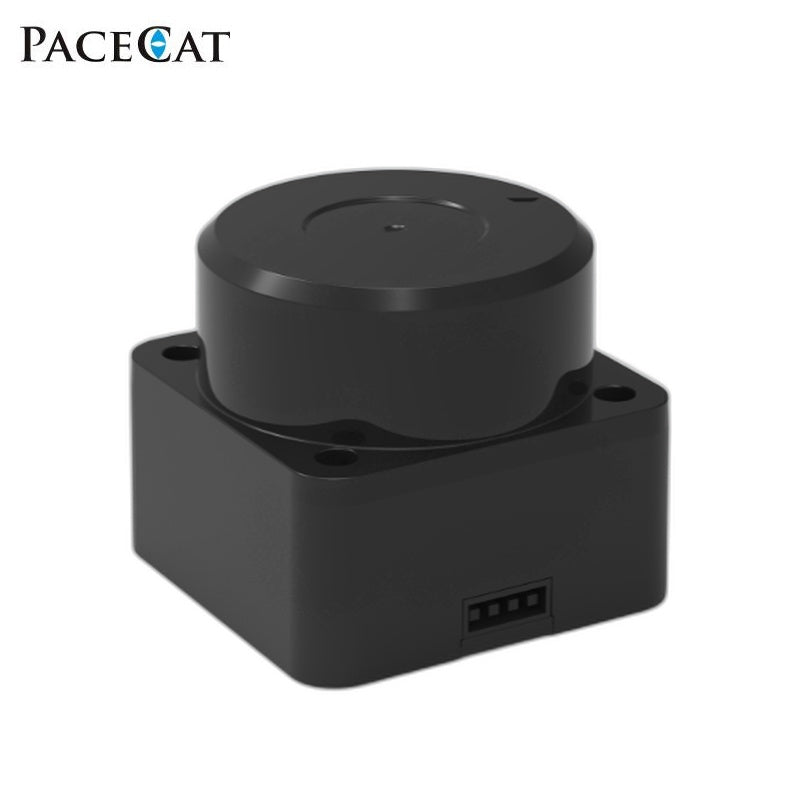

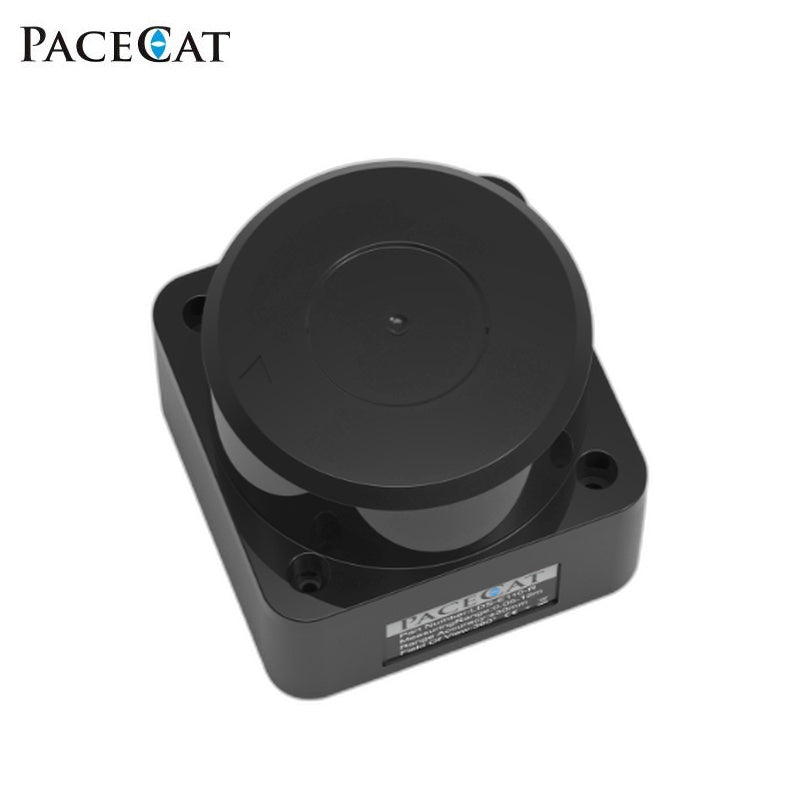

PACECAT LDS-E110-R LiDAR

$260.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value Value
Model LDS-E110-R LDS-E110-R-1 LDS-E110-R-3
Laser Wavelength 905nm±5nm 905nm±5nm 905nm±5nm
Measuring Distance 0.1-12m (90%)
0.1-7m (10%)		 0.1-12m (90%)
0.1-7m (10%)		 0.1-12m (90%)
0.1-7m (10%)
Laser Frequency 4.2kHz 4.2kHz 4.2kHz
Refresh Frequency 7Hz 10Hz 10Hz
Echo Mode Single Pulse Single Pulse Single Pulse
Echo Intensity 0-254 0-254 0-254
Drive Method / Motor Built-in Brushless Motor Built-in Brushless Motor Built-in Brushless Motor
Horizontal Angular Resolution 0.6°@7Hz 0.83°@10Hz 0.83°@10Hz
Range Accuracy ±20mm @<2m
±30mm @≥2m		 ±20mm @<2m
±30mm @≥2m		 ±10mm @<2m
±20mm @≥2m
Distance Resolution mm mm mm
Data Interface UART 3.3V UART 3.3V UART 3.3V
Anti-glare >80000LX >80000LX >80000LX
Reference Weight <80g <80g <80g
Working Voltage 5.1VDC±0.2VDC 5.1VDC±0.2VDC 5.1VDC±0.2VDC
Working Temperature -10°C~+45°C -10°C~+45°C -10°C~+45°C
Power Consumption ≤1W ≤1W ≤1.5W
Protection Grade N/A N/A N/A
Device Dimensions (mm) 38.5×38.5×34mm 38.5×38.5×34mm 38.5×38.5×34mm
