NOUS Robot

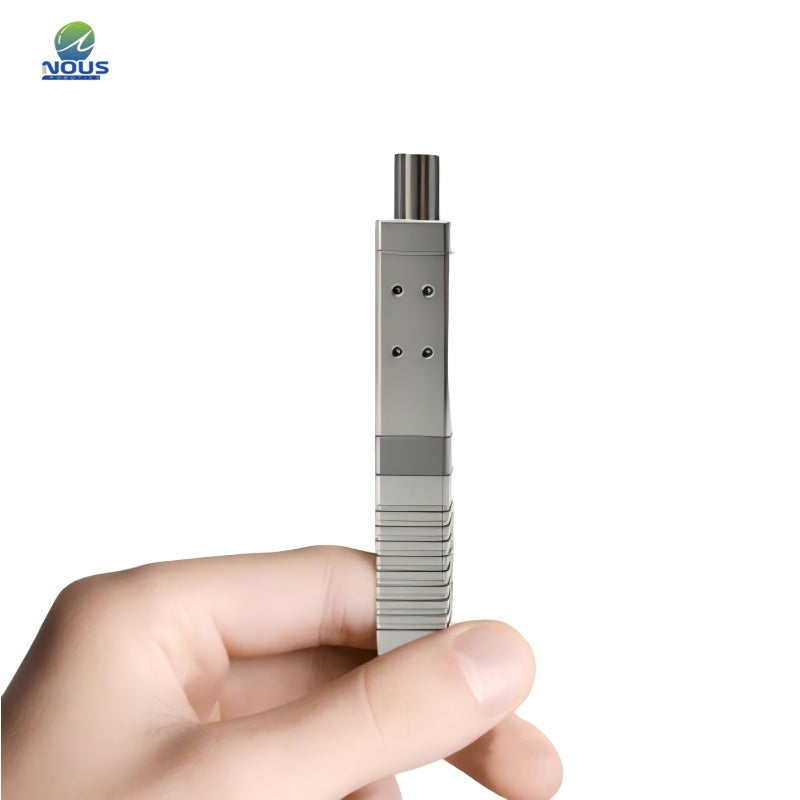

NOUS DH08L Series Micro Actuator

$840.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Vaule Vaule Vaule
Model DH08L‑10‑01‑1‑RS DH08L‑20‑01‑1‑RS DH08L‑30‑01‑1‑RS
External dimensions (mm) 10*12*58.4 10*12*68.4 10*12*78.4
Rated thrust (N) 60 60 60
Maximum thrust (N) 150 150 150
Maximum self‑locking force (N) 200 200 200
Rated linear velocity (mm/s) 3 3 3
Maximum linear velocity (mm/s) 7 7 7
Stroke (mm) 10 20 30
Repeatability (mm) ±0.01 ±0.01 ±0.01
Weight (g) < 30 < 35 < 40
Temperature (℃) -10‑45℃ -10‑45℃ -10‑45℃
IP Level IP54 IP54 IP54
Screw type Planetary roller screw Planetary roller screw Planetary roller screw
Motor type Brushless Hollow Cup Motor Brushless Hollow Cup Motor Brushless Hollow Cup Motor
Rated voltage (VDC) DC12±10% DC12±10% DC12±10%
Rated current (A) 0.88 0.88 0.88
Instantaneous maximum current (A) 1.2 1.2 1.2
Encoder type Incremental encoder Incremental encoder Incremental encoder
Drive control External External External
Location feedback No No No
Torque feedback No No No
Communication interface RS485 or LVTTL Optional RS485 or LVTTL Optional RS485 or LVTTL Optional
