Kunwei Sensing | SKU:

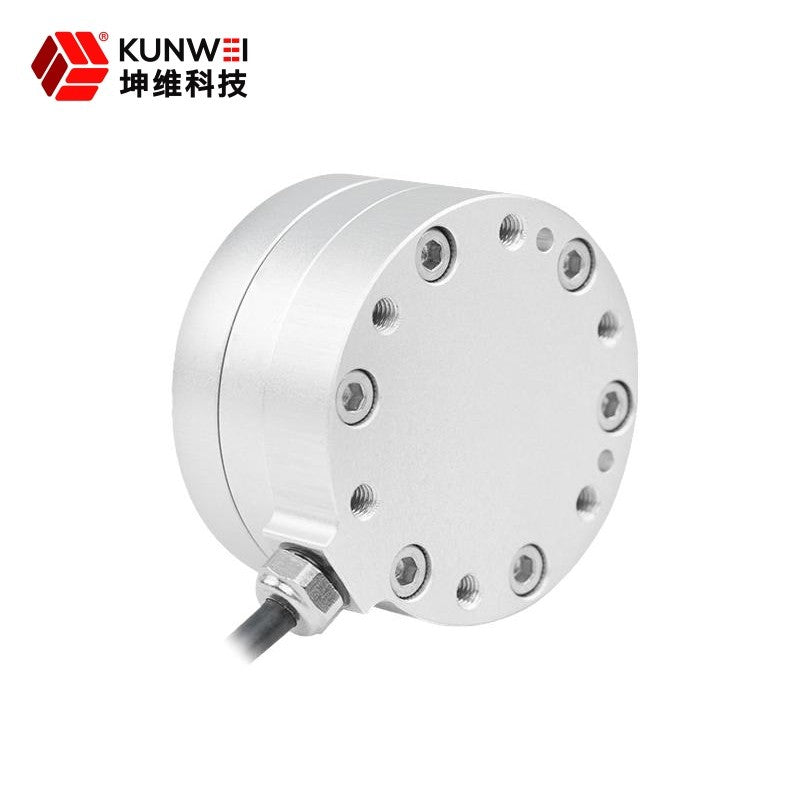

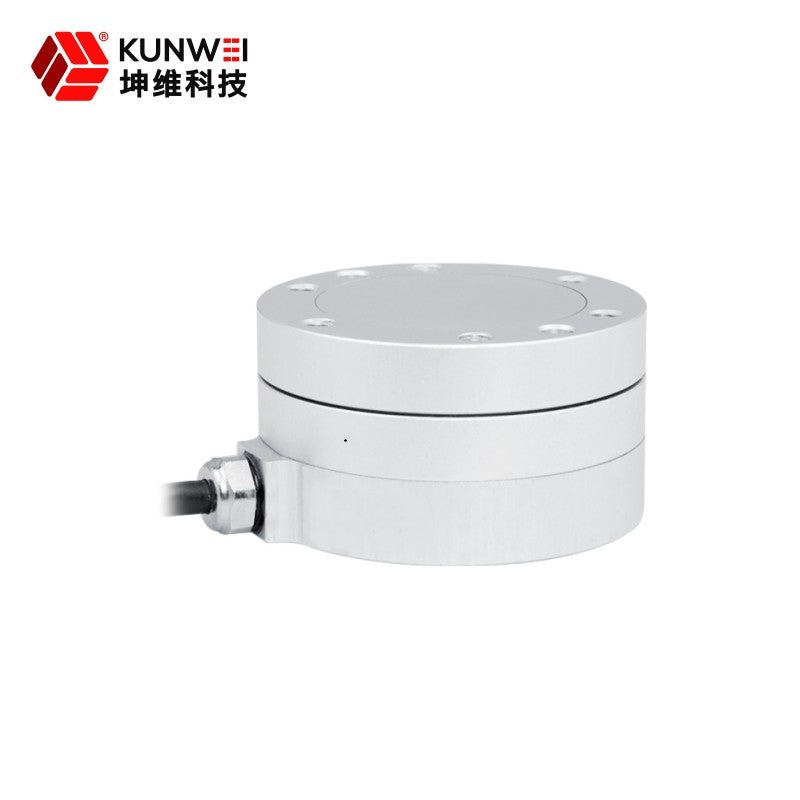

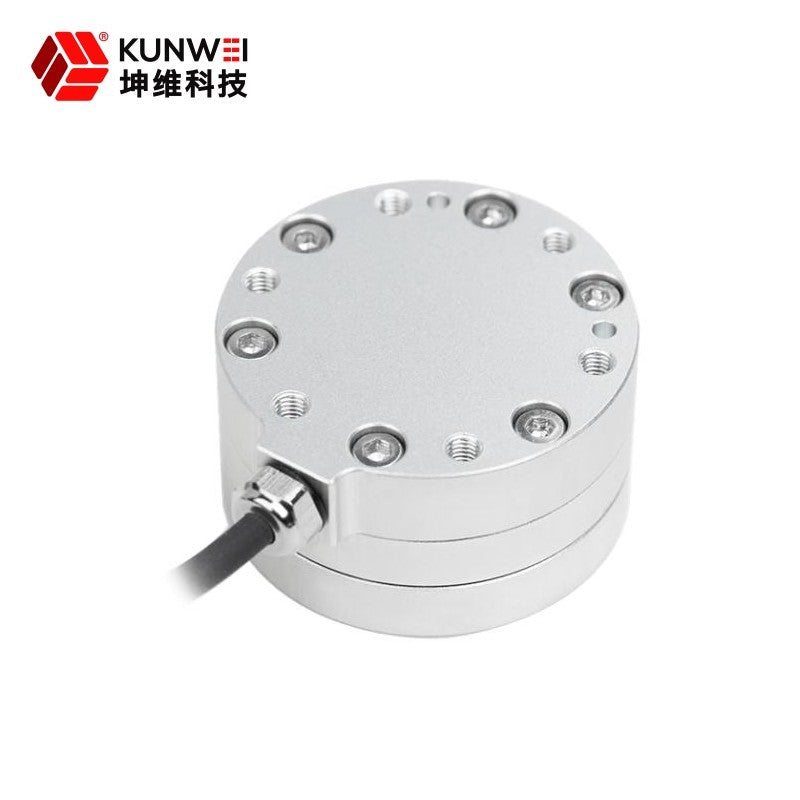

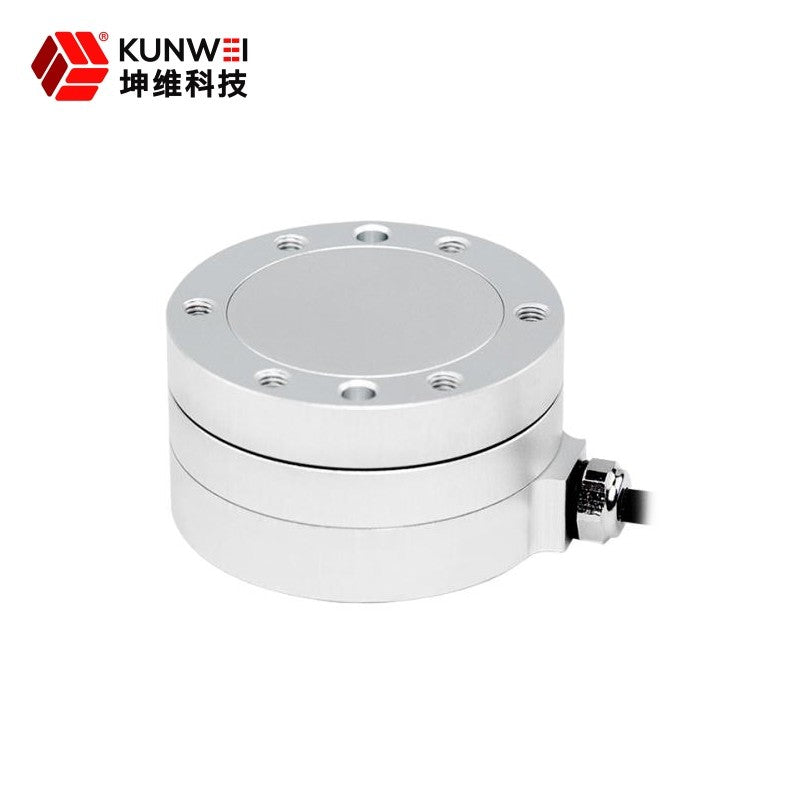

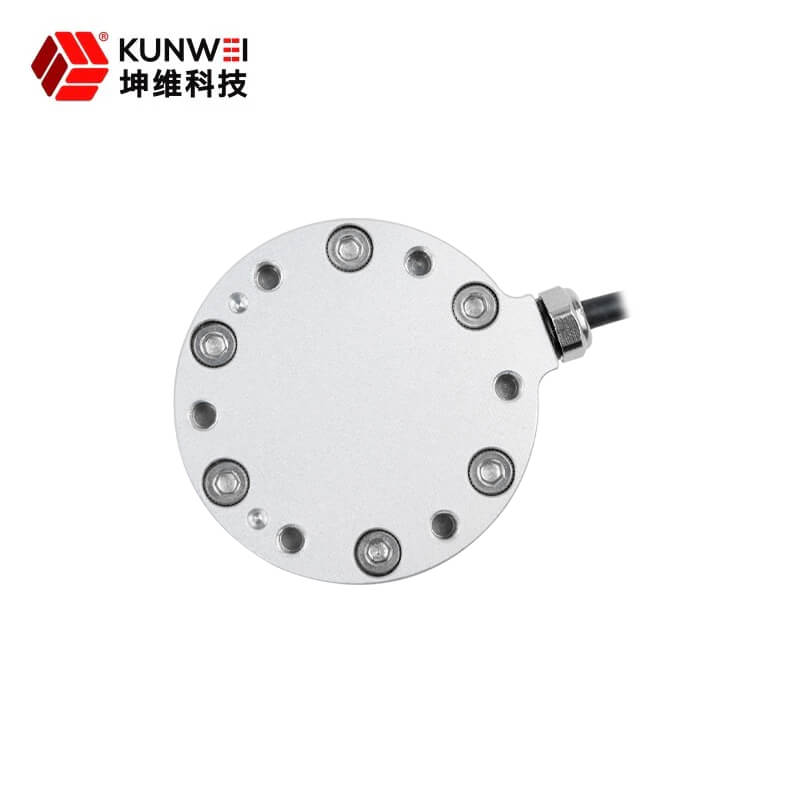

Kunwei KWR36 Series Sensor
Regular price
$6,300.00
Unit price
Kunwei KWR36 Series Sensor - KWR36A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kunwei KWR36 Series Sensor
Regular price
$6,300.00
Unit price
Kunwei KWR36 Series Sensor - KWR36A is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | KWR36A | KWR36B | KWR36C | KWR36G |
|---|---|---|---|---|
| Range Fx, Fy (N) | 30 | 50 | 80 | 500 |
| Range Fz (N) | 30 | 50 | 80 | 5000 |
| Range Mx, My (Nm) | 1.5 | 2 | 3 | 9 |
| Range Mz (Nm) | 1.5 | 2 | 3 | - |
| Diameter (mm) | 36 | 36 | 36 | 36 |
| Height (mm) | 21 | 21 | 21 | 21 |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Surface Finish | Anodized | Anodized | Anodized | Electropolished |
| Overload Level (%FS) | 300 | 300 | 300 | 300 |
| Resolution (%FS) | 0.03 | 0.03 | 0.03 | 0.03 |
| Repeatability (%FS) | 0.1 | 0.1 | 0.1 | 0.1 |
| Accuracy* (%FS) | 0.5 | 0.5 | 0.5 | 0.5 |
| Weight (kg) | 0.04 | 0.05 | 0.06 | 0.16 |
| Protection Rating | IP64 | IP64 | IP64 | IP64 |
| Operating Temperature (°C) | -10~80 | -10~80 | -10~80 | -10~80 |
| Sampling Rate (Hz) | 1000 | 1000 | 1000 | 1000 |
| Supply Voltage* (VDC) | 12~48 | 12~48 | 12~48 | 12~48 |
| Communication Interface | RS422/RS485/MODBUS/CAN/CANFD/TCP/UDP/EtherCAT/USB, etc. | |||
