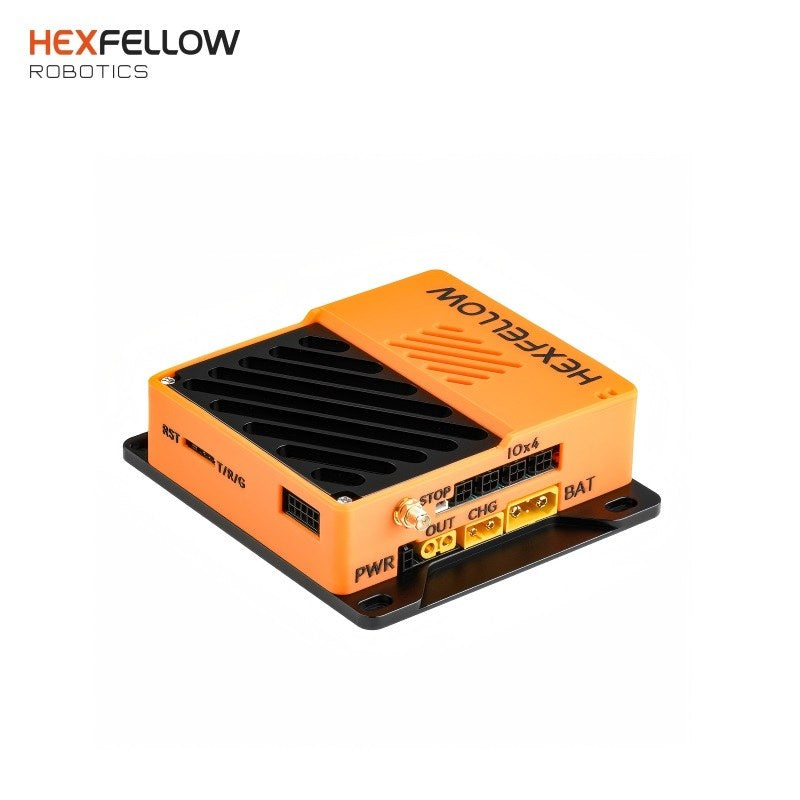

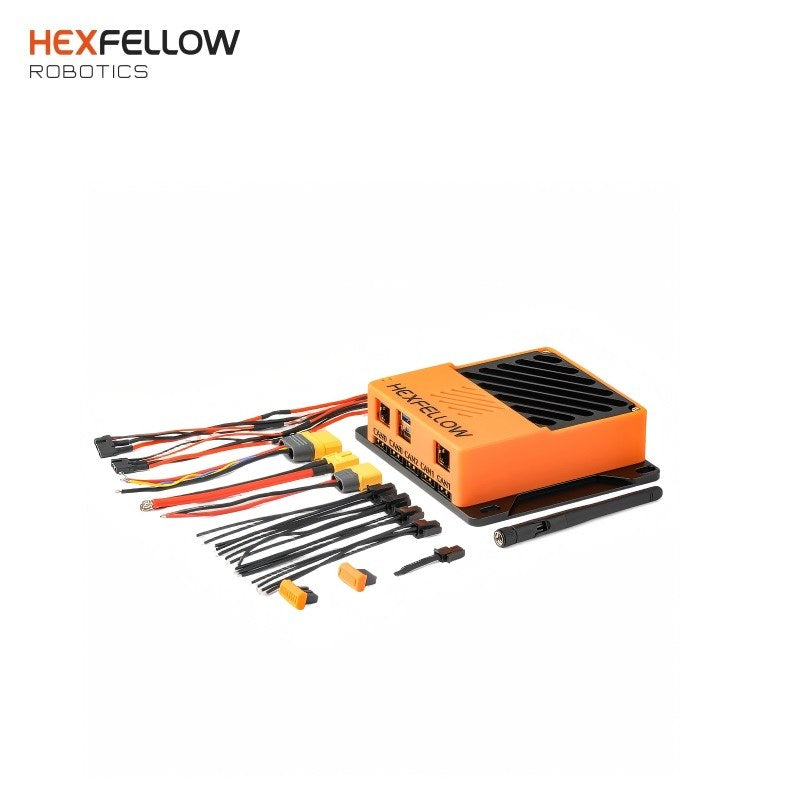

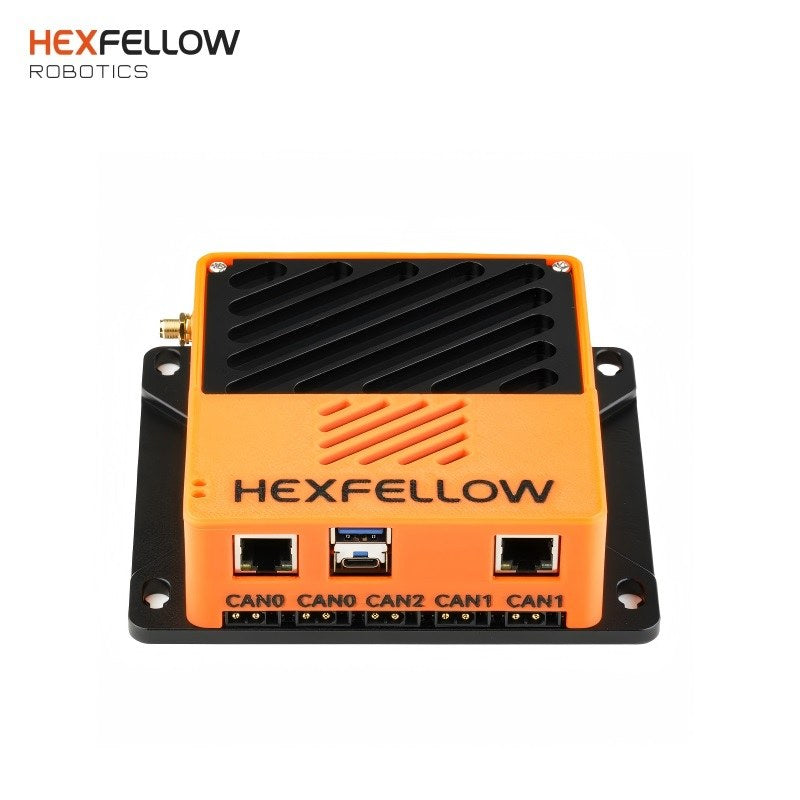

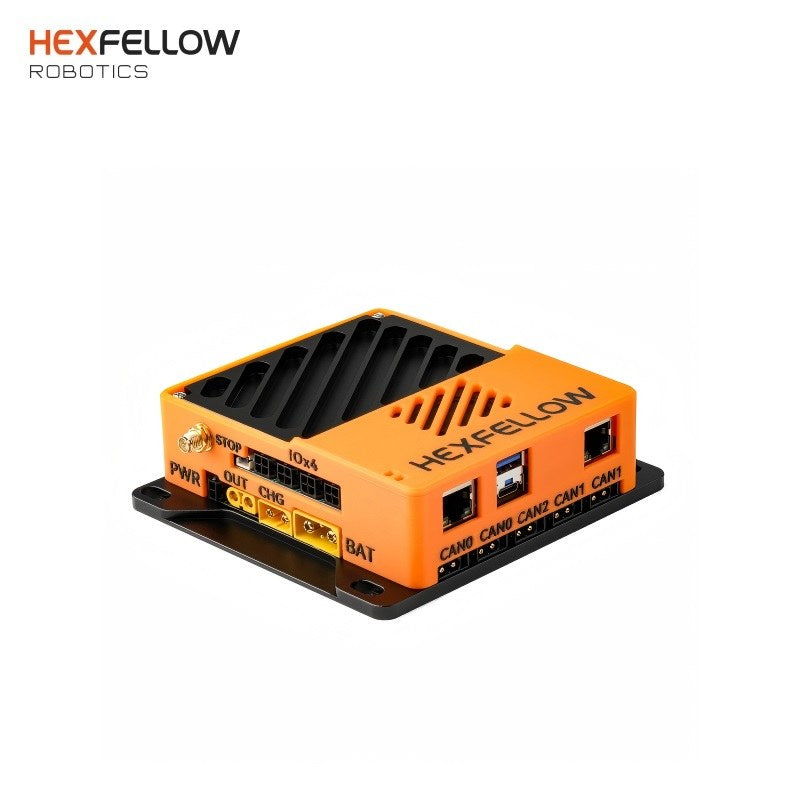

HexFellow HEXCOMPUTER-P1

$399.99

Version

HEXCOMPUTER-P1

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Core System
Processor	Rockchip RK3568 (4 x Cortex-A55, Mali-G52 GPU)
Memory	LPDDR4X (2GB / 4GB / 8GB optional)
Storage	2x M.2 Key M (PCIe), 1x 128GB SSD pre-installed, MicroSD slot
Network & Communication
Ethernet	1x 10G Ethernet + 4x 1G Ethernet (RJ45)
Wireless Expansion	1x M.2 Key E (WiFi/BT), 1x M.2 Key B (4G/5G)
Industrial Interfaces
GMSL2	8x (MAX96712 deserializer, coax cable, up to 15m)
CAN	4x CAN-FD (5 Mbps, independent)
Serial	2x RS-232 / RS-422 / RS-485 (software configurable)
Digital I/O	4x Digital Input, 4x Digital Output
Other IO	SPI, I2C, I2S
Other Interfaces
USB	3x USB 3.0 Type-A (5Gbps), 1x USB 3.0 Type-C (Recovery), 1x USB 2.0 Type-C (Debug)
Display	1x HDMI 2.1
Buttons	Reset Button, Recovery Button
RTC	1x RTC 2-pin header, 1x RTC battery socket
Fan	1x 4-pin Fan Connector (12V PWM)
Power & Mechanical
Power Input	DC 19V ~ 48V (2-pin terminal block)
Power Protection	Hardware power-cut safety, dual-channel soft-start circuit
Dimensions (W×D×H)	210mm × 180mm × 87mm (with stands)
Weight	2.95 kg
Mounting	Desk, wall-mounting
Environment & Warranty
Operating Temperature	-10°C ~ 60°C
Warranty	2 years
