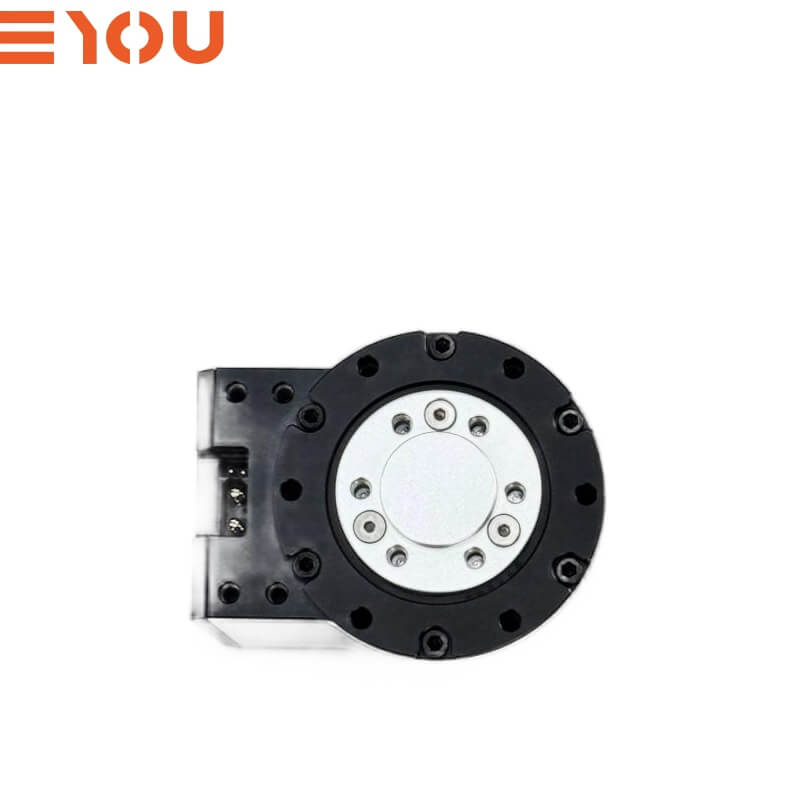

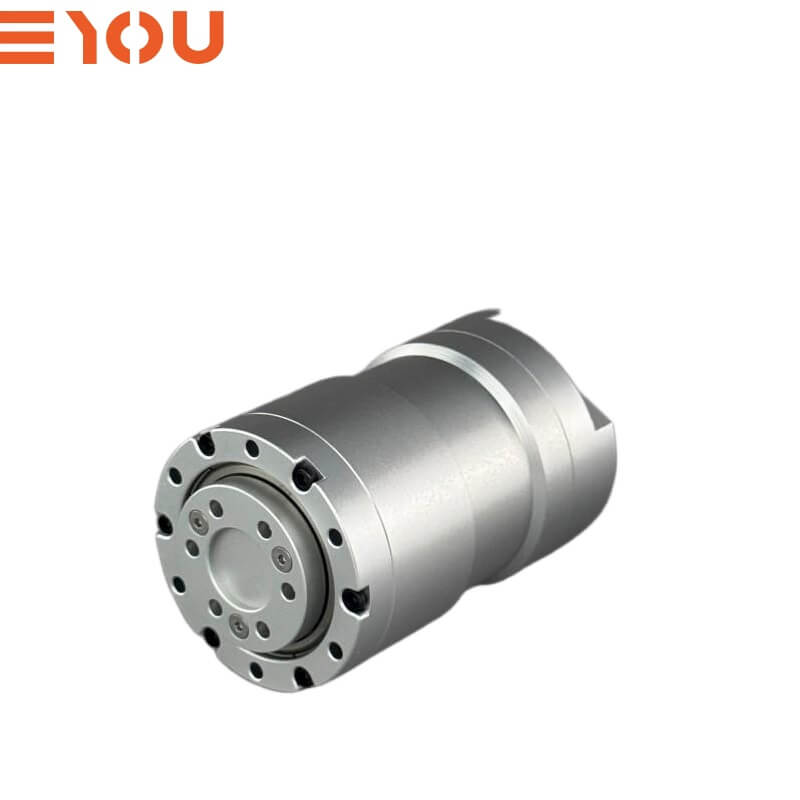

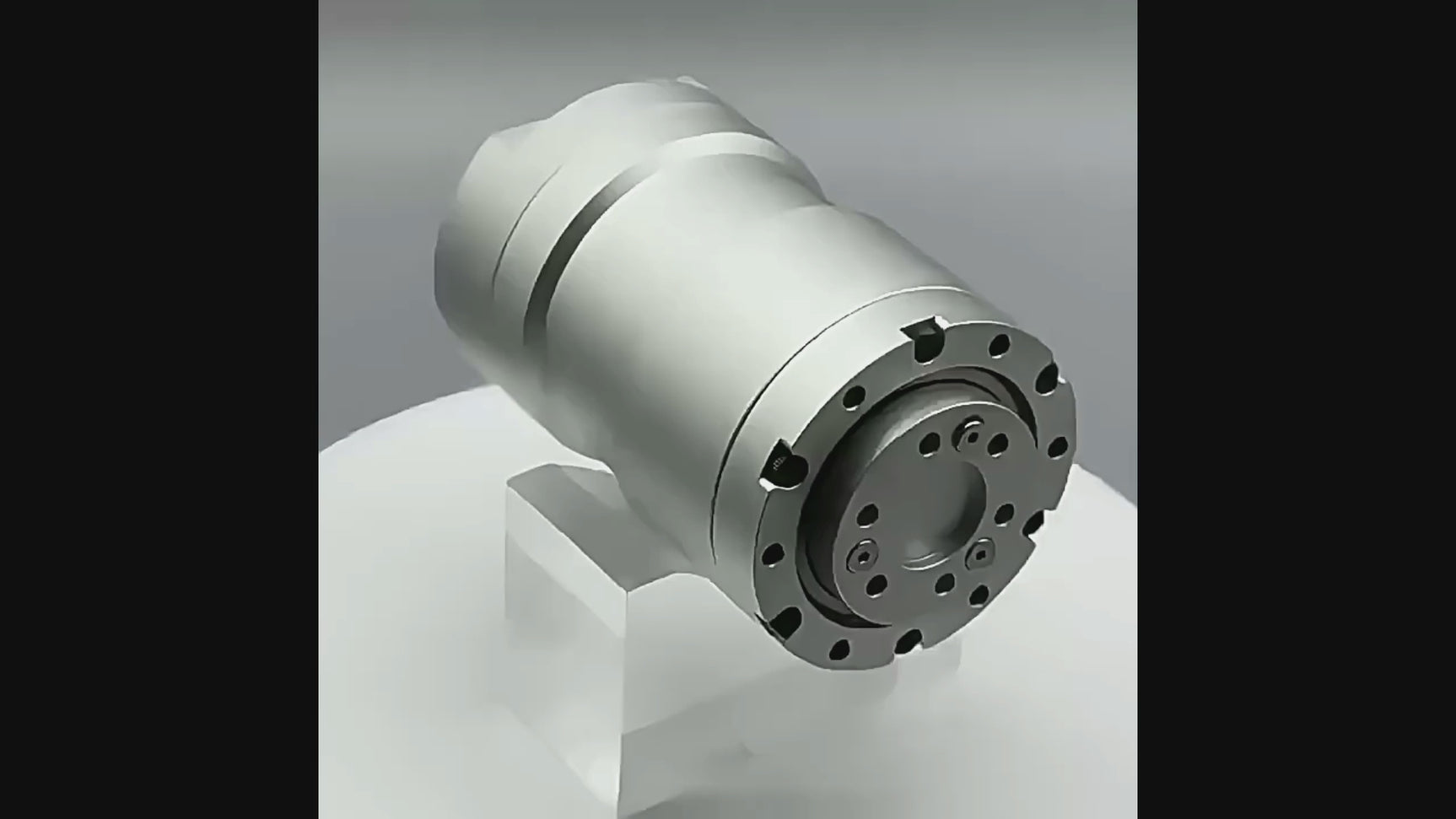

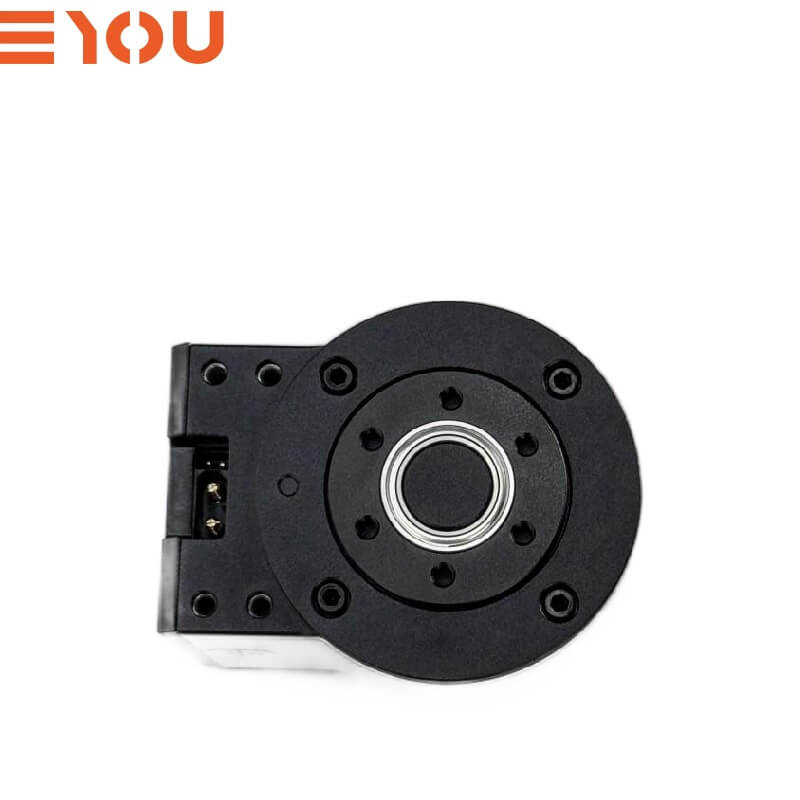

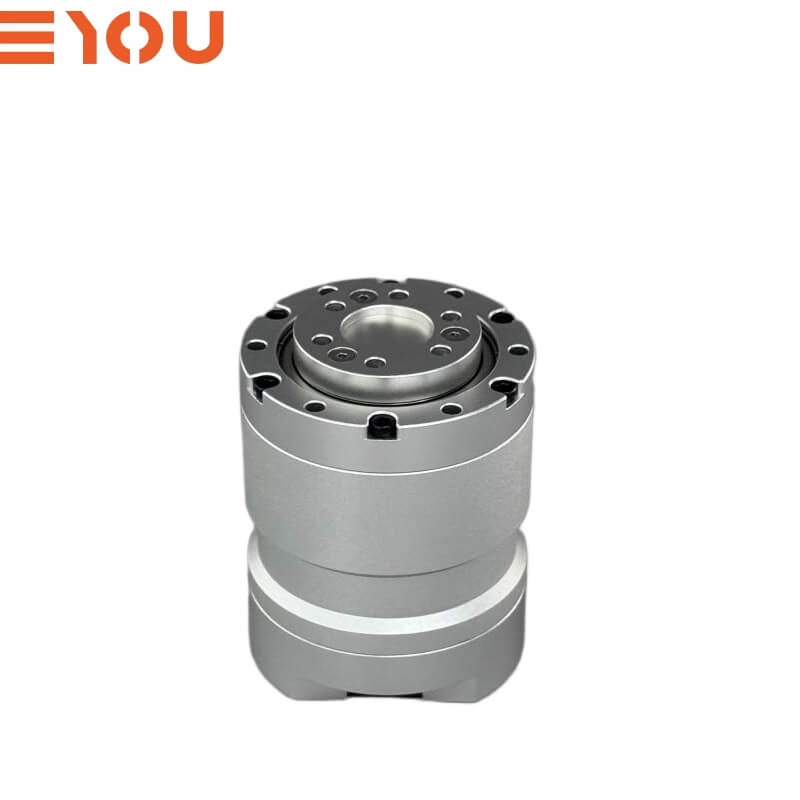

EYOU PP11 Motor
Regular price
$300.00
Unit price
EYOU PP11 Motor - PP11-36 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
EYOU PP11 Motor
Regular priceFrom
$300.00
Unit price
EYOU PP11 Motor - PP11-36 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | PP11-36 | PP11D-36 | PP11L-36 |
| Motor Type | Brushless Torque Motor | Brushless Torque Motor | Brushless Torque Motor |
| Gearbox Type | Planetary Gearbox | Planetary Gearbox | Planetary Gearbox |
| Diameter | 52mm | 52mm | 52mm |
| Length | 64mm | 61mm | 82mm |
| Weight | 391g | 436g | 517g |
| Reduction Ratio | 36:1 | 36:1 | 36:1 |
| Backlash | 12arcmin | 12arcmin | 12arcmin |
| Noise | ＜70db | ＜70db | ＜70db |
| Temperature Range | -20~80℃ | -20~80℃ | -20~80℃ |
| Operating Voltage | 24v | 24v | 24v |
| Maximum Power | 60w | 60w | 72w |
| Rated Speed | 50rpm | 50rpm | 50rpm |
| Rated Torque | 6.6N.M | 6.6N.M | 12N.M |
| Peak Torque | 14N.M | 14N.M | 18N.M |
| Torque Constant | 2.2N.M/A | 2.2N.M/A | 6N.M/A |
| Axial Load Capacity | 1605N | 1605N | 1605N |
| Radial Load Capacity | 3150N | 3150N | 3150N |
PP11-INSTALLATION_DRAWING.pdf
PP11D-INSTALLATION_DRAWING.pdf
PP11L-INSTALLATION_DRAWING.pdf
