EYOU | SKU:

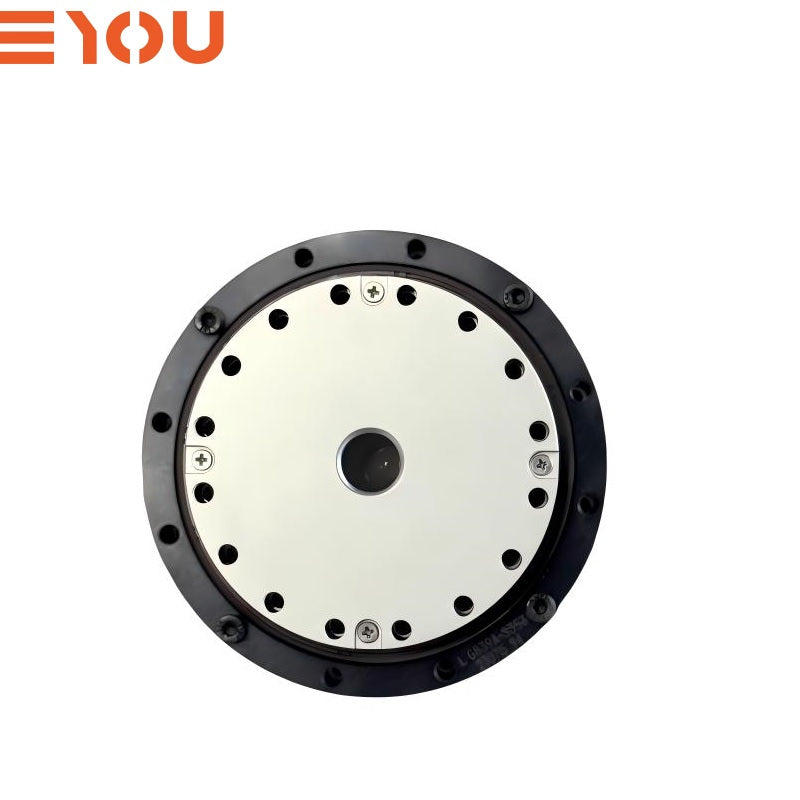

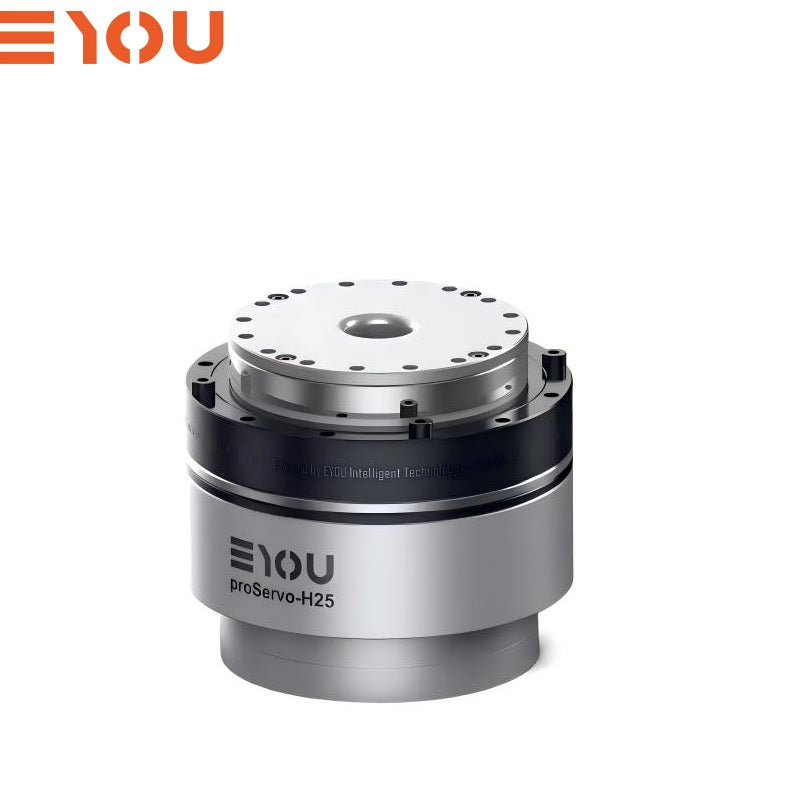

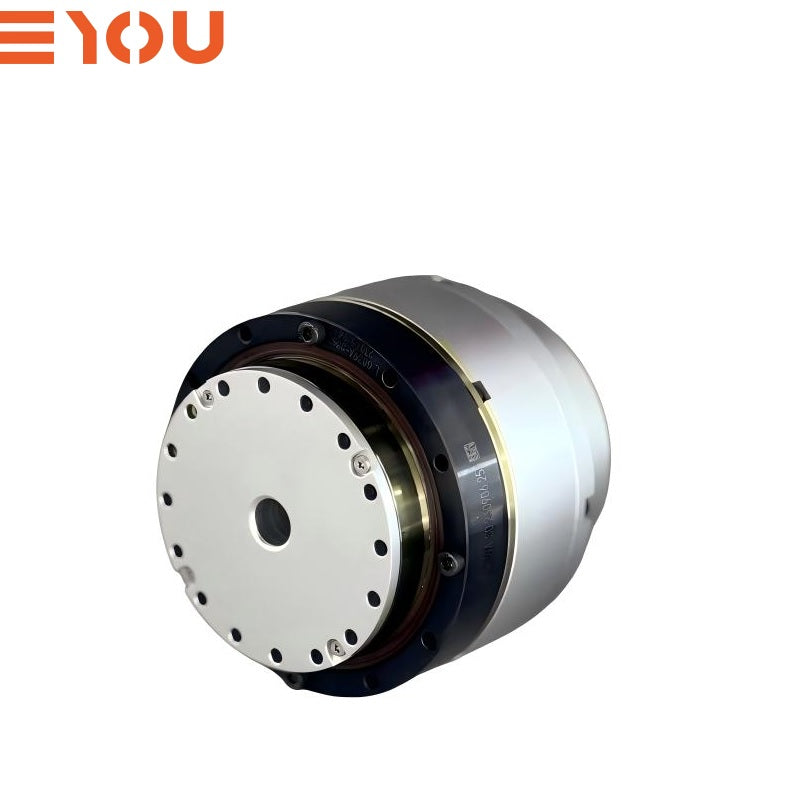

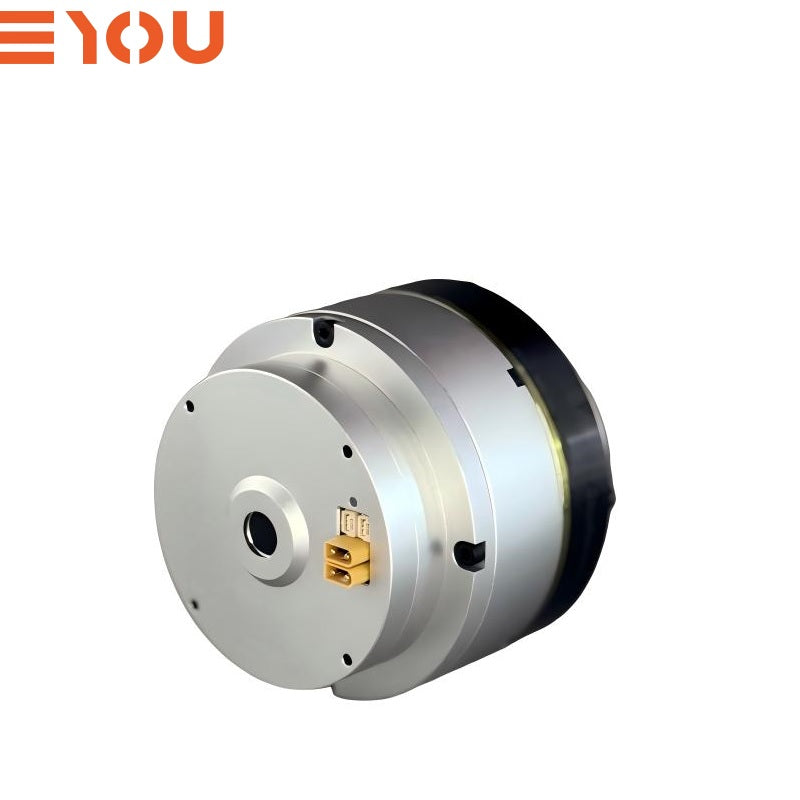

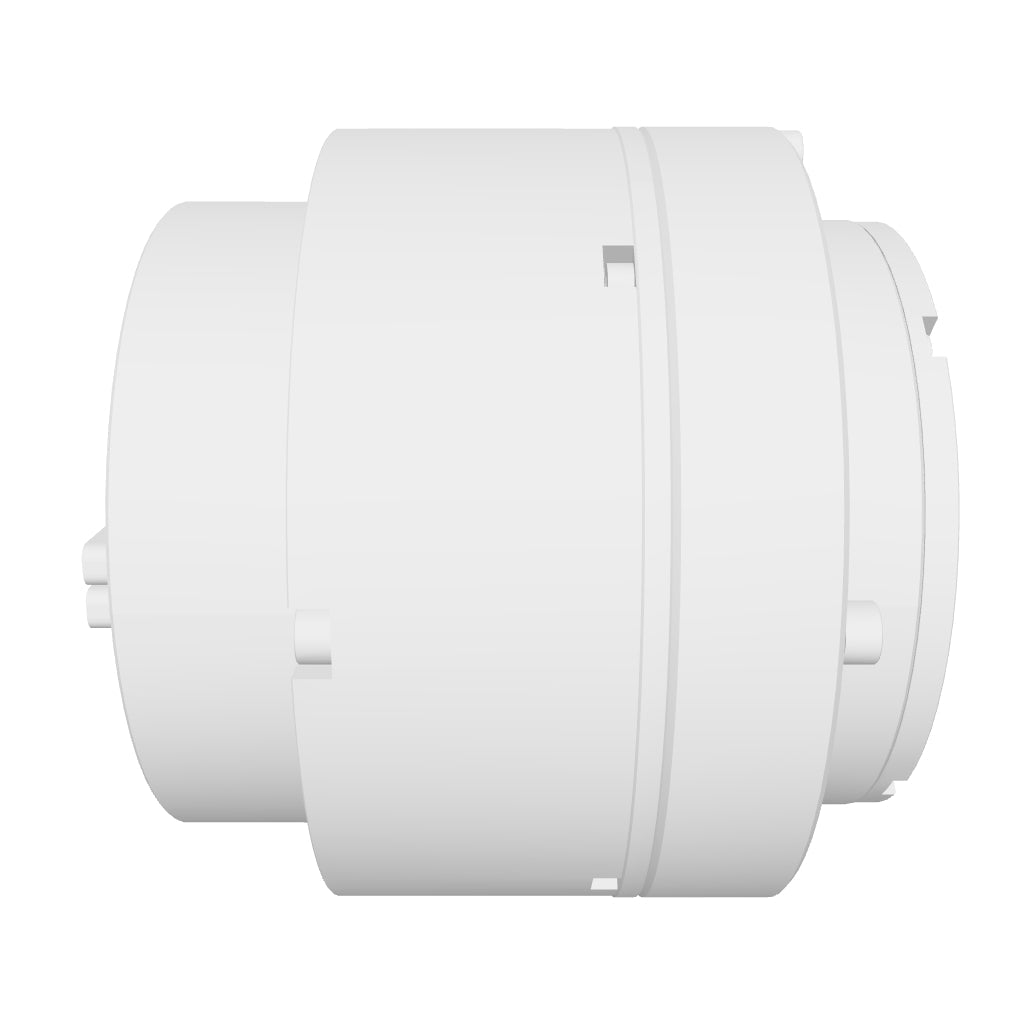

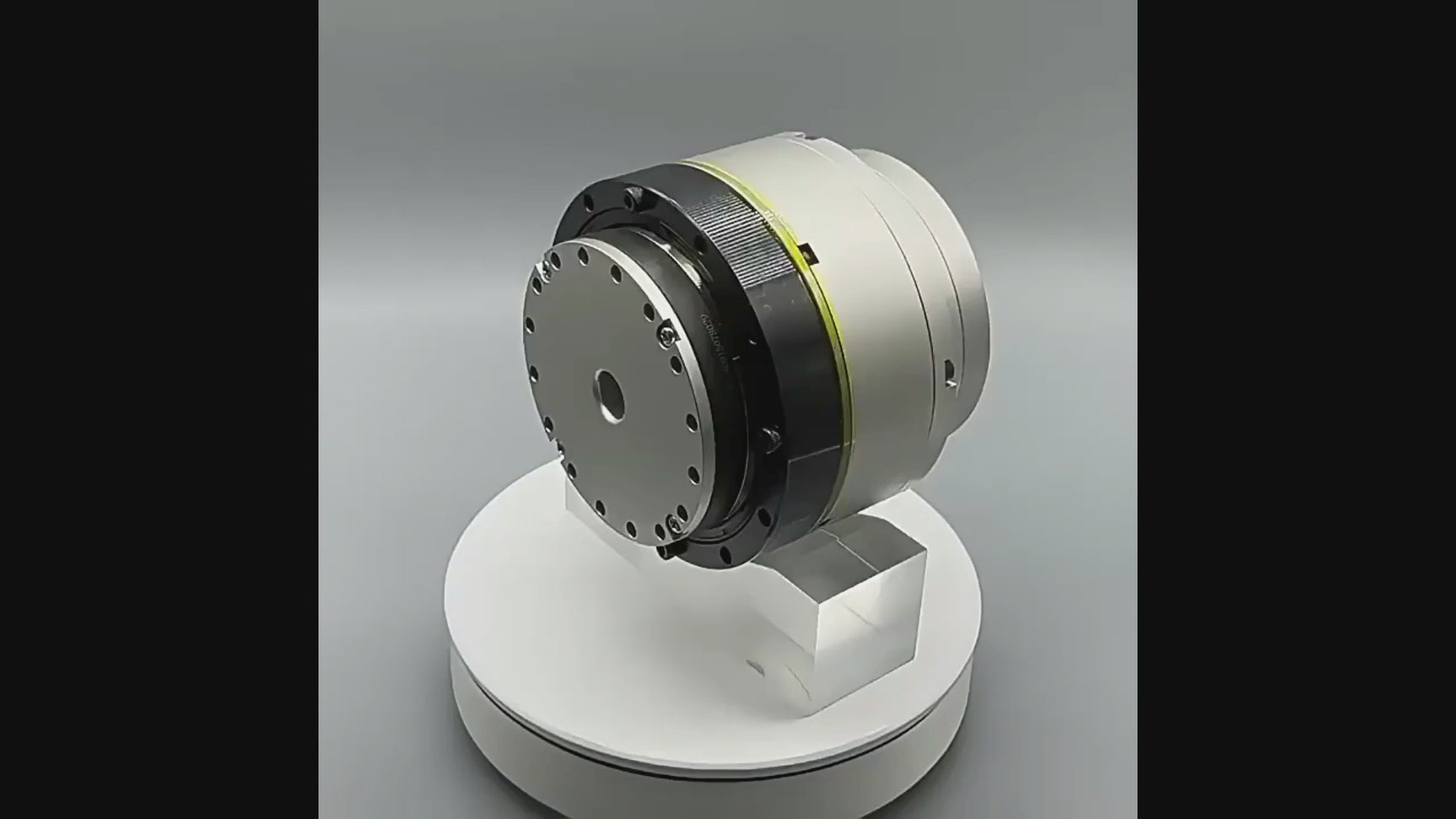

EYOU PH25 Motor
Regular price
$790.00
Unit price
/
Unavailable
EYOU PH25 Motor - PH25B (With Brake) / 81 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
EYOU PH25 Motor
Regular price
From
$750.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | PH25 | PH25 |
| Motor Type | Internal Rotor Torque Motor | Internal Rotor Torque Motor |
| Diameter | 110mm | 110mm |
| Through Bore ID | 18mm | 18mm |
| Weight（With Brake / Without Brake） |
3098/2927g |
3098/2927g |
| Backlash | 15arcsec | 15arcsec |
| Noise | ＜70db | ＜70db |
| Temperature Range | -20~80℃ | -20~80℃ |
| Operating Voltage | 24~48v | 24~48v |
| Rated Power | 500w | 500w |
| Gear Ratio | 81 | 121 |
| Rated Speed | 38rpm | 25rpm |
| Rated Torque | 96N.M | 144N.M |
| Peak Torque | 206N.M | 220N.M |
| Encoder Accuracy | 19bit | 19bit |
| Encoder Type | Dual Magnetic Encoder | Dual Magnetic Encoder |
