EYOU | SKU:

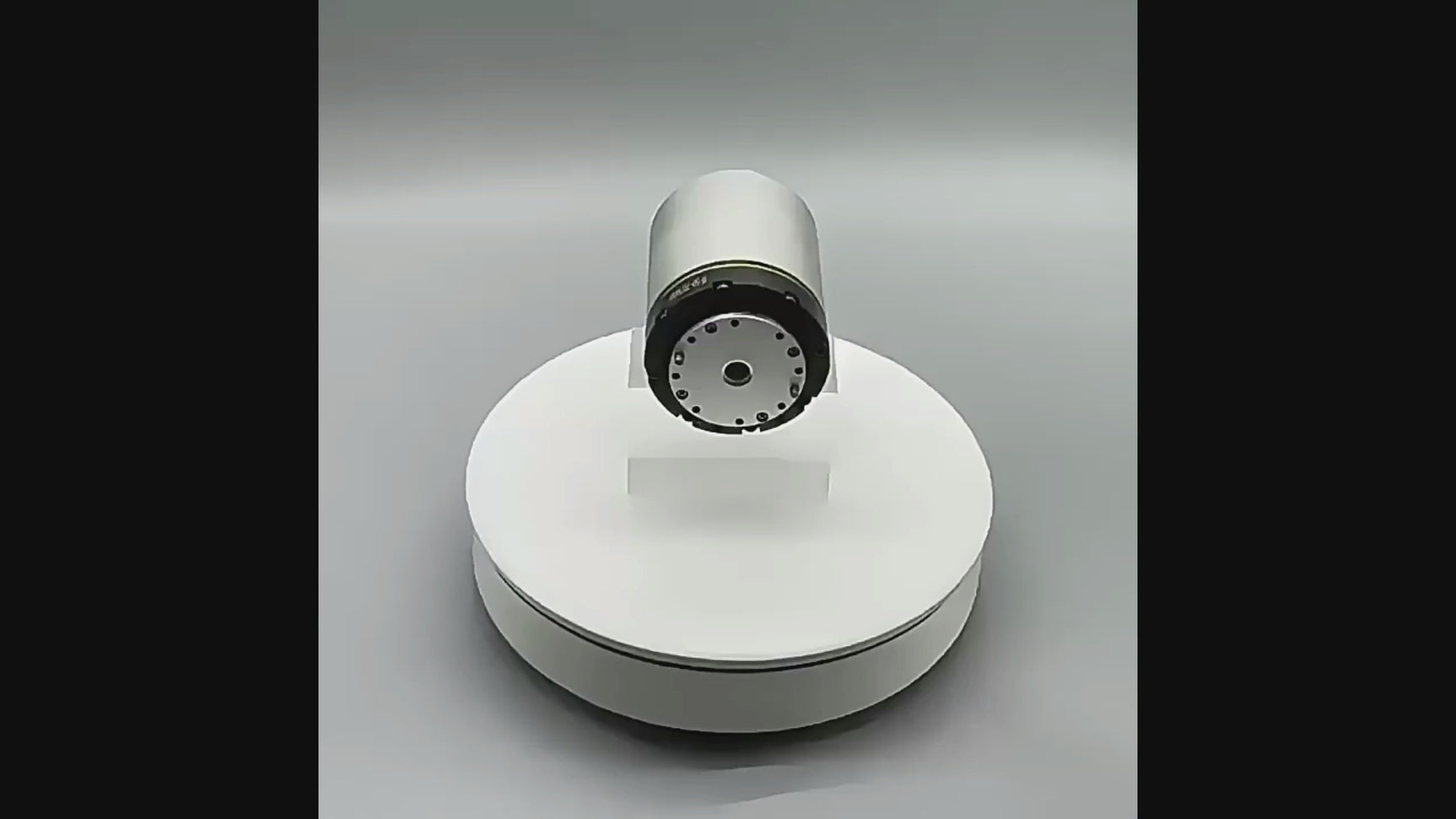

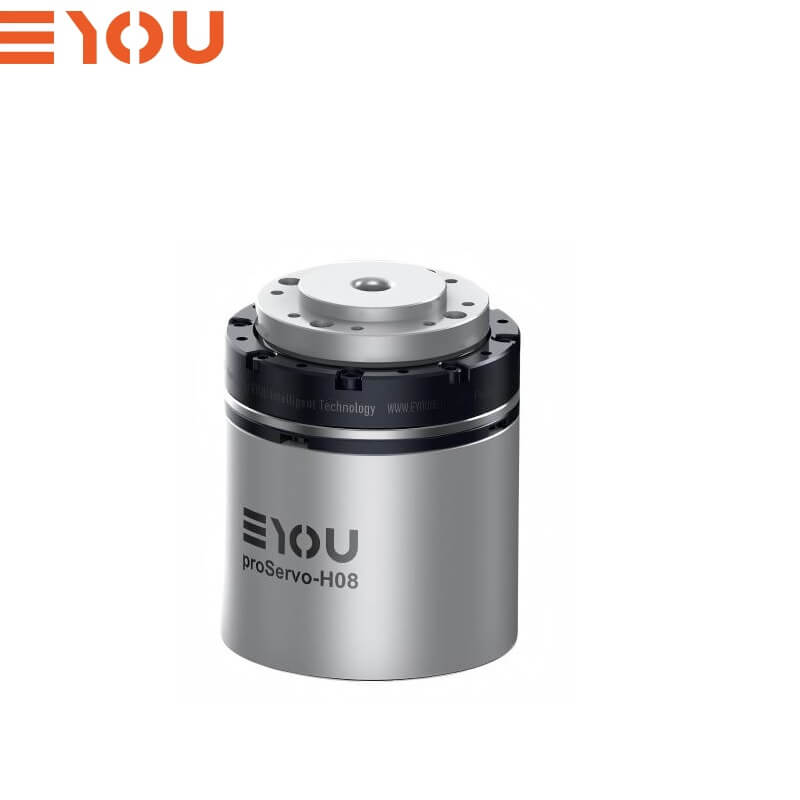

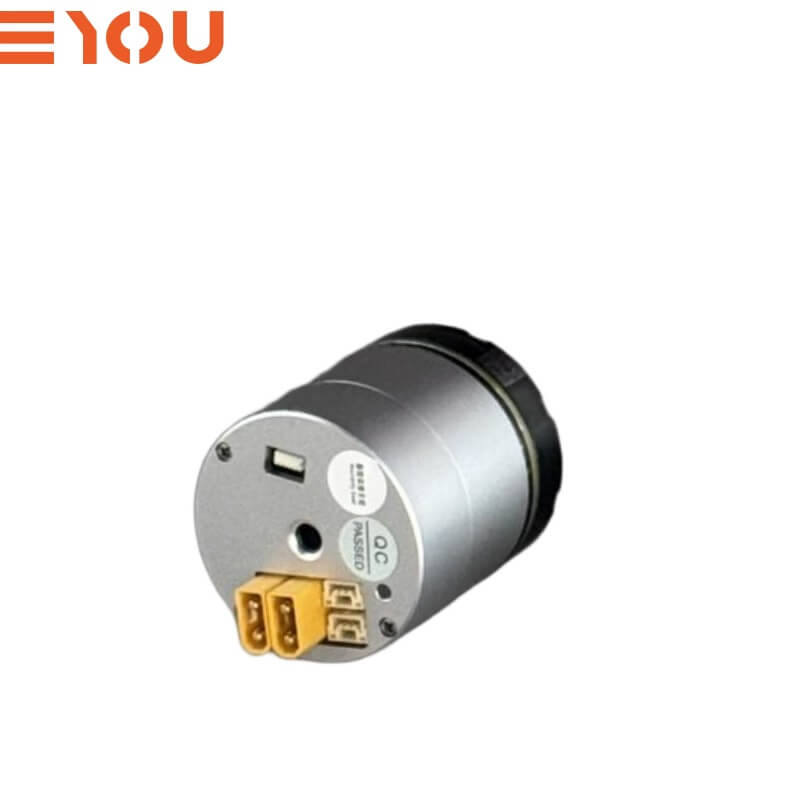

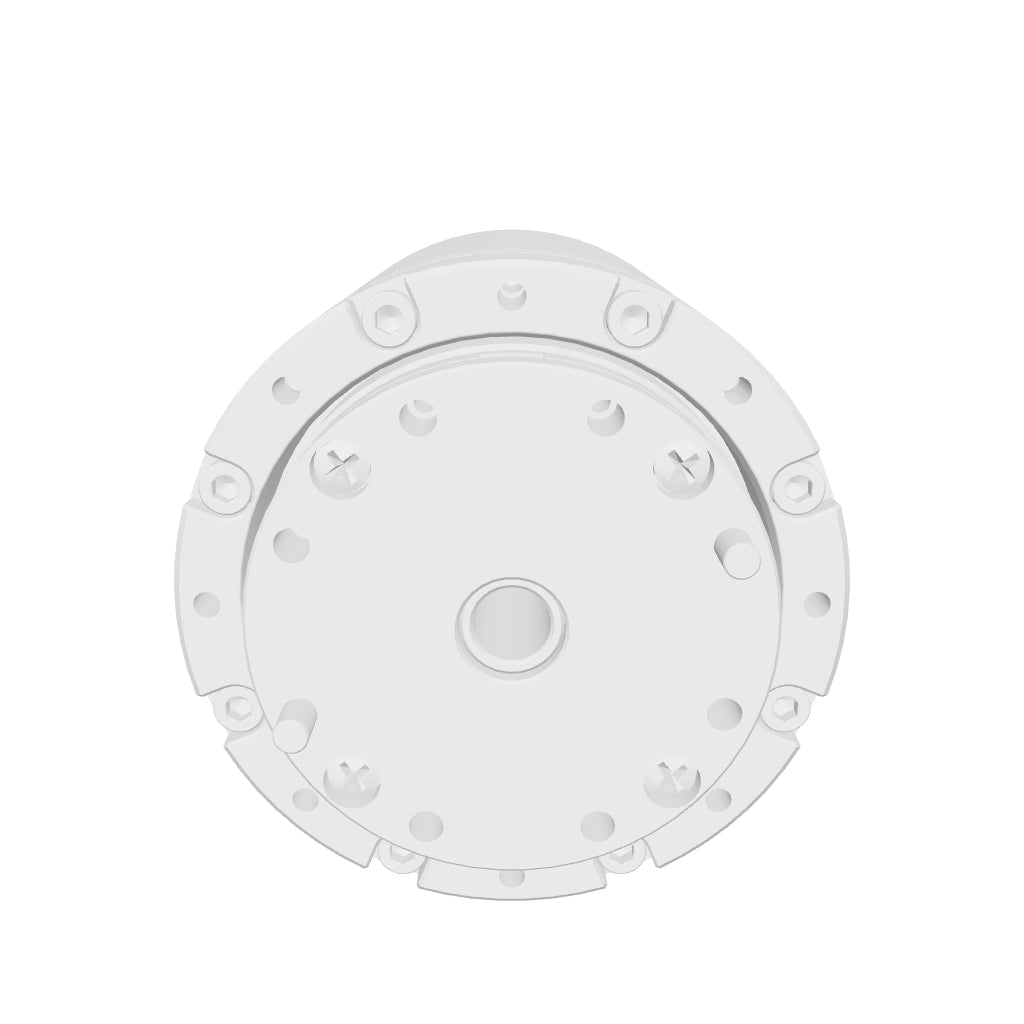

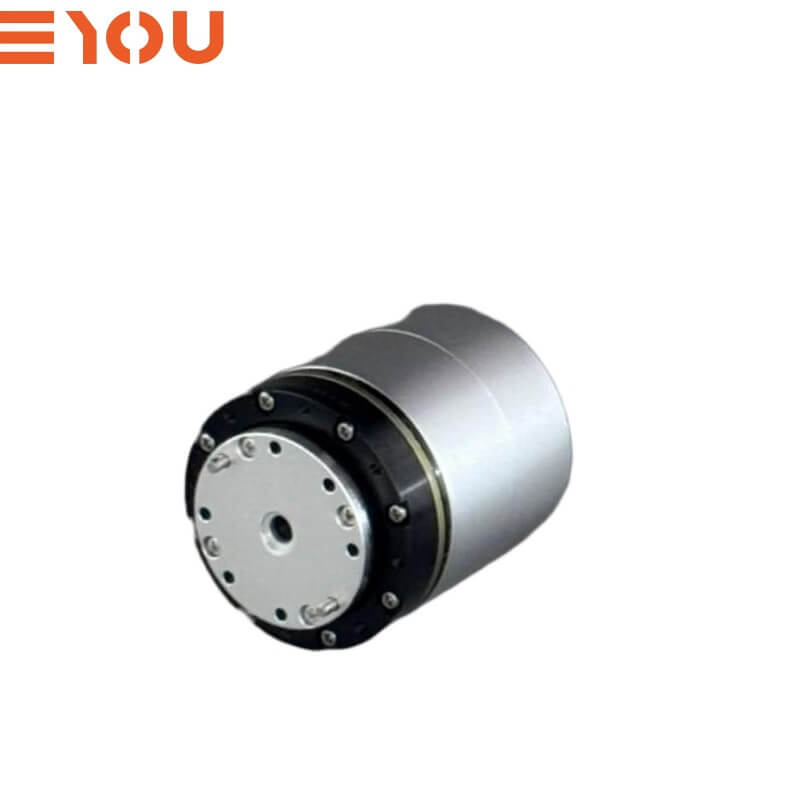

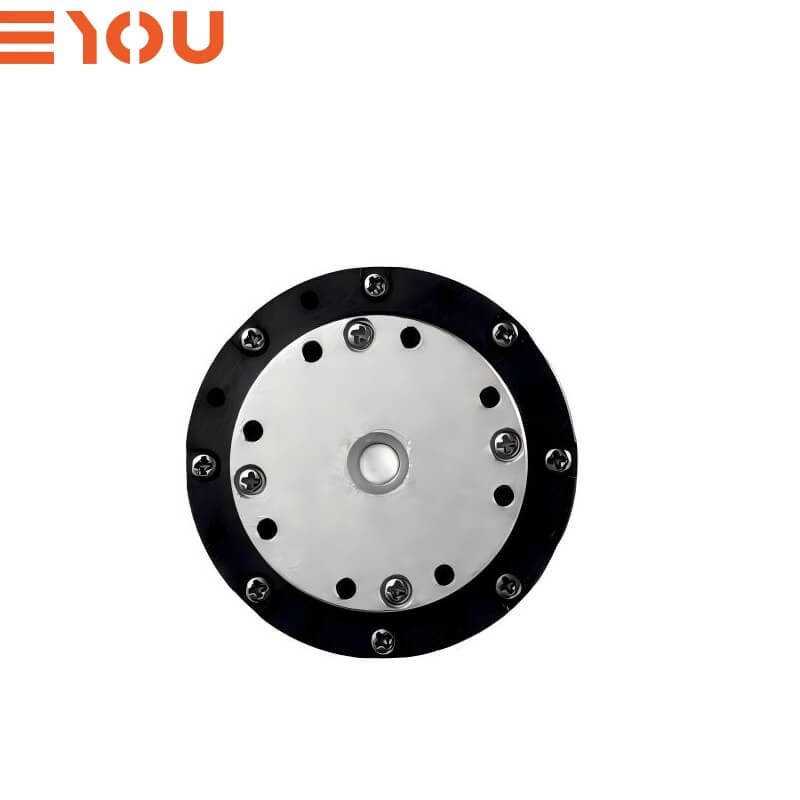

EYOU PH08 Motor
Regular price
$500.00
Unit price
EYOU PH08 Motor - PH08N (Without Brake） / 51 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
EYOU PH08 Motor
Regular price
$500.00
Unit price
EYOU PH08 Motor - PH08N (Without Brake） / 51 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | PH08 | PH08 |
| Motor Type | Internal Rotor Torque Motor | Internal Rotor Torque Motor |
| Diameter | 40mm | 40mm |
| Through Bore ID | 4.6mm | 4.6mm |
| Weight（With Brake / Without Brake） |
/185g |
/185g |
| Backlash | 15arcsec | 15arcsec |
| Noise | ＜70db | ＜70db |
| Temperature Range | -20~80℃ | -20~80℃ |
| Operating Voltage | 24~36v | 24~36v |
| Rated Power | 36w | 36w |
| Gear Ratio | 51 | 101 |
| Rated Speed | 60rpm | 30rpm |
| Rated Torque | 1N.M | 1.6N.M |
| Peak Torque | 2.8N.M | 3.5N.M |
| Encoder Accuracy | 19bit | 19bit |
| Encoder Type | Dual Magnetic Encoder | Dual Magnetic Encoder |
