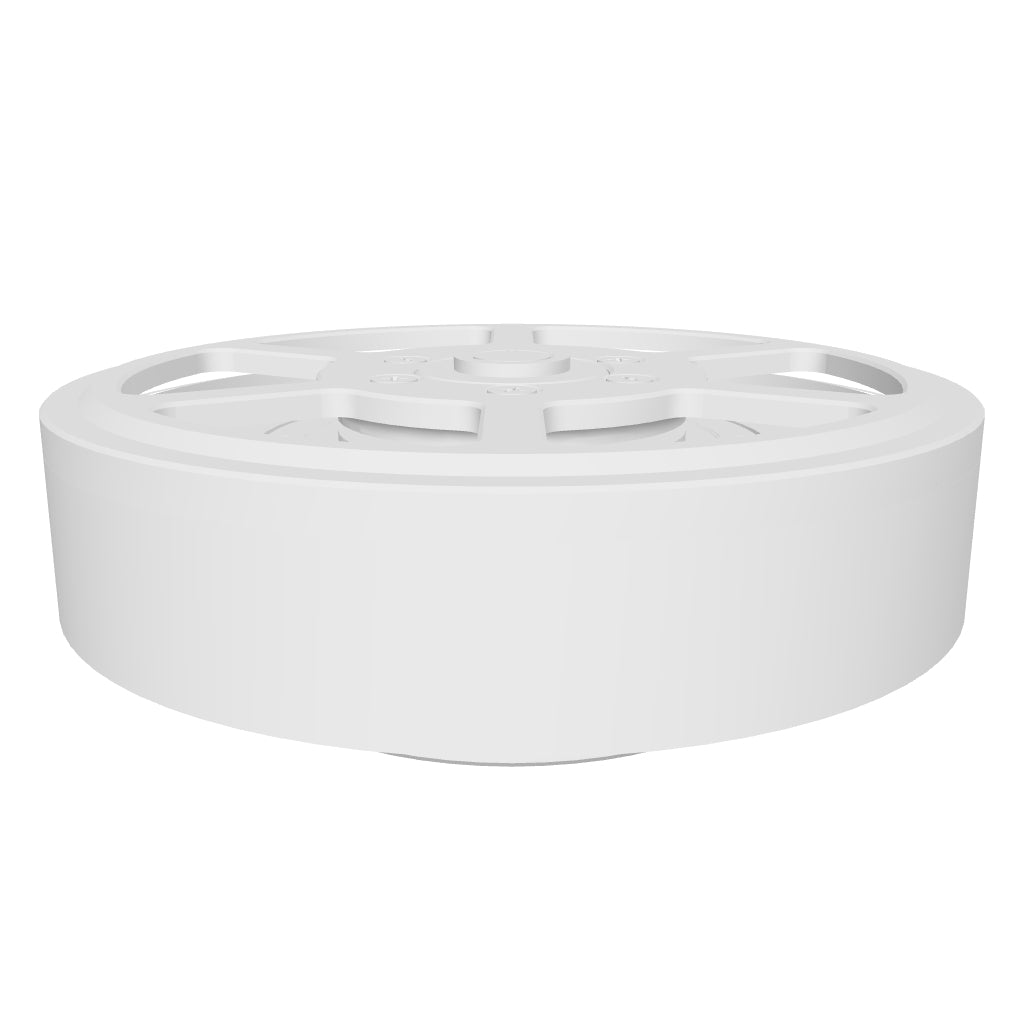

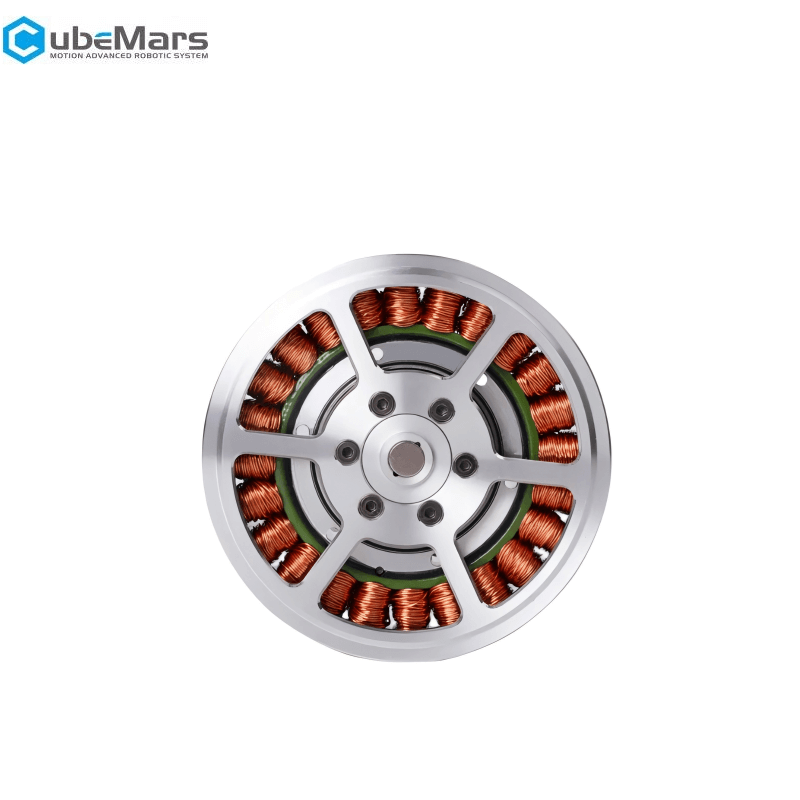

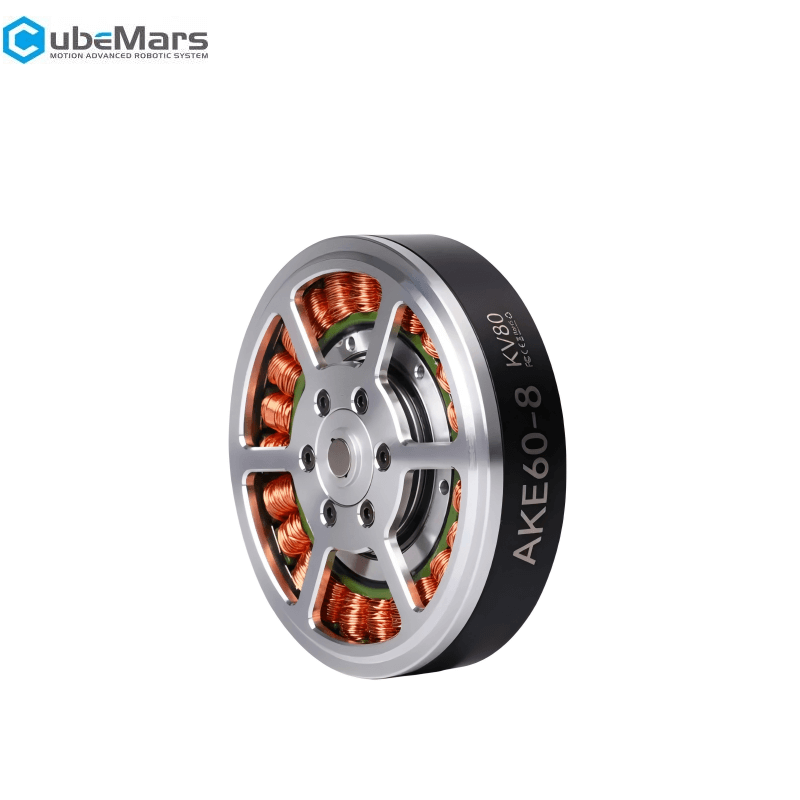

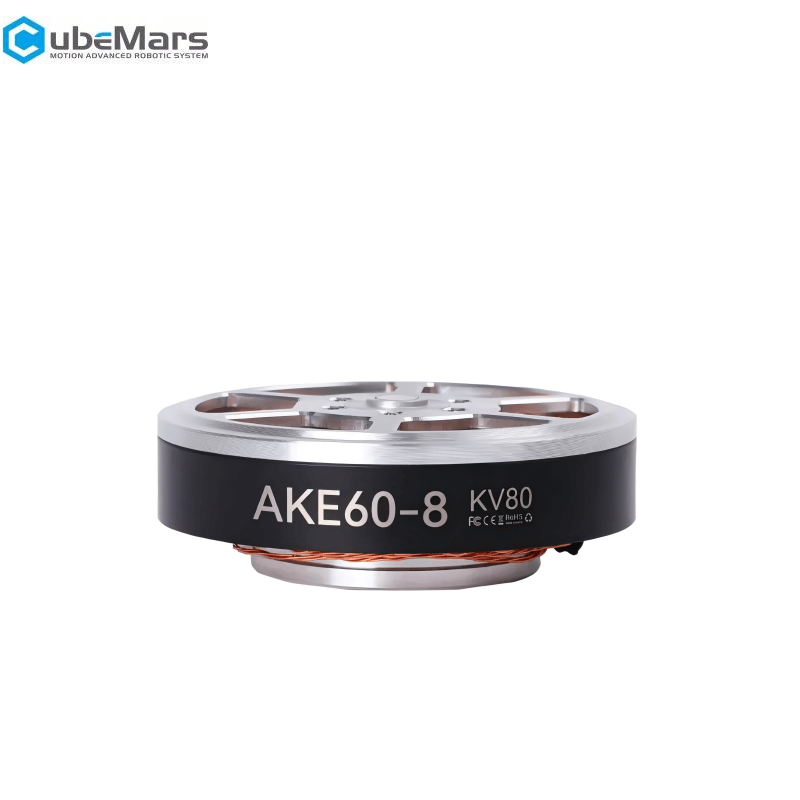

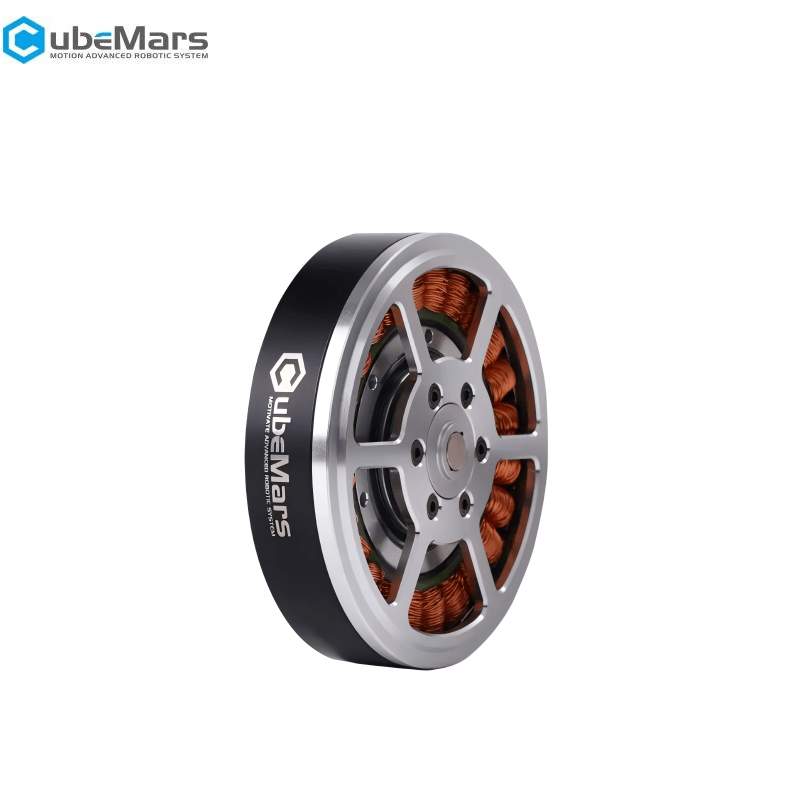

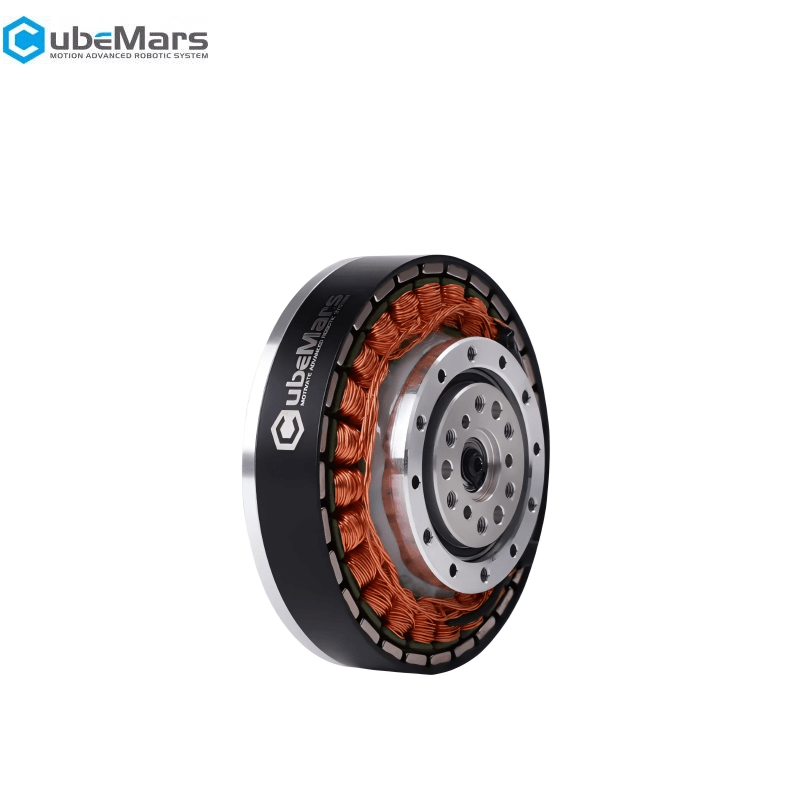

CubeMars AKE60-8 Motor
Regular price
$218.90
Unit price
/
Unavailable
CubeMars AKE60-8 Motor - AKE60-8 KV80 Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
CubeMars AKE60-8 Motor
Regular price
$218.90
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Peak torque | 12.5Nm |
| Driving way | FOC |
| Peak current | 12ADC |
| Operation ambient temperature | -20℃~50℃ |
| Kv | 80rpm/V |
| Winding type | star |
| Kt | 0.13Nm/A |
| Insulation class | F |
| Ke | 12.5V/krpm |
| Insulation High-voltage | 500V |
| Phase to Phase resistance | 577mΩ |
| Insulation resistance | 10MΩ |
| Phase to Phase inductance | 704μH |
| Pole pairs | 14 |
| Inertia | 647.39gcm² |
| Backlash | 9arcmin |
| Km | 0.15Nm/√W |
| Rated voltage | 24V |
| Mechanical time constant | 1.2ms |
| No-load speed | 240rpm |
| Electrical time constant | 1.7ms |
| Rated torque | 5Nm |
| Weight | 260g |
| Rated speed | 180rpm |
| Maximum torque weight ratio | 46Nm/kg |
| Rated current | 4.8ADC |
