ToFFuture Technology | SKU:

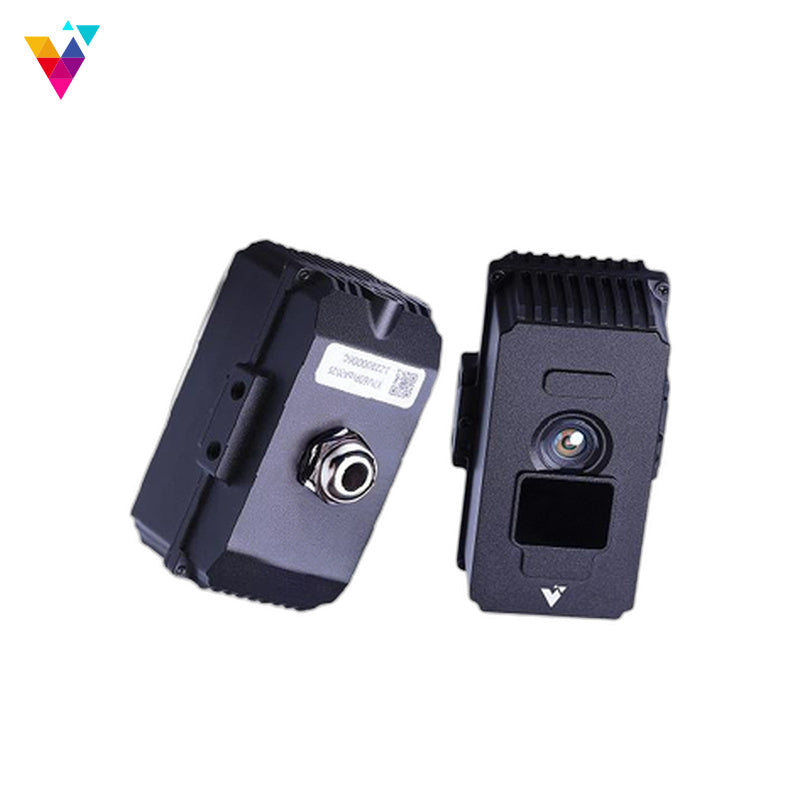

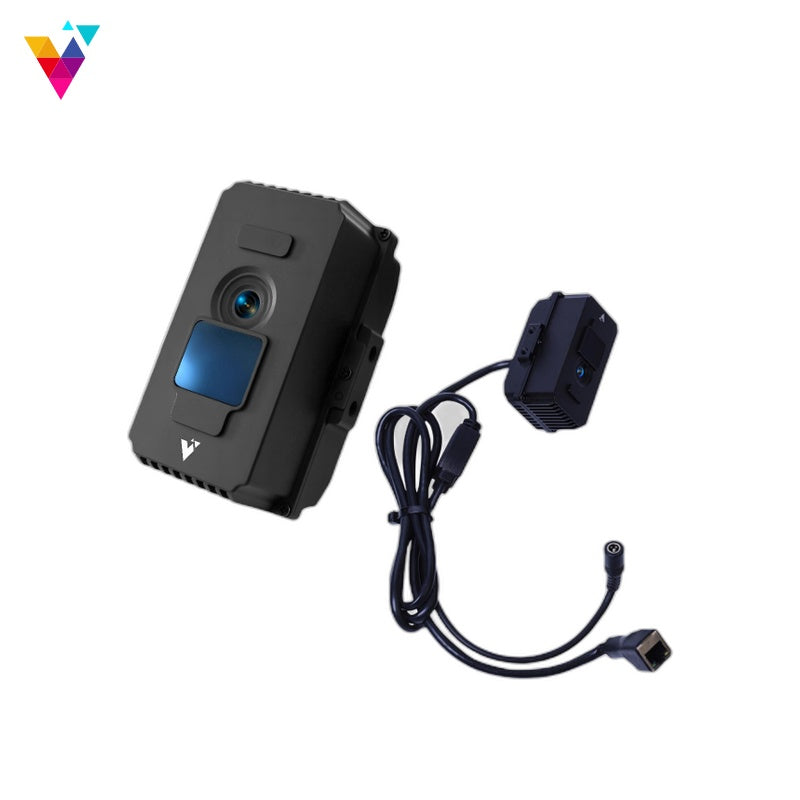

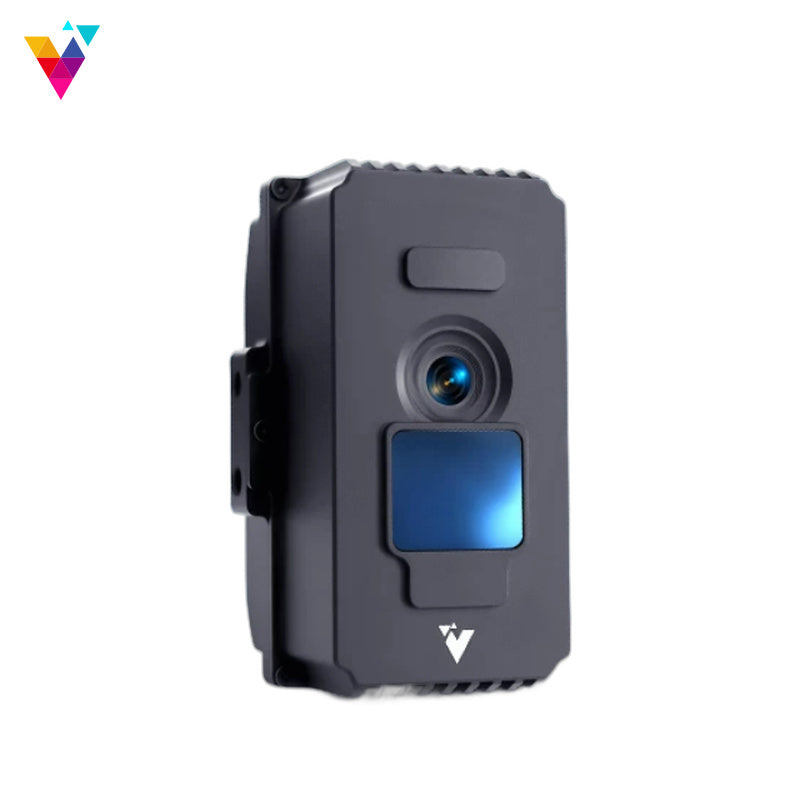

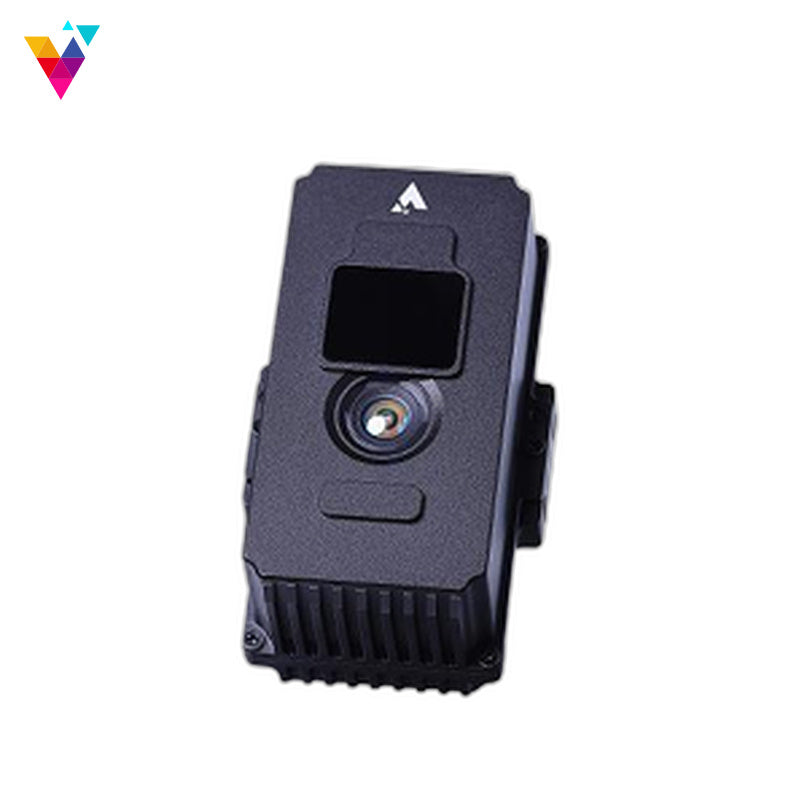

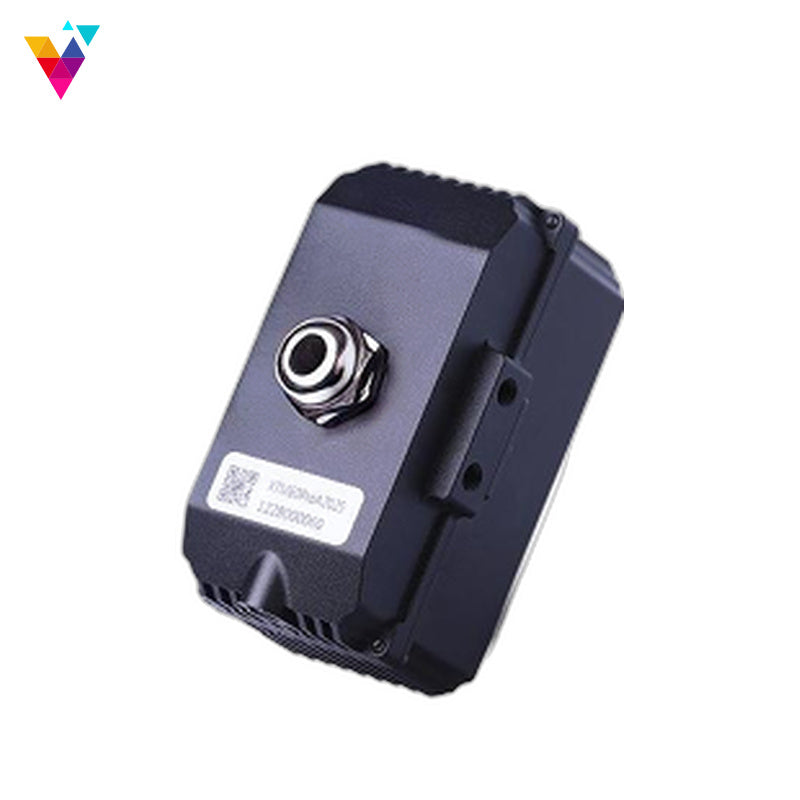

ToFFuture XT-M60 Pro LiDAR
Regular price
$340.00
Unit price
ToFFuture XT-M60 Pro LiDAR - XT-M60 Pro is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ToFFuture XT-M60 Pro LiDAR
Regular price
$340.00
Unit price
ToFFuture XT-M60 Pro LiDAR - XT-M60 Pro is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | XT-M60 Pro |
| Viewing Angle Fov1 | 120x45° |
| Viewing Angle Fov2 | 130°x52° |
| Frame Rate | 1-30Frame |
| Optical Wavelength | 940nm |
| Average Power | 6W |
| SDK | C / Linux / Ros1&2 |
| Output Data | Infrared image Depth image,3D Point cloud |
| Angular Resolution | 0.75°Hx0.75°V(160x60) |
| Measuring Distance | 15m@50% 7m@10%outdoor(0.3~20m)Indoor |
| Dustproof Waterproof | IP65 |
| Volume (mm) | 80x40x45 |
| Weight | 179g |
| Power Supply | 9-36V@3A Aviation Interface |
| OperationTemperature | -40°C to 85°C |
