ToFFuture Technology | SKU:

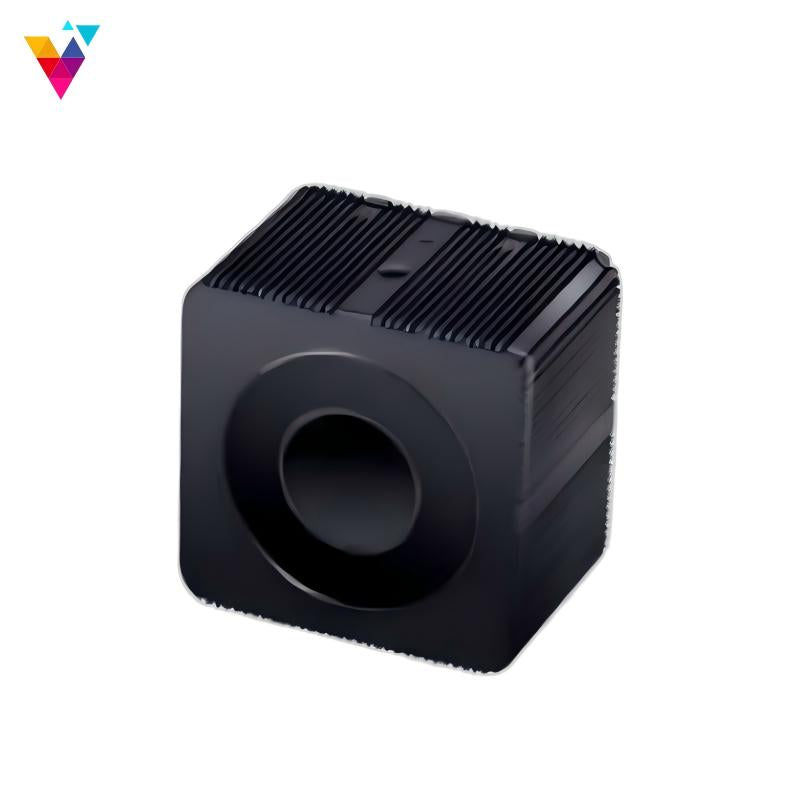

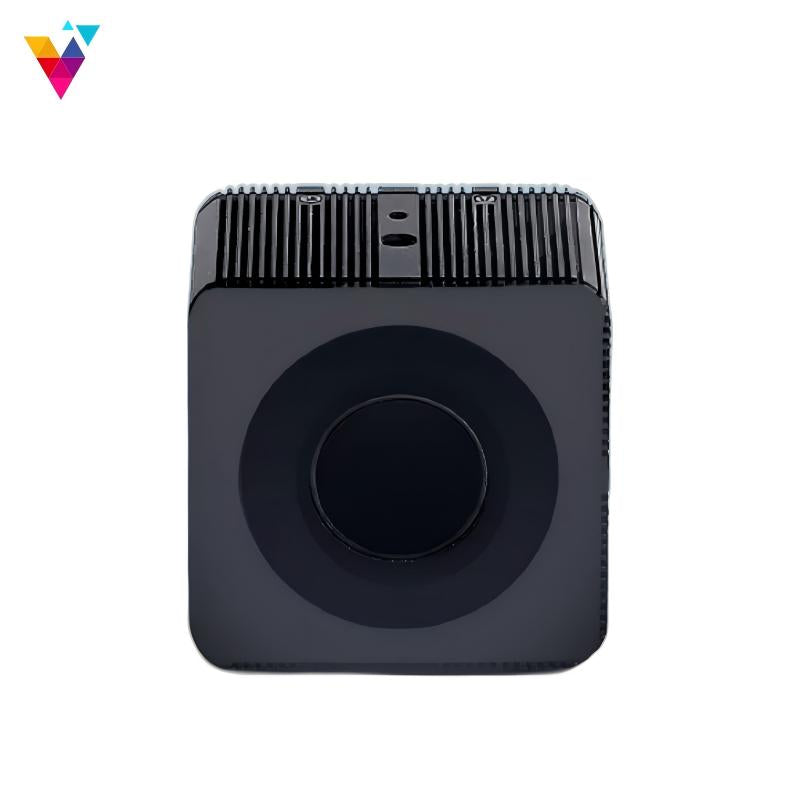

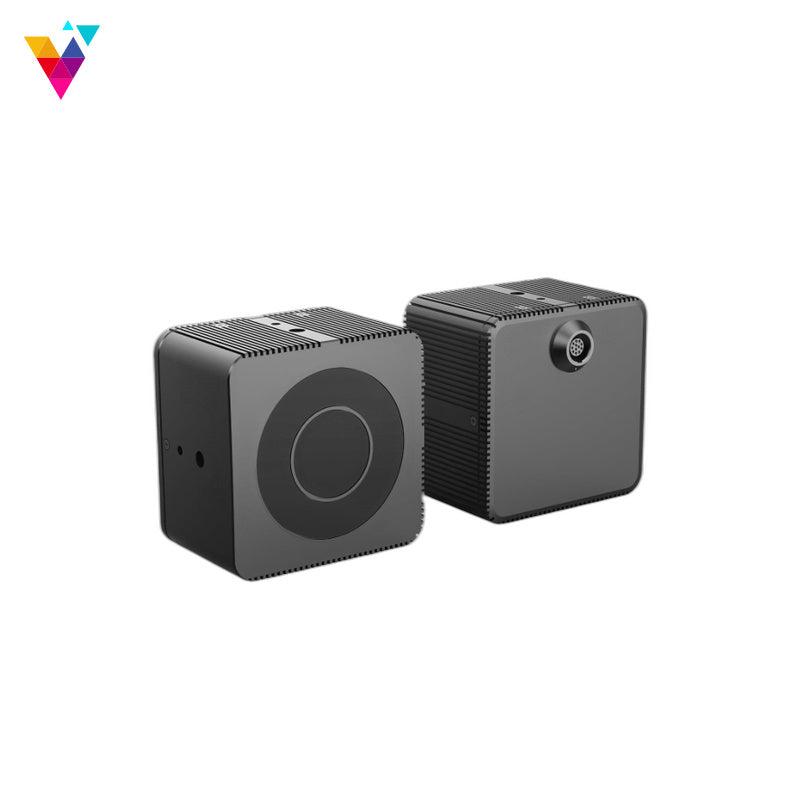

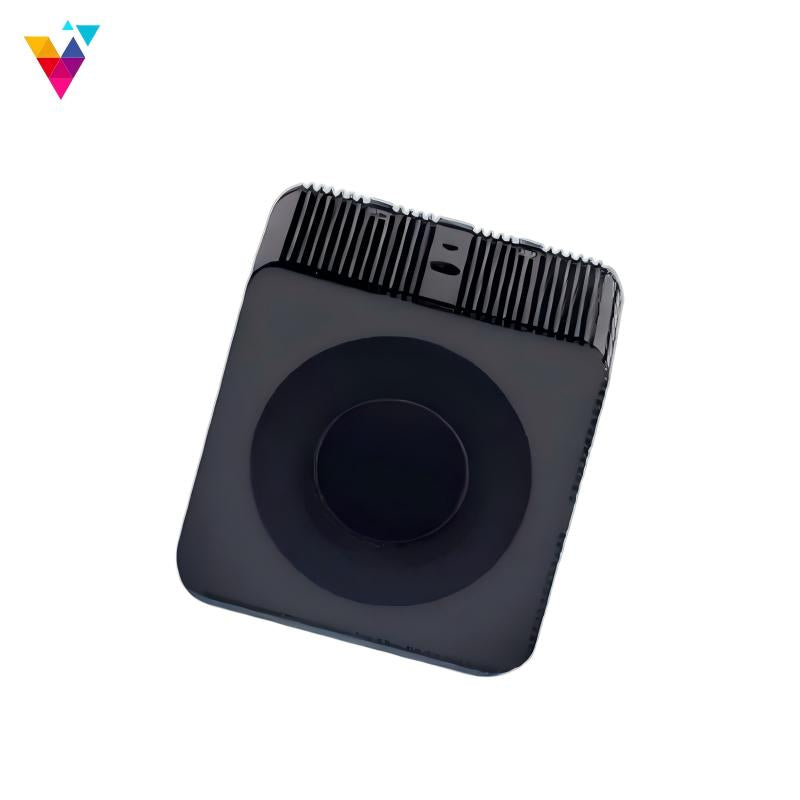

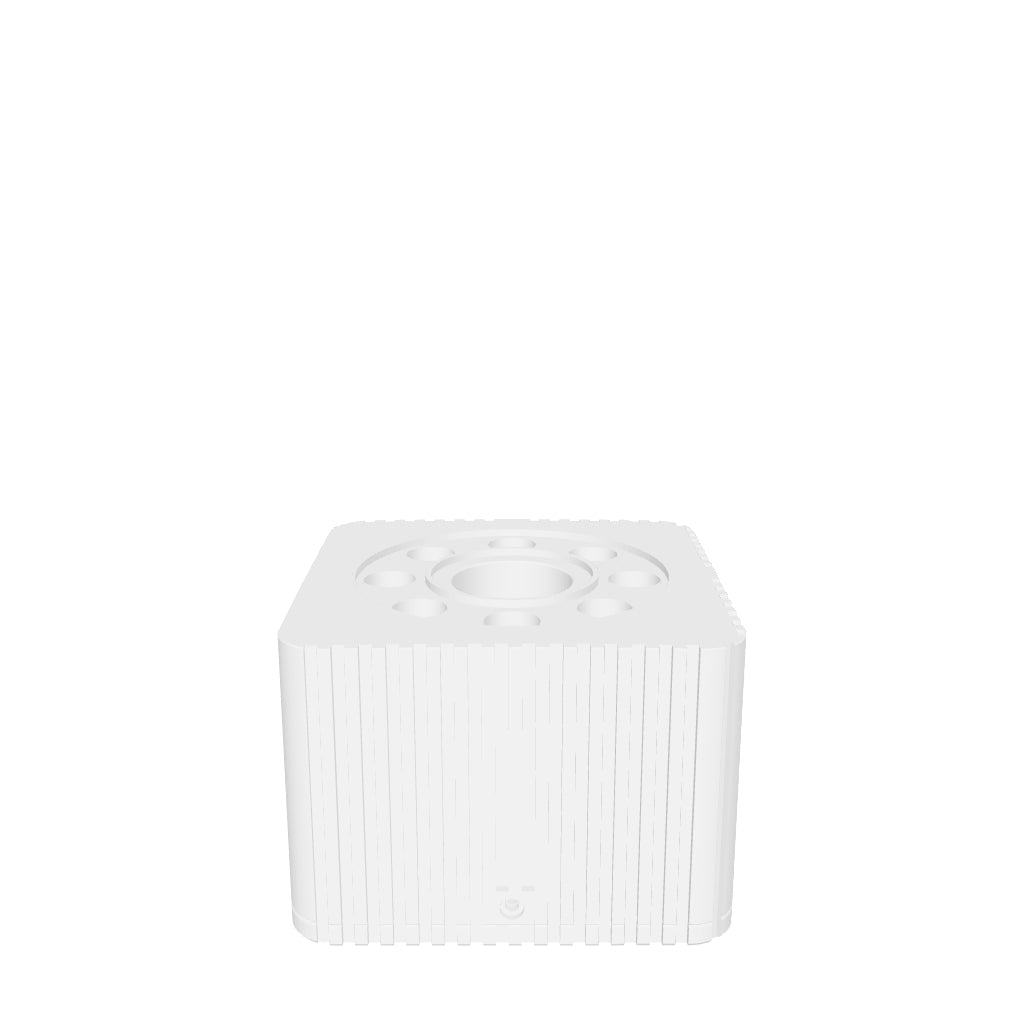

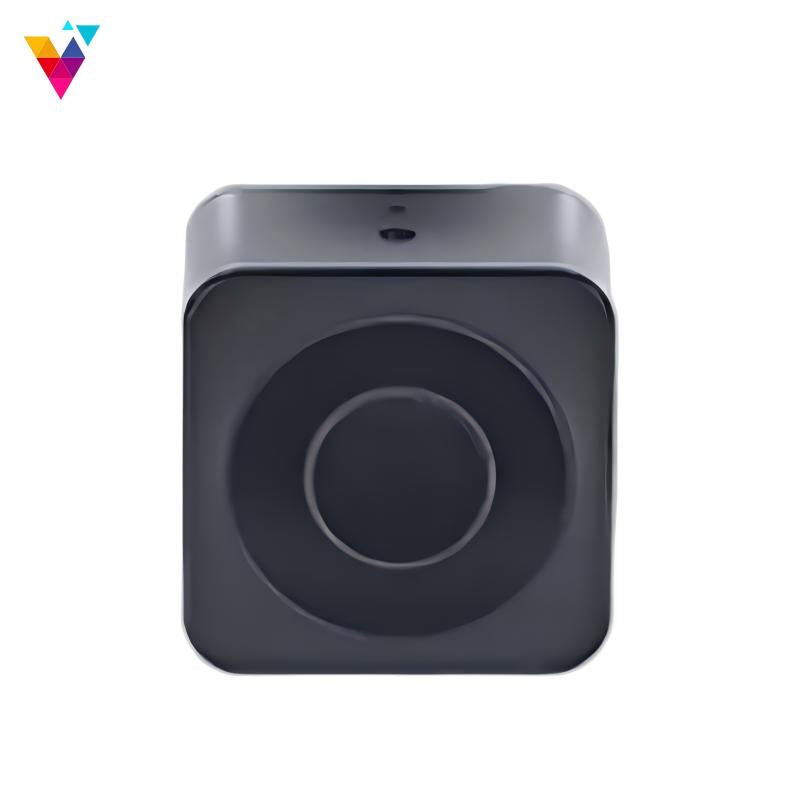

ToFFuture XT-M120 Max LiDAR
Regular price
$710.00
Unit price
ToFFuture XT-M120 Max LiDAR - XT-M120 Max is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ToFFuture XT-M120 Max LiDAR
Regular price
$710.00
Unit price
ToFFuture XT-M120 Max LiDAR - XT-M120 Max is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name |
XT-M120 Max
|
|
Application
|
Medium Speed
|
| FOV1 |
32°x24°
|
| FOV2 |
40°x30°
|
|
Frame Rate（fps）
|
1-30
|
|
Light Wavelength(nm)
|
940 |
| Average Power (W) | 6 |
| Output Data | Infrared image /Depth image /3D point cloud |
| SDK | C /Linux / Ros1&Ros2 |
| Angle Resolution | 0.1°H×0.2°V (equal to 120 lines） |
| Measurement Distance | 80m@50% |
|
Water proof Dust Proof
|
TBD
|
| Size (mm) |
71×71×51
|
| Weight | 333g |
| Powersupply |
12-24V@3A Aviation interface
|
| Working Temperature |
－40° to 85
|
