Kpower | SKU:

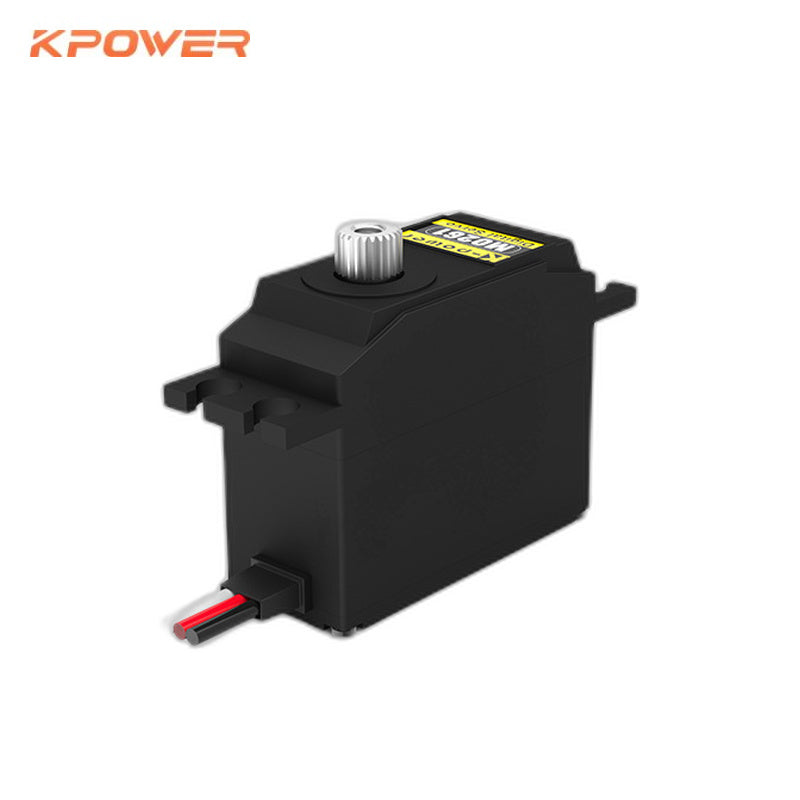

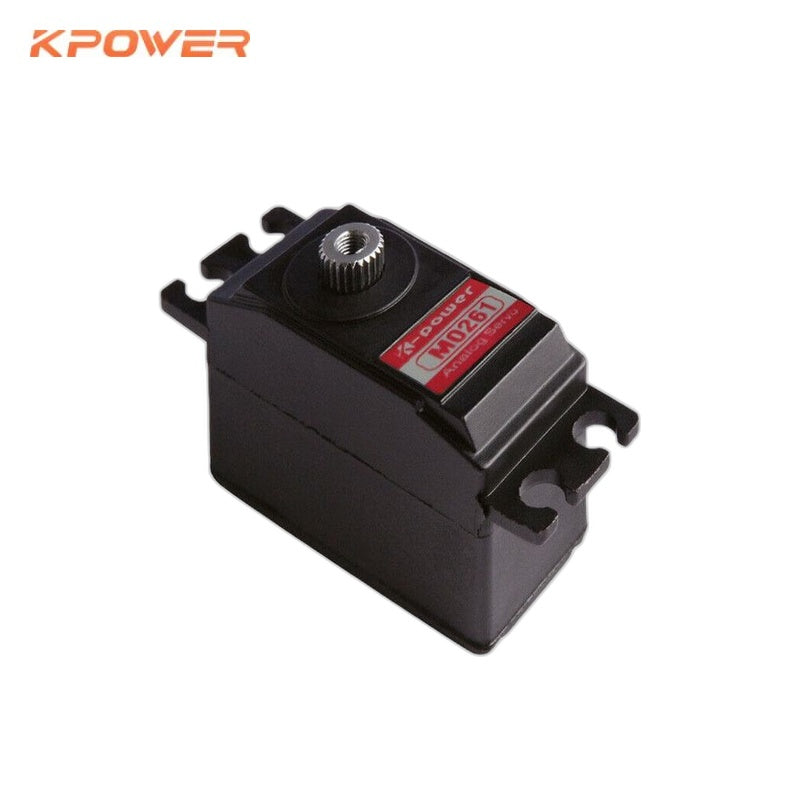

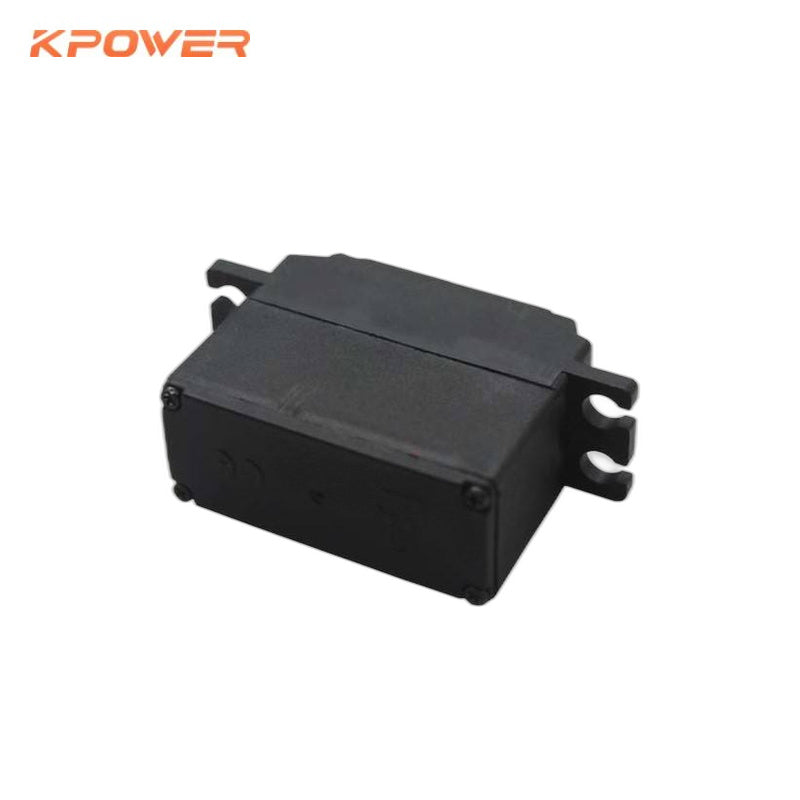

Kpower M0261 Servo Motor
Regular price
$25.00
Unit price
Kpower M0261 Servo Motor - M0261 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower M0261 Servo Motor
Regular price
$25.00
Unit price
Kpower M0261 Servo Motor - M0261 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model Type | Analog metal gear micro and mini servo M0261 |
| Gear material | Metal |
| Case material | Plastic case |
| Dimension | 35.5 × 15 × 29 mm |
| Weight | 28 g |
| Motor type | Brushed |
| Running degree | 120° default (debuggable) |
| Speed | 4.8V: 0.07 s/60° 6.0V: 0.06 s/60° |
| Torque | 4.8V: 2.3 kg·cm 6.0V: 2.9 kg·cm |
| Power supply | 4.8 ~ 6.0 V |
| Dead band width | 4 μs |
| Connector | JR (default) |
| Operating Temperature | -10 ~ 60 °C |
| Splining | 25T |
| Waterproof | Splash proof |
