BWSENSING

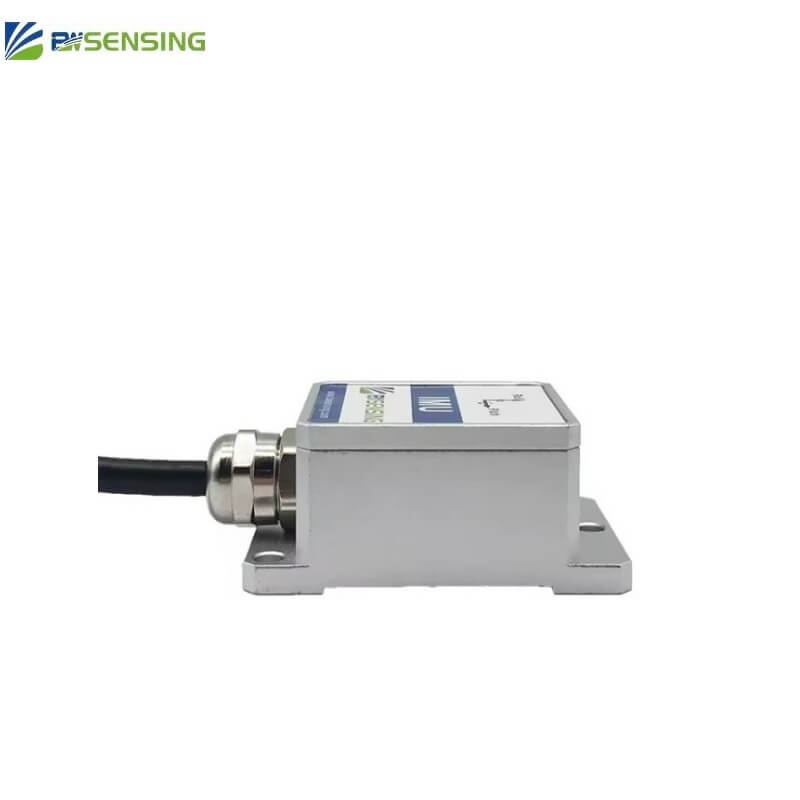

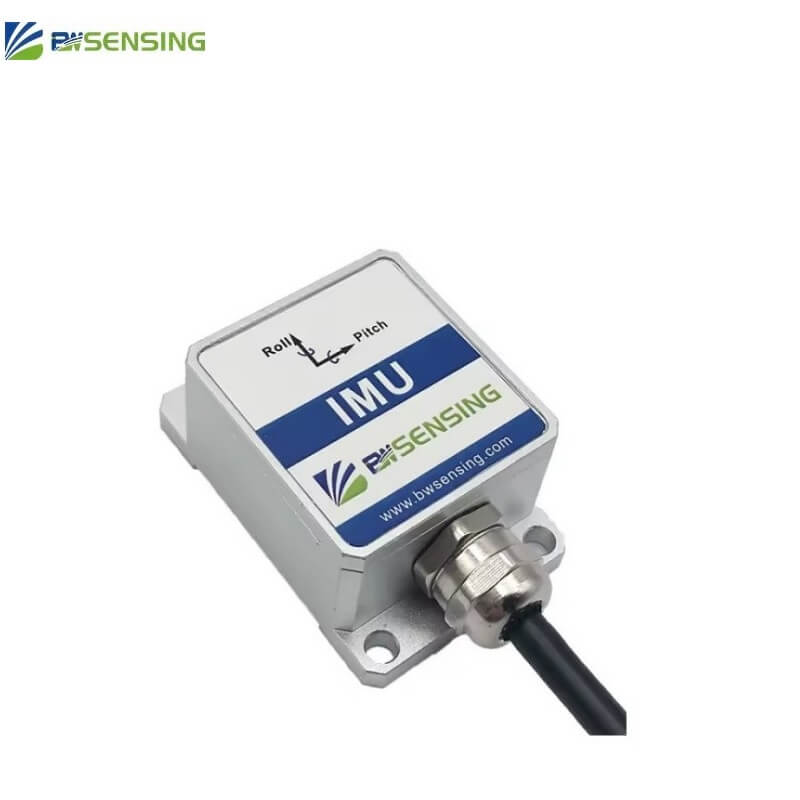

BWSENSING BW-IMU50 Sensor

Regular price $81.00

Version

Delivery and Shipping

  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Technical Specifications

Parameter Value
Model IMU50
Power voltage 5V DC
Working current

30mA (40mA Max)

Operating Temperature -40°C~+85°C
Storage Temperature

-55°C~+100℃

Resolution 0.01°/sec
Range ±400°/sec
Bias stability at room temperature <2 °/h(100s,1σ)
<150 °/h(10s,1σ)
Angle random walk coefficient <0.1 °/√h
Bias repeatability <50 °/h(1σ)
Scale factor non-linearity
≤100ppm(1σ)
Scale factor repeatability ≤100ppm(1σ)
Bandwidth 100Hz
Range: X, Y, Z ±2 g
Resolution

0.01 mg

Add zero offset

0.15mg

Bias stability 0.001mg(25℃,100s,1σ)
0.01mg(25℃,10s,1σ)
Connector

Metal joint(Cable 1.5m)

Protection level

IP67

Shell material

Magnesium aluminum alloy anodizing

Installation

Four M4 screws
