Unitree | SKU:

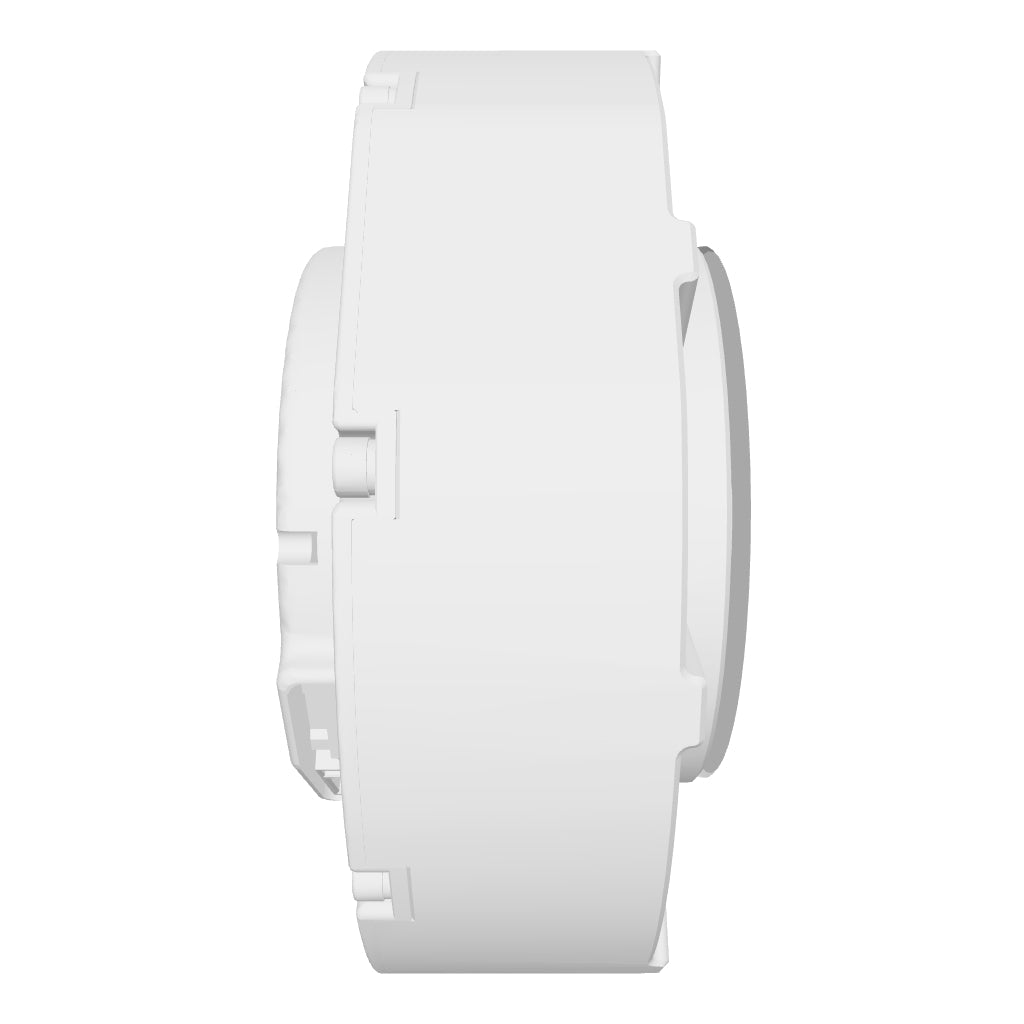

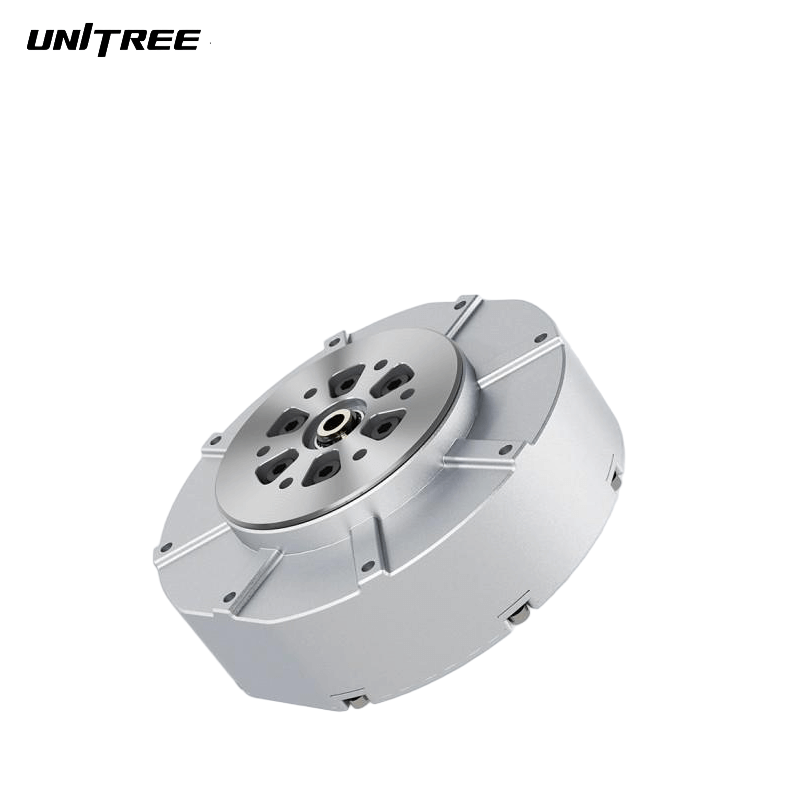

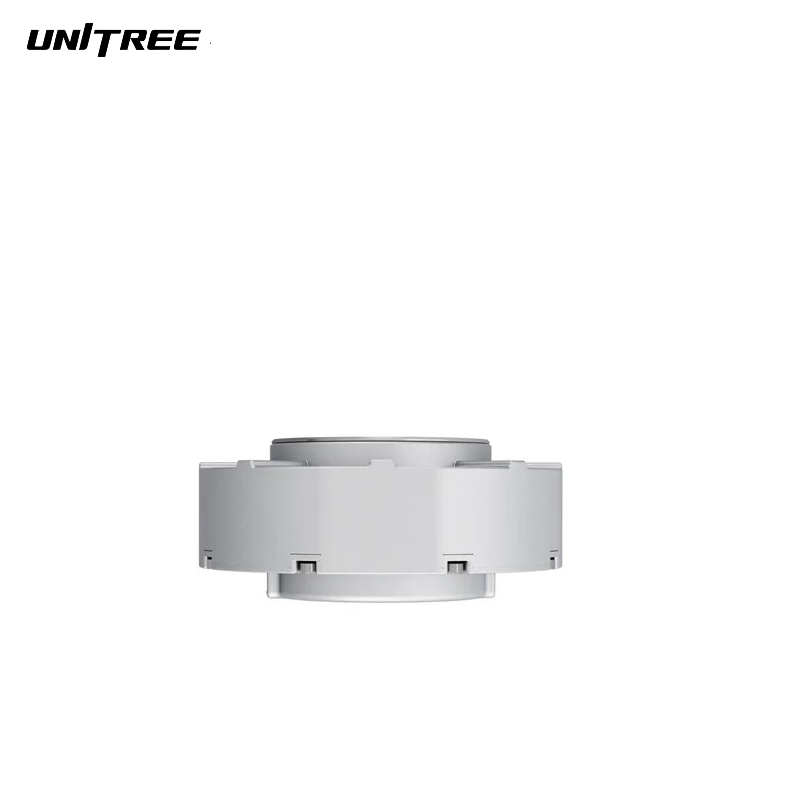

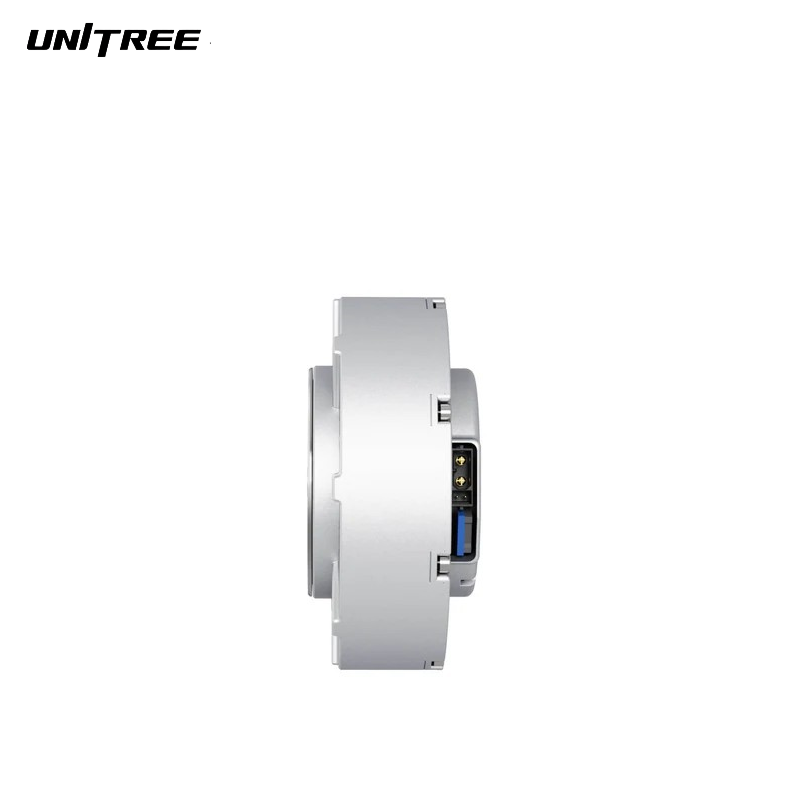

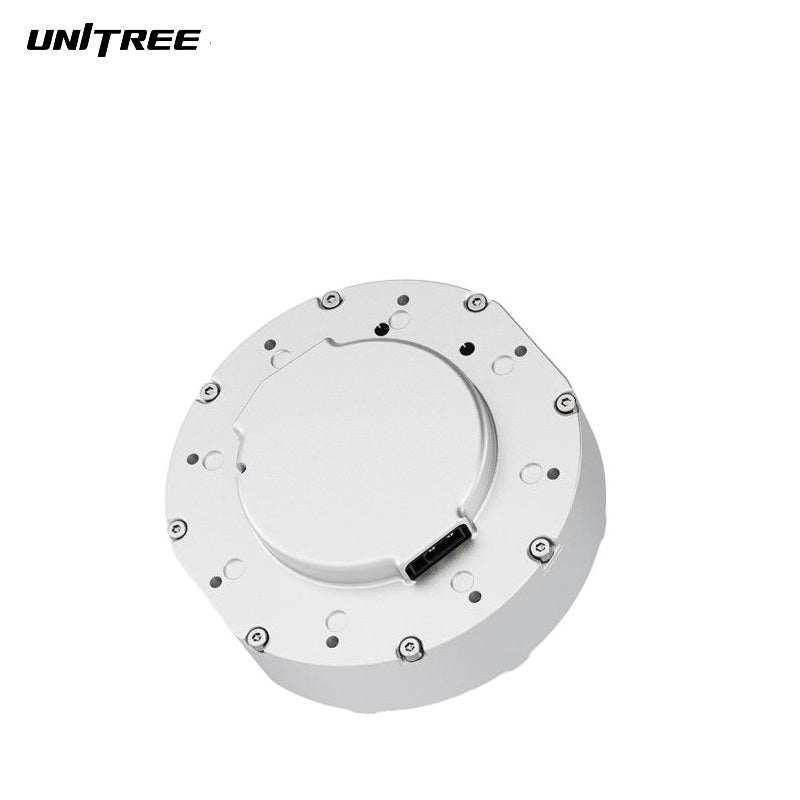

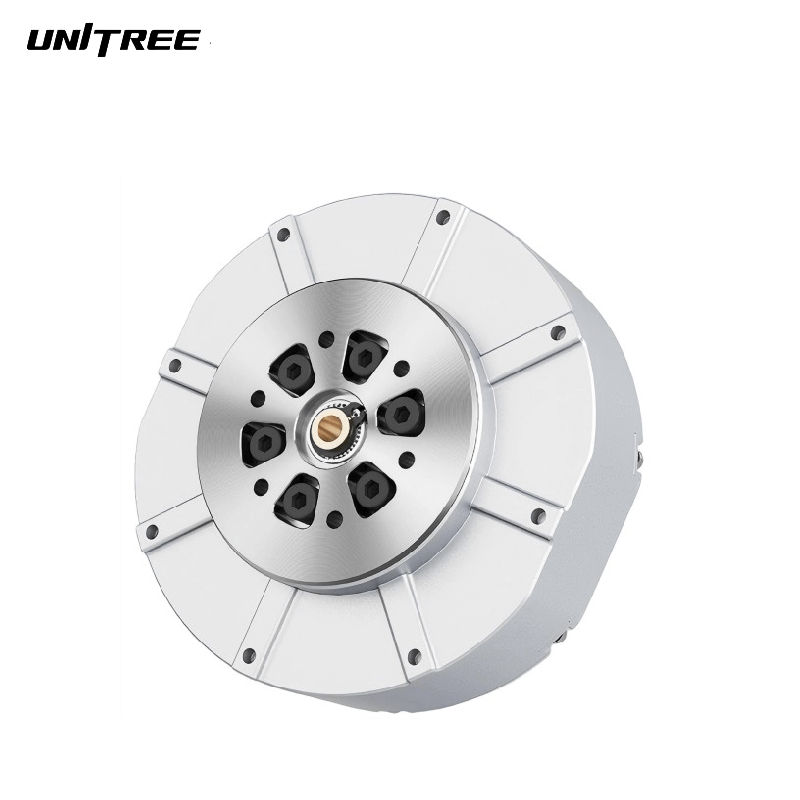

Unitree GO-M8010-6 Motor
Regular price
$280.00
Unit price
Unitree GO-M8010-6 Motor - GO-M8010-6 Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Unitree GO-M8010-6 Motor
Regular priceFrom
$20.00
Unit price
Unitree GO-M8010-6 Motor - GO-M8010-6 Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
GO-M8010-6
|
| Weight | About 530g |
| Maximum Current | 40A |
| Maximum Rotational Speed | 30rad/s(@24VDC) |
| Reduction Ratio | 1:6.33 |
| Size |
96.5x92.5x42.3mm |
| Maximum Torque |
23.7NM |
| Torque Constant | 0.63895Nm/A |
| Communication Mode | RS-485 |
| Communication Baud Rate | 4Mbps |
| Communication Control Frequency | 6000Hz |
| Motor Encoder Resolution | 15bit |
| Operation Environment | -5°C~40°C |
| Working Voltage | 12V~30VDC 24VDC recommend |
| Motor Perceptual Feedback | Torque, Angle, Angular Velocity, Angular Acceleration, Temperature |
| Motor Control instruction | Torque, Angle, Angular Velocity, Stiffness, Damping |
GO-M8010-6_instalation_drawing.pdf
GO-M8010-6_User_Manual.pdf
