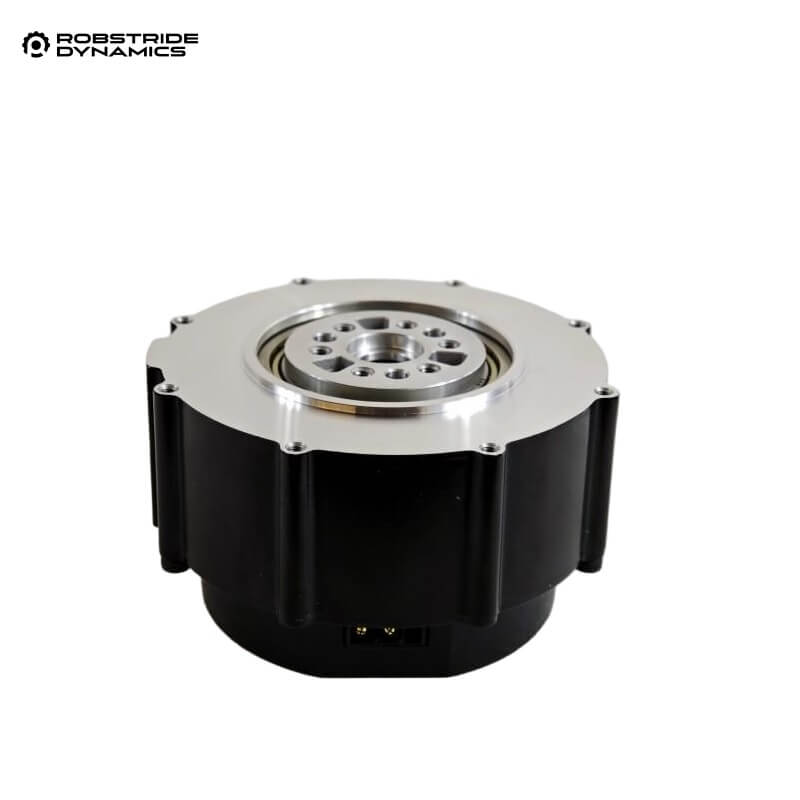

ROBSTRIDE 06 Motor
Regular price
$230.00
Unit price
ROBSTRIDE 06 Motor - Only Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ROBSTRIDE 06 Motor
Regular priceFrom
$230.00
Unit price
ROBSTRIDE 06 Motor - Only Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ROBSTRIDE 6 |
| Rated Voltage | 48 VDC |
| Operating Voltage Range | 15 – 60 VDC |
| Rated Load(CW) | 11 N.m |
| Rotation Direction | CW / CCW |
| Using Temperature | 25±5 ℃ |
| Size |
88 x 88 x 49 mm |
| Weight |
621g ± 10g |
| Operating Temperature Range | -20 °C to +50 °C |
| Operating Humidity Range | 5% to 85% RH, non-condensing |
| Storage Temperature Range | -30 °C to +70 °C |
| Insulation Class | Class B |
| Using Humidity | 65% |
| No-Load Speed |
480 rpm±10% |
| No-Load Current |
0.98 Arms |
| Rated Load | 11 N·m |
| Rated Load Speed | 100 rpm±10% |
| Rated Load Phase Current(Peak) | 14.3 Apk±10% |
| Peak Load | 36 N.m |
| Max Load Phase Current(Peak) |
57 Apk±10% |
| Insulation Resistance / Stator Winding |
DC 500VAC, 100M 0hms |
| Hi-Pot Test (Stator to Frame) |
600VAC, 1s, 2mA |
| Motor Back-EMF Constant |
7.6 Vrms/kRPM±10% |
| Torque Constant |
1.1 N.m/Arms |
| Encoder Type | Magnetic Encoder |
| Wire Design | 1 in 1 out |
| Number of Encoders | 2 |
| Number of Poles | 28 |
| Number of Phases | 3 |
| Drive Method | FOC |
| Reduction Ratio | 9 : 1 |
| CAN Bus Bit Rate | 1 Mbps |
| Encoder Resolution | 14-bit |
