ROBSTRIDE | SKU:

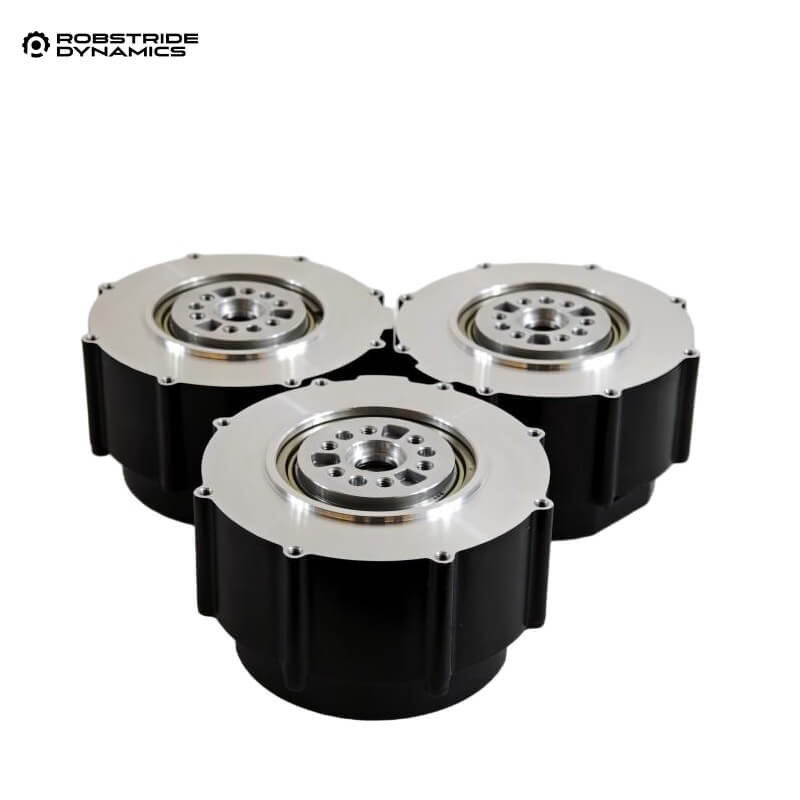

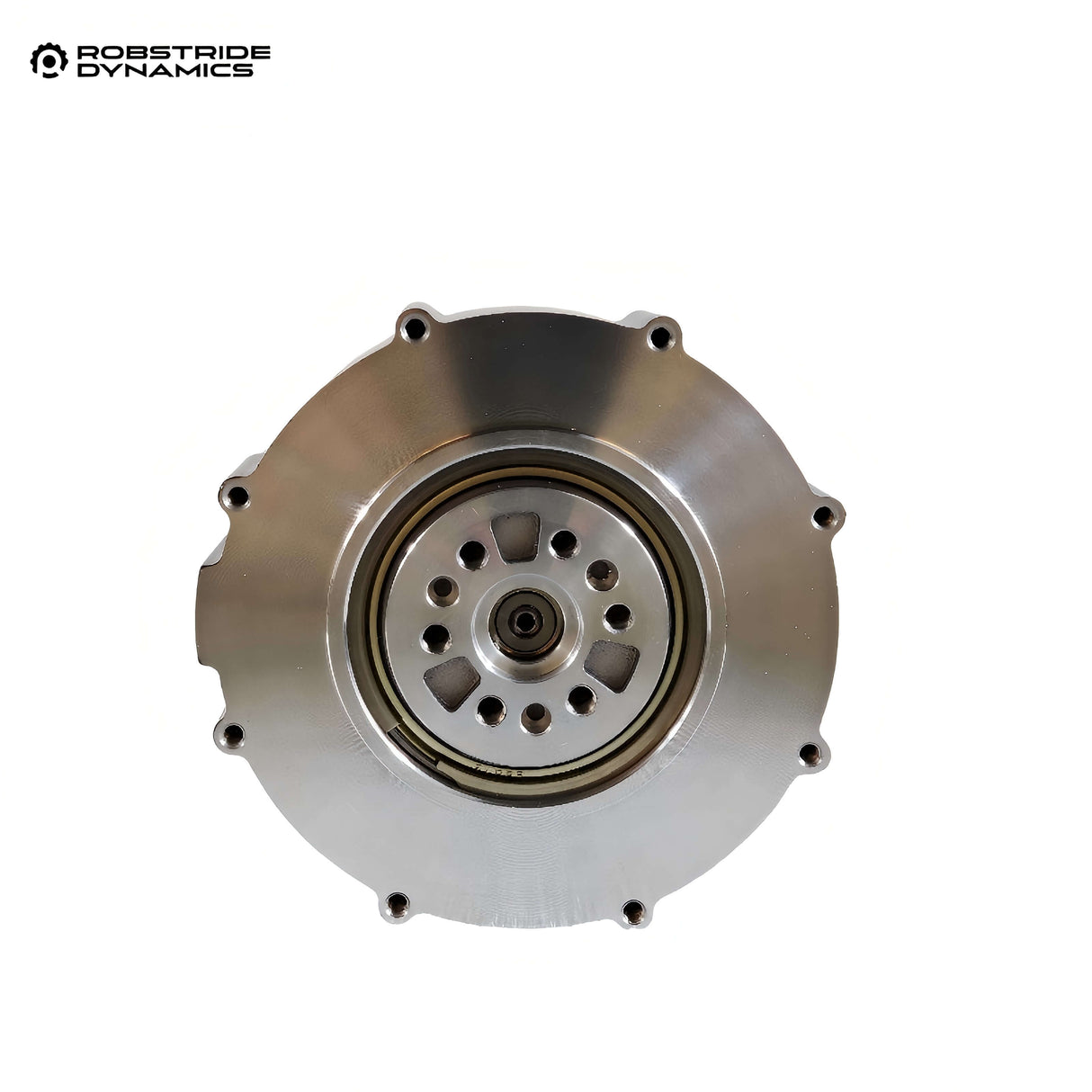

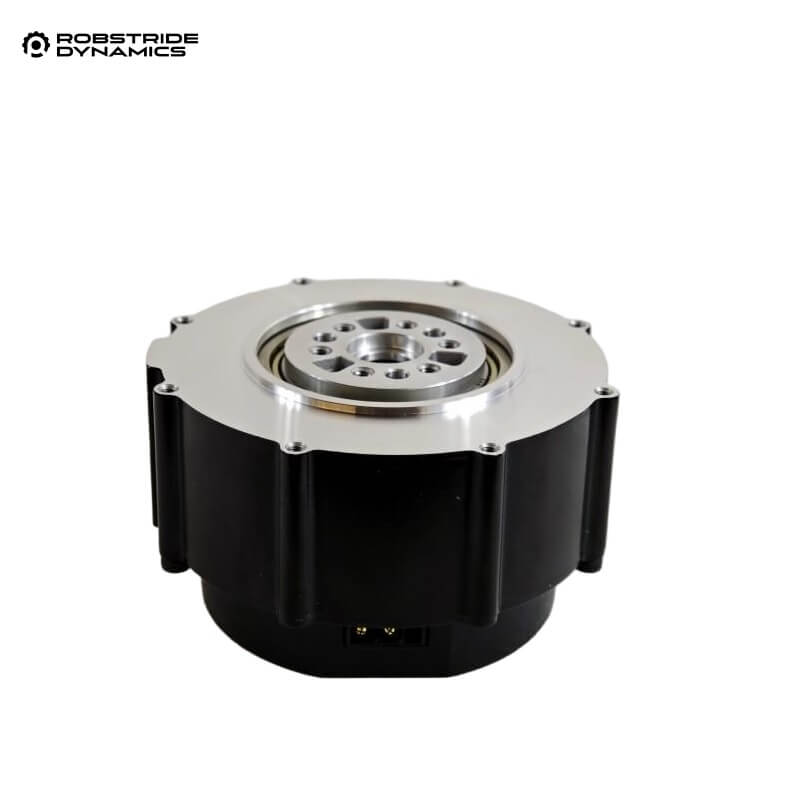

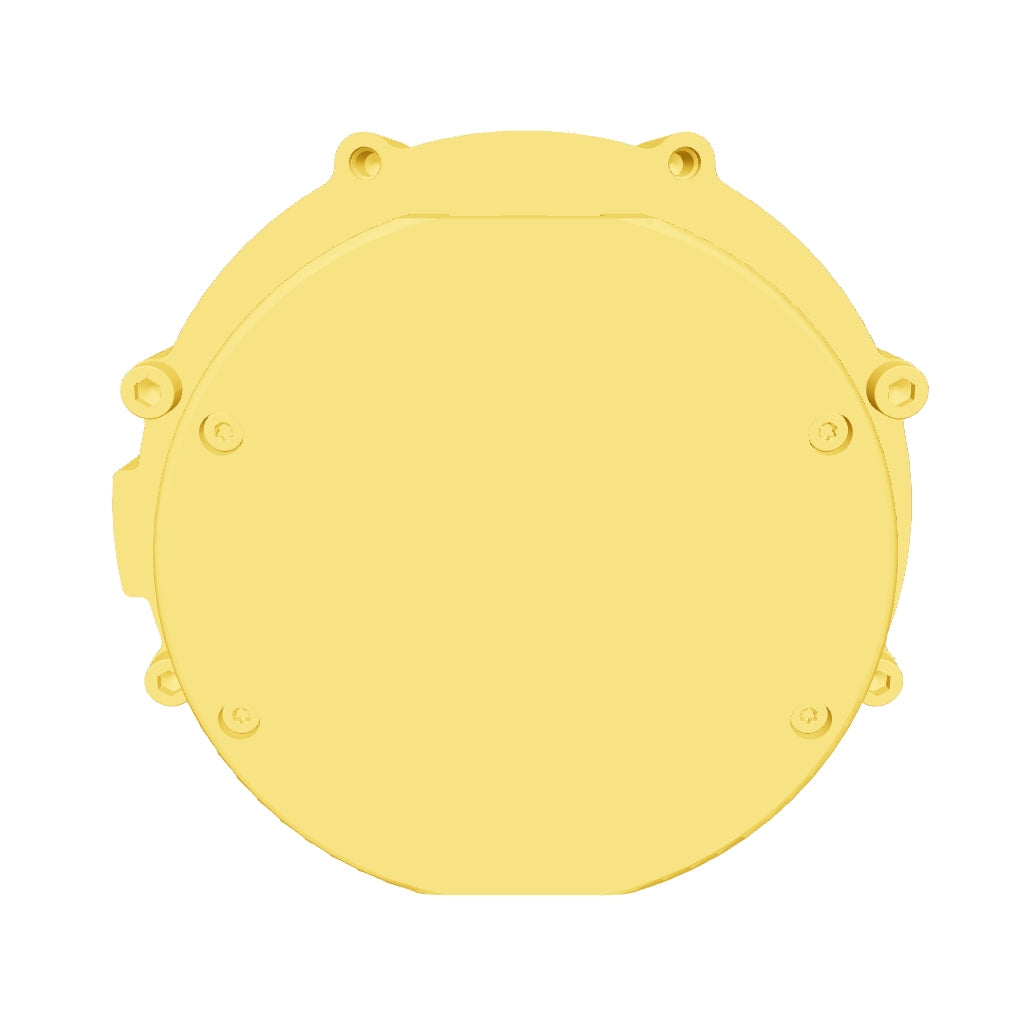

ROBSTRIDE 06 Motor
Regular price
$175.00
Unit price
/
Unavailable
ROBSTRIDE 06 Motor - Only Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ROBSTRIDE 06 Motor
Regular price
From
$175.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ROBSTRIDE 6 |
| Rated Voltage | 48 VDC |
| Operating Voltage Range | 15 – 60 VDC |
| Rated Load(CW) | 11 N.m |
| Rotation Direction | CW / CCW |
| Using Temperature | 25±5 ℃ |
| Size |
88 x 88 x 49 mm |
| Weight |
621g ± 10g |
| Operating Temperature Range | -20 °C to +50 °C |
| Operating Humidity Range | 5% to 85% RH, non-condensing |
| Storage Temperature Range | -30 °C to +70 °C |
| Insulation Class | Class B |
| Using Humidity | 65% |
| No-Load Speed |
480 rpm±10% |
| No-Load Current |
0.98 Arms |
| Rated Load | 11 N·m |
| Rated Load Speed | 100 rpm±10% |
| Rated Load Phase Current(Peak) | 14.3 Apk±10% |
| Peak Load | 36 N.m |
| Max Load Phase Current(Peak) |
57 Apk±10% |
| Insulation Resistance / Stator Winding |
DC 500VAC, 100M 0hms |
| Hi-Pot Test (Stator to Frame) |
600VAC, 1s, 2mA |
| Motor Back-EMF Constant |
7.6 Vrms/kRPM±10% |
| Torque Constant |
1.1 N.m/Arms |
| Encoder Type | Magnetic Encoder |
| Wire Design | 1 in 1 out |
| Number of Encoders | 2 |
| Number of Poles | 28 |
| Number of Phases | 3 |
| Drive Method | FOC |
| Reduction Ratio | 9 : 1 |
| CAN Bus Bit Rate | 1 Mbps |
| Encoder Resolution | 14-bit |
ROBSTRIDE06_instalation_drawing.pdf
