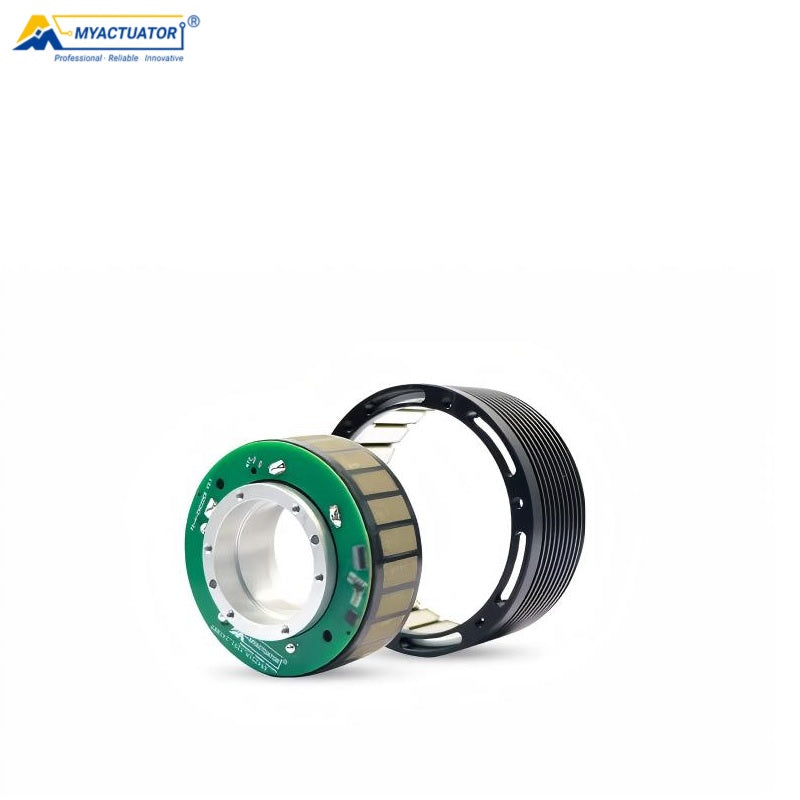

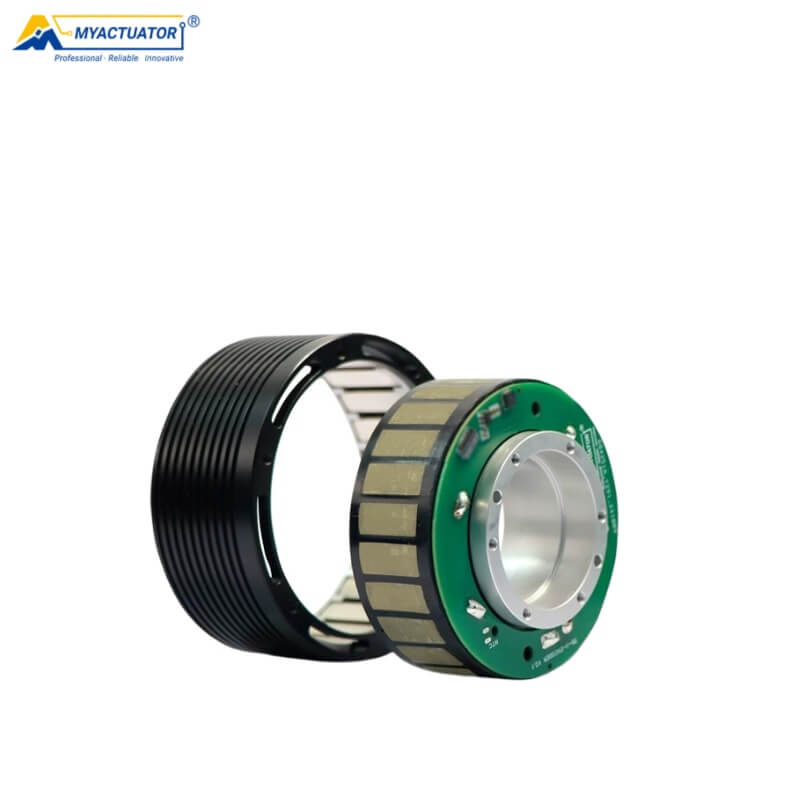

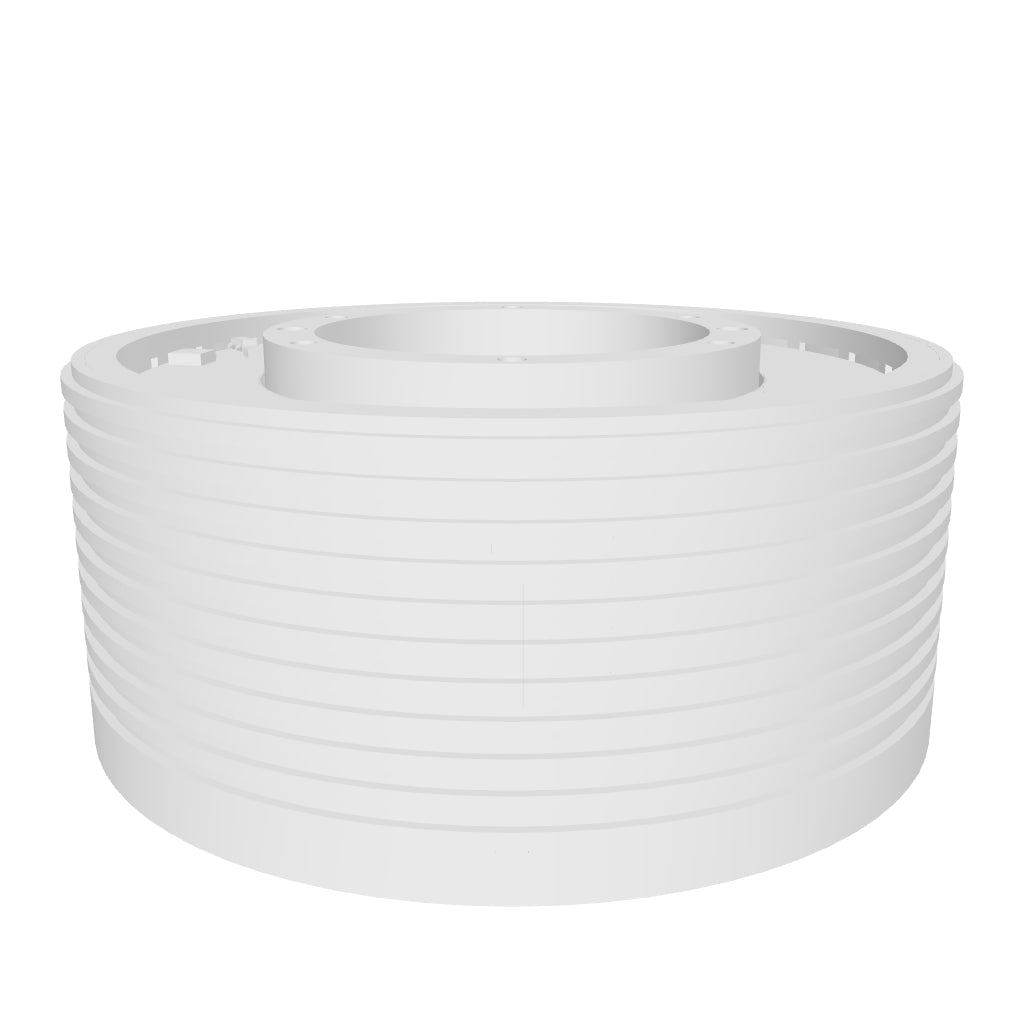

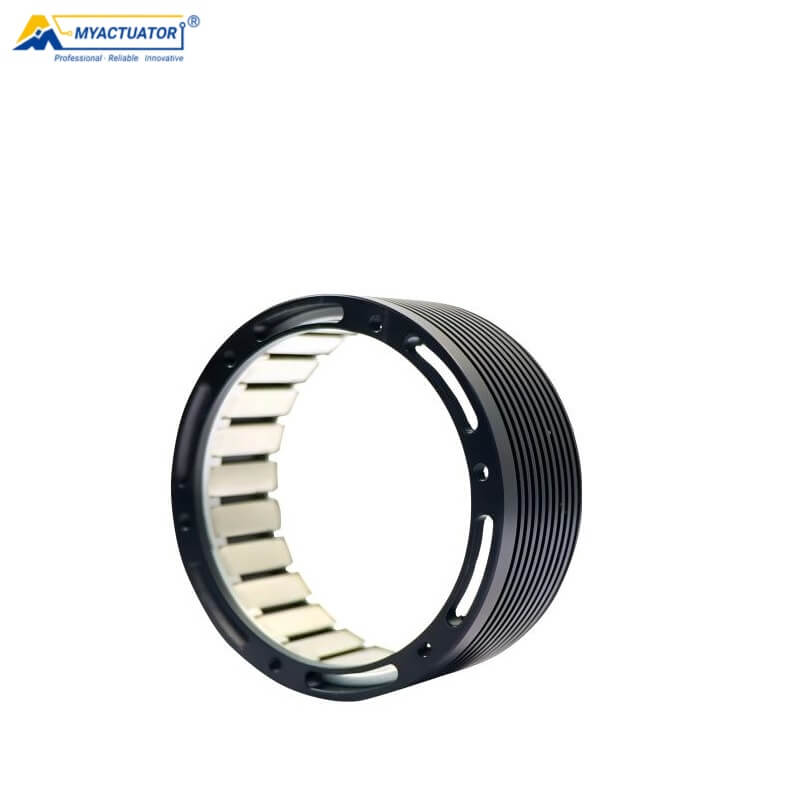

MyActuator RMD-FLO-70 Motor
Sale price
$119.00
Regular price
$140.00
Unit price
/
Unavailable
MyActuator RMD-FLO-70 Motor - RMD-FLO-70-15-200 (Absolute Encoder) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MyActuator RMD-FLO-70 Motor
Sale price
$119.00
Regular price
$140.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | RMD-FLO-70-15 |
| Input Voltage | 48V |
| No-Load Current | 0.21A |
| Rated Speed | 2400RPM |
| Rated Torque | 0.8N.m |
| Rated Power |
200W |
| Rated Current |
4.4A(rms) |
| Peak Torque | 2N.m |
| Peak Current | 13.2A(rms) |
| Efficiency | >84% |
| Motor Back-EMF Constant |
17Vdc/Krpm |
| Module Torque Constant | 0.18N.m/A |
| Motor Phase Resistance | 0.5Ω |
| Motor Phase Inductance | 0.55mH |
| Pole Pair | 13 |
| Cogging Torque |
30.83N.m |
| 3 Phase Connection | Y |
| Encoder Type&Interface | Hall-NC |
| Weight | 0.33Kg |
| Insulation Grade | F |
