Feetech | SKU:

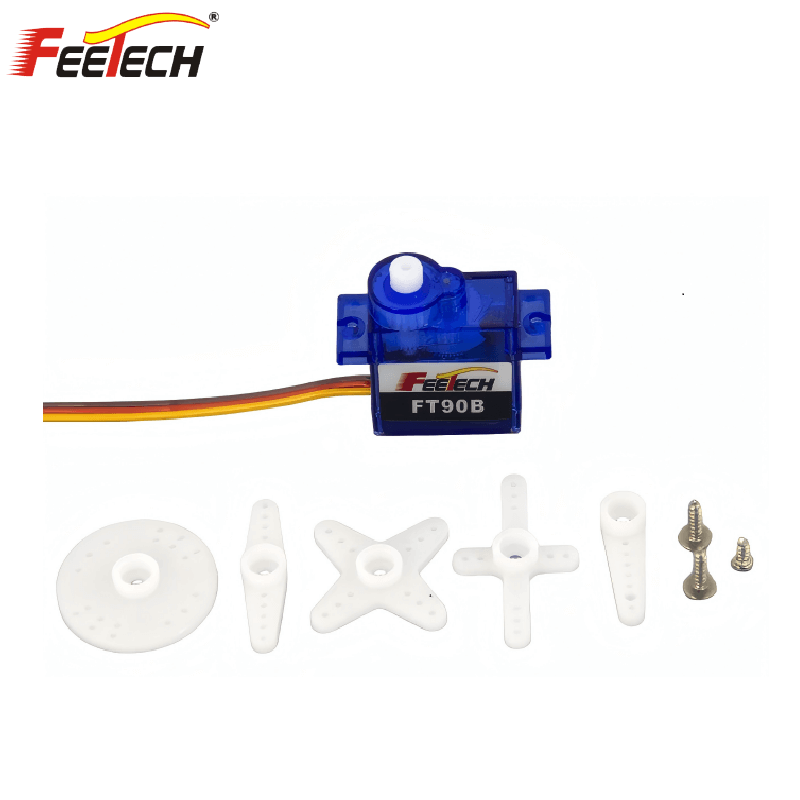

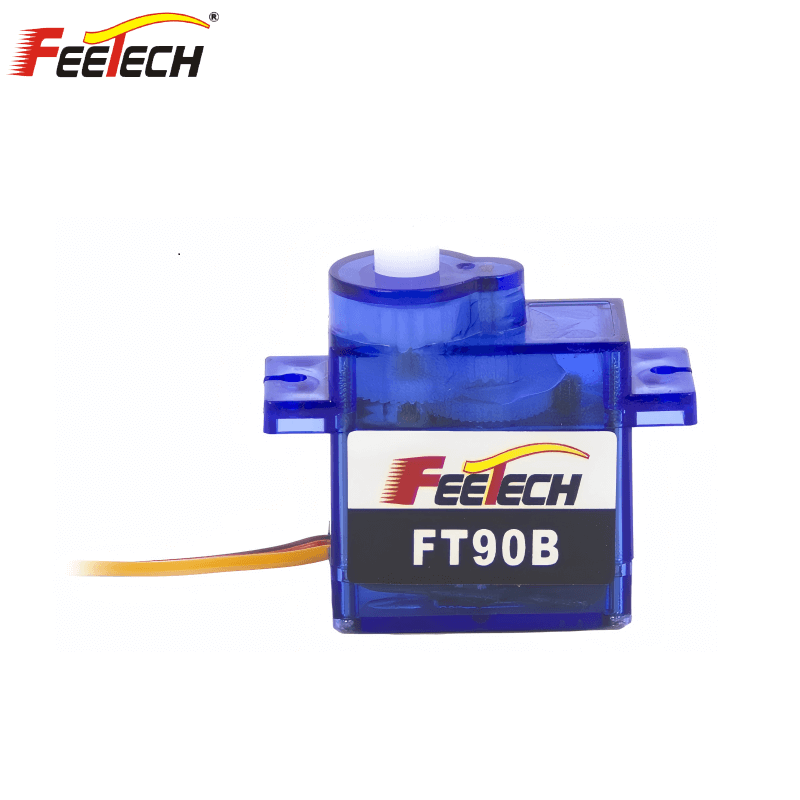

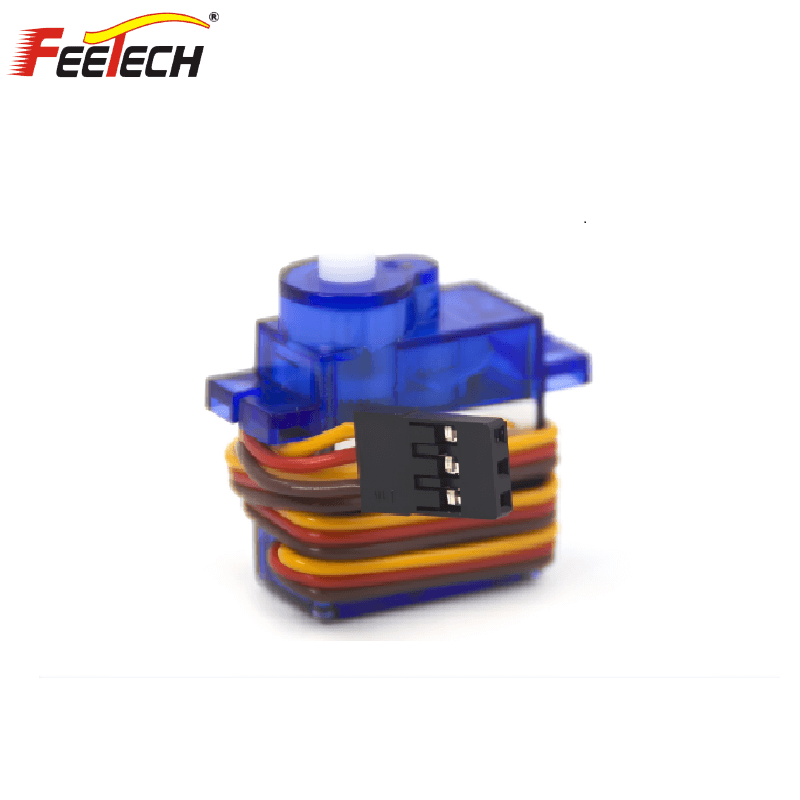

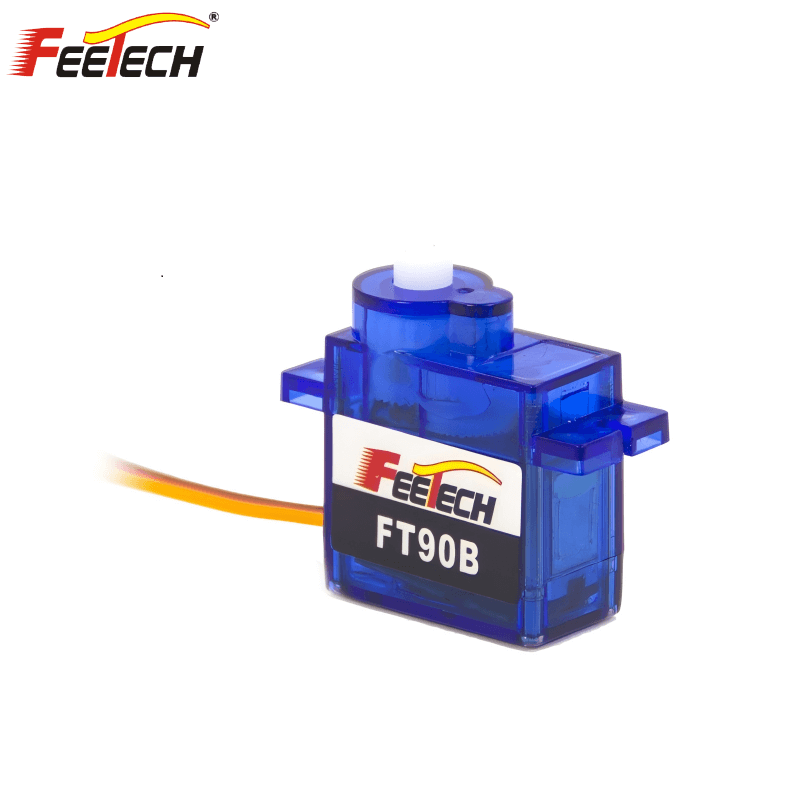

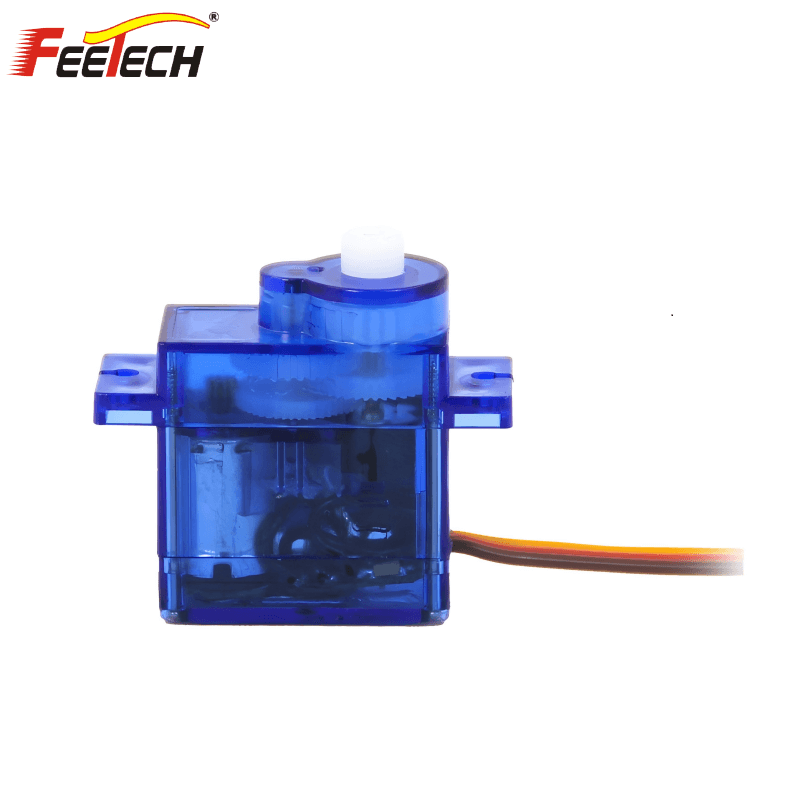

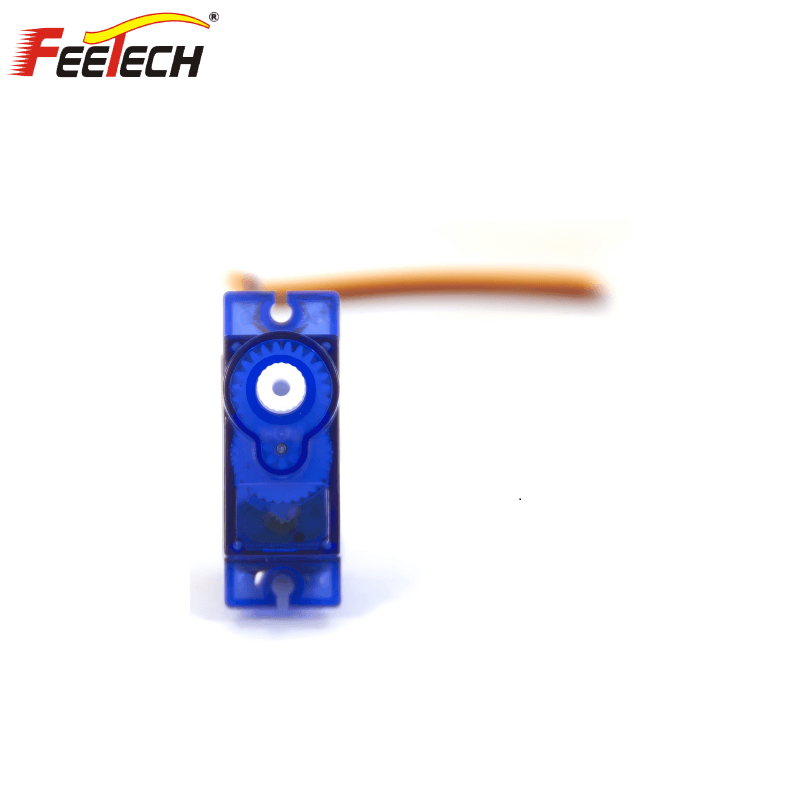

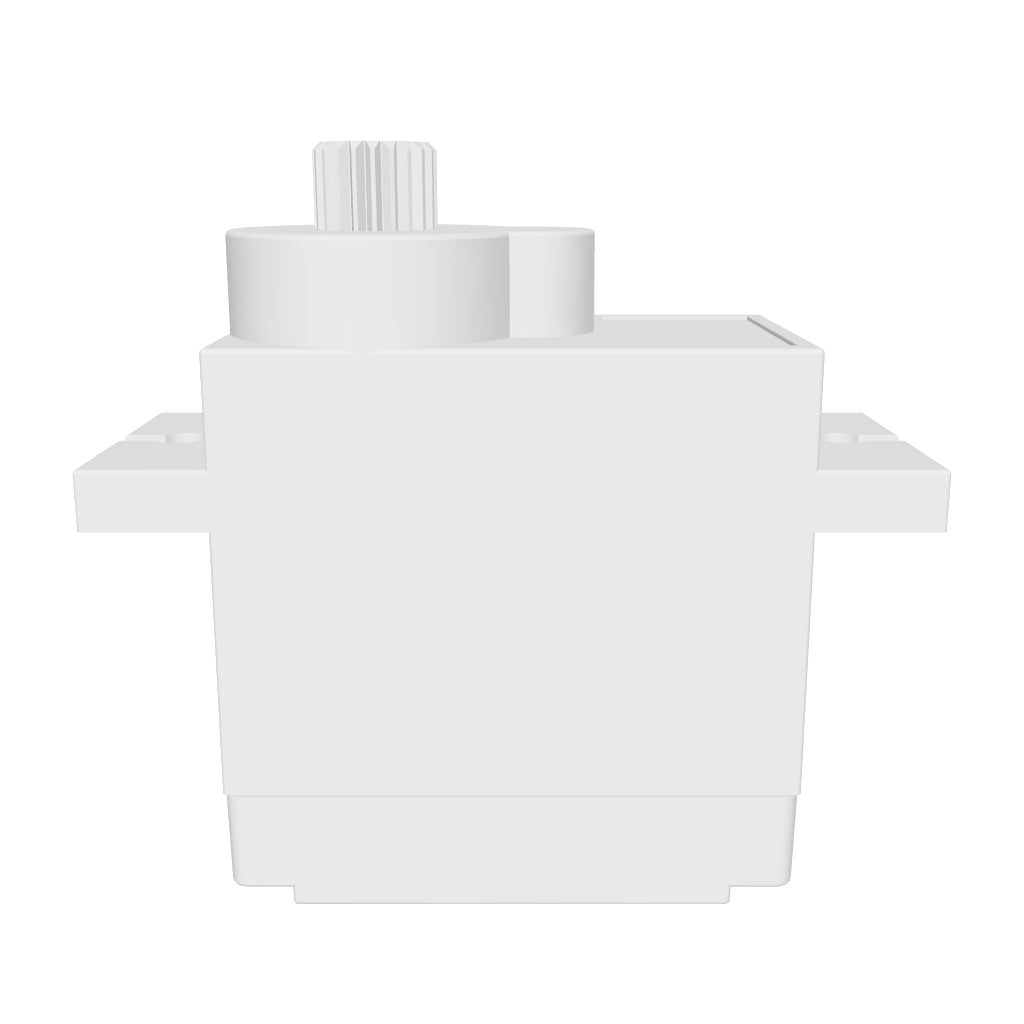

FEETECH FT90B Servo Motor
Regular price
$15.00
Unit price
FEETECH FT90B Servo Motor - FT90B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT90B Servo Motor
Regular price
$15.00
Unit price
FEETECH FT90B Servo Motor - FT90B is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT90B |
| Product Name | 6V 1.5kg.cm Digital Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～70℃ |
| Size | A：22.5mm B：12.1mm C：22.4mm |
| Weight | 10.5g |
| Gear type | Plastic Gear |
| Limit angle |
180degree |
| Bearing |
NO Ball bearings |
| Horn gear spline | 21T(4.86) |
| Horn type | Plastic,POM |
| Case | PC |
| Connector wire | 250mm ±5 mm（ JR）(Brown ,Red and Orange) |
| Motor |
Metal brush motor |
| Operating Voltage Range | 3-6V |
| Idle current(at stopped) | 4mA-6mA |
| No load speed | 110RPM@6V |
| Runnig current(at no load) | 120 mA @6V |
| Peak stall torque | 1.5kg.cm@6V |
| Rated torque | 0.5kg.cm@6V |
| Stall current | 800mA@6V |
| Running degree | 180°(when 500～2500 μ sec) |
