SLAMTEC

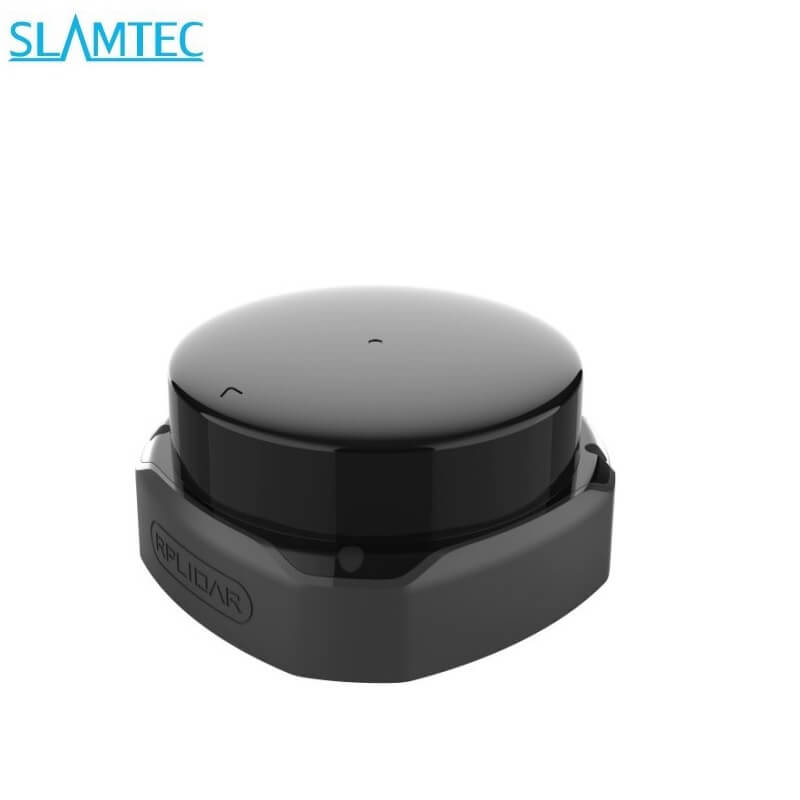

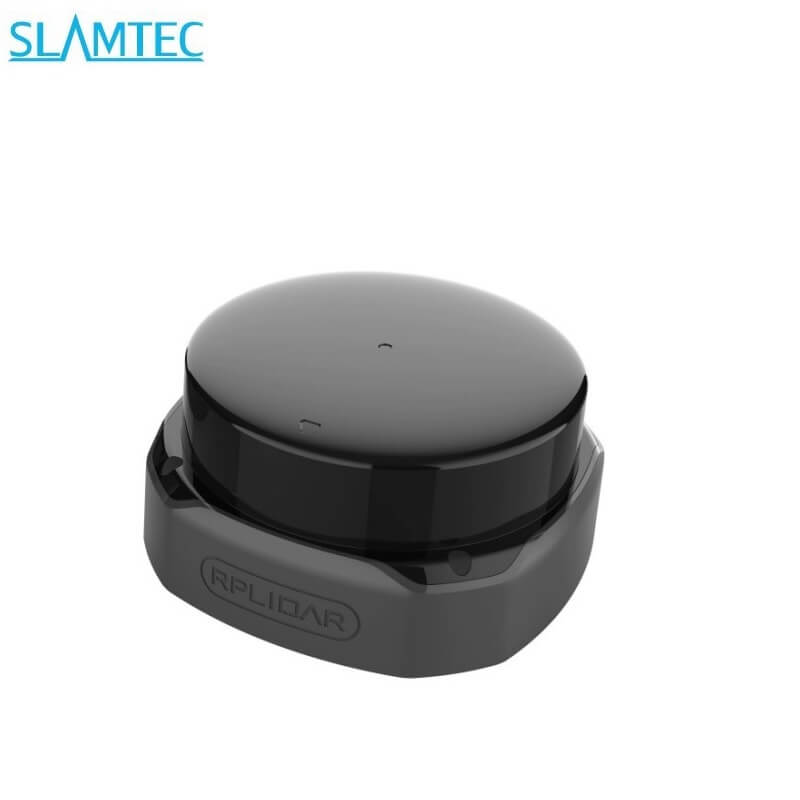

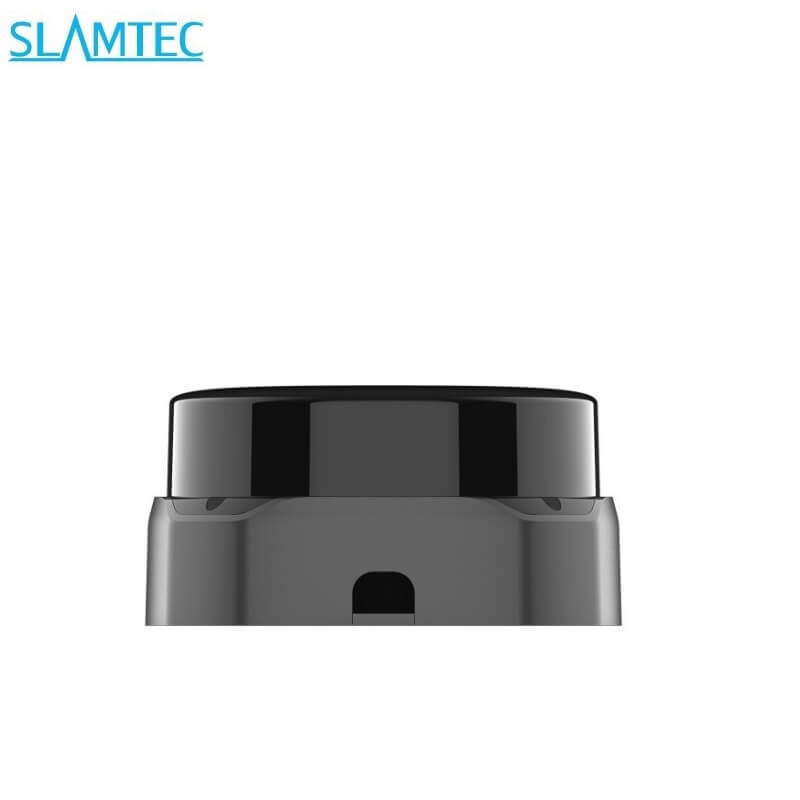

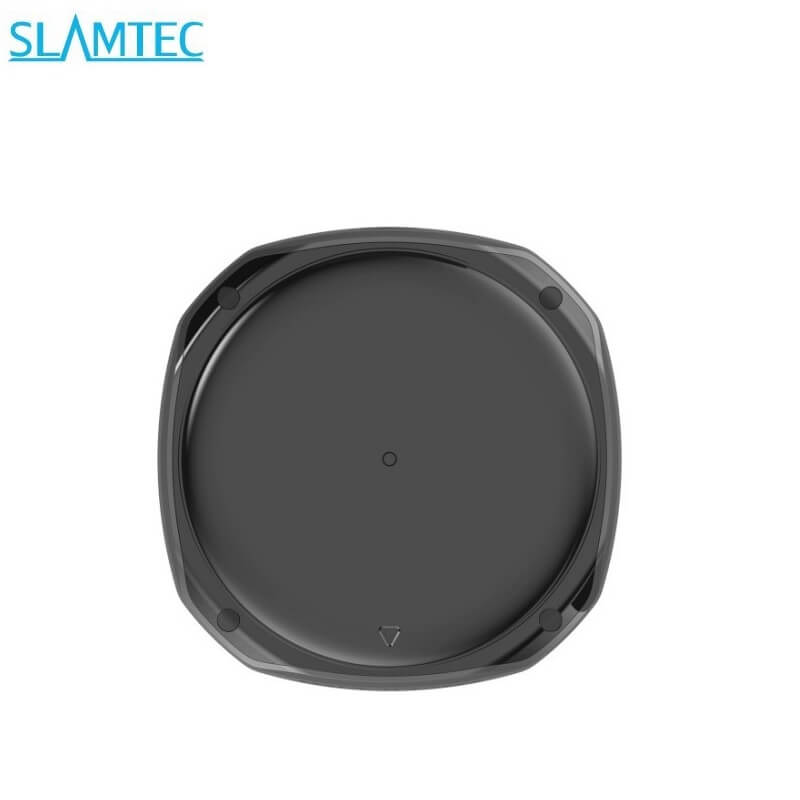

SLAMTEC RPLIDAR S2 LiDAR

Regular price $465.00

Version
Interface Types

Delivery and Shipping

  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information




Technical Specifications

Parameter Value Value Value Value
Model

SLAMTEC RPLIDAR S2

SLAMTEC RPLIDAR S2L

SLAMTEC RPLIDAR S2E

SLAMTEC RPLIDAR S2P

Application Scenarios

Ideal for both outdoor and indoor environments with reliable resistance to daylight

Ideal for both outdoor and indoor environments with reliable
resistance to daylight

Ideal for both outdoor and indoor environments with reliable resistance
to daylight.

Ideal for both outdoor and indoor environments with reliable
resistance to daylight
Distance Range White object: 0.05-30 meters (under 90% reflection)
White object: 0.05-18 meters (under 90% reflection)
White object: 0.05~30 meters(under 90% reflection) White object: 0.05-50 meters (under 90% reflection)
Distance Range Black object: 0.05-10 meters (under 10% reflection)
Black object0.05-8 meters (under 10% reflection)
Black object: 0.05~10 meters(under 10% reflection)
Black object0.05-15 meters (under 10% reflection)
Scan Field Flatness 0°-1.5° (other angle requirements can be customized)
0°-1.5° (other angle requirements can be customized)
0°~1.5° ( other angle requirements can be customized
0°-1.5° (other angle requirements can be customized)
Sample Rate

32kHz

32kHz

32kHz

32kHz

Scanning Frequency
10Hz
10Hz 10 Hz 10 Hz
Angular Resolution 0.1125° 0.1125° 0.1125 ° 0.1125 °
Communication Interface TTL UART
TTL UART
Ethernet
TTL UART
Communication Speed 1M 1M       / 1M
Accuracy ±30mm* ±50mm* ±30mm*
±50mm*
Resolution 13mm* 13mm* 13mm* 13mm*
Working Wavelength

895-915nm

895-915nm

895-915nm

895-915nm

Laser Power

25W

25W

25W

25W

Pulse Length

5ns

5ns

5ns

5ns

Laser Safety Class

IEC-60825 Class 1

IEC-60825 Class 1


IEC-60825 Class 1

IEC-60825 Class 1

Power Voltage

4.9—5.2V

4.9—5.2V

9—28V

4.9—5.2V

Power Voltage Ripple

150mV(Max)

150mV(Max)

±3%1(Max)


150mV(Max)

System Start Current

1500mA

1500mA

1200mA

1500mA

Power Current 500mA

500mA

200mA


500mA

Weight
185g

185g

190g


185g

Working Temperature Range
-10—50ºC

-10—50ºC

-10—50ºC

-10—50ºC

Storage Temperature Range
-20—60ºC

-20—60ºC

-20—60ºC

-20—60ºC
