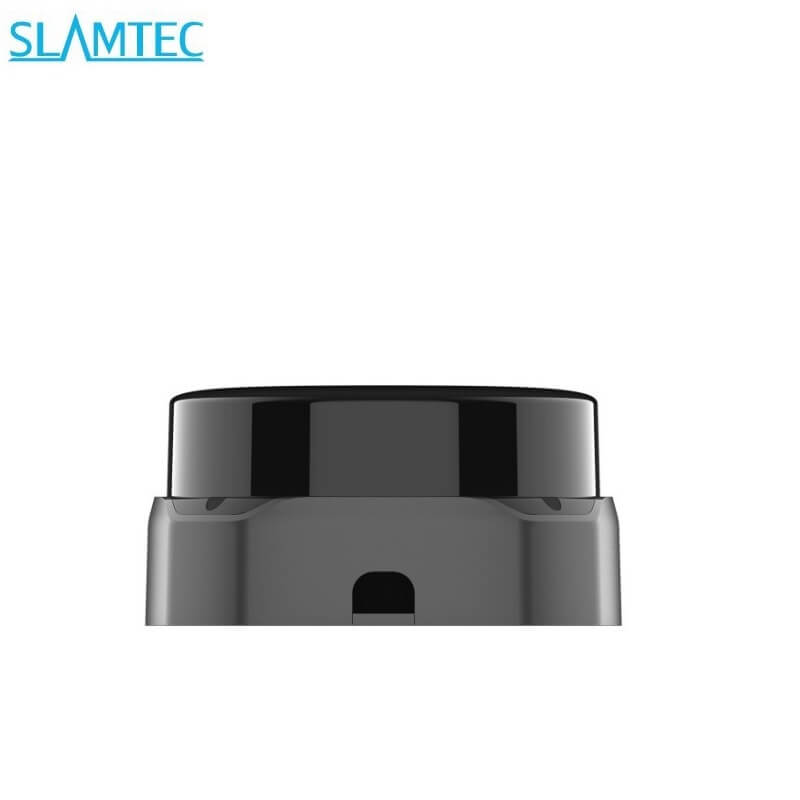

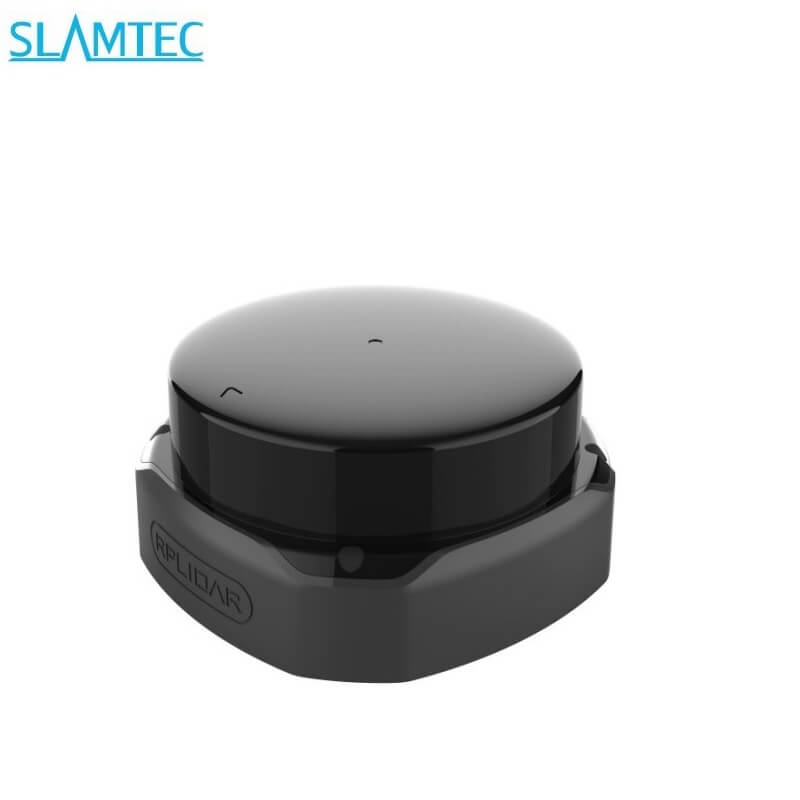

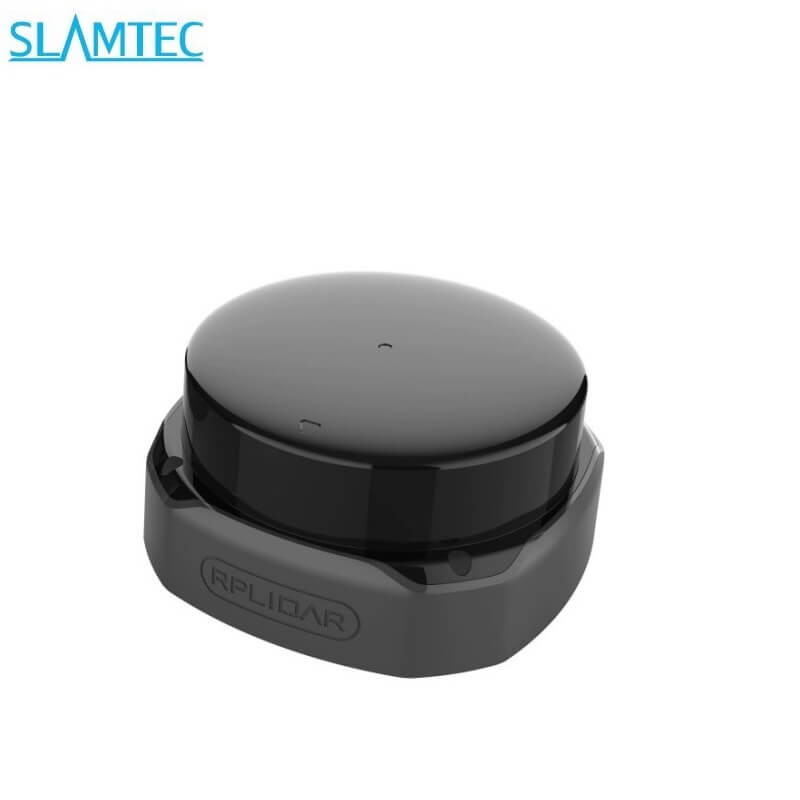

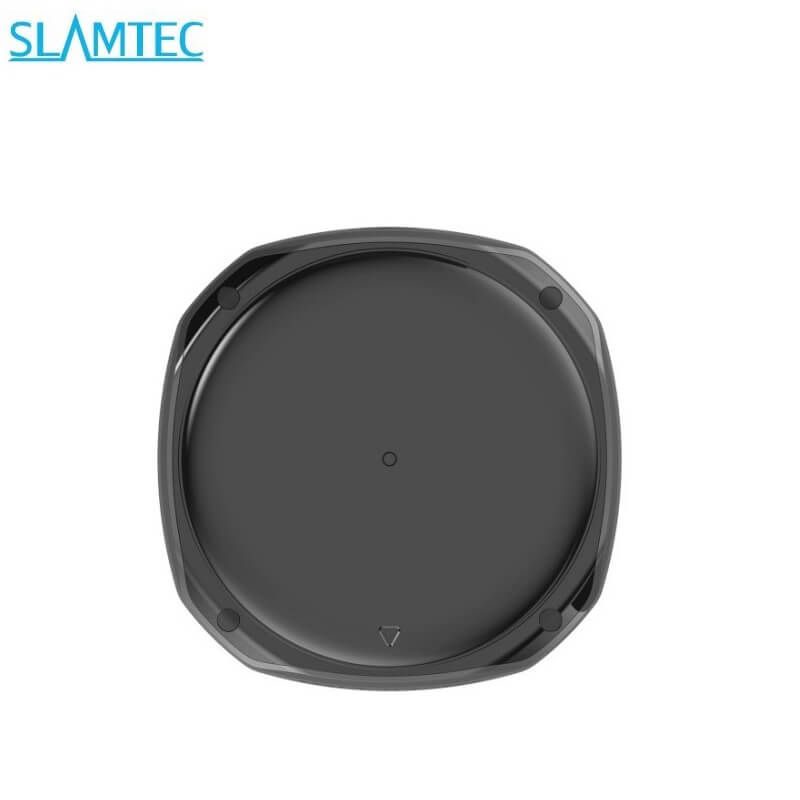

SLAMTEC RPLIDAR S2 LiDAR
SLAMTEC RPLIDAR S2 LiDAR
SLAMTEC RPLIDAR S2 LiDAR
SLAMTEC RPLIDAR S2 LiDAR

SLAMTEC RPLIDAR S2 LiDAR

$465.00
$465.00
Version: S2(30 meters)
Interface Types: Serial Port
Subtotal: $465.00
SLAMTEC RPLIDAR S2 LiDAR

SLAMTEC RPLIDAR S2 LiDAR

$465.00
SLAMTEC RPLIDAR S2 LiDAR
SLAMTEC RPLIDAR S2 LiDAR
SLAMTEC RPLIDAR S2 LiDAR
SLAMTEC RPLIDAR S2 LiDAR

SLAMTEC RPLIDAR S2 LiDAR

$465.00
Version: S2(30 meters)
Interface Types: Serial Port
Description
Description
x




Technical Specifications

Parameter Value Value Value Value
Model

SLAMTEC RPLIDAR S2

SLAMTEC RPLIDAR S2L

SLAMTEC RPLIDAR S2E

SLAMTEC RPLIDAR S2P
Application Scenarios

Ideal for both outdoor and indoor environments with reliable resistance to daylight

Ideal for both outdoor and indoor environments with reliable
resistance to daylight

Ideal for both outdoor and indoor environments with reliable resistance
to daylight.
Ideal for both outdoor and indoor environments with reliable
resistance to daylight
Distance Range White object: 0.05-30 meters (under 90% reflection)
White object: 0.05-18 meters (under 90% reflection)
 White object: 0.05~30 meters（under 90% reflection） White object: 0.05-50 meters (under 90% reflection)
Distance Range Black object： 0.05-10 meters (under 10% reflection)
Black object： 0.05-8 meters (under 10% reflection)
Black object: 0.05~10 meters（under 10% reflection）
Black object： 0.05-15 meters (under 10% reflection)
Scan Field Flatness 0°-1.5° (other angle requirements can be customized)
0°-1.5° (other angle requirements can be customized)
0°~1.5° （ other angle requirements can be customized ）
0°-1.5° (other angle requirements can be customized)
Sample Rate

32kHz

32kHz

 32kHz

32kHz
Scanning Frequency
10Hz
 10Hz 10 Hz 10 Hz
Angular Resolution 0.1125° 0.1125° 0.1125 ° 0.1125 °
Communication Interface TTL UART
TTL UART
Ethernet
 TTL UART
Communication Speed 1M 1M       / 1M
Accuracy ±30mm* ±50mm* ±30mm*
±50mm*
Resolution 13mm* 13mm* 13mm* 13mm*
Working Wavelength

895-915nm

895-915nm

895-915nm

895-915nm
Laser Power

25W

25W

25W

25W
Pulse Length

5ns

5ns

5ns

5ns
Laser Safety Class

IEC-60825 Class 1
IEC-60825 Class 1


IEC-60825 Class 1

IEC-60825 Class 1
Power Voltage

4.9—5.2V

4.9—5.2V

9—28V

4.9—5.2V
Power Voltage Ripple

150mV(Max)

150mV(Max)
±3%1(Max)


150mV(Max)
System Start Current

1500mA

1500mA

1200mA

1500mA
Power Current 500mA

500mA
200mA

500mA
Weight
185g

185g
190g

185g
Working Temperature Range
-10—50ºC

-10—50ºC

-10—50ºC

-10—50ºC
Storage Temperature Range
-20—60ºC

-20—60ºC

-20—60ºC

-20—60ºC
