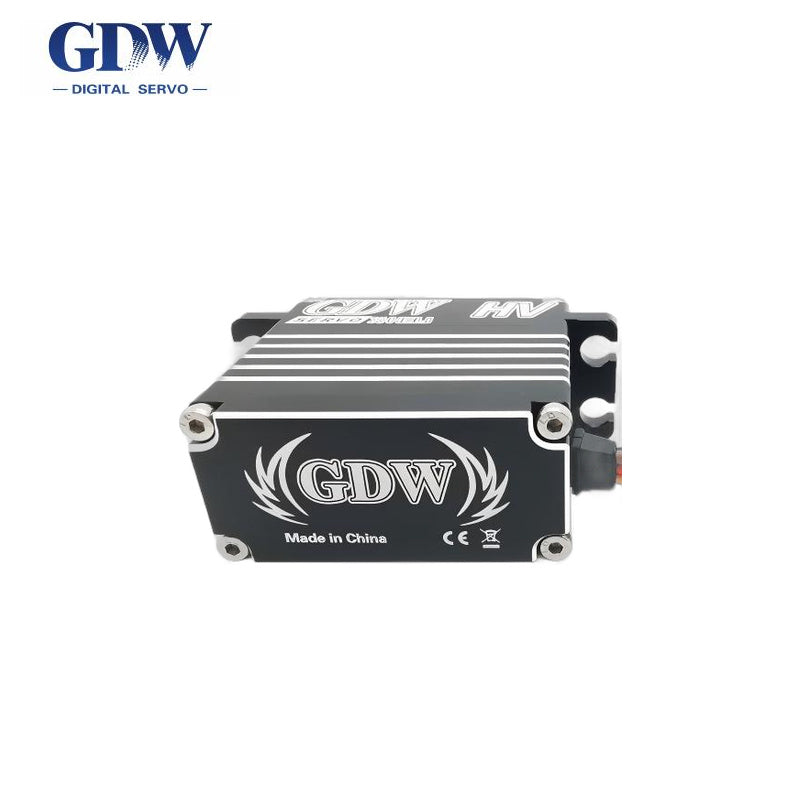

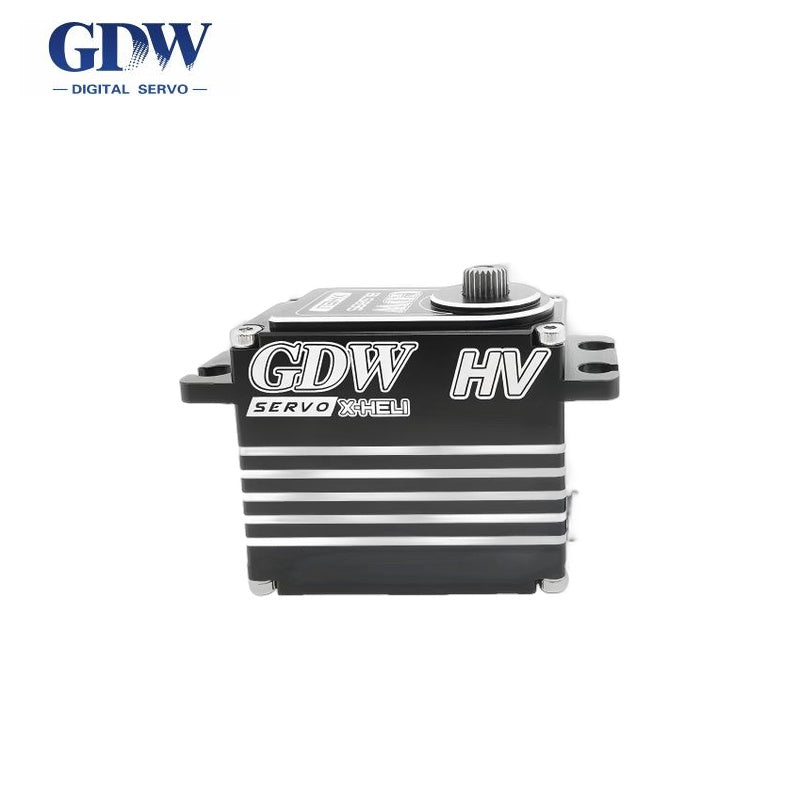

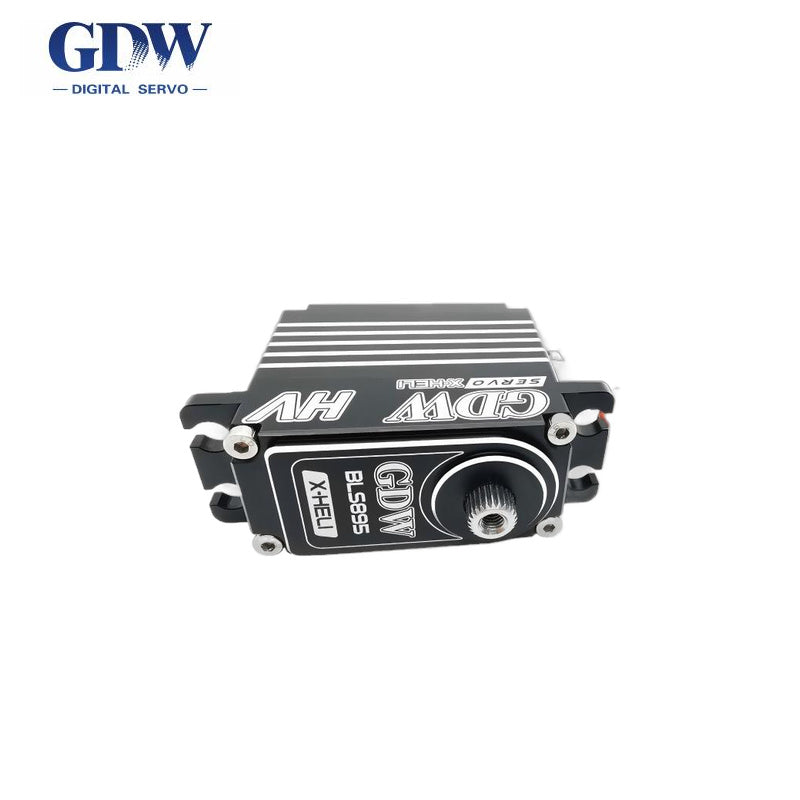

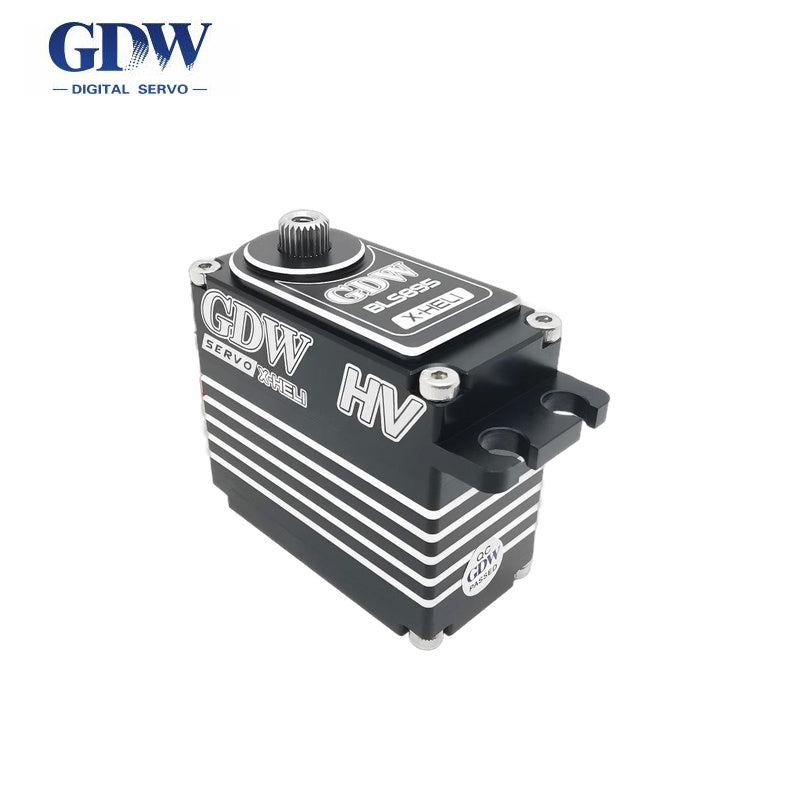

GDW BLS895 Servo Motor
Regular price
$105.00
Unit price
GDW BLS895 Servo Motor - BLS895 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
GDW BLS895 Servo Motor
Regular price
$105.00
Unit price
GDW BLS895 Servo Motor - BLS895 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Servo Type | BLS895HV |
| Voltage Range | DC 6.0V – 8.4V |
| Rated Voltage | DC 7.4V |
| Communication Protocol | PWM |
| Operating Temperature | -20°C ~ +60°C |
| Pulse Width Range | 500 µs – 750 µs – 1000 µs |
| Operation Angle | 55° 0° – 55° (±2°) |
| Working Frequency | 50 – 333 Hz |
| Mapping Direction | CW / CCW √ (optional) |
| Signal | HIGH: min. 2.31V – max. 5V; LOW: min. 0V – max. 0.99V |
| Gear Material | SUS303 |
| Shell Material | AL6061 T6 |
| Motor | Brushless Motor |
| Potentiometer | Contact-type |
| Dimensions | 40.5 × 20 × 37.20 mm |
| Bearing | 2BB |
| Weight | 68 g ± 5% |
| Wire Color — Orange | PWM Signal |
| Wire Color — Red | DC+ Supply Voltage |
| Wire Color — Brown | DC− Supply Voltage |
| Working Voltage | 6.0 V / 7.4 V / 8.4 V |
| Static Current | 6.0V: 15 mA; 7.4V: 20 mA; 8.4V: 25 mA |
| No Load Current | 6.0V: 250 mA; 7.4V: 300 mA; 8.4V: 340 mA |
| Stall Current | 6.0V: 2.8 A; 7.4V: 4.6 A; 8.4V: 5.9 A |
| Dead Band | 3 µs (all voltages) |
| No Load Speed | 6.0V: 0.06 sec/60°; 7.4V: 0.05 sec/60°; 8.4V: 0.04 sec/60° |
| Stall Torque | 6.0V: 7.0 kgf·cm; 7.4V: 8.0 kgf·cm; 8.4V: 9.0 kgf·cm |
| Rated Torque | 6.0V: 1.8 kgf·cm; 7.4V: 2.0 kgf·cm; 8.4V: 2.3 kgf·cm |
GDW-BLS895HV-Drawing.pdf
