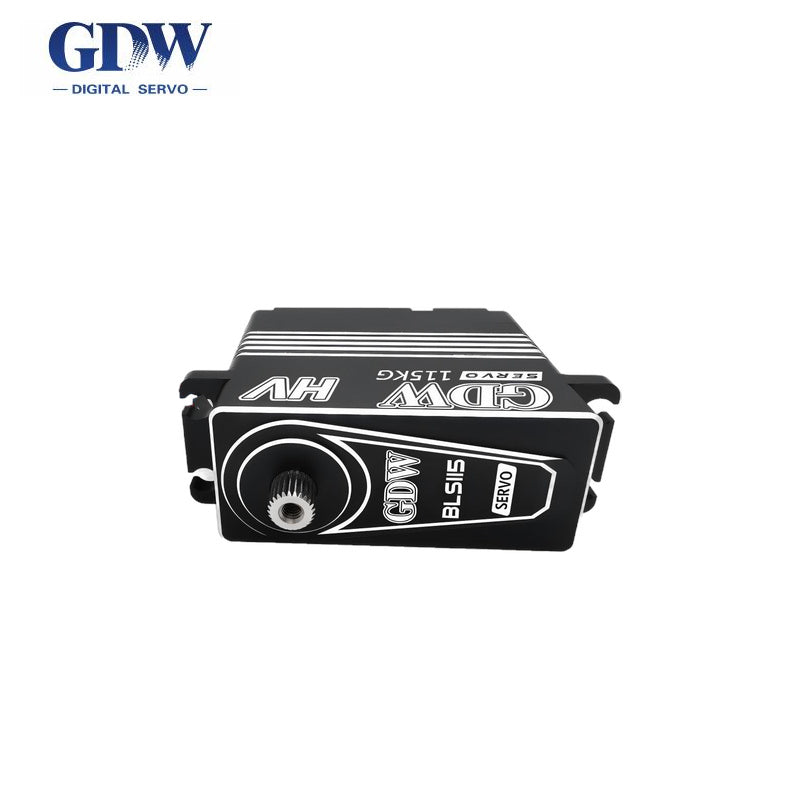

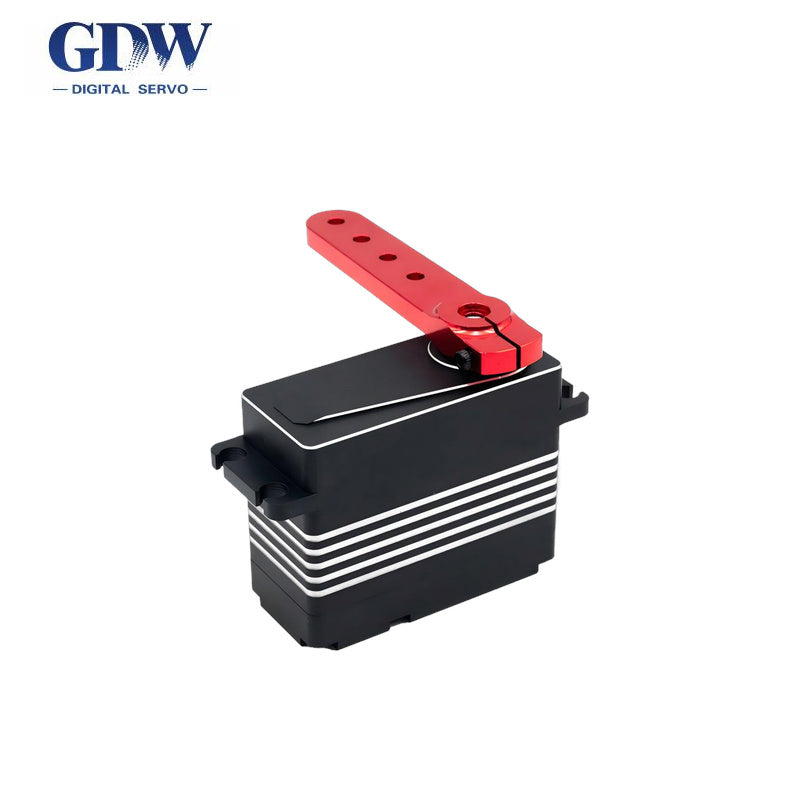

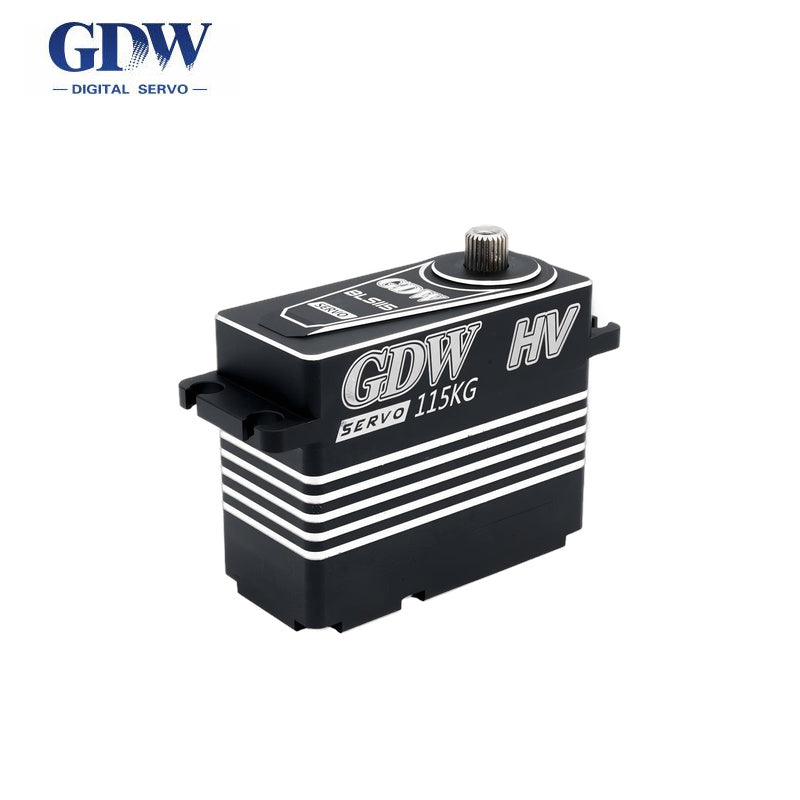

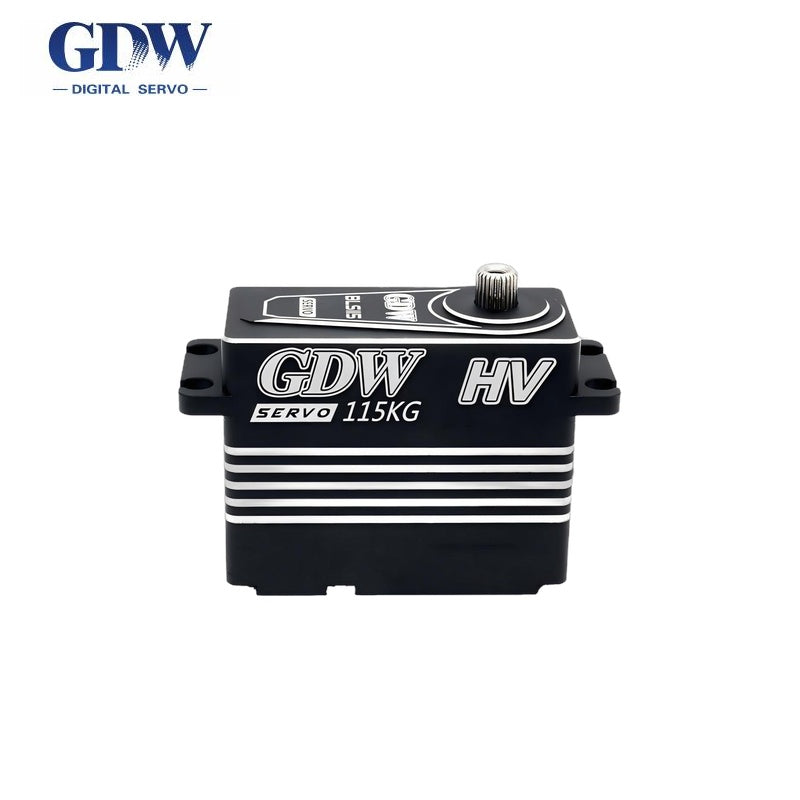

GDW BLS115HV Servo Motor

$325.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Working Voltage 8.4 V / 11.0 V / 12.0 V
Static Current 20 mA / 25 mA / 30 mA
No‑load Current 700 mA / 1000 mA / 1100 mA
Stall Current 8.0 A / 8.3 A / 8.5 A
Dead Band 3 µs / 3 µs / 3 µs
No‑load Speed (sec/60°) 0.19 / 0.15 / 0.14
Stall Torque (kg·cm) 82.0 / 105.0 / 115.0
Rated Torque (kg·cm) 20.5 / 26.3 / 28.8
Servo Type BLS115HV
Rated Voltage DC 8.4 – 12.0 V
Gear Material SUS303
Communication Protocol PWM
Shell Material Al6061 T6
Operating Temperature -20°C ~ +60°C
Motor Brushless Motor (24×32 mm)
Pulse Width Range 500 µs – 1500 µs – 2500 µs
Wiring 90 wire / 520 mm
Working Frequency 333 Hz
Dimensions (L×W×H) 65.5 × 29.5 × 54.60 mm
Operation Angle 180° ±5°
Bearing 2BB
Mapping Direction CW / CCW (optional)
Weight 259 g ±5%
Speed (f/set) 57.57°
Torque (kg·cm) – Continuous (see rated & stall above)
Signal (High / Low) HIGH: min. 2.31 V, max. 5.0 V; LOW: min. 0.0 V, max. 0.99 V

GDW-BLS115HV-Drawing.pdf
