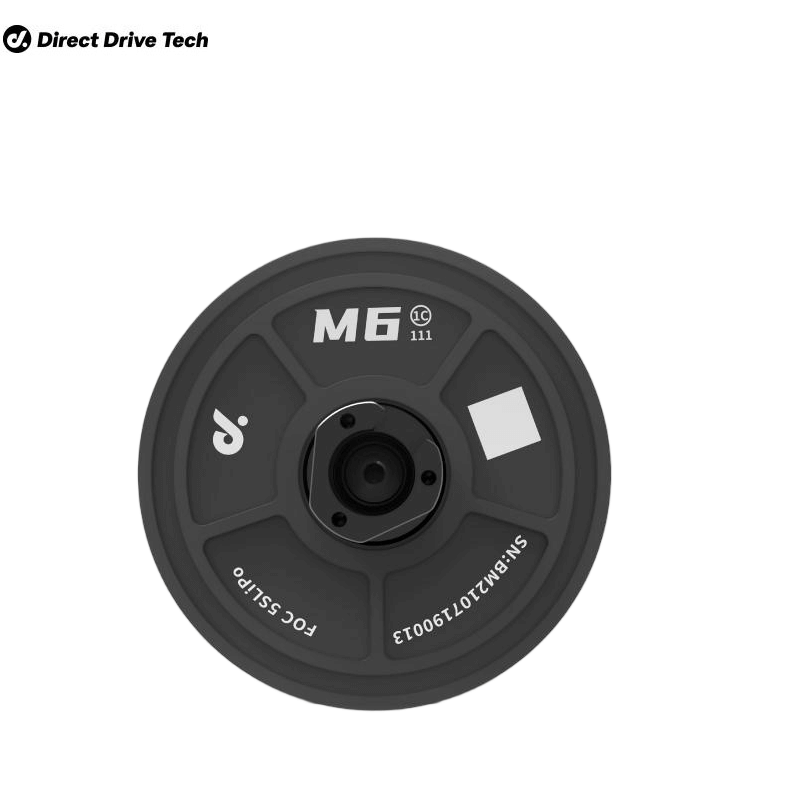

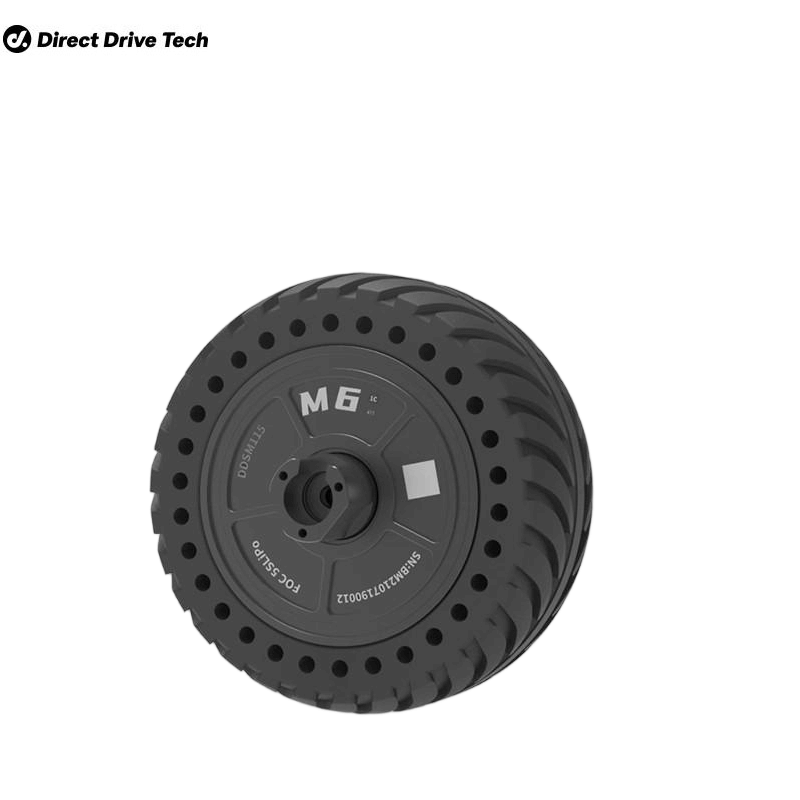

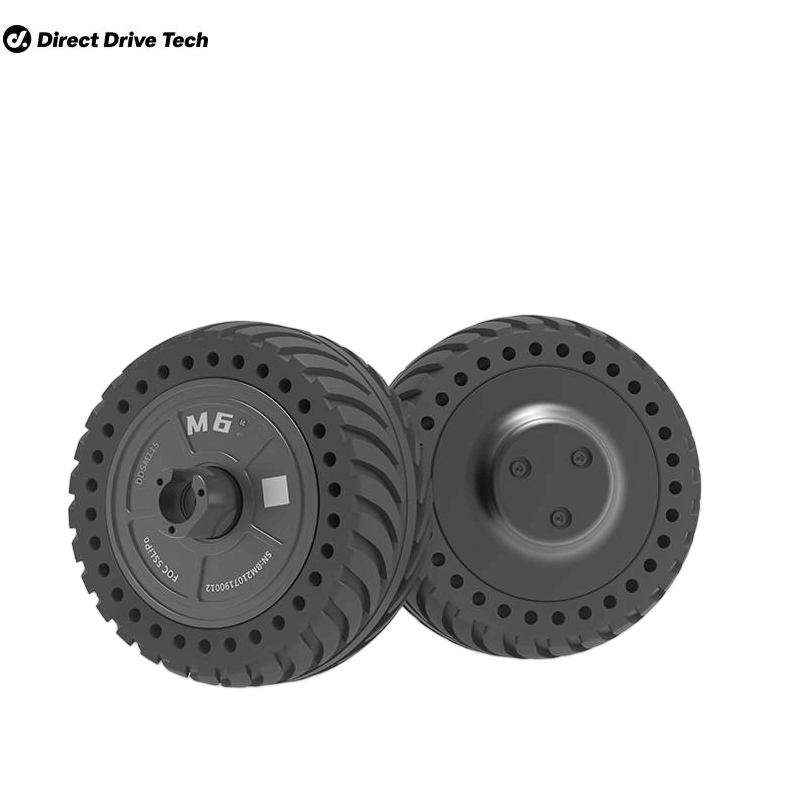

Direct Drive Tech M0601C Directdrive Motor
Regular price
$65.00
Unit price
/
Unavailable
Direct Drive Tech M0601C Directdrive Motor - M0601C_111 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Direct Drive Tech M0601C Directdrive Motor
Regular price
From
$65.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
|
Parameter |
Value |
|---|---|
| ltem Name | Direct Drive Tech M0601C Directdrive Motor |
| No-Load Speed |
200±10rpm
|
| No-Load Current |
≤0.25A
|
| Rated Speed | 115rpm |
| Rated Torque |
0.96N·m
|
| Rated Current |
1.25A
|
| Rated Voltage |
18VDC
|
| Maximum Efficiency |
≥60%
|
| Stall Torque |
≥2.0N·m
|
| StallCurrent |
≤2.7A
|
| Torque Constant |
0.75Nm/A
|
| Speed Constant |
11.1rpm/V
|
| Operating Ambient Temperature |
-20℃~45℃
|
| Motor Weight |
485g
|
| Encoder Resolution |
4096
|
| Accuracy (Relative) |
1024
|
| Noise Level |
≤50dB
|
| Protection Rating (IP Rating) |
IP54
|
M0601C_111_Installation_Dimension_Drawing.pdf
