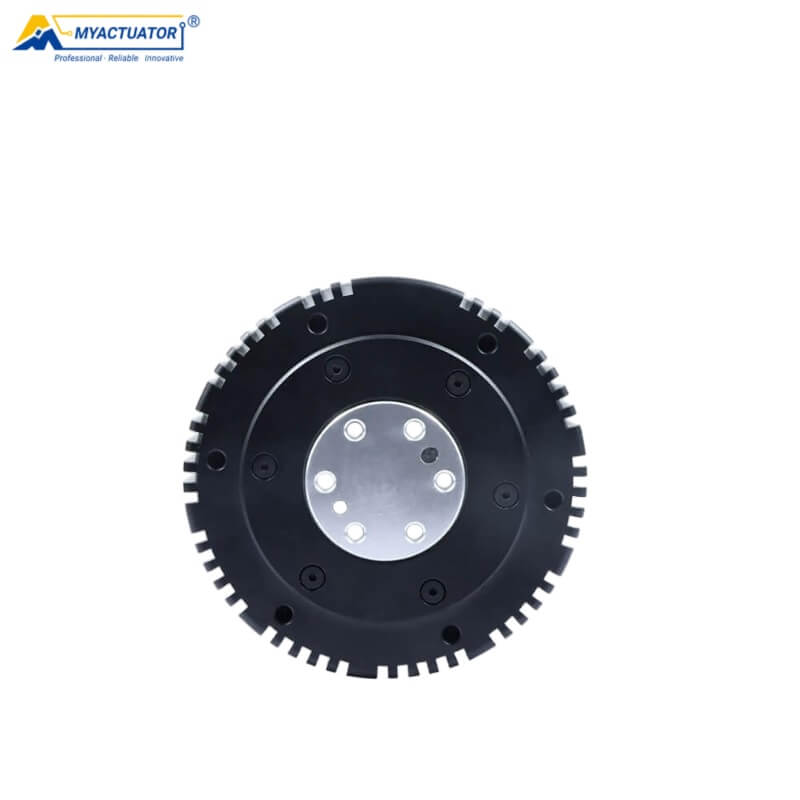

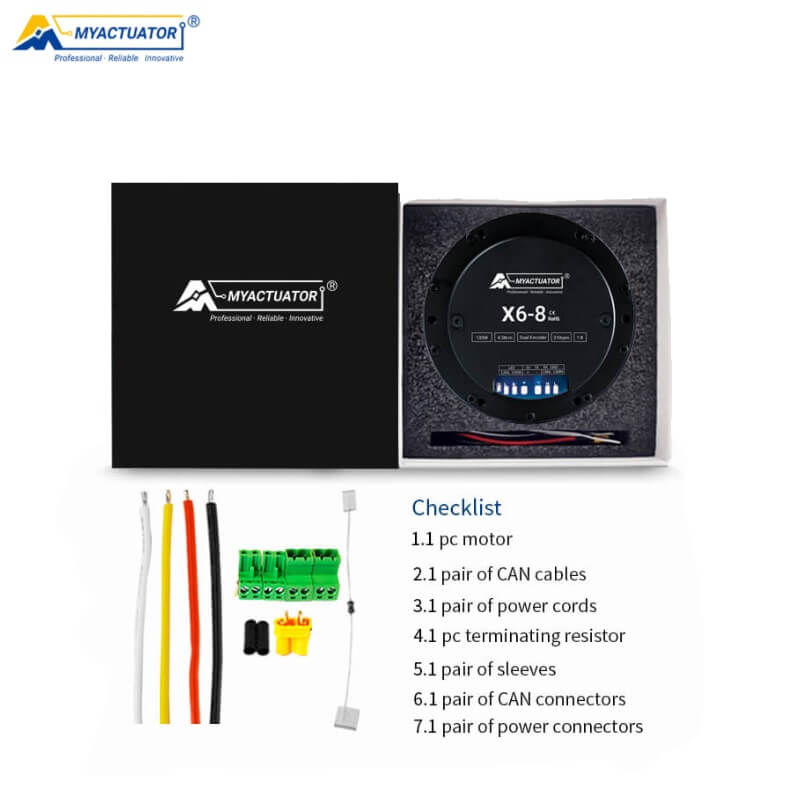

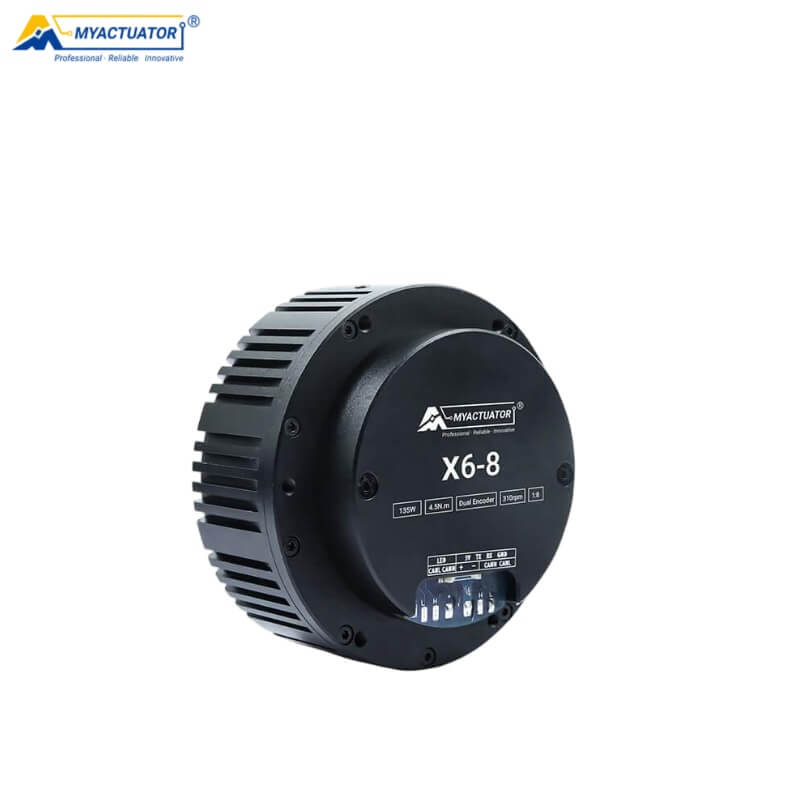

MyActuator RMD-X6-8 Motor
Regular price
$255.00
Unit price
MyActuator RMD-X6-8 Motor - RMD-X6 1:8 V3 Dual Encoder Without Driver / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MyActuator RMD-X6-8 Motor
Regular priceFrom
$255.00
Unit price
MyActuator RMD-X6-8 Motor - RMD-X6 1:8 V3 Dual Encoder Without Driver / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information

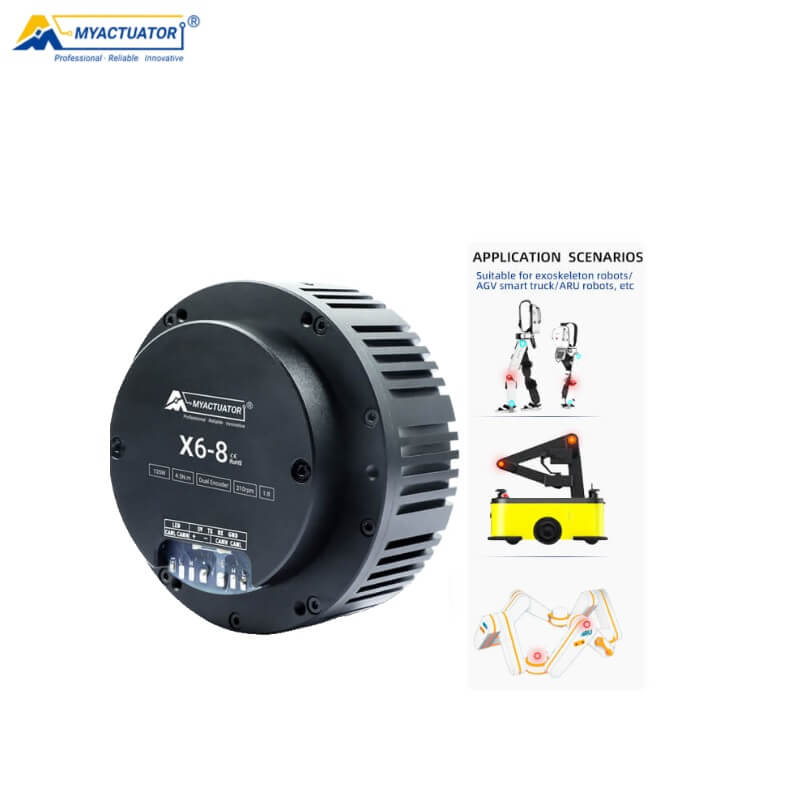

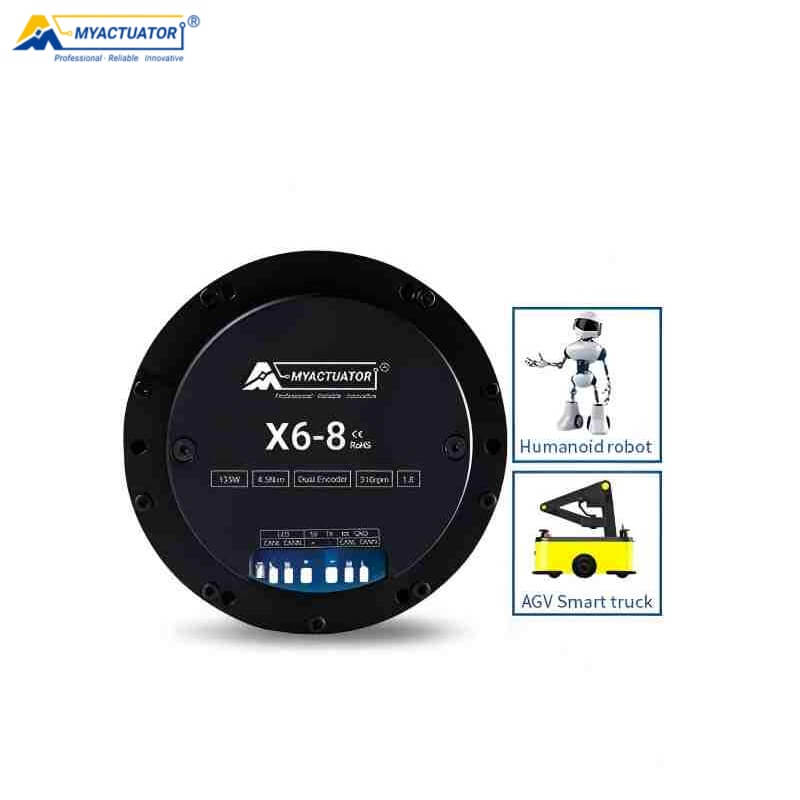

Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Gear Ratio | 8 |
| Input Voltage | 48V |
| Rated Speed | 310RPM |
| Rated Torque | 4.5N.m |
| Rated Output Power |
135W |
| Rated Phase Current |
3.6A(rms) |
| Peak Torque | 8N.m |
| Peak Phase Current | 7.2A(rms) |
| Efficiency | 78% |
| Pole Pair | 14 |
| Anti-Force Torque | 0.1N.m |
| Backlash | 10Arcmin |
| Axial Payload | 775N |
| Radial Payload |
1040N |
| Inertia |
6.8Kg.cm² |
| Encoder Type | 14/14 |
| Communication | CAN:1M/RS485:115200/500K/1M/2.5M |
| Weight | 0.49Kg |

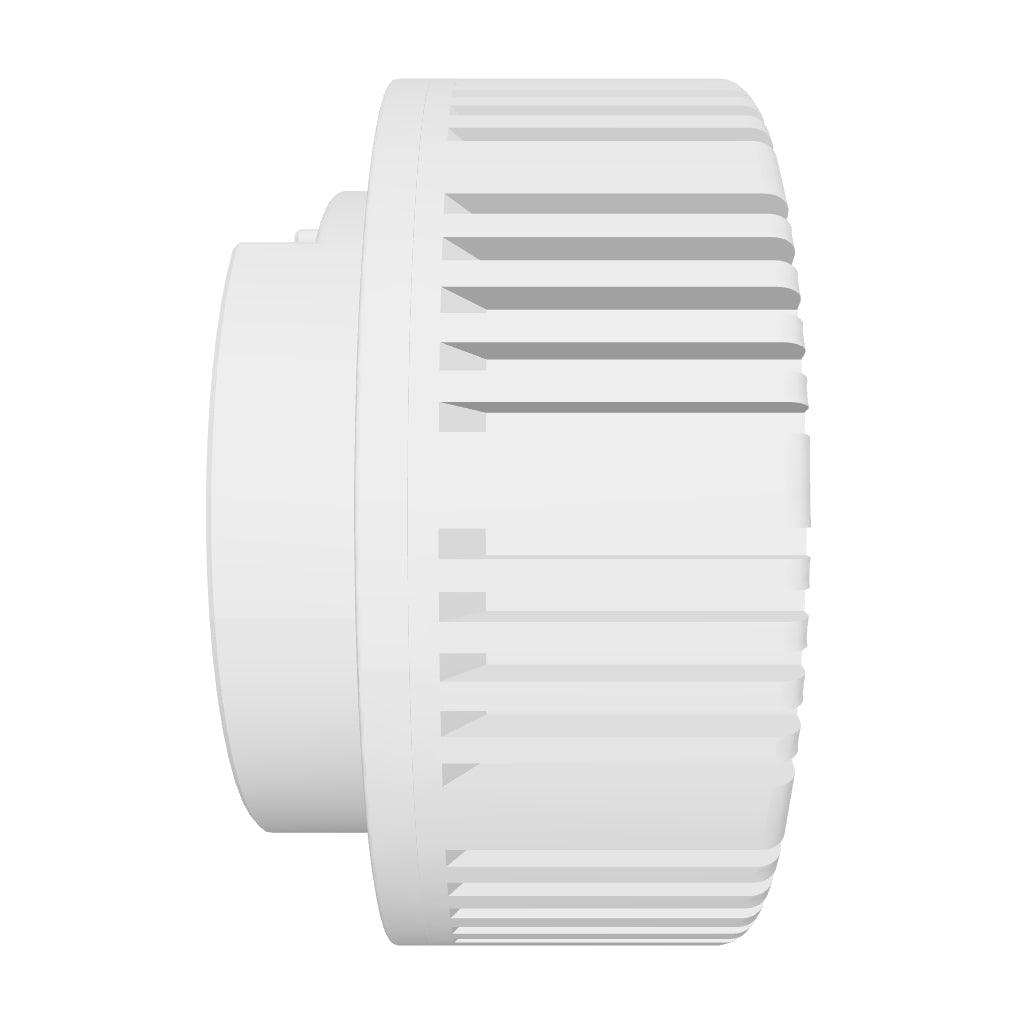

MyActuator_RMD_X6_8.stp
MyActuator-X6-8-Information.pdf
Motor_Motion_Protocol.pdf
