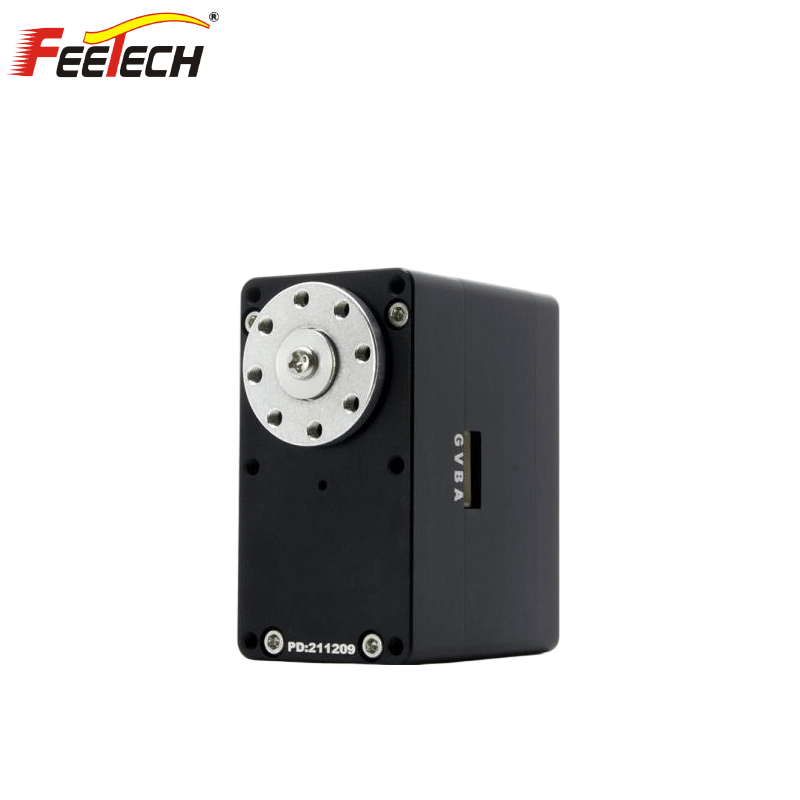

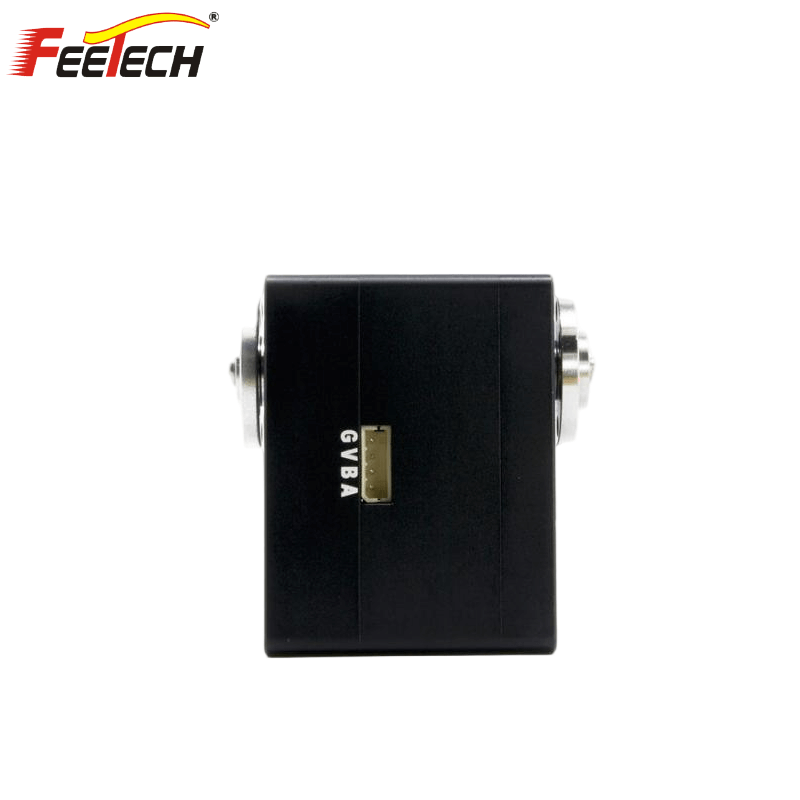

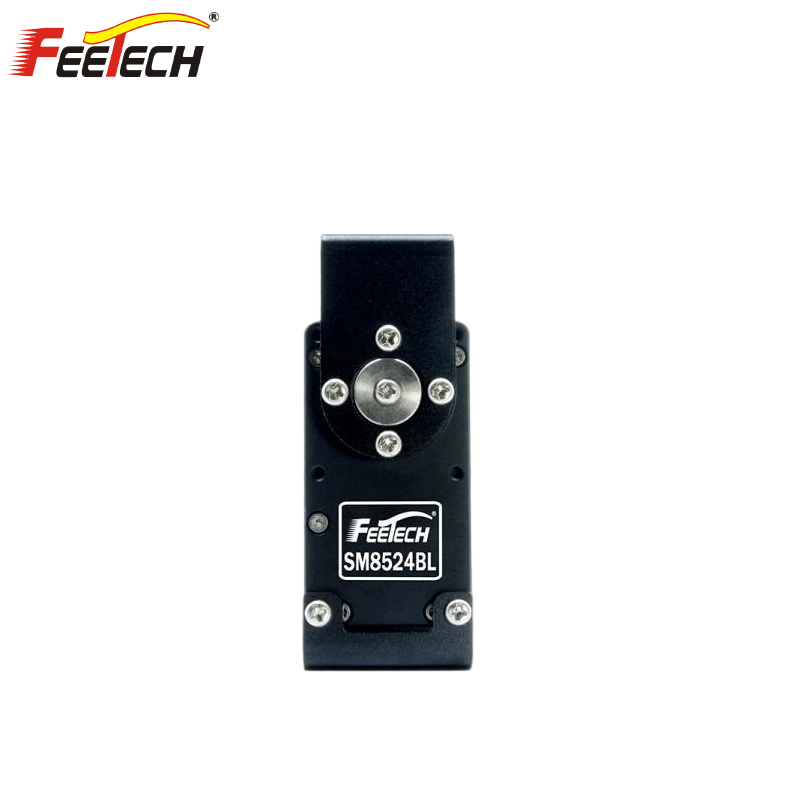

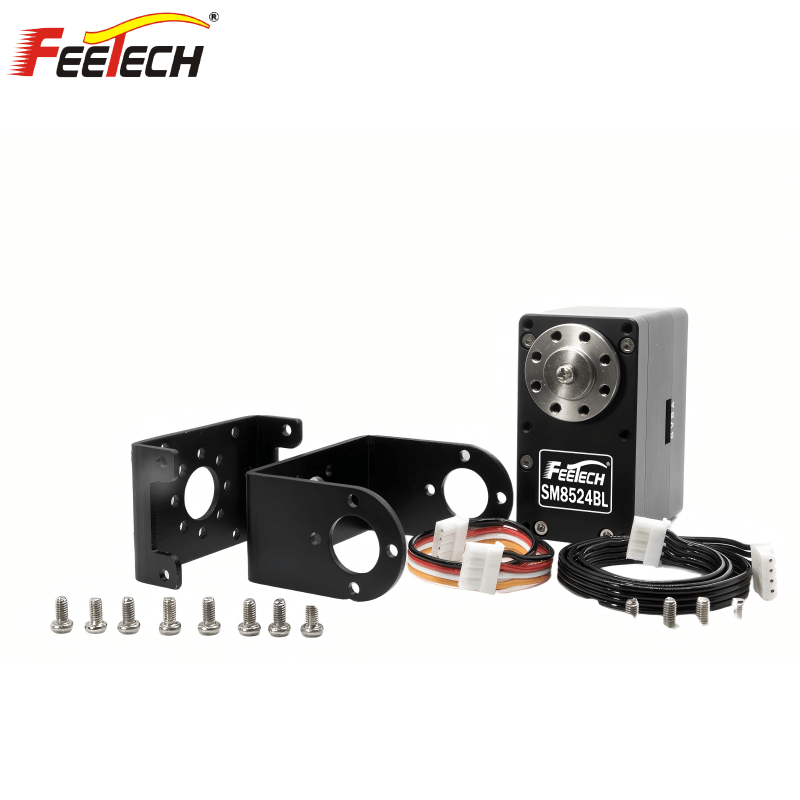

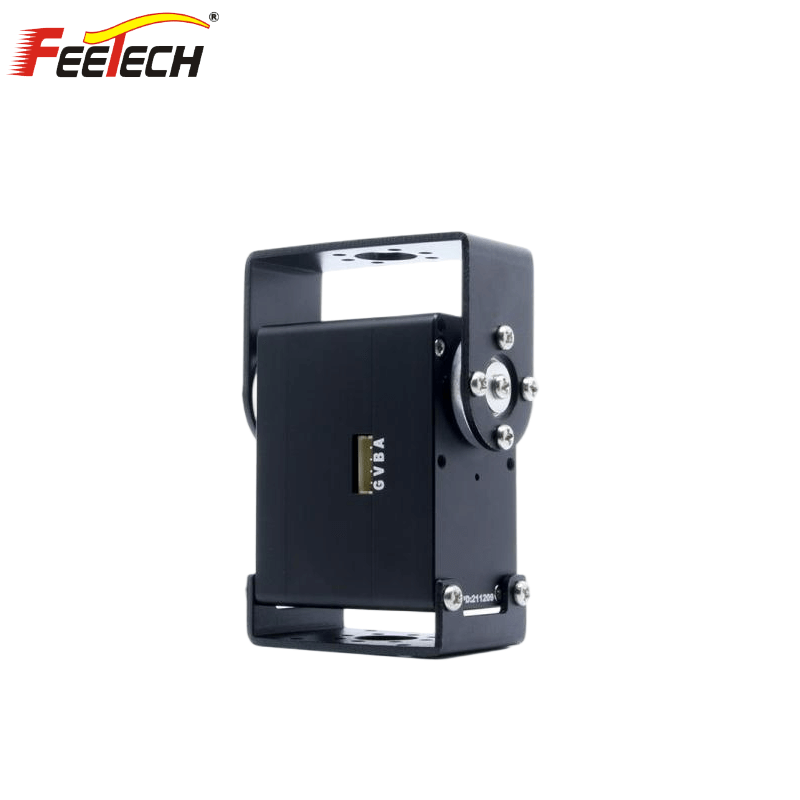

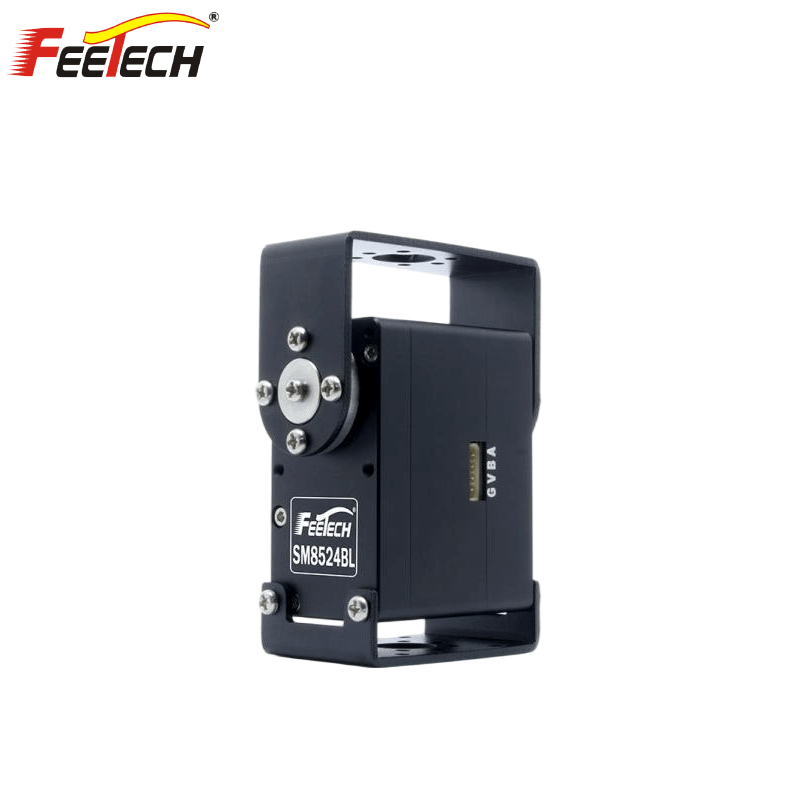

FEETECH SM8524BL-C001 Servo Motor

$212.00

Version

SM-8524BL-C001 SM-8524BL-C001 + Debugging board

Protocol Type

MODBUS-RTU Protocol Custom Protocol

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Model	SM8524BL-C001
Product Name	24V 85kg.cm Serial bus servo
Storage Temperature Range	-30℃～80℃
Operating Temperature Range	-20℃～70℃

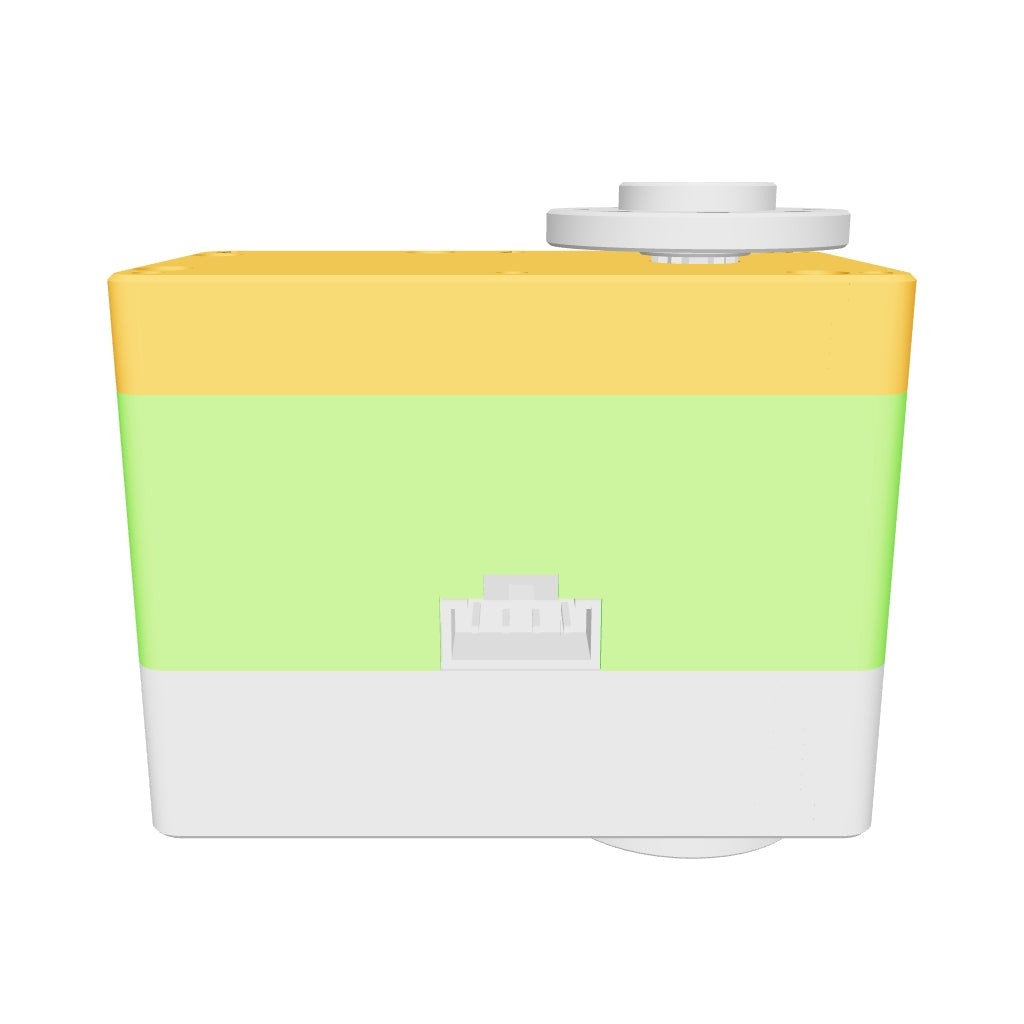

Dimensions	A：62mm B：34mm C：47mm
Weight	215±1g
Gear type	Steel
Limit angle	No limit
Bearing	Ball bearings
Horn gear spline	15T/OD7.6mm
Horn type	Aluminium
Case	Aluminium
Connector wire	40CM
Motor	Brushless Motor
Operating Voltage Range	9V-24V
No load speed	0.154sec/60degree
Runnig current(at no load)	250mA@24V
Peak stall torque	85kg.cm@24V
Rated torque	28kg.cm@24V
Stall current	5.6A@24V
Command signal	Digital Packet
Protocol Type	Half Duplex Asynchronous Serial Communication
ID range	0-253
Communication Speed	38400bps ~ 1Mbps
Running degree	360° (when 0~4095)
Feedback	Load, Position, Speed, Input Voltage, Current, Temperature
