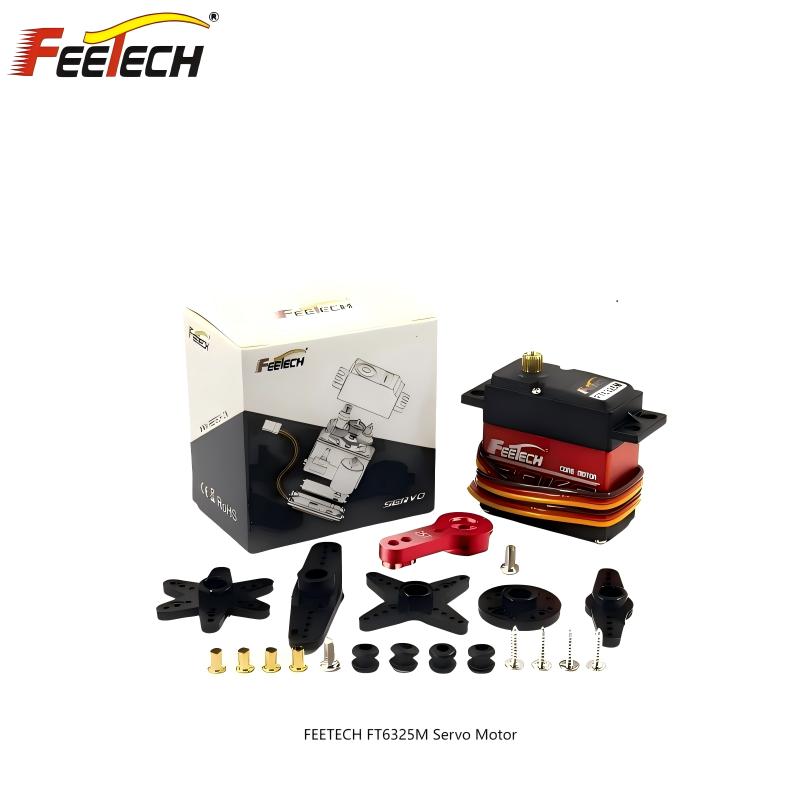

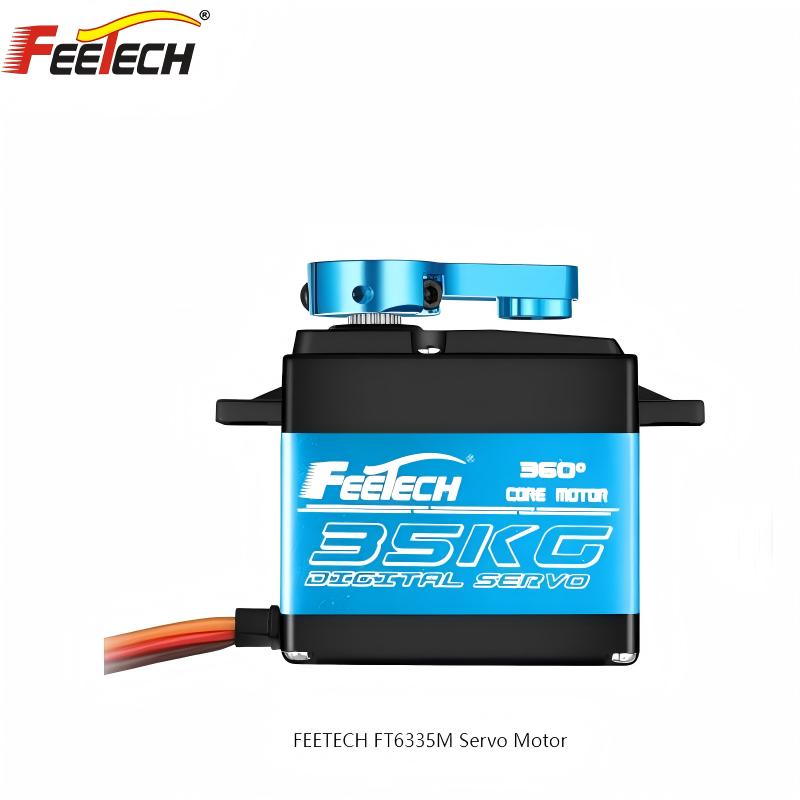

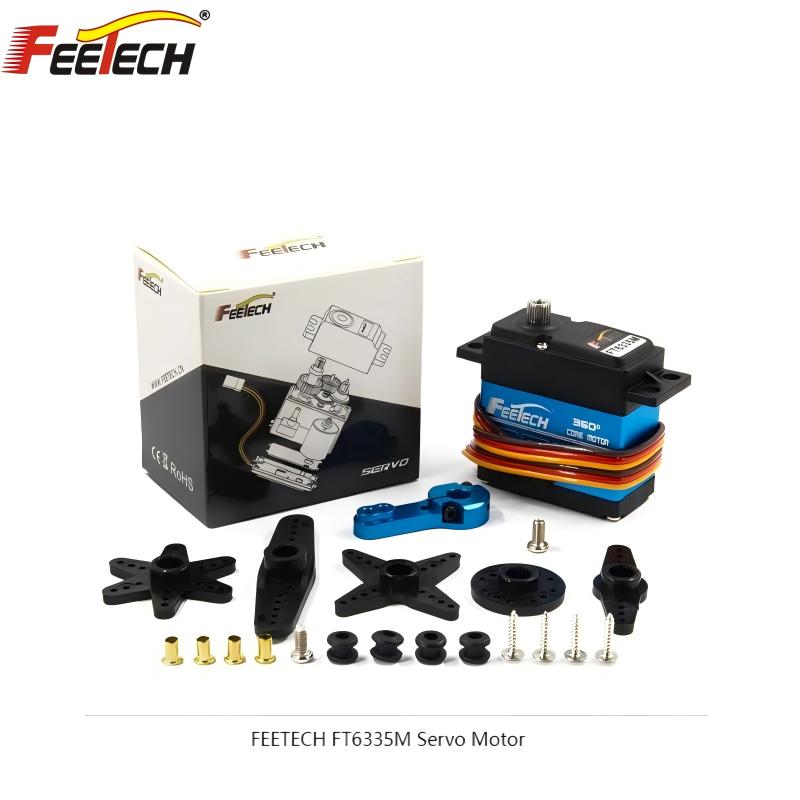

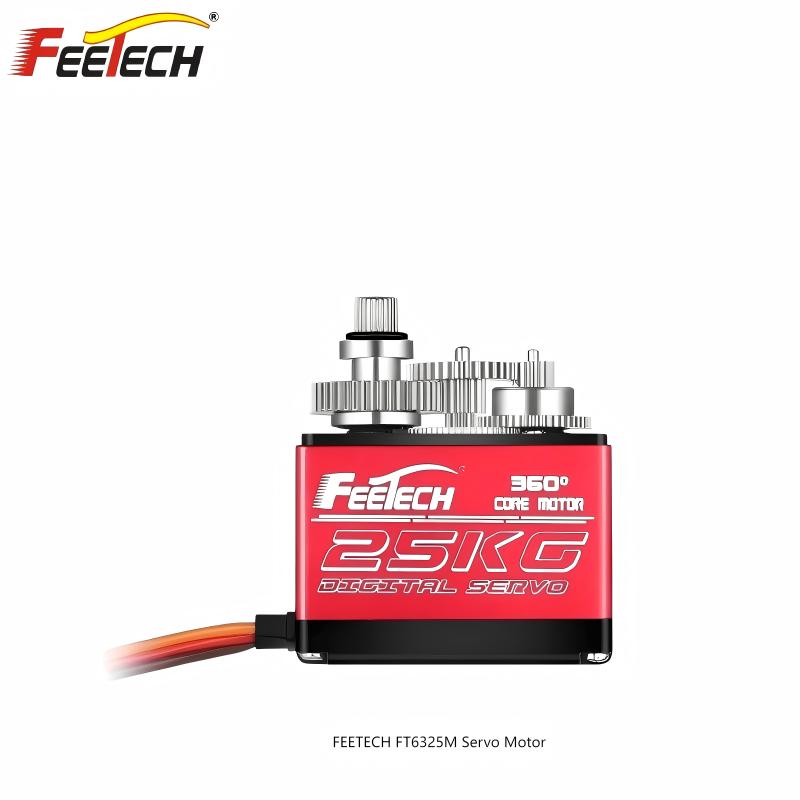

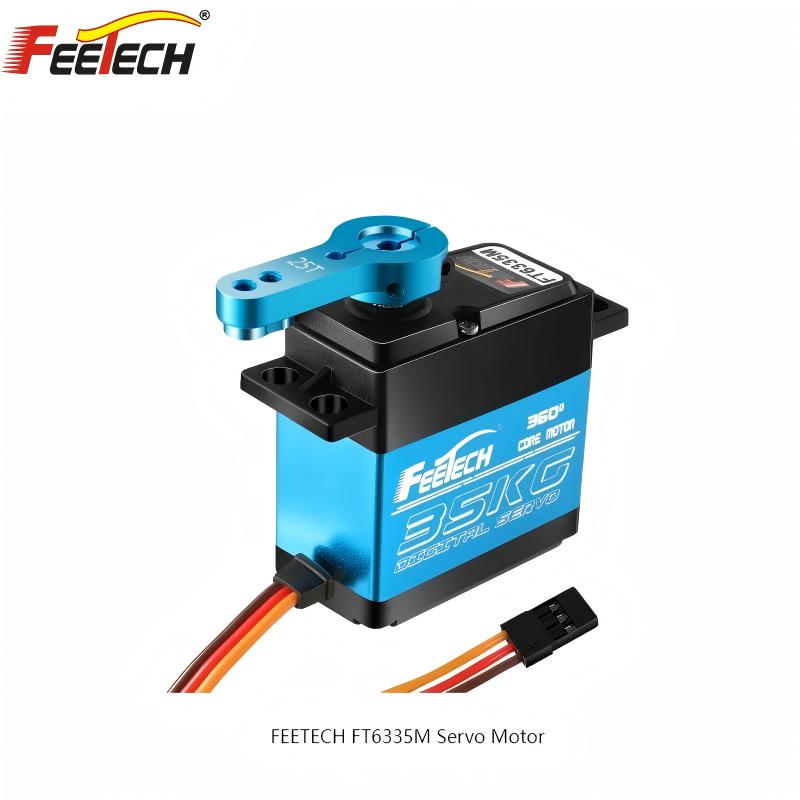

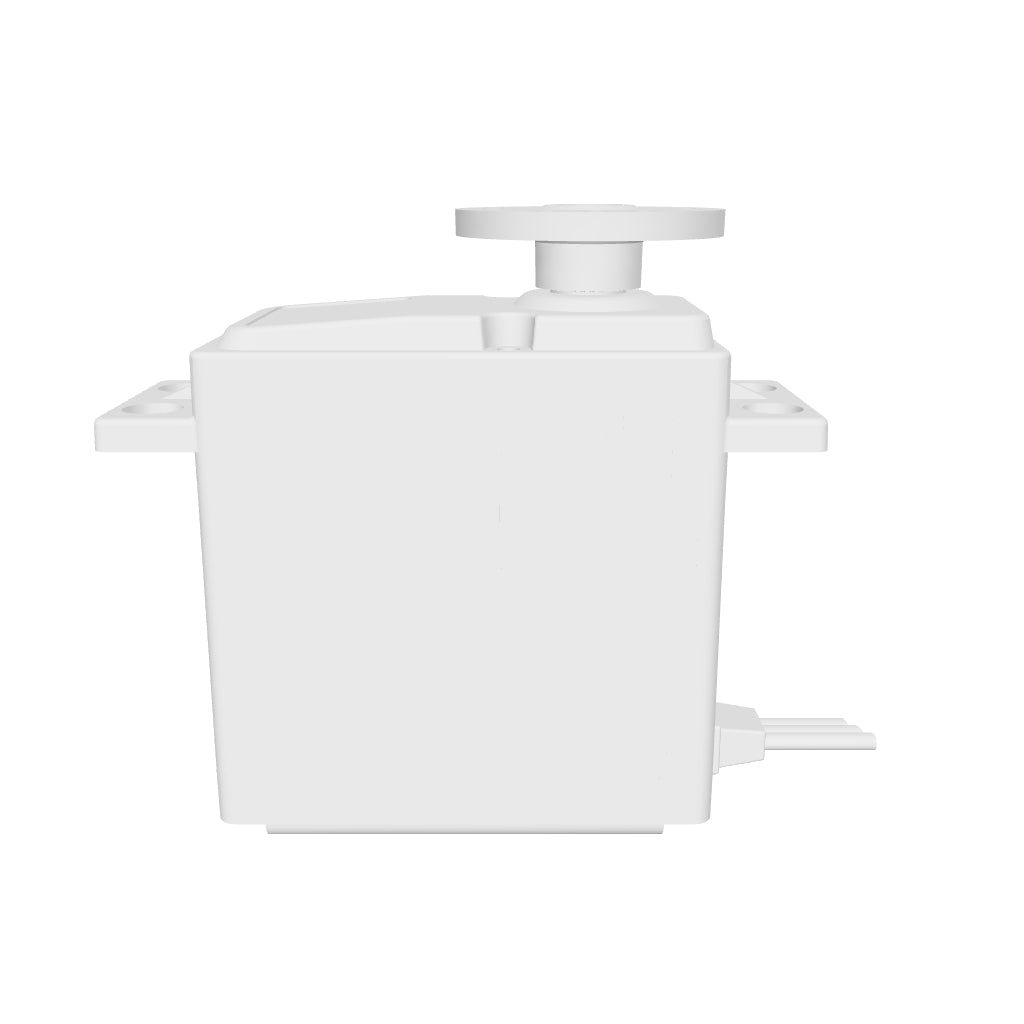

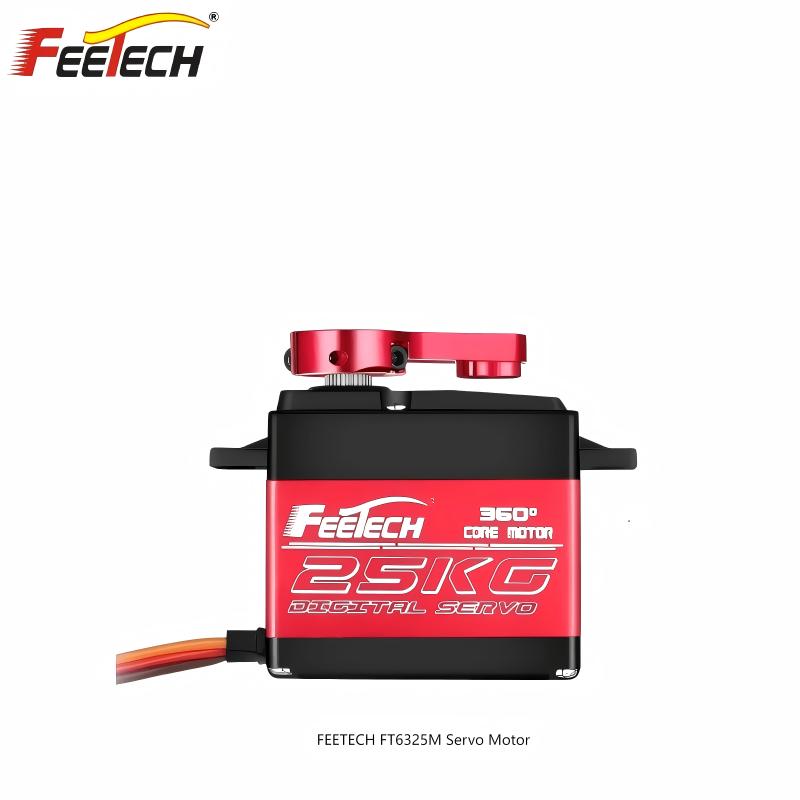

FEETECH FT6325M Servo Motor

$35.00

Version

FT-6325M-C001 (7.4V25KG) FT-6335M-C001 (7.4V35KG)

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value	Value
Model	FT6325M	FT6335M
Product Name	7.4V 25kg.cm digital 360 degree magnetic coded aluminum mid-shell steel gear iron core servo	7.4V 35kg.cm digital 360 degree magnetically coded aluminum mid-shell servo
Storage Temperature Range	-30℃～80℃	-30℃～80℃
Operating Temperature Range	-20℃～60℃	-20℃～60℃
Size	A：55mm B：20mm C: 43mm	A：55mm B：20mm C: 43mm
Weight	67土1g	67土1g
Gear type	Steel	Steel
Limit angle	NO limit	NO limit
Bearing	Ball bearings	Ball bearings
Horn gear spline	25T/5.9mm	25T/5.9mm
Horn type	Plastic POM	Plastic POM
Case	PA+Aluminum	PA+A lumi num
Connector wire	30CM	30CM
Motor	Core Motor	Core Motor
Operating Voltage Range	6V-8.4V	6V-7.4V
Idle current (stopped)	6MA@7.4V	6MA@7.4V
No load speed	0.151sec/60°@7.4V	0.192sec/60°@7.4V
Runnig current(at no load)	120mA@7.4V	180mA@7.4V
Peak stall torque	25kg.cm@7.4V	35.5kg.cm@7.4V
Rated torque	8.3kg.cm@7.4V	11.8kg.cm@7.4V
Stall current	3.5A@7.4V	3.9A@7.4V
Command signal	Pulse width modification	Pulse width modification
Amplifier type	Digital comparator	Digital comparator
Pulse width range	500~2500 μ sec	500~2500 μ sec
Stop position	1500 μ sec	1500 μ sec
Running degree	360° （at500→2500 μ sec)	360° （at500→2500 μ sec)
Dead bandwidth	≤4 μ sec	≤4 μ sec
Rotating direction	Counterclockwise (1500→2000 μ sec)	Counterclockwise (1500→2000 μ sec)
