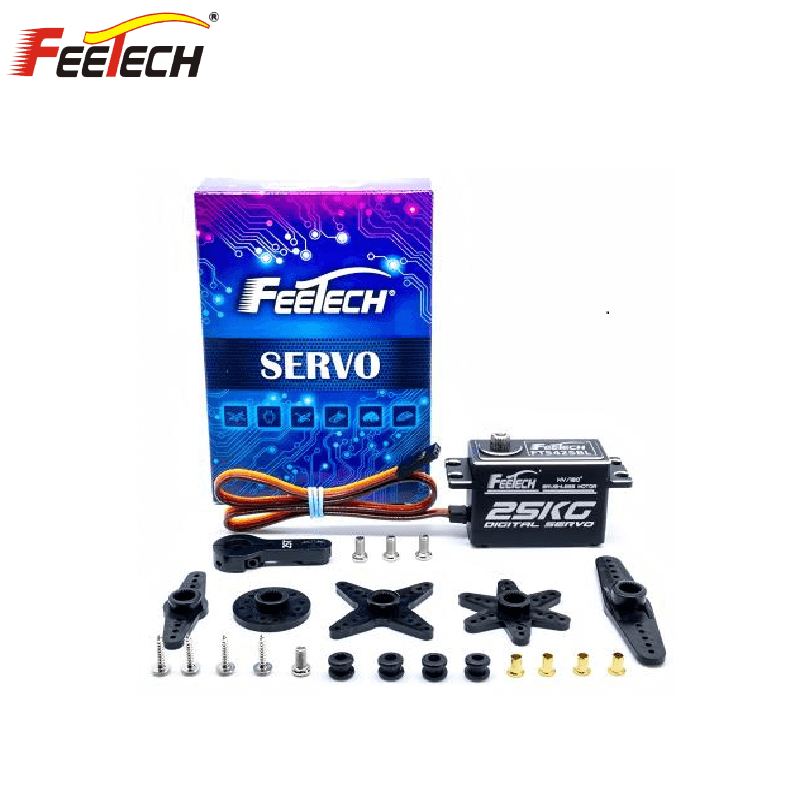

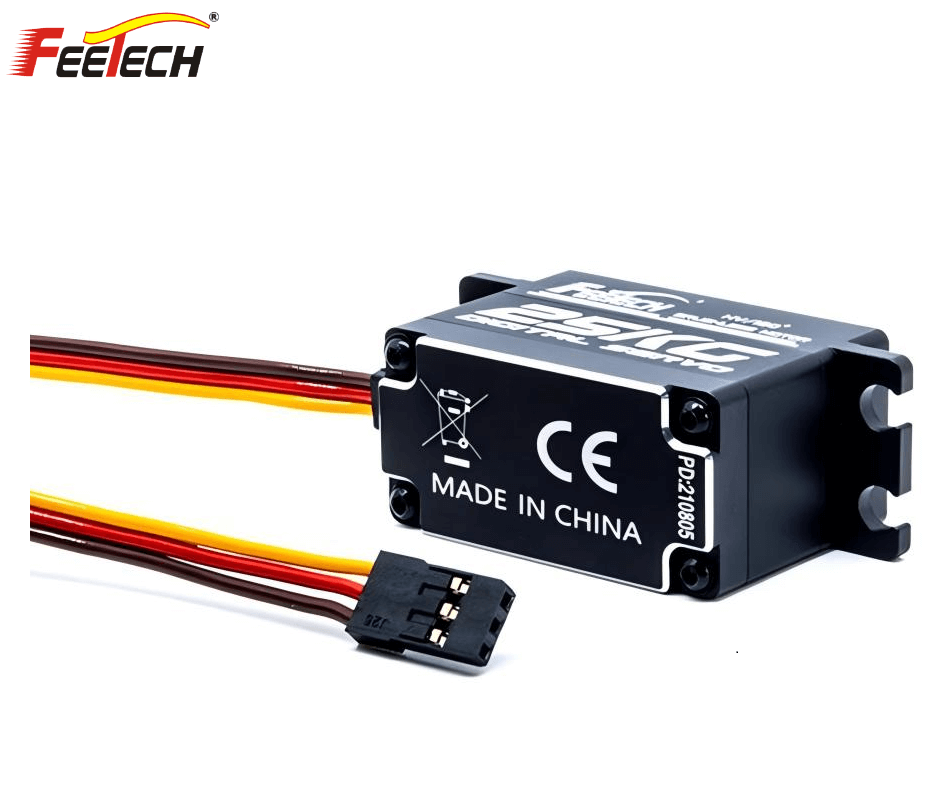

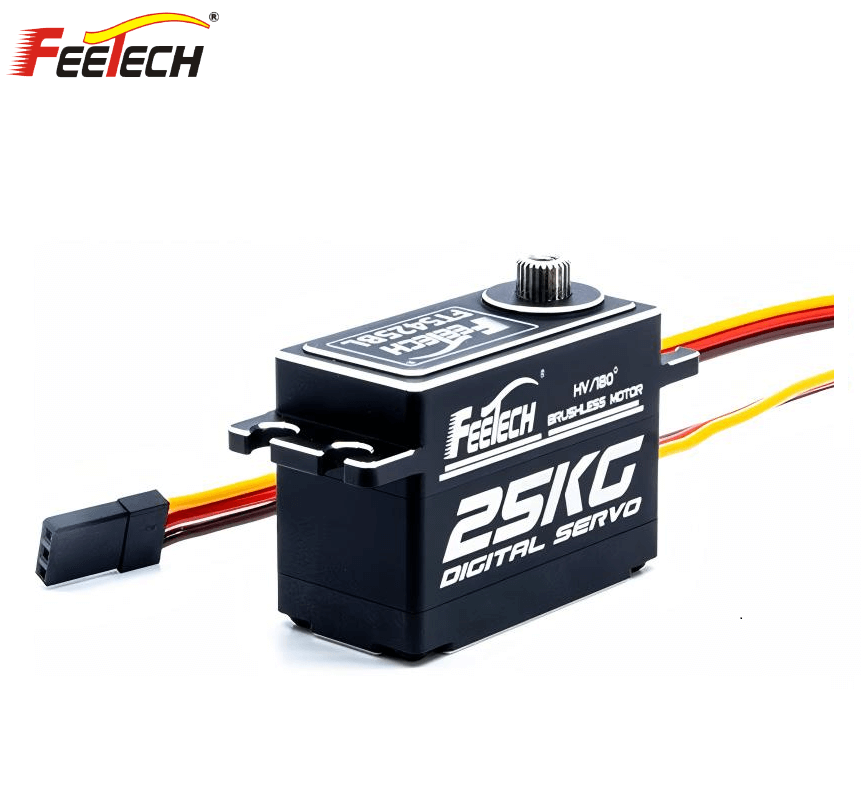

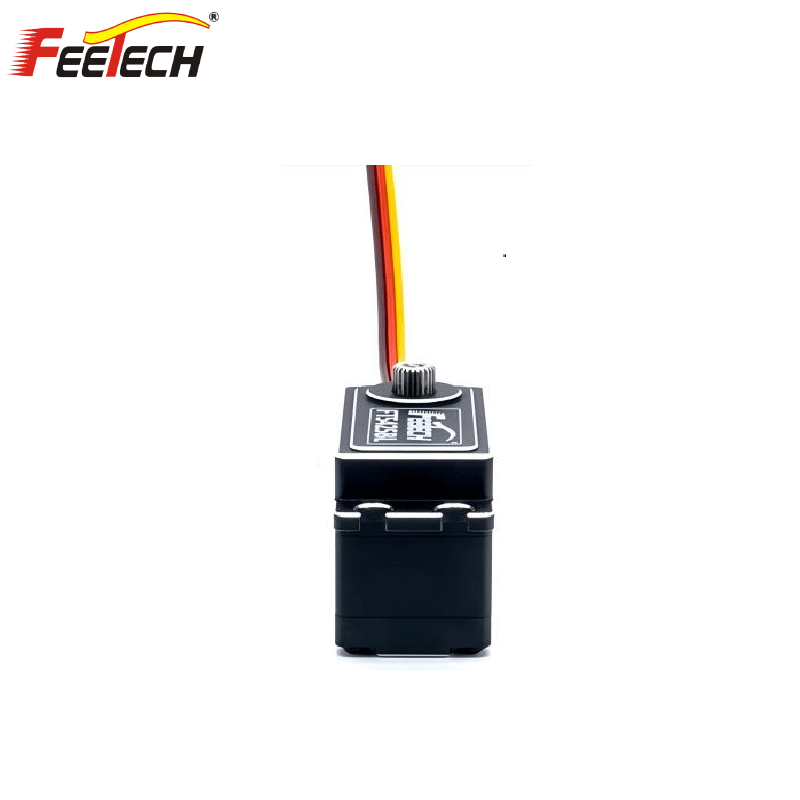

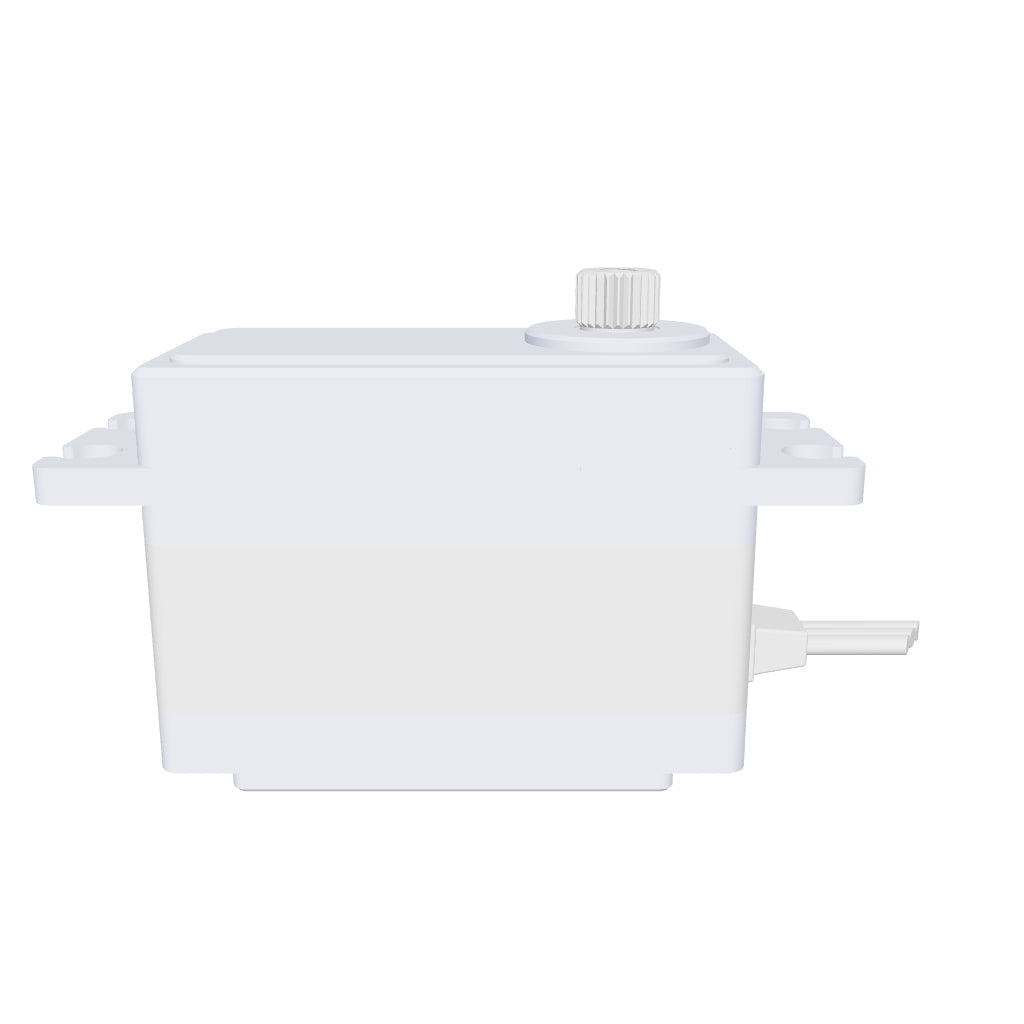

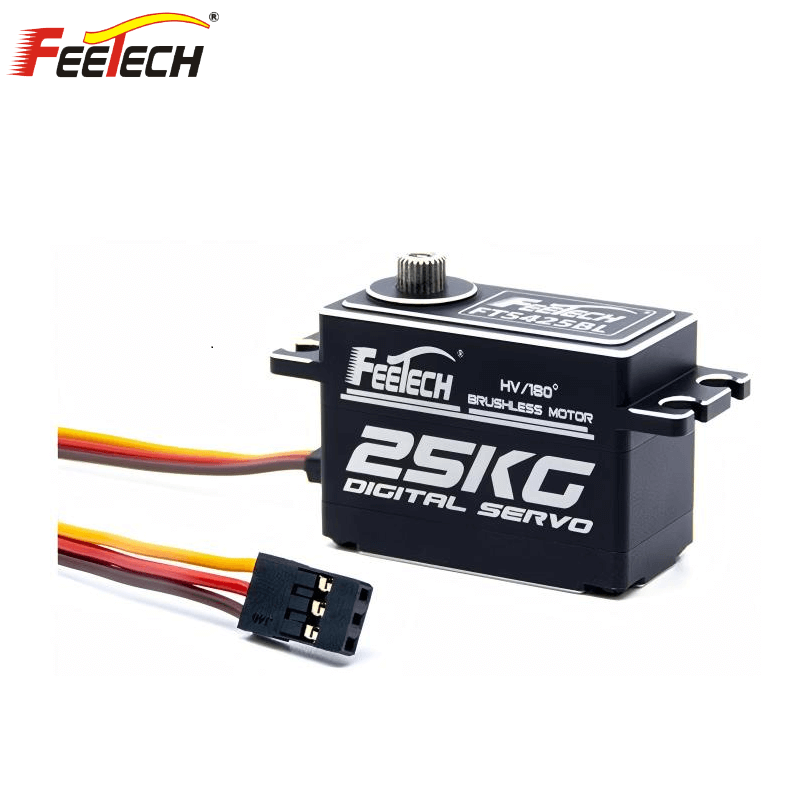

FEETECH FT5425BL Servo Motor
Regular price
$70.00
Unit price
FEETECH FT5425BL Servo Motor - FT5425BL-C001 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT5425BL Servo Motor
Regular price
$70.00
Unit price
FEETECH FT5425BL Servo Motor - FT5425BL-C001 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT5425BL-C001 |
| Product Name | 180 Degree Steel Gear Brushless Motor Digital Servo |
| Storage Temperature Range |
-30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Size | A：40.6mm B：20mm C: 30mm |
| Weight | 67.6± 1g |
| Gear type | Steel |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Gear Ratio | 1/258 |
| Case | Aluminum |
| Connector wire | 30CM |
| Motor |
Brushless Motor |
| Operating Voltage Range | 4V-12V |
| Idle current(at stopped) | 6MA@8.4V |
| No load speed | 0.08sec/60°@8.4V |
| Runnig current(at no load) | 180mA@8.4V |
| Peak stall torque | 28.5kg.cm@8.4V |
| Rated torque | 9.5kg.cm@8.4V |
| Stall current | 5A@8.4V |
| Command si gnal | Pulse width modification |
| Amplifier type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180°± 5° (at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwise (1500→2000 μ sec) |
